SS304 SS316 Graphite Packing Spiral Wound Gasket Flange Gasket
- Category: Gaskets >>>
- Supplier: Hengshui,Aohong,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Spiral Wound Gaskets
Product properties
Gasket type | A, B, C, D |
Component | inner ring, ourter ring, sealing element |
Fill Material | graphite,PTFE, Non-asbestos, Mica,etc |
Winding Material | SS304, other material please contact me |
Standard Thickness | 3.2mm, 4.5mm |
Color | According to ASME B16.20, can custom |
IF YOU ARE INTERESTED, PLEASE CONTACT ME FOR INQUIRY.
Product introduction
A Spiral Wound Gasket is the most common metallic gasket used in industrial plants. A properly selected and installed spiral wound gasket can withstand high temperatures and pressures, preventing leaks throughout their intended lifespan.
A spiral wound gasket consists of three elements:
Outer ring. Made of carbon steel, this outer ring is sometimes called the centering ring or guide ring. It’s used to center the gasket when you insert it into a bolted flange joint.
Inner ring. The inner ring is pivotal for the gasket because it prevents windings from buckling inside the pipe. When a gasket buckles, parts of it get sucked into the pipe. From there, pieces of the gasket will typically flow through the pipeline until they get caught on something. Often, they’ll get wrapped around rotating equipment like a pump. Inner rings help you avoid this problem.
Sealing element. As you might guess from the name, the sealing element creates the seal that prevents leaks. A sealing element encompasses both windings and filler material. Most spiral wound gaskets in oil and gas refineries will use a flexible graphite filler material rated for high temperatures. A flexible graphite filler also allows the gasket to be more tolerant of flange distortion and joint misalignment. Polytetrafluoroethylene (PTFE) is another common filler material. PTFE is not rated for high-temperature applications.
A spiral wound gasket consists of three elements:
Outer ring. Made of carbon steel, this outer ring is sometimes called the centering ring or guide ring. It’s used to center the gasket when you insert it into a bolted flange joint.
Inner ring. The inner ring is pivotal for the gasket because it prevents windings from buckling inside the pipe. When a gasket buckles, parts of it get sucked into the pipe. From there, pieces of the gasket will typically flow through the pipeline until they get caught on something. Often, they’ll get wrapped around rotating equipment like a pump. Inner rings help you avoid this problem.
Sealing element. As you might guess from the name, the sealing element creates the seal that prevents leaks. A sealing element encompasses both windings and filler material. Most spiral wound gaskets in oil and gas refineries will use a flexible graphite filler material rated for high temperatures. A flexible graphite filler also allows the gasket to be more tolerant of flange distortion and joint misalignment. Polytetrafluoroethylene (PTFE) is another common filler material. PTFE is not rated for high-temperature applications.
Related Products
Why Choose Us
Company Profile
Hengshui Aohong Technology Co., Ltd is a modern high-technology enterprise specialized in production and sales of sealing and heat insulation material with an experience of more than twenty years. We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our Client

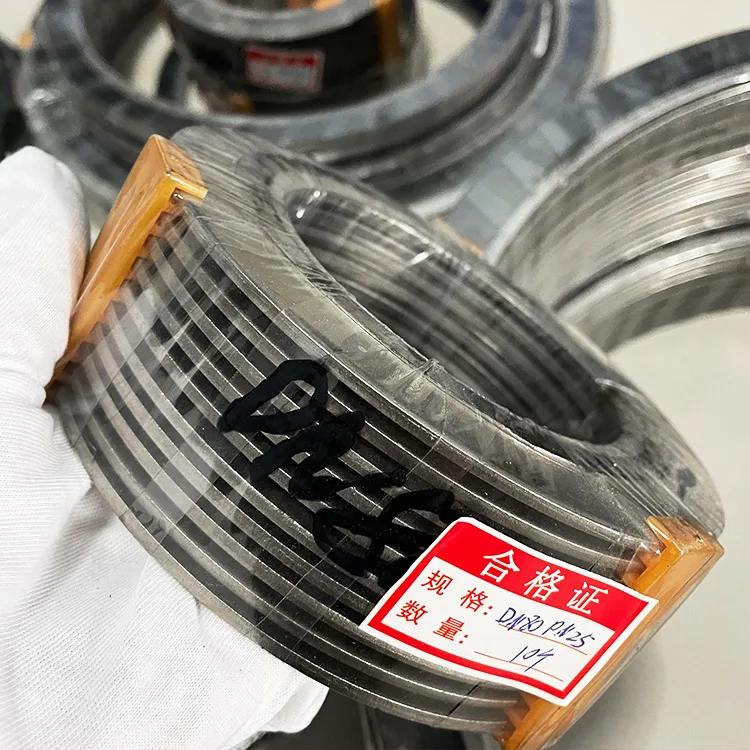

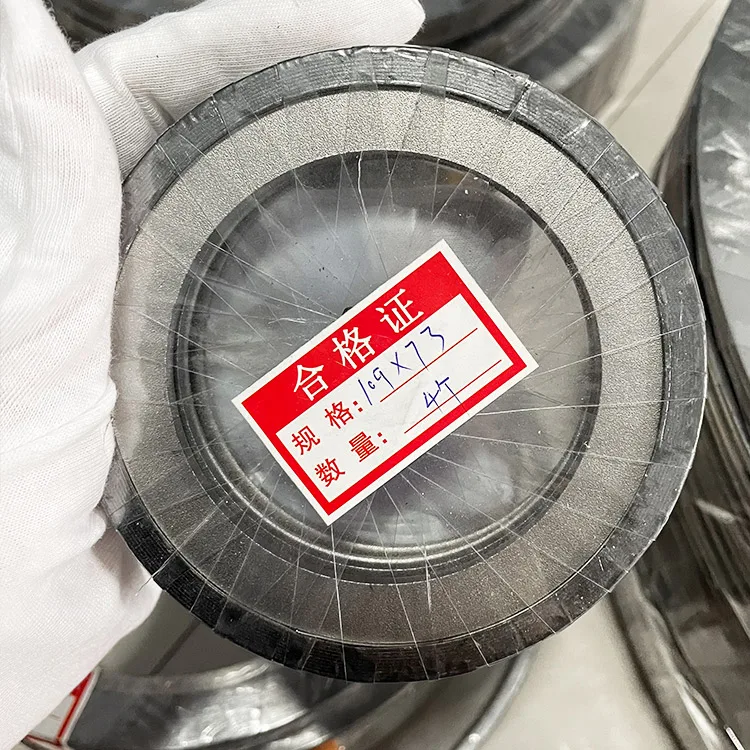

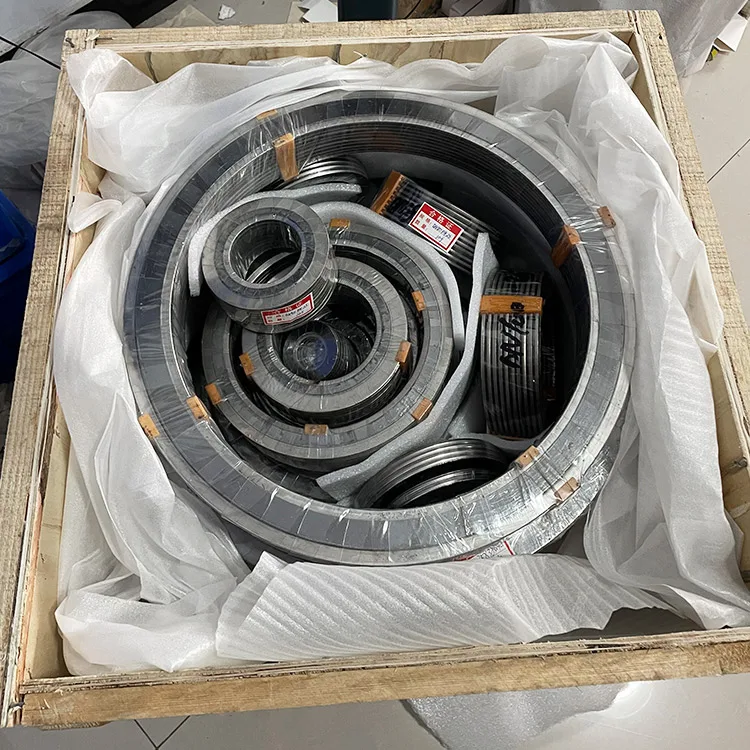

Packing and Delivery
FAQ
1.Can we get your free samples?
3.What is the normal delivery time ?
Around 15-20 days according to the quantity.
4.What is your shipping terms?
5.How does your factory do regarding quality control?
Sure, free sample can be provided for testing quality. Please contact us for samples.
2.Can we do printing or label printing on the gasket?
Yes, we provide OEM service, please inform us in advance if you need to print brand.
3.What is the normal delivery time ?
Around 15-20 days according to the quantity.
4.What is your shipping terms?
By courier or by sea, by air.
5.How does your factory do regarding quality control?
We do leak test for 3 times before packing.
