New Design PVC Mixer Rubber Mixer Powder Mixer Mixing Machine With dosing system

Share on (1600519636611):


Price:$15,000.00

Quantity:


Product Overview

Description

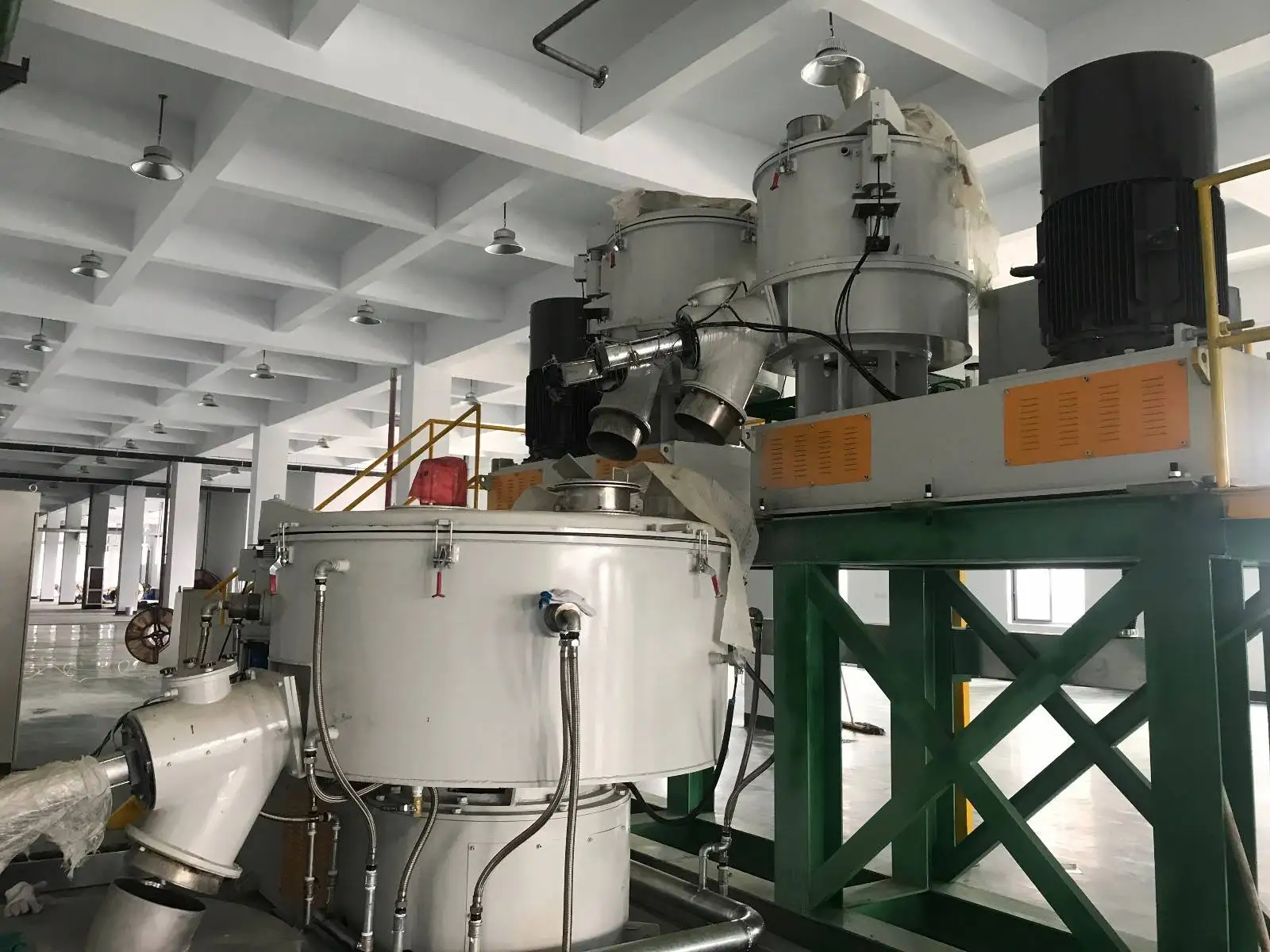

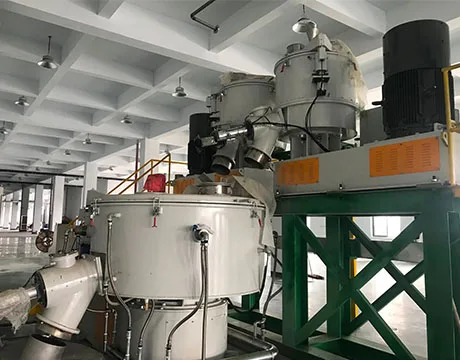

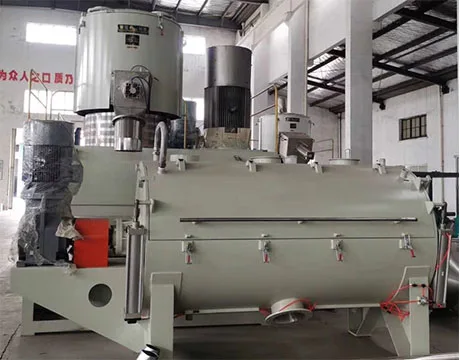

About Horizontal Industrial mixer
Application:
For all kinds of plastic parts, mixing, drying, coloring and other processes,The unit consists of hot mixer and cooling mixer,is the ideal choice for the production of profiles, pipe manufacturers.

SRL-Z/W series mixer unit is applicable for mixing, colouring and drying of various resin such as poly, PE,PP,PVC polypropylene, poly chloride etc.
Features:
▲ All parts contacted with material is SS304 and material will not be contaminated.
▲ High cooling efficiency, short mixing time. easy and convenient to clean, and can reach high output.
▲ Improved cooling efficiency and reduced water consumption.
▲ Equipped with the pulse dust-cleaning recovery device.
▲ Mixing tool coated with wear-resistant material, which can Increase service life and past dynamic and static balance
test,running smoothly.
▲ Rapid,perfect after-sales service.
Main Technical Parameters:


 Item
Model
Total Volume(L)
Effective
Volume(L)
Production
Capacity
kg/h
Rotating
Speed(r/min)
Motor Power
(kw)
Weight(t)
SRL-Z200/500
200/500


150/300
300-400
960/70
45/11
3
SRL-Z300/600
300/600
225/350
500-600
960/70
55/11
3.5
SRL-Z500/1000
500/1000
375/660
800-1000
886/60
75/15
7.5
SRL-W500/1600
500/1600
375/1024
800-1200
886/60
75/18.5
8
SRL-W800/2500
800/2500
560/1680
1300-1500
660/51
110/22
11
        SRL-W1000/3000

1000/3000
750/2240
1300-1500
660/51
130/37
12
SRL-W1300/4500
1300/4500
975/2750
800-2000
660/51
160/45
13
SRL-W1500/6000
1500/6000
1120/4000
2500-3500
660/51


      315/55
15
SRL-W2000/8000
2000/8000
1500/5200
3500-4000
660/51


     355/55

17
