17 inches 1280*1024 Pcap Industrial All In One Pc Embedded Industrial Capacitive Panel Pc Industrial Touch 10 Pc Panel
- Category: >>>
- Supplier: Guangzhou Chongchang Computer Technology Co. Ltd.
Share on (1600519646712):
Product Overview
Description
Specification | |||||||
Model: ZPC170-T122 | |||||||
personal computer | |||||||
CPU | Intel® Celeron J1800, Dual Core, 2.0GHz, Fanless | ||||||
CPU optional | Intel® Core, I5-4200U, Dual Core, 1.6GHz, Fanless | ||||||
CPU optional | Intel® Core, I7-4500U, Dual Core, 1.8GHz, Fanless | ||||||
CPU optional | Intel® Core, I5-6360U, Dual Core, 2.0GHz, Fanless | ||||||
CPU optional | Intel® Core, I5-7267U, Dual Core, 3.1GHz, Fanless | ||||||
CPU optional | Intel® Core, I7-7500U, Dual Core, 2.7GHz, Fanless | ||||||
CPU optional | Intel® Core, I5-8250U, Quad Core, 1.6GHz, Fanless | ||||||
CPU optional | Intel® Core, I7-8550U, Quad Core, 1.8GHz, Fanless | ||||||
memory | 2G DDR3 | ||||||
storage | Optional 32GB, 64GB, 128GB, 256GB, 512G SSD/ 500GB, 1TB HDD | ||||||
graphics | CPU integrated graphics | ||||||
vocal | Realtek ALC662, High Definition Audio (HD), Line In, Line Out | ||||||
The internet | 1×Realtek RTL 8111E Gigabit Ethernet Controller | ||||||
Input and output interface | 3xUSB 2.0, 1xUSB 3.0, 1x Built-in USB SoftDog, | ||||||
2x DB-9 COM1& COM2, RS232/422/485 | |||||||
Phoenix Terminal | |||||||
1x HD/Audio Line Out/Power Button | |||||||
Expansion slot | MINI-PCIE x 1, onboard SIM card slot, support 3G/4G module | ||||||
MINI-PCIE x 1, support WIFI | |||||||
operating system | Supports Windows 7/8/10, Linux, Ubuntu, Debian, etc. | ||||||
LCD panel | |||||||
Panel size | 17" | ||||||
Resolution | 1280*1024 | ||||||
aspect ratio | 4:03 | ||||||
color support | 16.7 million colors | ||||||
Brightness (cd/m²) | 300 | ||||||
Response time | 5ms | ||||||
Contrast | 800:01:00 | ||||||
perspective | 85°/85°/85°/85° (R/L/U/D) | ||||||
touch panel | |||||||
Touch screen type | Ten-point capacitive touch screen | ||||||
touch interface | USB (RS232 optional) | ||||||
touch response time | 2 ms | ||||||
Surface hardness | 7H | ||||||
career | >50 million times | ||||||
touch option | (Capacitive touch optional) | ||||||
power supply | |||||||
External power supply | AC 100-240V | ||||||
Operating Voltage | 12V-5A | ||||||
energy consumption | ≤35W | ||||||
shell | |||||||
Material | sheet metal | ||||||
color | silver edge/black edge | ||||||
VESA installation | 75x75mm | ||||||
Operating environment | |||||||
temperature range | Operation: -10 to 60°C, Storage: -30 to 70°C | ||||||
Relative humidity | 10%~90% @ 30° C, non-condensing | ||||||
vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||||
Packaging Details | |||||||
net weight | 5.5kg | ||||||
total weight | 10kg | ||||||

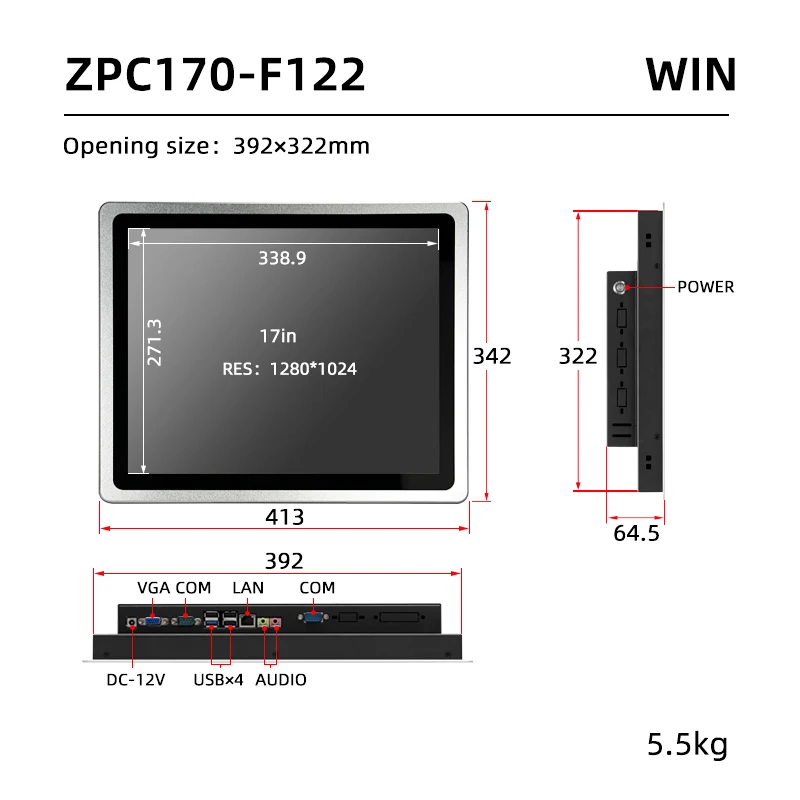

Product Size | 41.3x34.2x6.45cm | ||||||
Package Size | 32x25x9..5cm | ||||||
Accessories | Monitor, embedded clip, wall bracket, power adapter, power cord, maintenance card, manual | ||||||
other | |||||||
install (option) | Flush Mounting Screws | ||||||
Wall mount bracket (optional) | |||||||
Desk Stand (Upgrade) | |||||||
Warranty | 1 year warranty | ||||||
Certificate | CE, FCC, 3C | ||||||
