UART transparent transmission Realtek RTL8762 module RTL8762 ble5.0 module for smart door

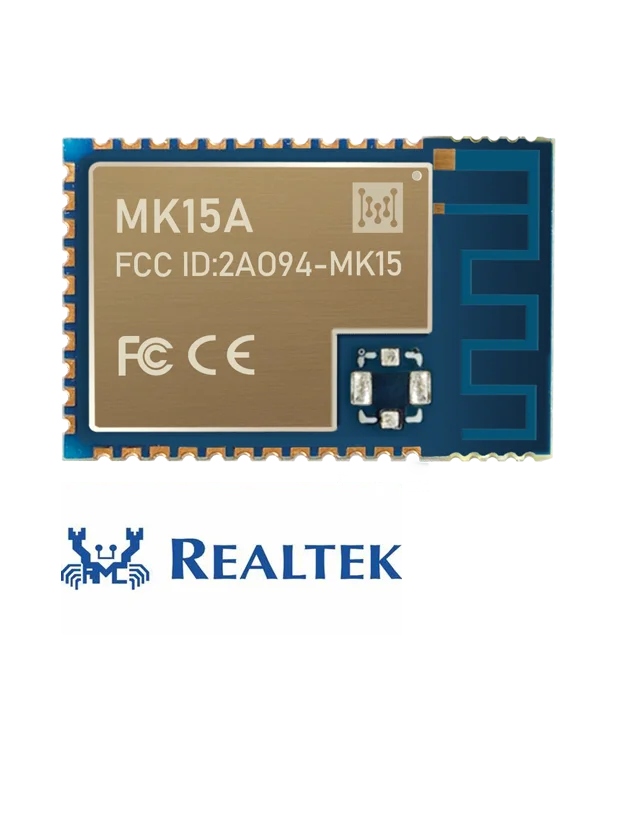

MK15 series is a powerful, highly flexible and ultra-low-power Bluetooth® 5.0 module based on Realtek Semiconductor Corp RTL8762CMF SoC solution, which combines the excellent performance of a leading RF transceiver with a 32-bit ARM® Cortex™-M4F CPU and rich powerful supporting features and peripherals.
Product Description
MK15 brings out all RTL8762CMF hardware capabilities and peripherals including 160KB RAM, 4Mb internal Flash, IR transceiver, hardware key-scan, up to +7.5 dBm transmit power and rich peripheral interfaces such as flexible GPIO, UART, ADC, PWM, SPI, I2C. MK15 also provides a complete RF solution with no additional RF design.
MK15 supports Bluetooth® SIG Mesh and Bluetooth® 5.0 core specification features of LE 2M PHY (High speed), LE Coded PHY (Long range), Advertising Extensions and CSA#2. MK15 series modules will be programmed default MOKO MKBR series firmware and custom firmware can be programmed by MOKO smart too.
After you choose MK15 series module, MOKO Smart will provide technical support for your development or even help you to complete all hardware and firmware design. We can power demanding applications, while simplifying designs and reducing BOM costs.
MK15 supports Bluetooth® SIG Mesh and Bluetooth® 5.0 core specification features of LE 2M PHY (High speed), LE Coded PHY (Long range), Advertising Extensions and CSA#2. MK15 series modules will be programmed default MOKO MKBR series firmware and custom firmware can be programmed by MOKO smart too.
After you choose MK15 series module, MOKO Smart will provide technical support for your development or even help you to complete all hardware and firmware design. We can power demanding applications, while simplifying designs and reducing BOM costs.

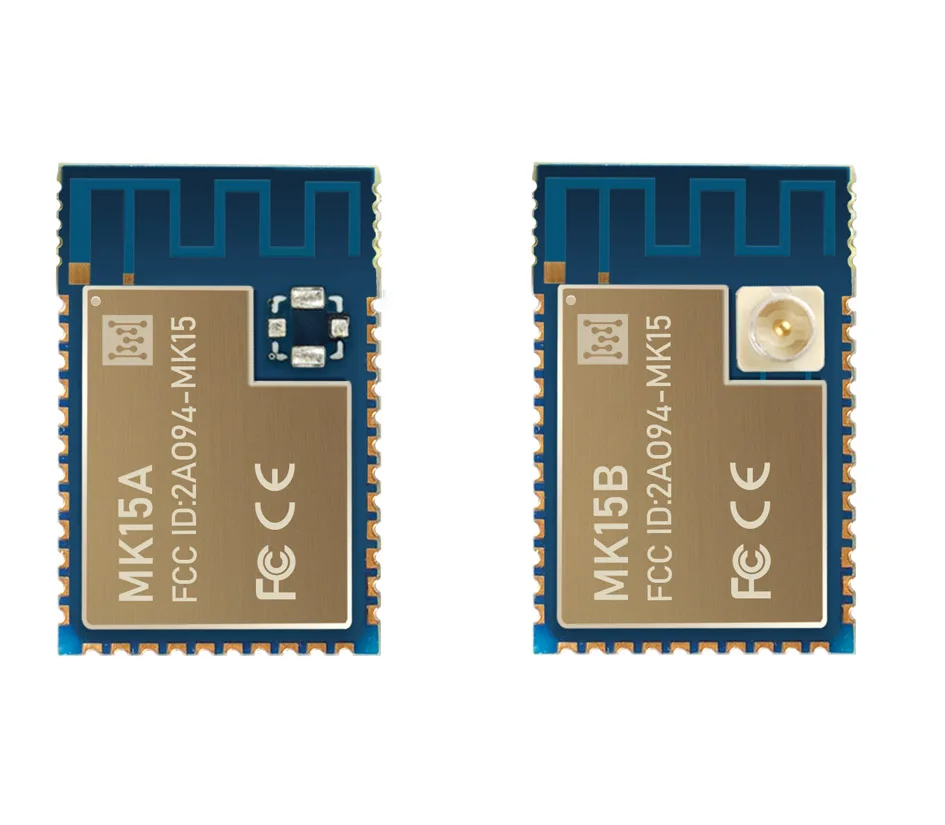

MK15 Series BLE module features | ||||||||
Dimension | 21*13.8*2.3mm（with shield） | |||||||
Flash/RAM | 512KB/160KB SRAM | |||||||
Interface | UART/SPI/I2C/PWM/ADC | |||||||
Power Supply | 1.8-3.6 V | |||||||
Operating temp | -40 to +85°C (-40 to +105°C can be customized) | |||||||
BLE5.0/5.1 Specification | 2 Mbps/CSA #2/Advertising Extensions/Long Range | |||||||
Cover | Metal shielding with marking | |||||||
BLE Standard | BLE 4.2/5.0 | |||||||
GPIOs | 25 | |||||||
Antenna Type | PCB antenna/u.FL Connector | |||||||
32.768K Crystal Oscillator | Built inside | |||||||
Pad package | Plated Half-hole | |||||||
Other Feature | BLE mesh | |||||||

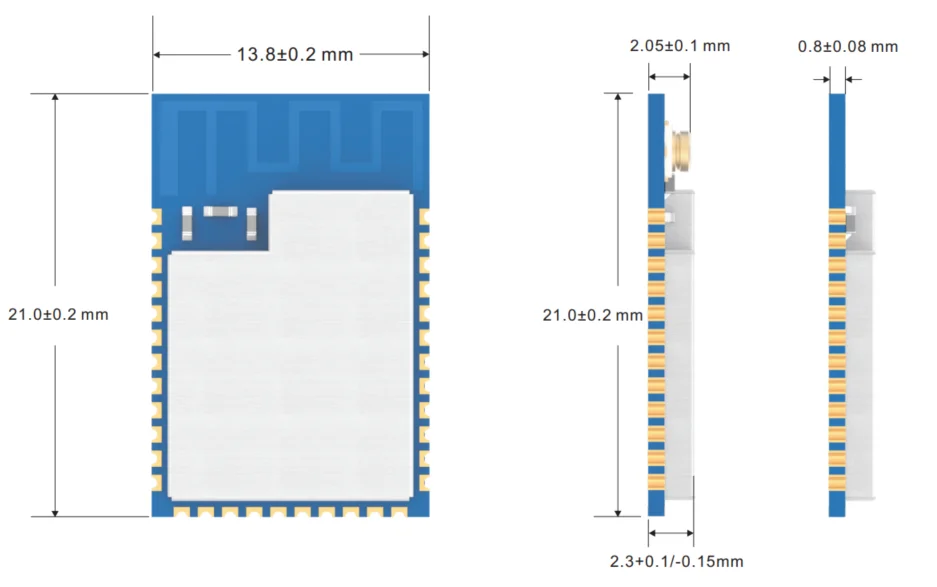

Module Size

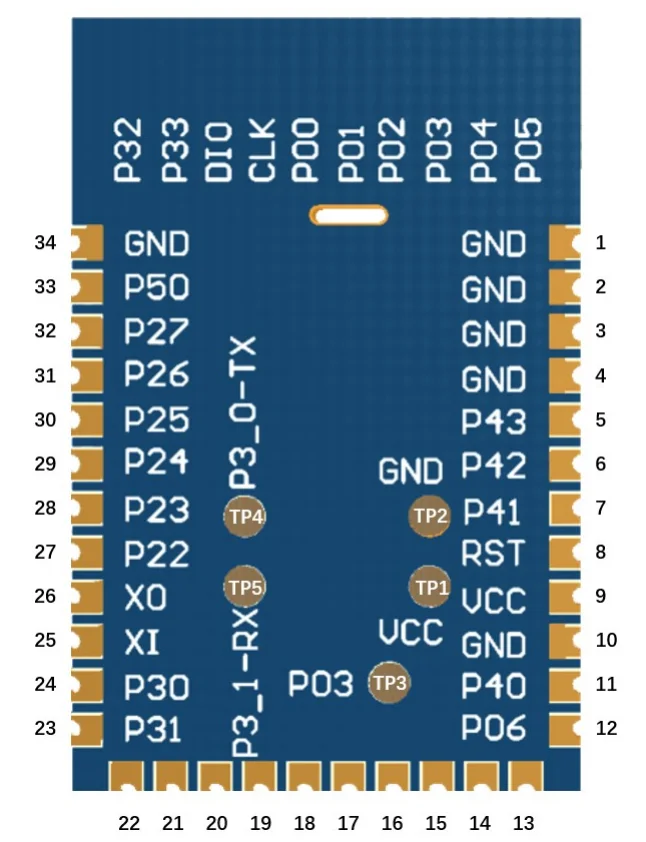

Pin Description
Pin No. | Pin Name | Type | Description | Pull Up/Down | Remark |
1 | GND | Power | Electrical Ground | - | |
2 | GND | Power | Electrical Ground | - | |
3 | GND | Power | Electrical Ground | - | |
4 | GND | Power | Electrical Ground | - | |
5 | P4_3 | Digital I/O | General purpose I/O | Pull Up | GPIO [31] Recommended as SPI0_CSN Up to 20Mhz Timing |
6 | P4_2 | Digital I/O | General purpose I/O | Pull Down | GPIO [30] Recommended as SPI0_MOSI Up to 20Mhz Timing |
7 | P4_1 | Digital I/O | General purpose I/O | Pull Down | GPIO [29] Recommended as SPI0_MISO Up to 20Mhz Timing |
8 | RESET | Digital Input | Hardware reset pin | Pull Up | Active Low |
9 | VCC | Power Analog | Power supply | - | 1.8 – 3.3V DC |
10 | GND | Power | Electrical Ground | - | |
11 | P4_0 | Digital I/O | General purpose I/O | Pull Down | GPIO [28] Recommended as SPI0_CLK Up to 20Mhz Timing |
12 | P0_6 | Digital I/O | General purpose I/O | Pull Down | GPIO [6] |
13 | P0_5 | Digital I/O | General purpose I/O | Pull Down | GPIO [5] |
14 | P0_4 | Digital I/O | General purpose I/O | Pull Down | GPIO [4] |
15 | P0_3 | Digital I/O | Log UART TX | Pull Up | GPIO [3] Pull-up for normal operation Pull-down to bypass executing program code in flash |
16 | P0_2 | Digital I/O | General purpose I/O | Pull Down | GPIO [2] |
17 | P0_1 | Digital I/O | General purpose I/O | Pull Down | GPIO [1] |
18 | P0_0 | Digital I/O | General purpose I/O | Pull Down | GPIO [0] |
19 | P1_1 | Debug Digital I/O | SWDCLK (Default) General purpose I/O | Pull Up | Default as Serial Wire Debug interface GPIO [9] |
20 | P1_0 | Debug Digital I/O | SWDIO (Default) General purpose I/O | Pull Up | Default as Serial Wire Debug interface GPIO [8] |
21 | P3_3 | Digital I/O | General purpose I/O | Pull Down | GPIO [27] Recommended as SPI1_MISO (master only). Up to 20Mhz Timing |
22 | P3_2 | Digital I/O | General purpose I/O | Pull Down | GPIO [26] Recommended as SPI1_CLK (master only). Up to 20Mhz Timing |
23 | P3_1 | Digital I/O | UART TX General purpose I/O | Pull Up | Default as HCI_UART TX for firmware programming GPIO [25] |
24 | P3_0 | Digital I/O | UART RX General purpose I/O | Pull Up | Default as HCI_UART RX for firmware programming GPIO [24] |
25 | 32K_XI | Analog Digital I/O | Connection for 32.768 kHz XTAL General purpose I/O | Pull Down | Pin share as GPIO when 32.768kHz crystal oscillator is not used GPIO [26] |
26 | 32K_XO | Analog Digital I/O | Connection for 32.768kHz XTAL General purpose I/O | Pull Down | Pin share as GPIO when 32.768kHz XTAL is not used GPIO [27] |
27 | P2_2 | Analog Digital I/O | AUXADC input General purpose I/O | Pull Down | AUXADC input 2 GPIO [18] |
28 | P2_3 | Analog Digital I/O | AUXADC input General purpose I/O | Pull Down | AUXADC input 3 GPIO [19] |
29 | P2_4 | Analog Digital I/O | AUXADC input General purpose I/O | Pull Down | AUXADC input 4 GPIO [20] |
30 | P2_5 | Analog Digital I/O | AUXADC input General purpose I/O | Pull Down | AUXADC input 5 GPIO [21] |
31 | P2_6 | Analog Digital I/O | AUXADC input General purpose I/O | Pull Down | AUXADC input 6 GPIO [22] |
32 | P2_7 | Analog Digital I/O | AUXADC input General purpose I/O | Pull Down | AUXADC input 7 GPIO [23] |
33 | P5_0 | Digital I/O | General purpose I/O | Pull Down | GPIO [25] |
34 | GND | Power | Electrical Ground | - | |
35 | TP1 – VCC | Power Analog | Power supply | - | 1.8 – 3.3V DC |
36 | TP2 – GND | Power | Electrical Ground | ||
37 | TP3 – P0_3 | Digital I/O | Log UART TX | Pull Up | Same as P0_3 |
38 | TP4 – P3_0 | Digital I/O | UART RX General purpose I/O | Pull Up | Same as P3_0 |
39 | TP5 – P3_1 | Digital I/O | UART TX General purpose I/O | Pull Up | Same as P3_1 |

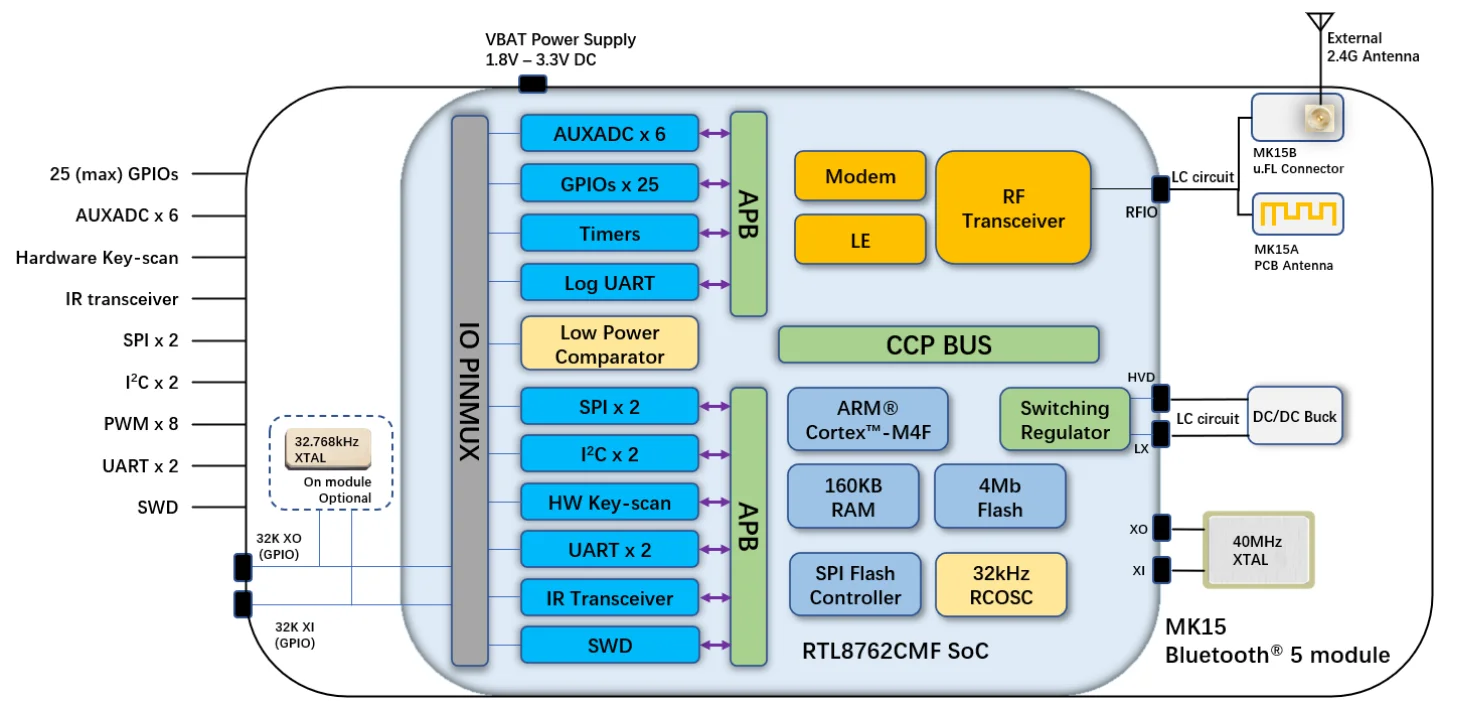

Block Diagram
Similar Products

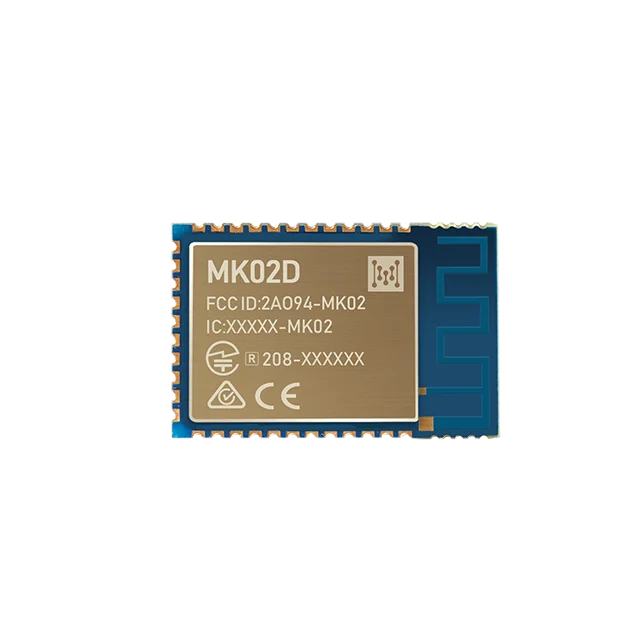

MK02 series is a powerful, highly flexible, ultra low power Bluetooth® 5 module based on Nordic® Semiconductor nRF52832 SoC solution, which has a 32 bit Arm® Cortex™-M4 CPU with floating point unit running at 64 MHz.
MK02 module is multiprotocol capable with full protocol concurrency. It supports BLE® (Bluetooth Low Energy), including the high-speed 2 Mbps feature. Bluetooth mesh can be run concurrently with Bluetooth LE, enabling smartphones to provision, commission, configure and control mesh nodes. NFC, ANT and 2.4 GHz proprietary protocols are also supported.
