RXS Cost Effective Water Cooling Type Tilting Induction Smelting Melting Industrial Furnace For 1000 kg Steel Iron
- Category: >>>
- Supplier: Luoyang Ruixinsheng Industrial Technology Co. Ltd.
Share on (1600519692865):

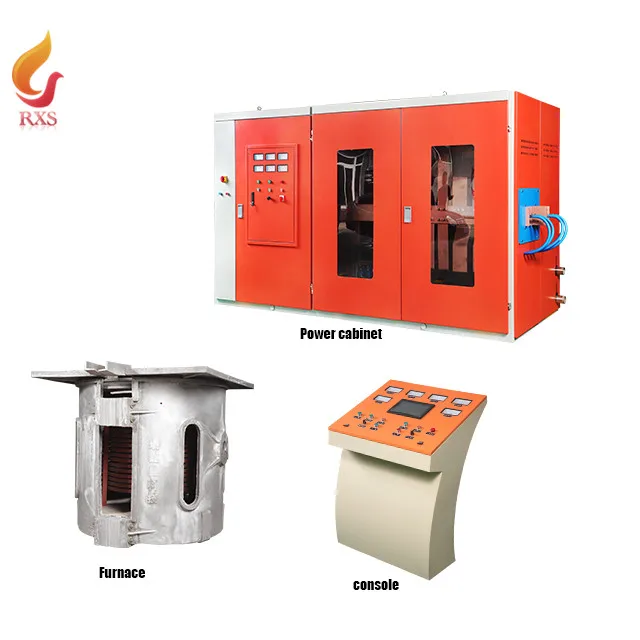

Product Overview
Description
Products Description
The aluminum shell furnace is composed of reduction gears, bracket and induction coil, etc. Mainly used for smelting cast iron,stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold,silver), etc. The equipment is used in metallurgical industry, casting industry, non - metal smelting and other industries.
Rated Capacity (t) | Rated Power (KW) | Input Voltage (V) | Input Current (A) | DC Voltage (V) | DC Current (A) | IF Voltage (V) | IF Frequency (HZ) | |||||||
0.1 | 100 | 3 Phases 380V | 160 | 500 | 200 | 2200 | 100-1000 | |||||||
0.25 | 200 | 352 | 400 | |||||||||||
0.5 | 400 | 650 | 800 | |||||||||||
0.75 | 500 | 816 | 1000 | |||||||||||
1 | 800 | 3 Phases 660V | 730 | 890 | 900 | 3000 | ||||||||
1.5 | 1200 | 1100 | 1350 | |||||||||||
2 | 1500 | 6 Phases 750V | 612 | 1000 | 1500 | 3500 | ||||||||
3 | 2000 | 816 | 2000 | |||||||||||
5 | 3500 | 1428 | 3500 | |||||||||||
8 | 5000 | 2040 | 5000 | |||||||||||
... | ||||||||||||||

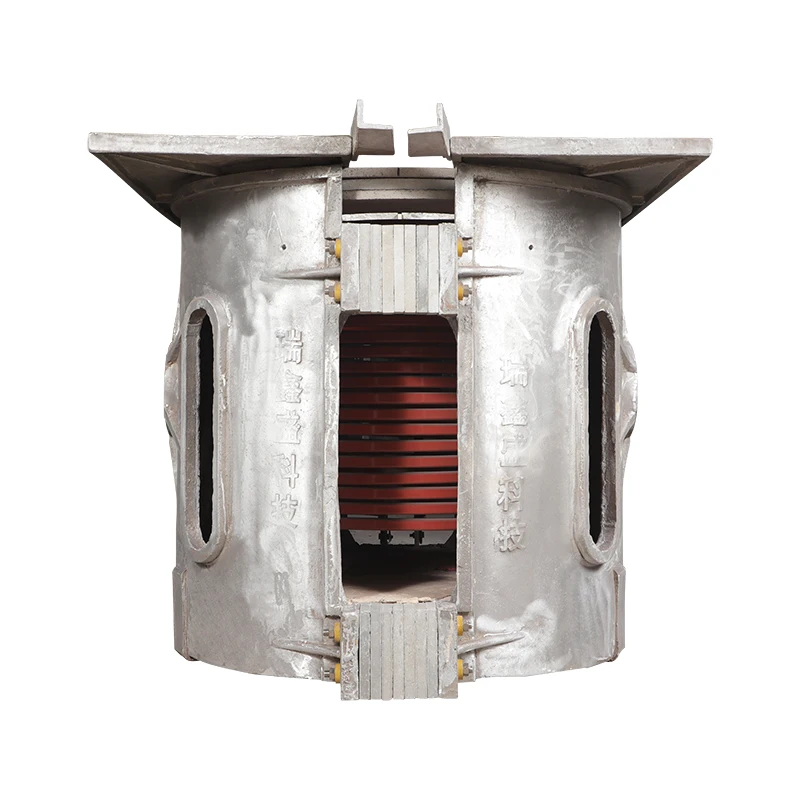

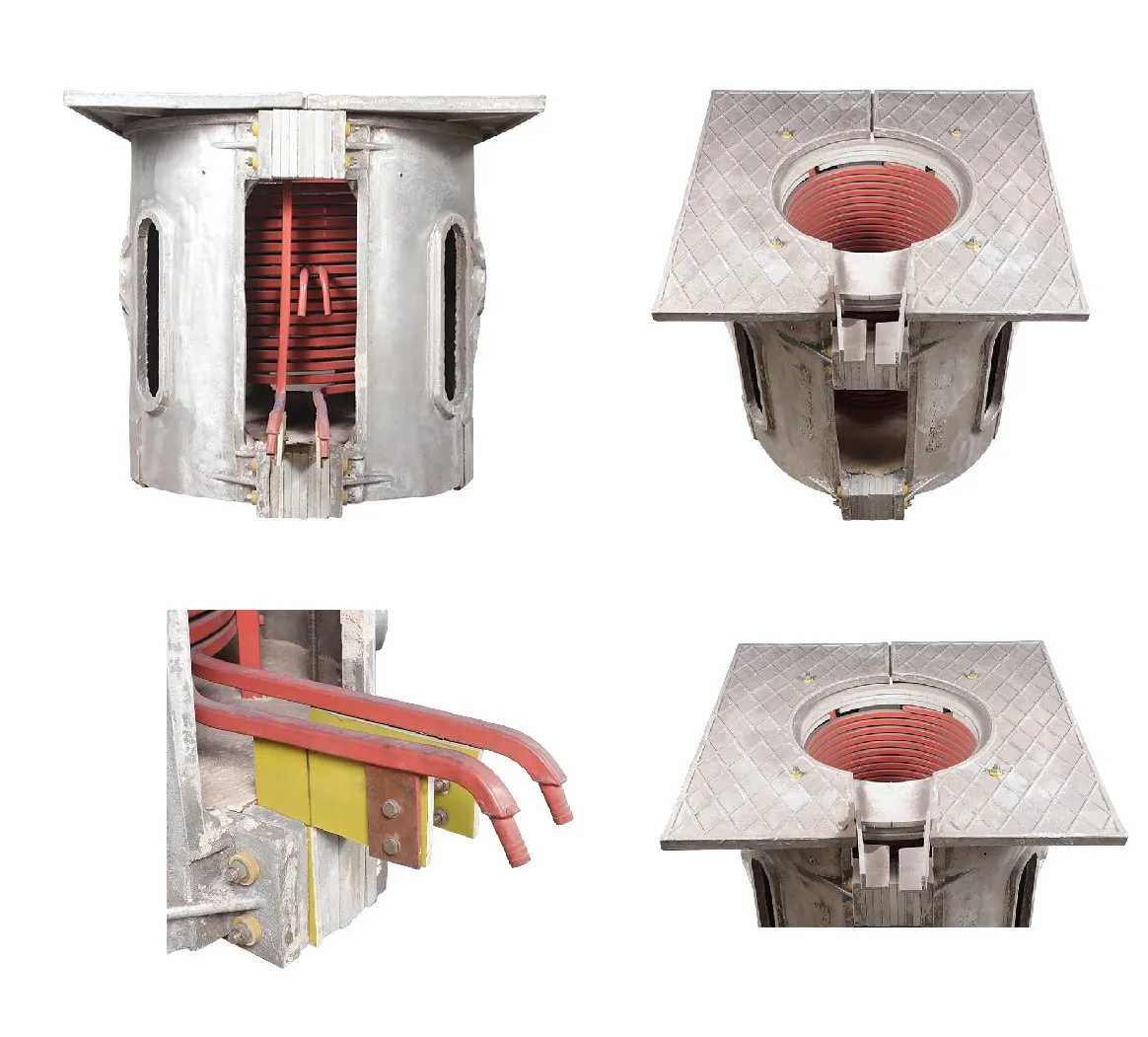

Features of aluminum shell induction furnace:
Aluminum shell furnace is made of alloy aluminum foundry casting. Simple operation, easy maintenance, convenient observation with a service life of 5-8 years. There is no magnetizer,lining ejection mechanism and refractory mortar layer. Generally the capacity is below 2 ton. Aluminum shell furnace is suitable for small tonnage smelting customers.
Aluminum shell Products advantage
* Good stability，low cost，smaller area occupied.
* Easy to operate, fast melting and low production cost.
* Simple structure, easy maintenance.
* Can be directlymeltedfrom the cold furnace, solution can be all empty, easy to replace the type of molten material.
* Low noise, good working environment.
* Tailor-made according to thedifferentmelting metal.
* Induction coil of various specifications, reasonable selection of copper tube wall thickness and specifications, so as to
improve the utilization rate of electrical energy.
* High performance insulation materials are used.
* The turn-to-turn gap of the induction coil is convenient for maintenance and conducive to the release of water vapor.
* Smoke collecting device can be used to improve working environment.
* Easy to operate, fast melting and low production cost.
* Simple structure, easy maintenance.
* Can be directlymeltedfrom the cold furnace, solution can be all empty, easy to replace the type of molten material.
* Low noise, good working environment.
* Tailor-made according to thedifferentmelting metal.
* Induction coil of various specifications, reasonable selection of copper tube wall thickness and specifications, so as to
improve the utilization rate of electrical energy.
* High performance insulation materials are used.
* The turn-to-turn gap of the induction coil is convenient for maintenance and conducive to the release of water vapor.
* Smoke collecting device can be used to improve working environment.

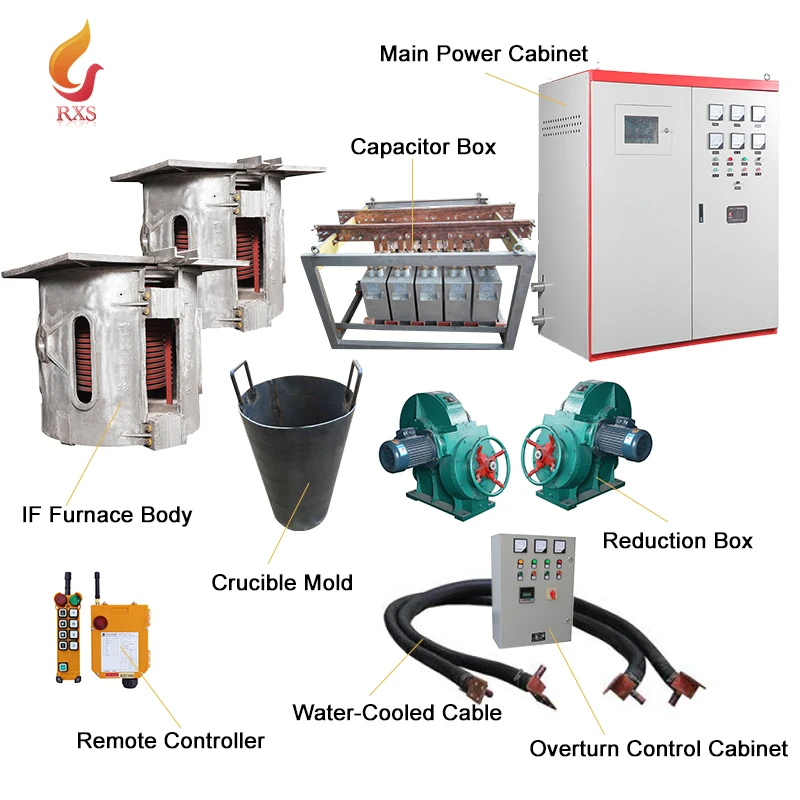

ACCESSORIES
Details Images

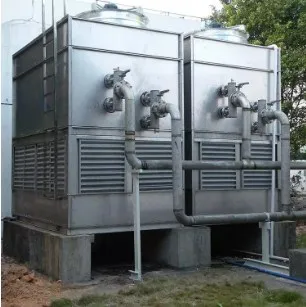

cooling tower
Electric furnace coils, yokes, and water-cooled cables, that carry large currents in power cabinets all require water cooling. we have designed a unique medium frequency water cooling closed circulation system.
Copper bars
Inverter copper row uses electrolytic copper T2 copper row，purity is 99.9%，copper row thickness is not less than 6mm. Standard delivery length is 5 meters per set.
Induction coils
The induction coil copper tube is made of Chinalco luoyang copper , which is made of solid, durable and highly conductive TU1 oxygen-free copper tube.
Thyristor + Radiator Components
With high efficiency, no mechanical noise and wear, rapid response, small volume, light weight， Internal use of voltage regulation, power regulation, rectification integration technology.
capacitor
It is mainly used to compensate the reactive power of inductive load in power system to improve power factor, improve voltage quality and reduce line loss.
Water-cooled cable
In high temperature working environment, no deformation, good contact, long life, impermeability > 10kg/cm2, easy to replace,
conducive to maintenance.
conducive to maintenance.
About Us
Series resonant dual-supply induction melting furnace and parallel resonant induction melting furnace independently researched anddeveloped by the company, no matter in the power saving rate, melting rate, stability or humanization of the operation, it is in the leading position in the industry, and has been well received by users.
Specialized advanced technology and excellent equipment manufacturing are our company's characte-ristics. Metal induction smelting and induction heating industry is our service target. At present, our mature products include: 0.25t-40t intermediate frequency smelting, heat preservation, heat treatment, quenching and other series rectifier and series inverter equipment.
Packing & Delivery
Packing: Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.
Ship: By sea/air/train/car
Lead Time :
Quantity(Set) | 1 | >1 |
Est. Time(days) | 15 | To be negotiated |
FAQ
Q1: If the device fails, how can it be solved quickly?
A1: The engineer will quickly determine the cause of the fault and guide the replacement of the accessories based on the operator's description, as well as the pictures and videos. If it can't be solved, we will send engineers to the site for repair.
A1: The engineer will quickly determine the cause of the fault and guide the replacement of the accessories based on the operator's description, as well as the pictures and videos. If it can't be solved, we will send engineers to the site for repair.
Q2: What advantages do you have compared to others?
A2: We can customize the most suitable products according to the customer's specific conditions, so that the equipment is more stable and more efficient, and the customer's benefit is maximized.
A2: We can customize the most suitable products according to the customer's specific conditions, so that the equipment is more stable and more efficient, and the customer's benefit is maximized.
Q3: Why is your induction furnace more stable?
A3: With more than 20 years of experience, we have developed a reliable control system and a simple operating system. We have a number of technical patents.
A3: With more than 20 years of experience, we have developed a reliable control system and a simple operating system. We have a number of technical patents.
Q4: What is your warranty?
A4: We provide you with lifetime technical support for free. Spare parts are provided free of charge during the warranty period. In the case of more than one year warranty, we will provide spare parts at cost price.
A4: We provide you with lifetime technical support for free. Spare parts are provided free of charge during the warranty period. In the case of more than one year warranty, we will provide spare parts at cost price.
Q5: Are you the Manufacturer or a trading company?
A5: We are a scientific and technological innovation enterprise integrating R&D, design, production and service.
A5: We are a scientific and technological innovation enterprise integrating R&D, design, production and service.
