Price:$50.00

Quantity:


Product Overview

Description

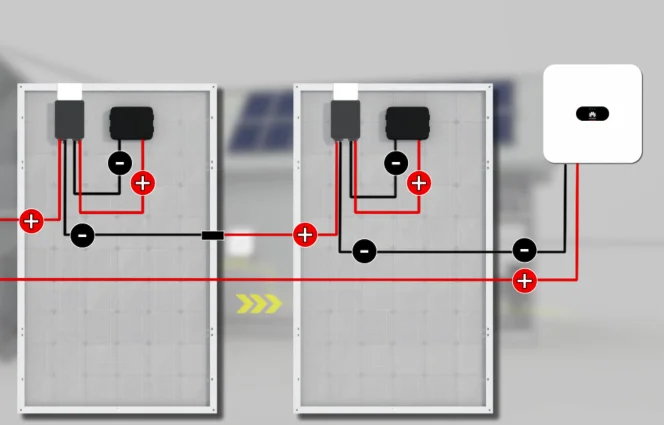

The Smart PV Optimizer is a DC-DC converter installed on the rear of PV modules in a PV system. It manages the maximum power point (MPP) of each PV module to improve the energy yield of the PV system, and performs functions such as module-level shutdown and module-level management.






Technical Specification
SUN2000-450W-P
SUN2000-600W-P
Input
Rated Input DC Power
450 W
600 W
Absolute maximum input voltage
80 V
MPPT operating voltage range
10 - 80 V
Maximum Short Circuit Current (Isc)
14.5 A
Max. efficiency
99.5 %
Weighted efficiency
99.0 %
Overvoltage category
II
Output
Max. output voltage
80 V
Max. output current
15 A
Output bypass
Yes
Shutdown output voltage per optimizer
0 V
Shutdown output impedance per optimizer
1k Ω ± 10 %
Standard Compliance
Safety
IEC62109-1 (class II safety)
RoHS
Yes
General Data
Dimension (W x H x D)
71 x 138 x 25 mm (2.8 x 5.4 x 1.0 inch)
Weight (including cables)
0.55 kg (1.2 lb.)
Installation part (optional)

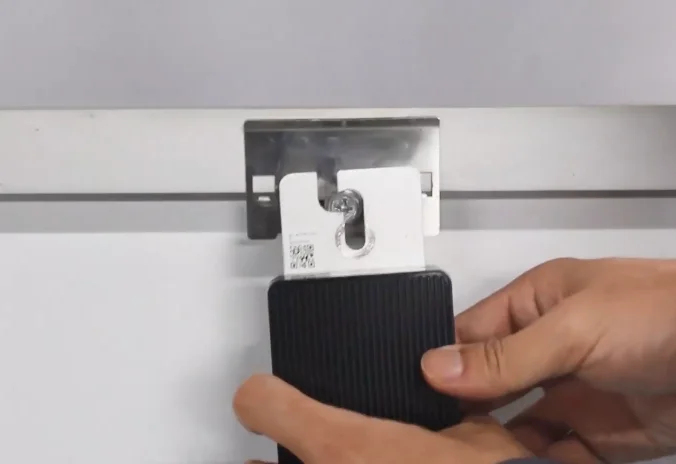

Grounding Plate, Grounding Lug, PV Module Frame Plate
Input connector
Staubli MC4
Output connector
Staubli MC4
Input wire length
0.15 m (0.5 ft.)
Output wire length
1.2 m (3.9 ft.)
Operating temperature / humidity range
-40 ℃～85 ℃ 5 / 0 %RH～100 %RH
Degree of protection
IP68
Compatible product
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000-30/36/40KTL-M3
