Product Overview
Description
FEATURES AT A GLANCE
Fully automatic
Cost-effective
High ornamental appearance
Cost-effective
High ornamental appearance
Servo motor

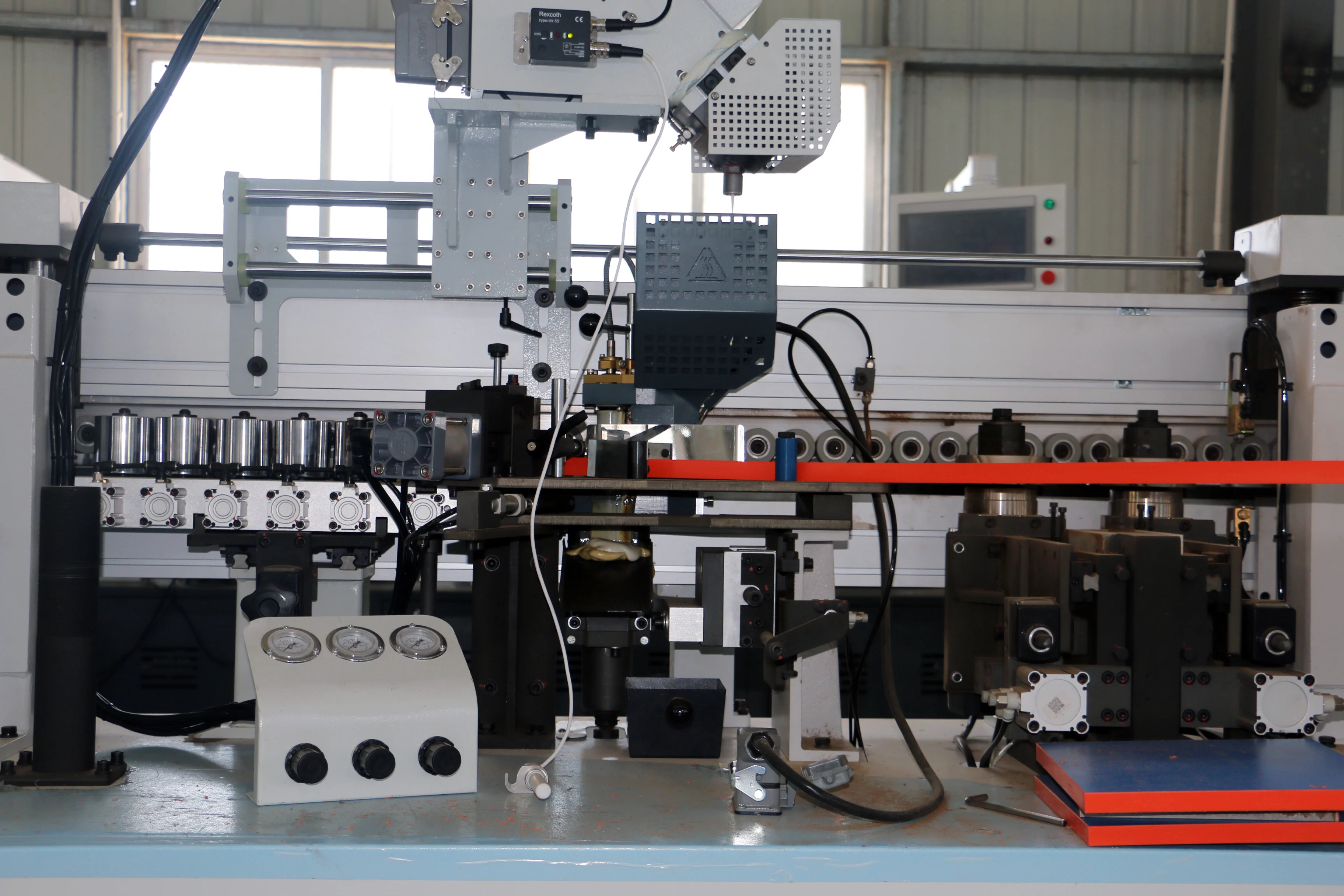

Inner structure
Rear aspect
Specification
Model | MT608 | |
Edge band thickness | 0.4-3mm | |
Edge band width | 12~65mm | |
Sheet thickness | 10~60mm | |
Feeding speed | 18-26m/min | |
Vacuum hood mouth | Φ100mm×7 | |
Total power | 30kw | |
Working pressure | 0.65Mpa | |
Dimensions | 10700×1000×1800mm | |
Net weight | 3800kg | |
China standard voltage is 380v, if you need to change it, add $45 | ||
Parts display
PC control system
1. Start and stop the device
2. Function selection
3. Parameter setting
4. Warning prompt
5. Other functions
2. Function selection
3. Parameter setting
4. Warning prompt
5. Other functions
gluing pot
Reduce the waiting time of glue, improve the adhesiveness and edge sealing effect of the edge band, it is convenient to add glue or install PUR glue machine, the glue line is thinner, and the glue is not easy to burn.
Pre-melt box
Reduce the waiting time for melting glue, the temperature can reach 180 degrees after 3 minutes of starting the machine, and improve the efficiency of edge sealing.
Six rounds of pressing 1, 2
Make the edge-sealing plate and the edge-sealing tape evenly coated on both sides and press them to ensure a firmer adhesive force.
Double rail flush
quick head-to-head
It consists of a set of double rails and double heads. Through precise linear guide motion, automatic mold tracking and high-frequency high-speed motor fast cutting structure, the edge banding is quickly cut off to ensure the smoothness of the edge-sealing surface of the sheet.

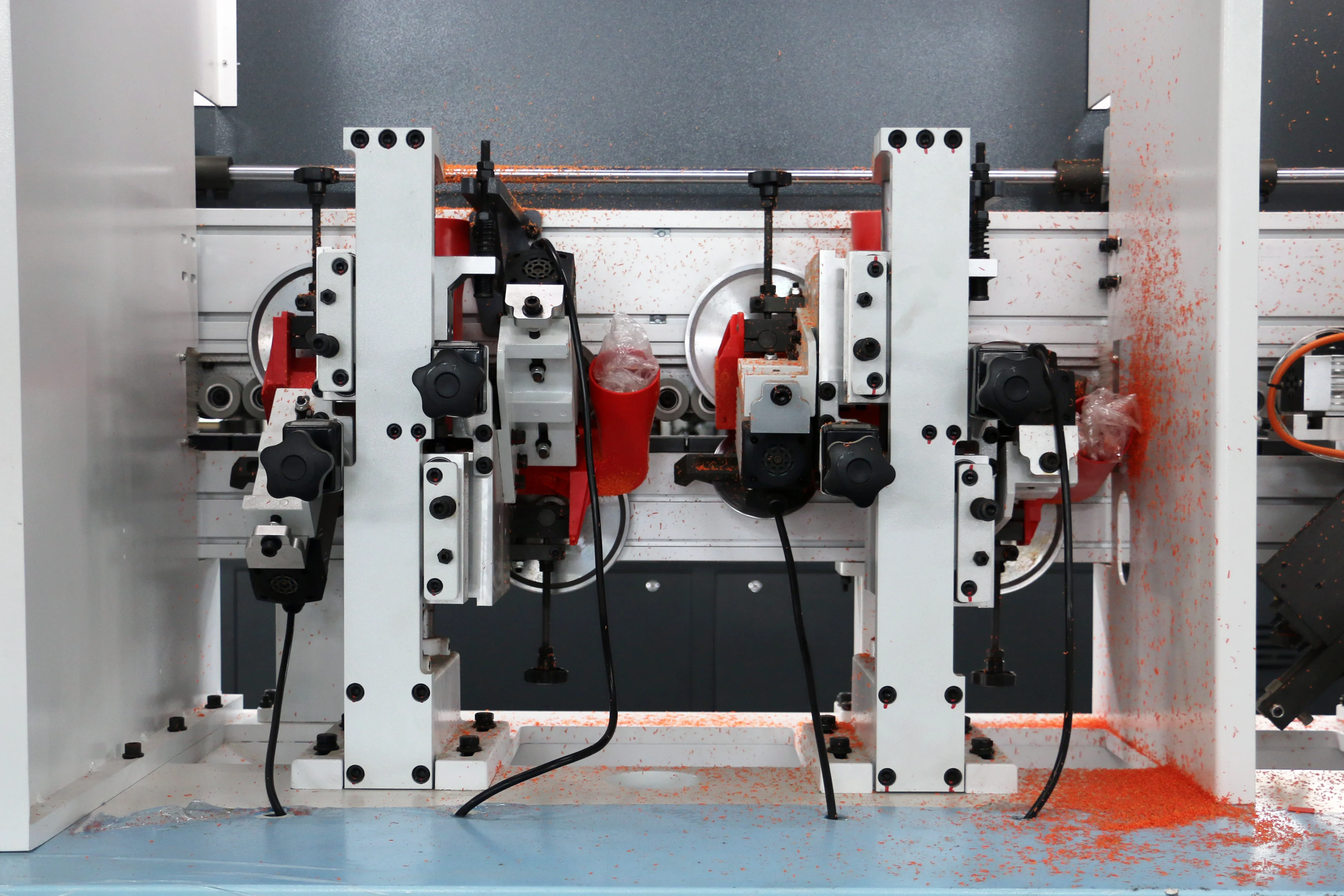

Trimming 1, 2
The high-frequency and high-speed motor structure is used in the edge-sealing process to repair the excess edge-sealing strip material on the upper and lower sides of the edge-sealing plate, so that the width of the edge-sealing strip is the same as the width of the edge-sealing plate, and the thickness of the strip can be switched with one key.
automatic lubrication system
Lubrication to maintain mechanical accuracy and mechanical service life.
Crawler conveyor
It ensures the stability of high-speed conveying boards and that dust is not easy to contaminate the conveying surface of the board surface, improving production efficiency and edge sealing quality.
Edge banding effect display
restaurant kitchen
Whole house customization
plate-type furniture
office cupboard

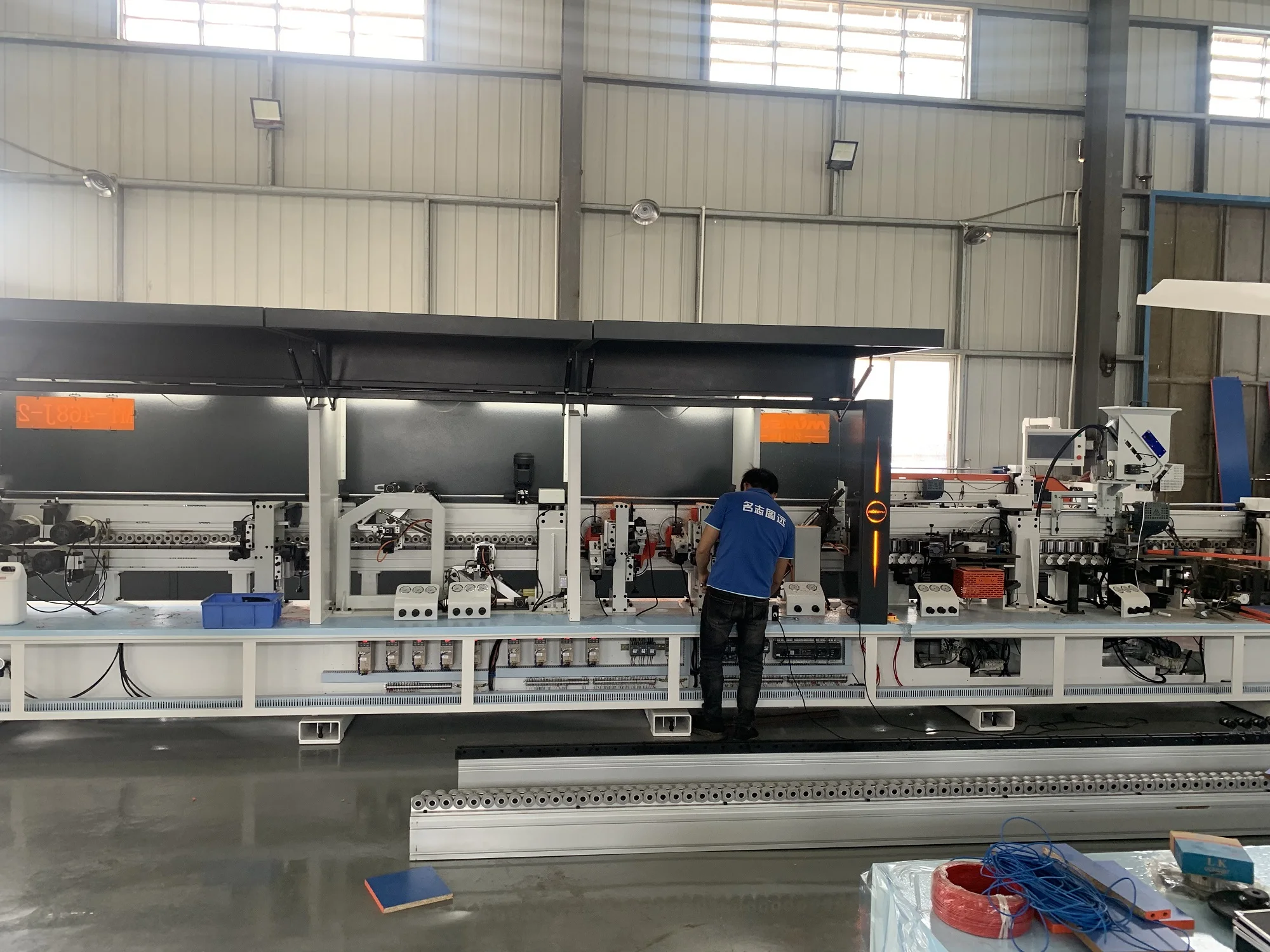

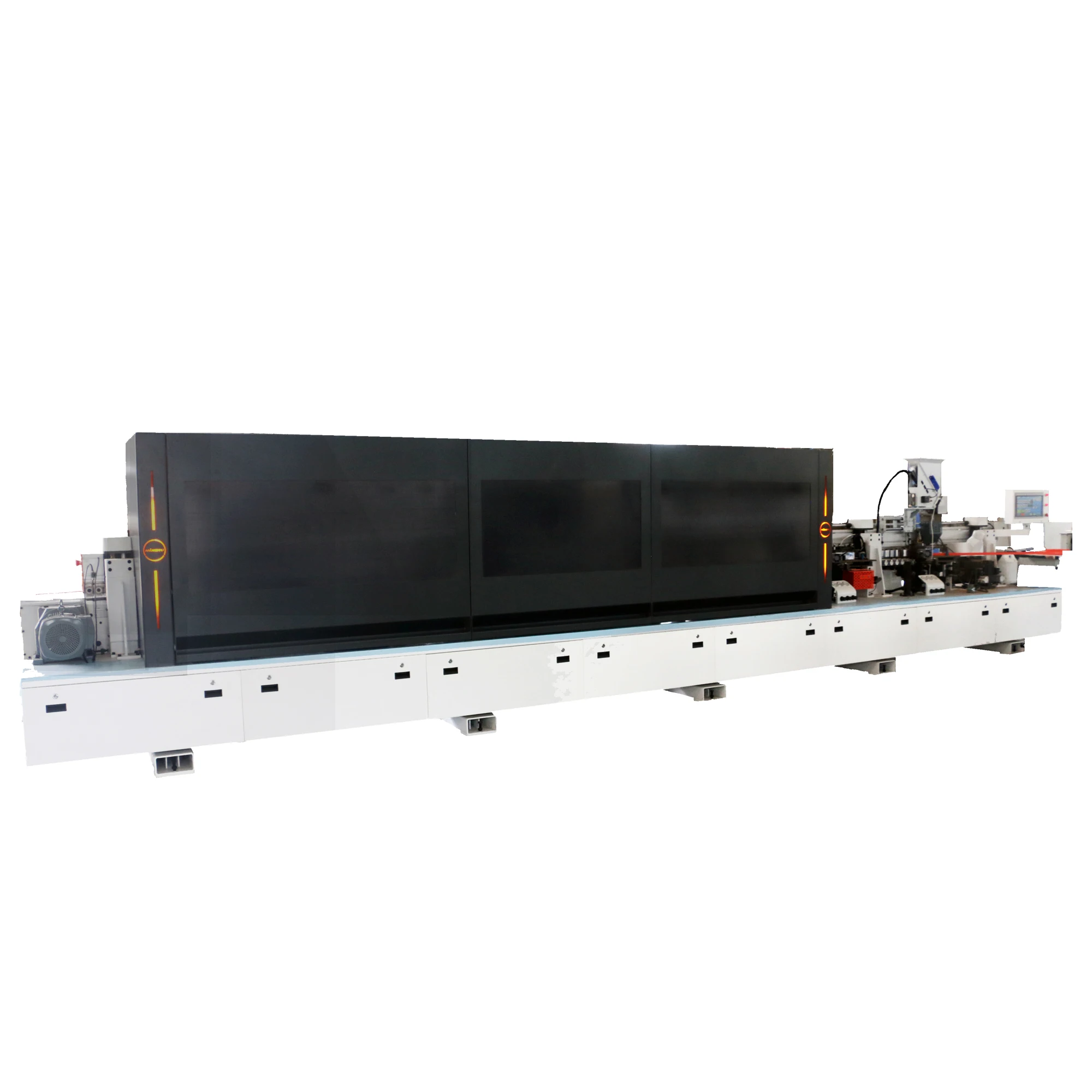

Product real shot and details
Packing & Delivery
Company Profile
Foshan Zhonger CNC machinery Co.,Ltd .is an enterprise based on Woodworking equipment manufacturing, which has the high -tech industry development direction. The company has many years of woodworking machinery production experience , its main product”Sliding Table Saw , Precision Panel Saw”also gets a high reputation in the industry.
The company has been adhering to the purpose of “ quality first, customer is supreme”, in order to make full use of technology and brand advantages, set up sales management system and zstrong the marketing team .The high-quality after-sale service personnel and professional installation team can provide high-quality and timely technical consulaation and installation maintenance service to our customers v
All the staff of Foshan Zhonger CNC Marchinery Co.,Ltd .welcome to enterprises come to visit our company and negotiate the business , we are willing to move forward with you an create the bright future together!
The company has been adhering to the purpose of “ quality first, customer is supreme”, in order to make full use of technology and brand advantages, set up sales management system and zstrong the marketing team .The high-quality after-sale service personnel and professional installation team can provide high-quality and timely technical consulaation and installation maintenance service to our customers v
All the staff of Foshan Zhonger CNC Marchinery Co.,Ltd .welcome to enterprises come to visit our company and negotiate the business , we are willing to move forward with you an create the bright future together!
FAQ
1.How do I order a product that works for me?
We recommend that you consult with our customer service staff before ordering and inform customer service
I have a large order, can I place an order first at a low price?
In your case, we may charge the normal price in the first order, but we guarantee that the difference will be refunded after a certain number of orders are placed.
:2.Can you provide designers to help you design ?
Yes, we can provide you with a technical engineer to complete your solution. Please send us pictures or related scheme sketches on the Internet.
3.Can I produce if I want a different configuration?
Yes ,We are manufacturers and fully support customization! Customers who require customization will check the details with our sales staff in advance to avoid deviations and errors!
4.What is the delivery time?
Normal 380V voltage 10-15 days,
other voltage is 15 days.
5.What is the payment term？
T/T 30% in advance and balance before shipment,
LC or by negotiation.
6.What is the guarantee?
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong
with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.
You will also get technical support and service all the lifetime.
7.What is the technical support?
1) Technical support by phone, email or MSN/Skype around the clock
2) Friendly English version manual
3) Engineer available to service machinery oversea
8.What is the after sales services?
you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost 100USD/day
We recommend that you consult with our customer service staff before ordering and inform customer service
I have a large order, can I place an order first at a low price?
In your case, we may charge the normal price in the first order, but we guarantee that the difference will be refunded after a certain number of orders are placed.
:2.Can you provide designers to help you design ?
Yes, we can provide you with a technical engineer to complete your solution. Please send us pictures or related scheme sketches on the Internet.
3.Can I produce if I want a different configuration?
Yes ,We are manufacturers and fully support customization! Customers who require customization will check the details with our sales staff in advance to avoid deviations and errors!
4.What is the delivery time?
Normal 380V voltage 10-15 days,
other voltage is 15 days.
5.What is the payment term？
T/T 30% in advance and balance before shipment,
LC or by negotiation.
6.What is the guarantee?
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong
with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.
You will also get technical support and service all the lifetime.
7.What is the technical support?
1) Technical support by phone, email or MSN/Skype around the clock
2) Friendly English version manual
3) Engineer available to service machinery oversea
8.What is the after sales services?
you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost 100USD/day
