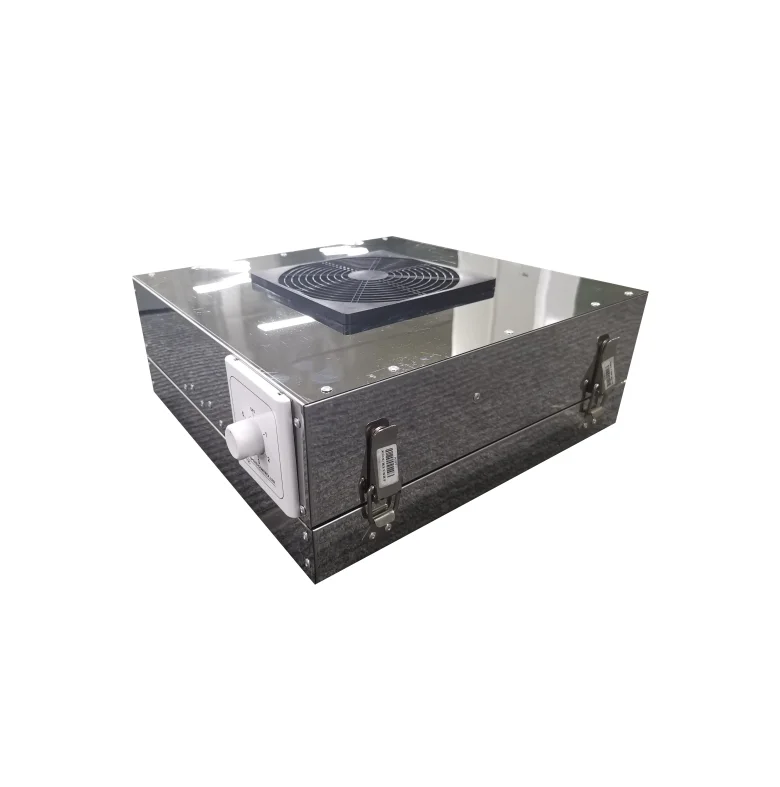

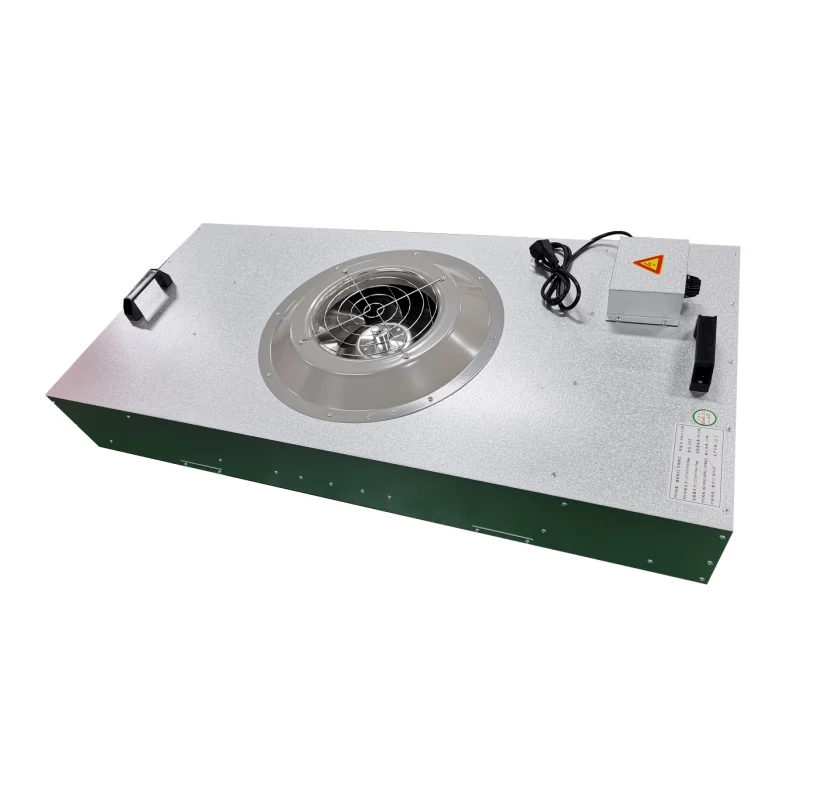

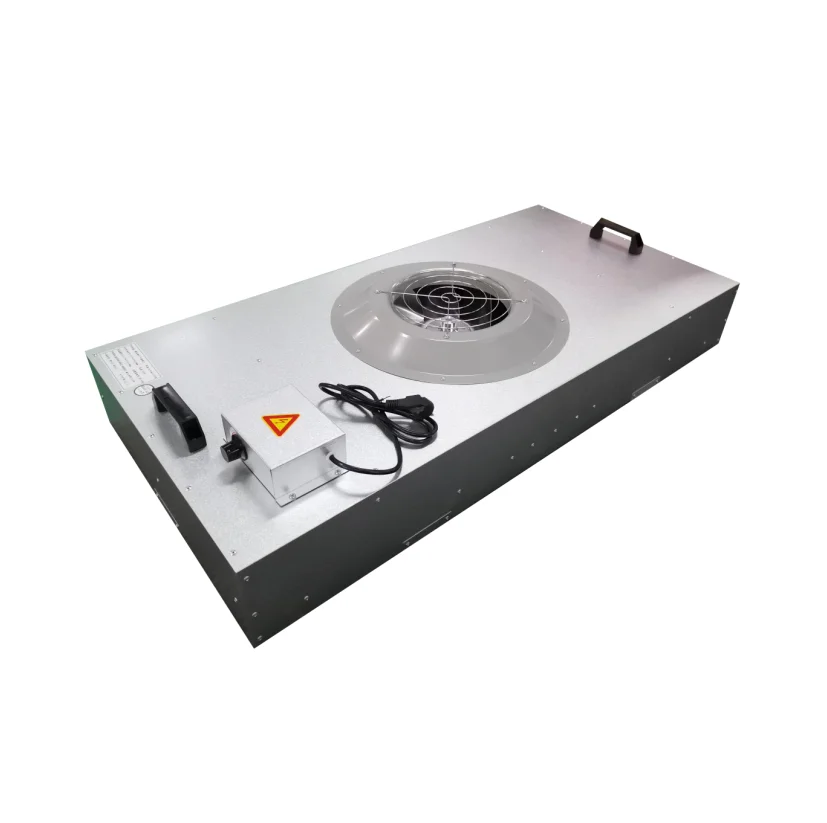

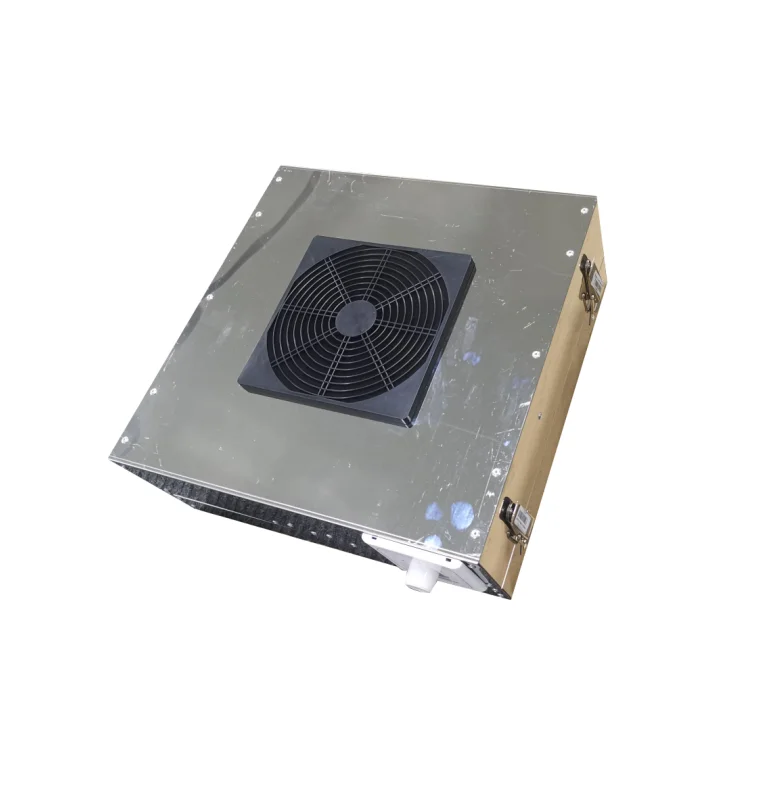

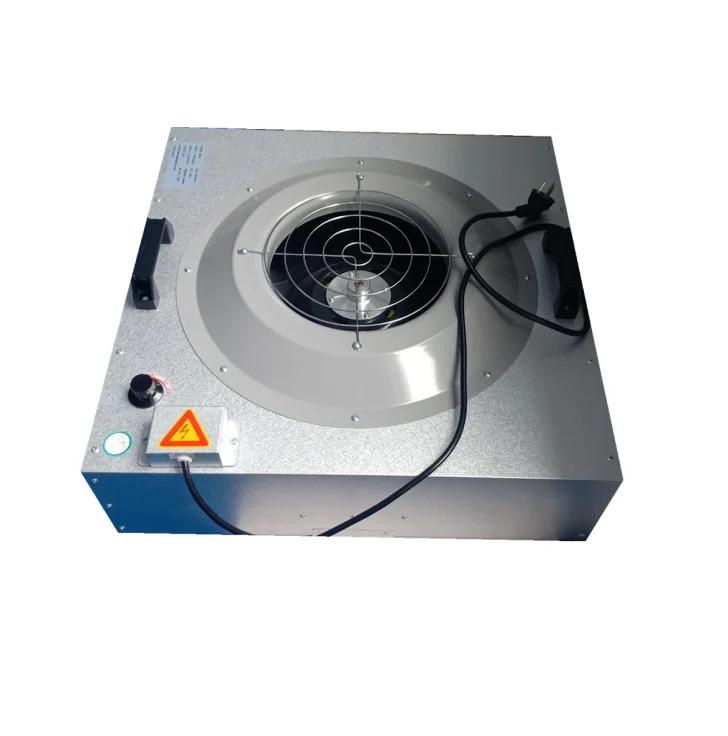

Best price stainless steel FFU fan filter unit for clean room

Model

DSX-FFU-2'*2'

DSX-FFU-2'*4'

DSX-FFU-4'*4'

Dimension(W*D*H)(mm)

575*575*300

1175*575*300

1175*1175*350

Filter Dimension(mm)

570*570*70

1170*570*70

1170*1170*70

Filter Efficiency

≥99.995%@0.3um(H14)

Air Volume(m3/h)

500

1000

2000

Air Velocity(m/s)

0.45±20%

Control Mode

AC motor:3 gear/EC motor:stepless speed(Optional)

AC Motor Input Power(W)

170

170

250

EC Motor Power(W)

140

140

190

Noise(dB)

<53

<56

<59

Case Material

Powder Coated Steel Plate/Galvanized Steel Plate/

Full SUS304(Optional)

Power Supply

AC220/110V,Single Phase,50/60Hz(Optional)

Net Weight(kg)

16

30

55
