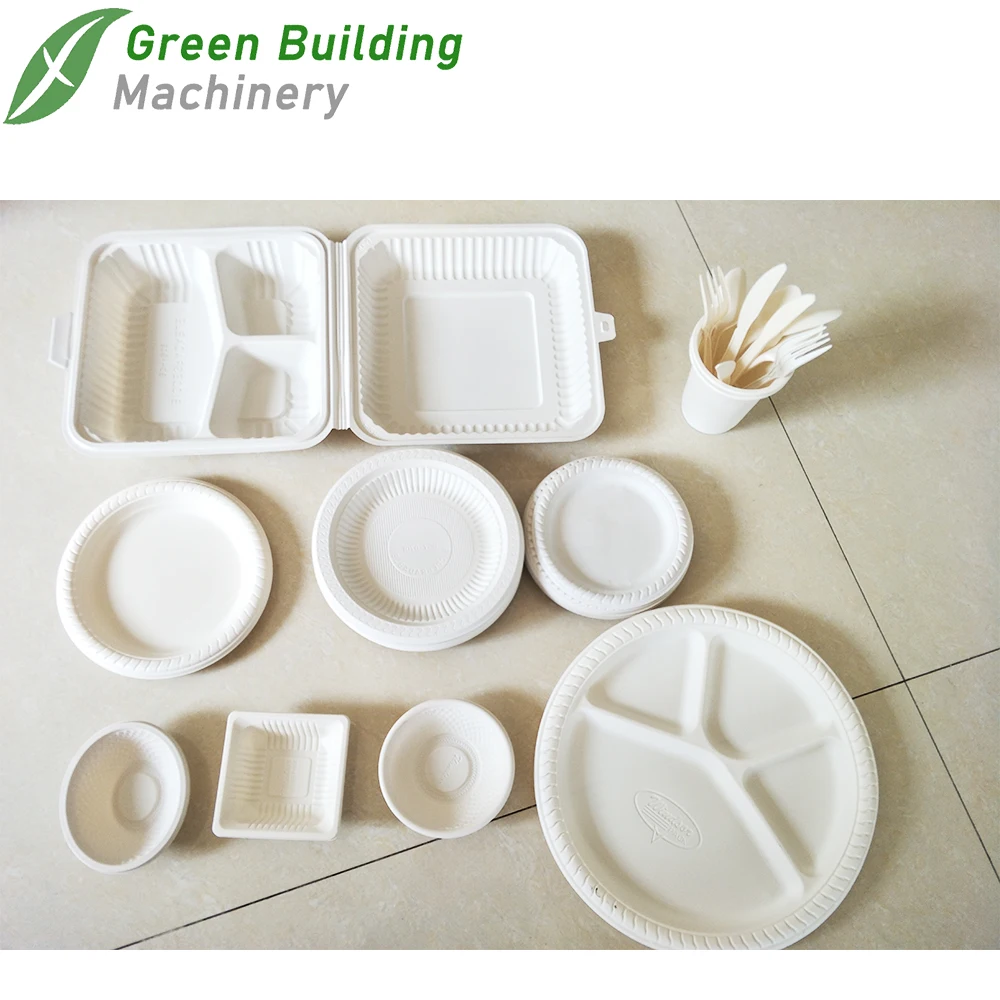

Degradable lunch box food grade utensilPSP and corn starch production line produce degradable and environment friendly tableware
- Category: >>>
- Supplier: Lanxi Green Building New Material Co. Ltd.
Share on (1600519989911):
Product Overview
Description
- Mold specification requirements -
1： Material
Aluminum Ingot: Ac4a High-Strength Magnesium Alloy
Aluminum Plate: 5052h112
Aluminum Support Bar: 6063 Alloy (Opposite Side 25mm)
Guide Sleeve: Diameter 20mm Brass
Sprayer: Copper Rotating Spray
Screw: Stainless Steel
Thread Protect: Brass
Steam Jet: Al steam Jet ￠4 ￠6 ￠8 ￠10
(Advantage: High Speed Heating, Long Working Life)
Copper Pipe: Main Pipeline: ￠28 Looped Pipeline：￠22,16
2： Relevant Parameter
The Pipe Size Of Entry/Exit Air And Water: 1”, 1.5”, 2”
The Separation Distance Of The Air Lock: ≤25x25mm
Screw Separation Distance: ≤120x120mm
Sprayer Separation Distance: ≤200x200mm
Mould Support: ≥25 Pcs Per Mould
Depth Of Thread: ≥15mm
Mould Tolerance Clearance: 0.3-0.7mm
Mould Surface Treatment: Teflon Coating
Mould Dimensional Tolerance: Length/Width: ±0.5mm
Height: ±1.0mm
Mould Locating Pin: Yes
Aluminum Ingot: Ac4a High-Strength Magnesium Alloy
Aluminum Plate: 5052h112
Aluminum Support Bar: 6063 Alloy (Opposite Side 25mm)
Guide Sleeve: Diameter 20mm Brass
Sprayer: Copper Rotating Spray
Screw: Stainless Steel
Thread Protect: Brass
Steam Jet: Al steam Jet ￠4 ￠6 ￠8 ￠10
(Advantage: High Speed Heating, Long Working Life)
Copper Pipe: Main Pipeline: ￠28 Looped Pipeline：￠22,16
2： Relevant Parameter
The Pipe Size Of Entry/Exit Air And Water: 1”, 1.5”, 2”
The Separation Distance Of The Air Lock: ≤25x25mm
Screw Separation Distance: ≤120x120mm
Sprayer Separation Distance: ≤200x200mm
Mould Support: ≥25 Pcs Per Mould
Depth Of Thread: ≥15mm
Mould Tolerance Clearance: 0.3-0.7mm
Mould Surface Treatment: Teflon Coating
Mould Dimensional Tolerance: Length/Width: ±0.5mm
Height: ±1.0mm
Mould Locating Pin: Yes
3：Technological Structure
Casting: Common Casting
Process: CNC Process
Assembling: Precision Assembling
Appearance Treatment: Blast Sanding
4： Inspection Standard
Mould Cavity Inspection: Inspect All Size in 0.1mm Accurate.
Product Inspection: Inspect Overall Size And Main Size (provide check sheet)
5： Accessory Material And Others
（1）Steam jets: 50 pecs/each mould that use in mould
（2）Sealing rubber: 8 m
（3）M8 screw :100 pecs
（4）Packing Way: Completely Packing , carton box
（5）Testing: running test , provide sample
Casting: Common Casting
Process: CNC Process
Assembling: Precision Assembling
Appearance Treatment: Blast Sanding
4： Inspection Standard
Mould Cavity Inspection: Inspect All Size in 0.1mm Accurate.
Product Inspection: Inspect Overall Size And Main Size (provide check sheet)
5： Accessory Material And Others
（1）Steam jets: 50 pecs/each mould that use in mould
（2）Sealing rubber: 8 m
（3）M8 screw :100 pecs
（4）Packing Way: Completely Packing , carton box
（5）Testing: running test , provide sample
Product Details

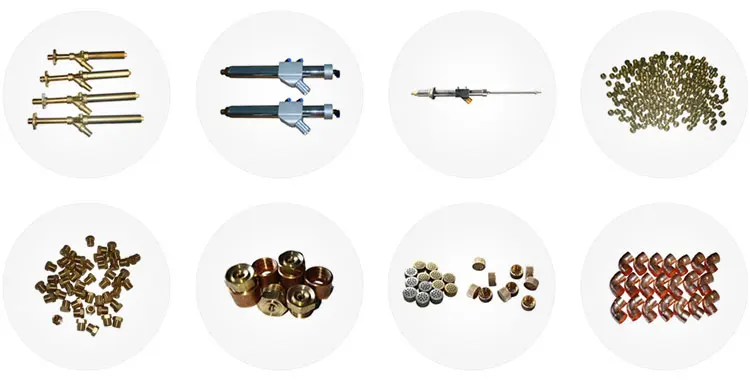

- Accessories -

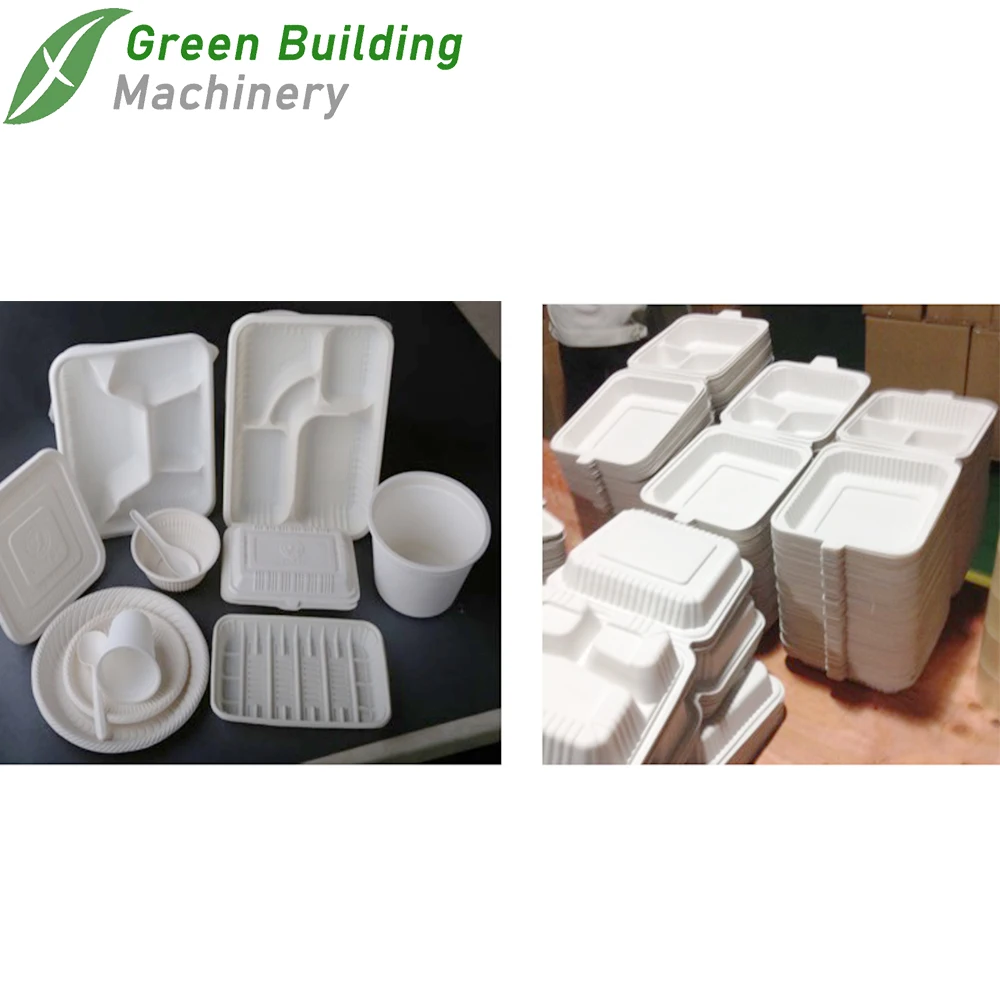

Product Application
Company Profile
- 20+ Years Experience in EPS industry -
We have 20 years EPS industry’s experience. We can provide you full solution of EPS industry. Especially EPS exterior wall decoration projects. We believe , our professional service, qualified products and reliablity of team work will really benefit both side.
- After Service -
We will take reponsiblity for what we offer. Ensure to provide the qualified products to your side. What is more, the qualified
start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.
start-up and training service can be provided from our side. In case , any problem in future, fast on- line service avaible.

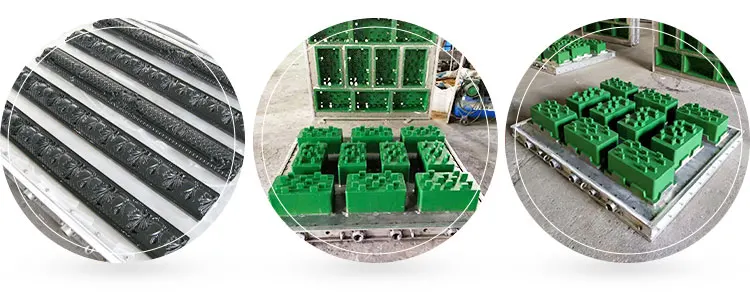

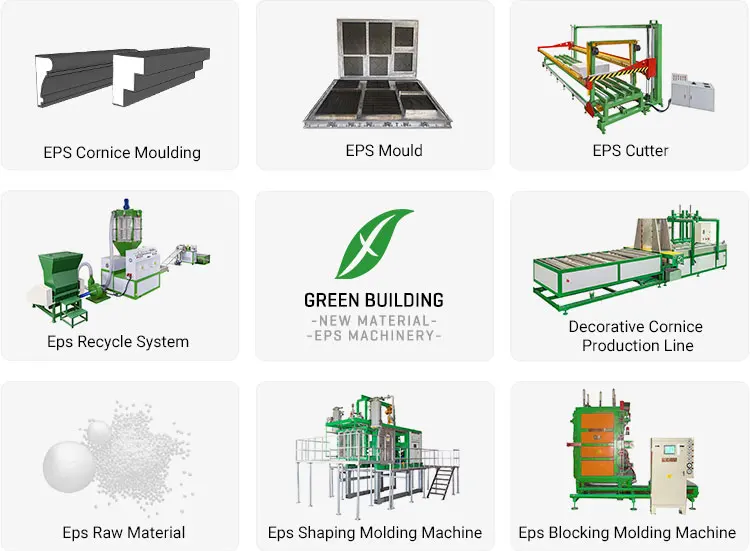

- Our Main Products -
- Our Customer -

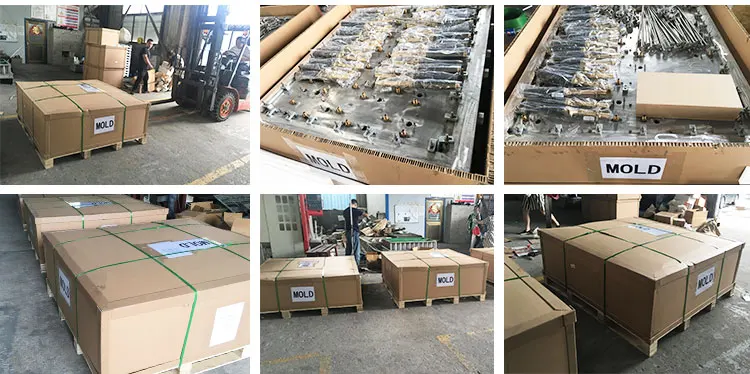

Product packaging
FAQ
1.What is full business range ?
EPS decorative elements (column , cornice, trim) , EPS decorative machine and projects, EPS foam relative machinery.
2.Why we select your company ?
Our qualified products, our professional service and our reliablity will benefit your side more.
3.Where is your location, and sea port or airport?
We are 300KM far from shanghai, jinhua city ,zhejiang province. Ningbo port is not far from us.
4.If you visited, ?You can take international flight to shanghai or hangzhou airport?
Our nearest domestic airport is Yiwu city.
5.How is payment term?
T/T , L/C payment is avaible
6.How is gurantee ?
All machinery gurantee is one year. In case any problem owing to quality issue during gurantee. We will take free changes.
