waterproof high power lumen output landscape outdoor led smd flood light 960W 1200W 1500W
- Category: >>>
- Supplier: Shenzhen Guohui Lighting Equipment Co. Ltd.
Share on (1600519994749):
Product Overview
Description
Products Description
Features
1.Modules's beam angle angle can be adjusted
2. PC cover, Beam angle :8°/20°/40°/60° /90°/140*100°
3. Import LED lamp beads, Light efficiency>165LM/W;
4. Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm;
5. Use 304 stainless steel screws;
6. Internal wiring is waterproof, safe,Convenient
7. Fin-type 1060 Aluminum Lighter weight compared to same wattage die-casting aluminum. Lower pressure for project roofs and saves a lot of freight.
8. IP67
9. Meanwell driver
3. Import LED lamp beads, Light efficiency>165LM/W;
4. Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm;
5. Use 304 stainless steel screws;
6. Internal wiring is waterproof, safe,Convenient
7. Fin-type 1060 Aluminum Lighter weight compared to same wattage die-casting aluminum. Lower pressure for project roofs and saves a lot of freight.
8. IP67
9. Meanwell driver
Product Number | Outdoor LED High Mast 192000 Lumen 1200W Stadium flood Lights | ||||
Input Power | 1200W | ||||
Led Chips | SMD 3030 1472PCS/SMD 5050 368PCS | SMD5050 138PCS | |||
Light Effiency | 145LM/W & 165LM/W | ||||
Input Voltage | AC100-305V | Frequency | 50/60HZ | ||
Power Factory | PF>0.95 | CCT | 2700-6500k or customized | ||
Power Supply | Meanwell ELG 300W*1pcs | CRI | >70 | ||
Production Sizes | 625*680*83mm | Packing Sizes | 640*700*105mm | ||
Net Weight | 23.45 KG | Gross weight | 24.70KG | ||
Lamp Boady Color | Black/Silver | ||||
Power Cable | Brown L firewire | ||||
Yellow Green G ground | |||||
Blue N zero Line | |||||
Beam Angle | 8/20/40/60/90/140*100 degree | ||||
IP grade | IP67 waterproof | Material | Fin 1060 pure Aluminum | ||
Lifetime | 50000 hours | Temperature | -30-+55 degree | ||
Certificate | CE ROHS | Warranty | 5 years | ||
Details Images

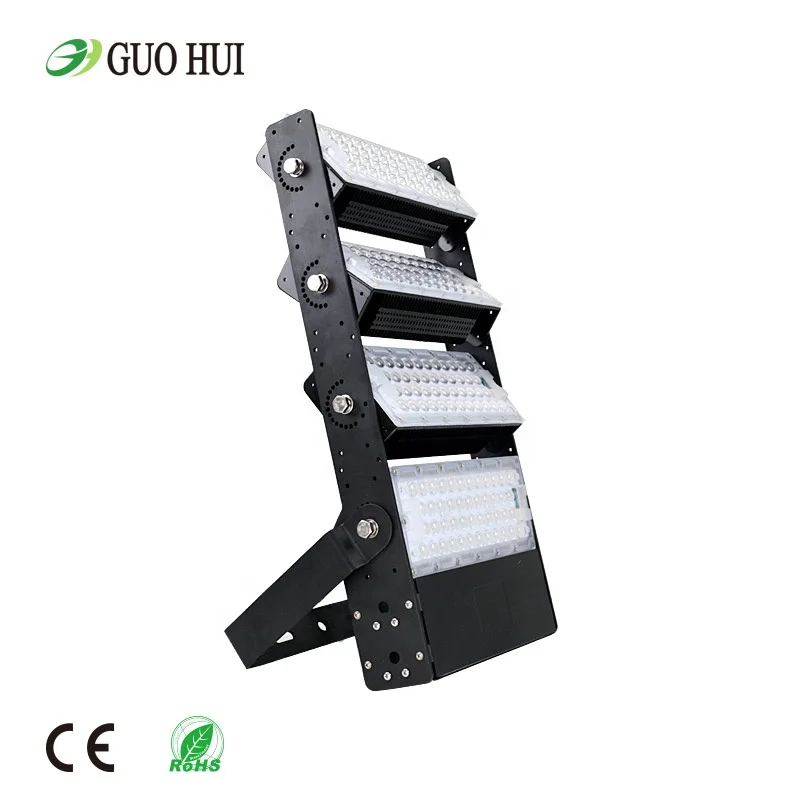

Adjustable Module
Single module adjustment angle light distribution 8°/20°/40°/60°/90°/140°*100° angle less PC cover
Super Brightness & Energy Save
Imported SMD Led chips,High lumens up to 145-165lm/w

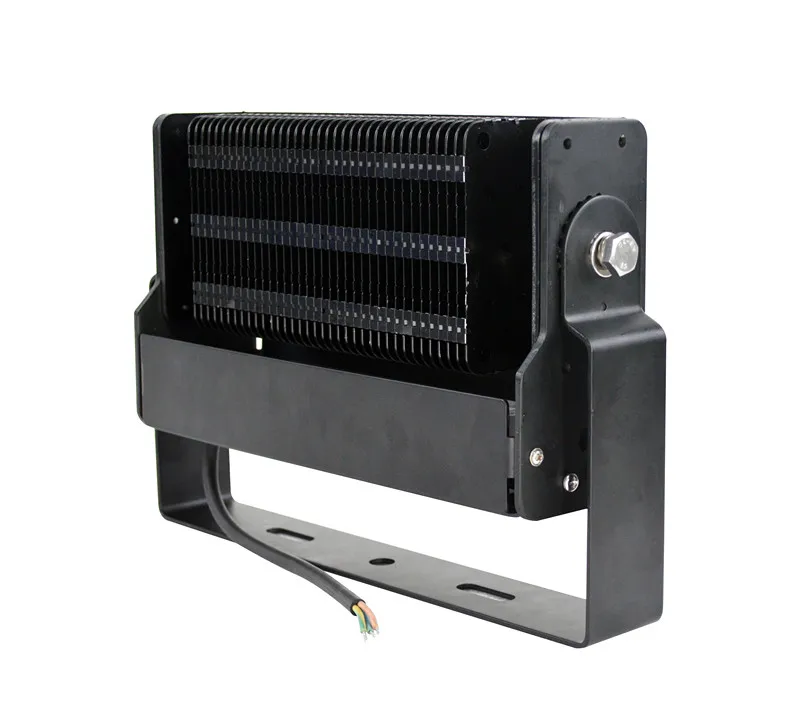

Material
Using fins 1060 pure aluminum heat dissipation, air convection design, better heat dissipation, heat sink 0.5mm
Power Box
Independent power box design to support more power, which is beneficial to light body heat dissipation, reducing light decay and
prolonging service life.
prolonging service life.
IP67 Fully Waterproof
Product sealing is perfect .It means you don't have to worry about flooding when it works. Please note that the floodlight can not be used IN the water. Life Span More than 50000 hours,save your replace time and money!
Driver
Meanwell ELG or Meanwell HLG
Stainless steel screws
Using 304 stainless steel screws
Connector
Internal wiring is waterproof, safe, convenient.
Bracket
Refined iron phosphide bracket

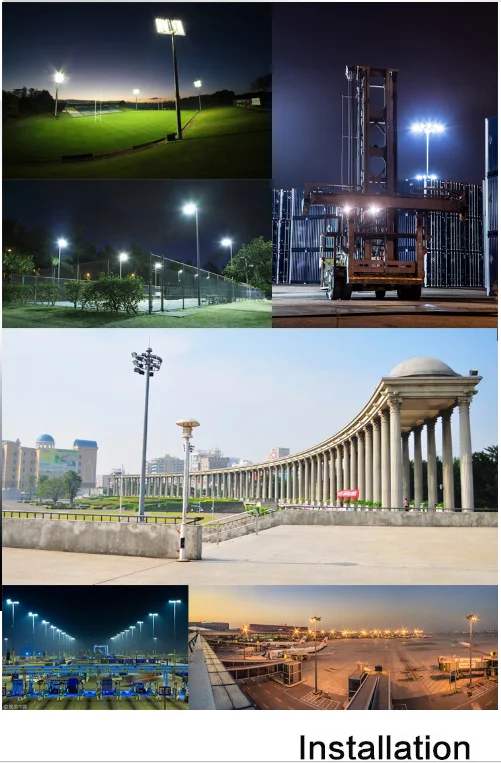

Project case
Company Information
Guohui Lighting has been a leading producer and exporter for wide range of LED Lights since 2008. Main products are LED Corn Light , LED High Bay / Low Bay Light, LED Flood Light, LED Street Light, LED Tunnel Light , provides Commercial / Industrial / Residential Lighting Solutions. We are ISO9001 approved factory, all our products undergo strict quality control process. What we always pursuit is top quality, so we keep mold, patent, certification for our products, which inreturn help us win a very good reputation in the field. All of our LED products are warmly welcomed in American & European & Austrilian Market.
Certifications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new light with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
OEM and ODM is high welcome! Our factory also can customize with client's requirments.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new light with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
OEM and ODM is high welcome! Our factory also can customize with client's requirments.
