Hospital Medical Emergency CPAP Portable ICU Neonate Respiratory Treatment Breathing Ventilator

Product Overview

Description

Hospital Medical Emergency CPAP Portable ICU Neonate Respiratory Treatment Breathing Ventilator

Common Features
1. Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
2. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy

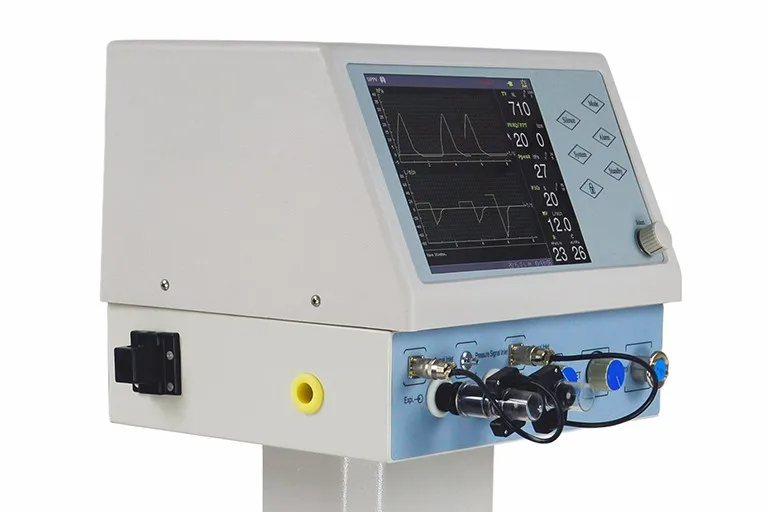

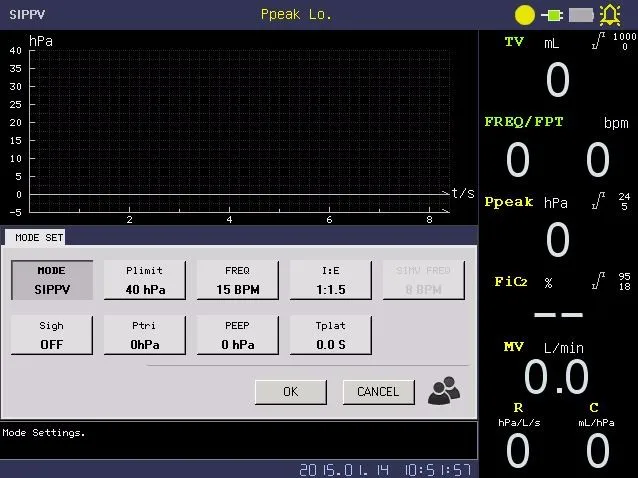

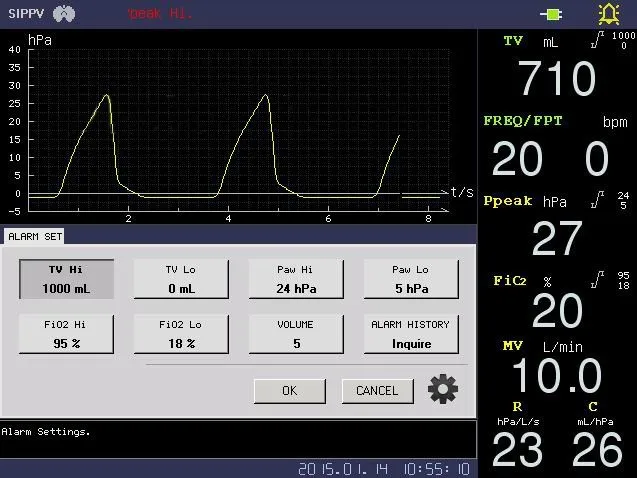

3. Display: Built-in 10.4 inch color TFT fully adjustable display, able-display Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume and any two waveforms simultaneously on screen
4. Trigger Types: Pressure trigger, Flow trigger
5. Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume

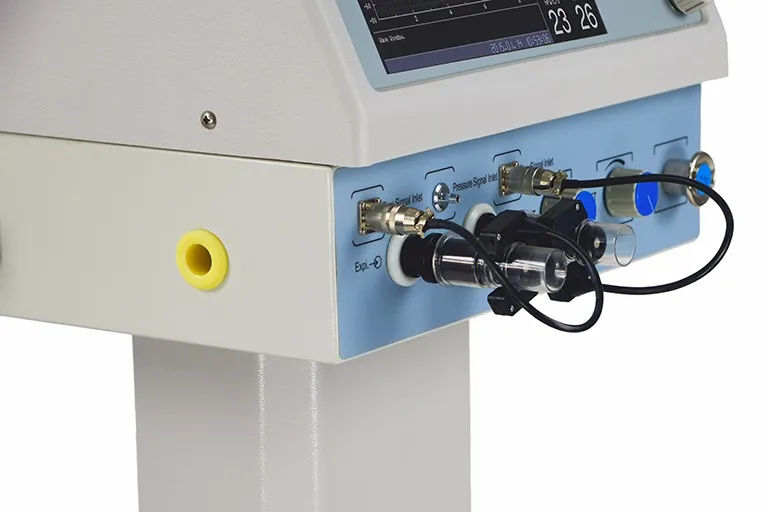

6. Features built-in dual electronic flow sensors and dual respiratory modules
7. Power Failure Support Functions: Automatically converts-standby mode during AC power outages
8. Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory trigger and others
9. Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
10. Nine Level adjustable humidifier
11. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
12. Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function
Advanced Model Exclusive Features

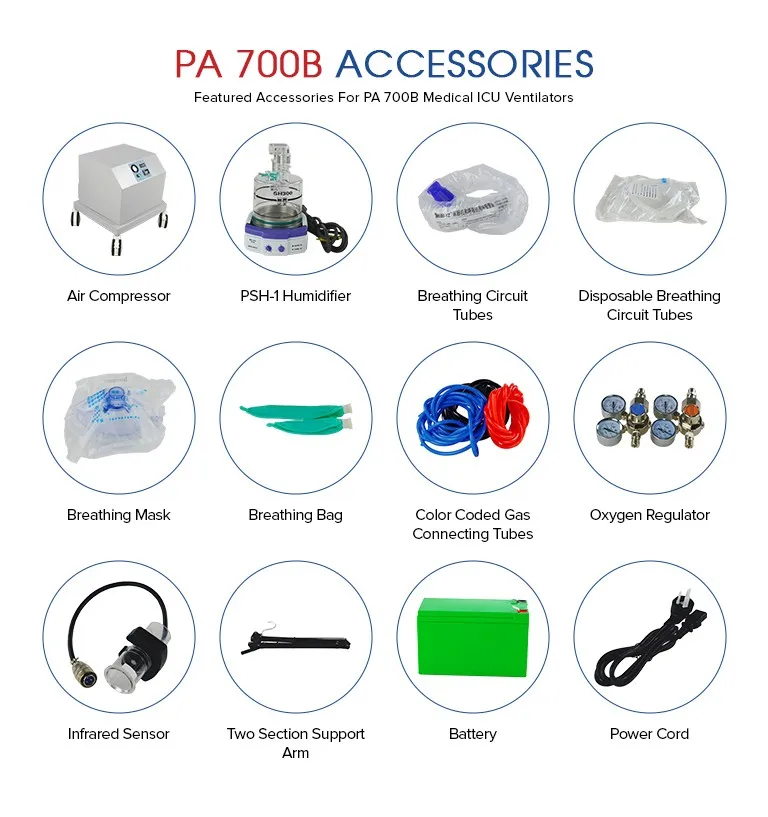

13. Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
Air Compressor
14. Air Compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity
15. Output Gas Pressure: 0.4MPa±20%
16. Continuous output gas flow greater than or equal to 20L/min
17. Instantaneous output gas flow great than equal to 60L/min
Specifications

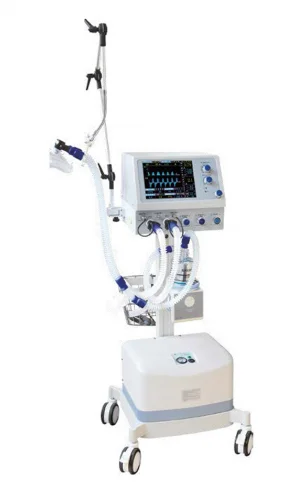

Model	700B (Advanced Model)
Display	10.4 inch high visibility color TFT display
Ventilation Mode	A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT MANUAL
Minute Volume	Greater than or equal to 18L
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml, Display range: 0-2000ml
Respiratory Rate	1-99bpm
Inspiratory/expiratory (I:E) ratio	4:1-1:4
PEEP	0-10cmH2O
SIMV Rate	1-20bpm
Inspiratory Pressure Trigger	-10-10cmH2O
Trigger Sensitivity (flow)	1-10L/m
Inspiratory Plateau	Adjustable from 0-50% of inspiratory time
Adjustable Oxygen Concentration	21-100%

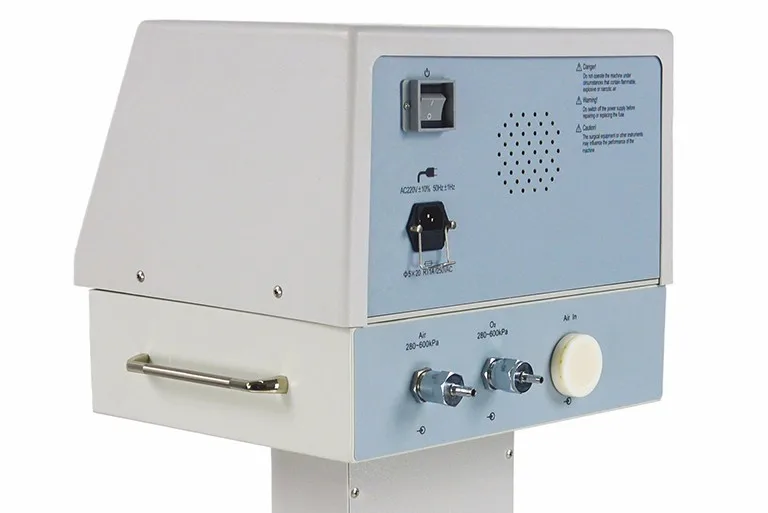

Gas Supply Requirement	280~600 kPa medical grade oxygen and compressed air supply
Pressure Limit	1.0kPa~6.0kPa
Maximum Safe Operating Pressure	≤6.0kPa
Tidal Volume Alarm	Upper Limit: 10~2000ml, Lower Limit: 0~1800ml
Airway Pressure Alarm	Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa
Oxygen Concentration Alarm	Upper Limit: 22~100%, Lower Limit: 21~80%
