Hot Cold Water Dual Sensor Faucet Public Use Chrome Finish Touch and Infra red Sensor Faucet

Product Overview

Description

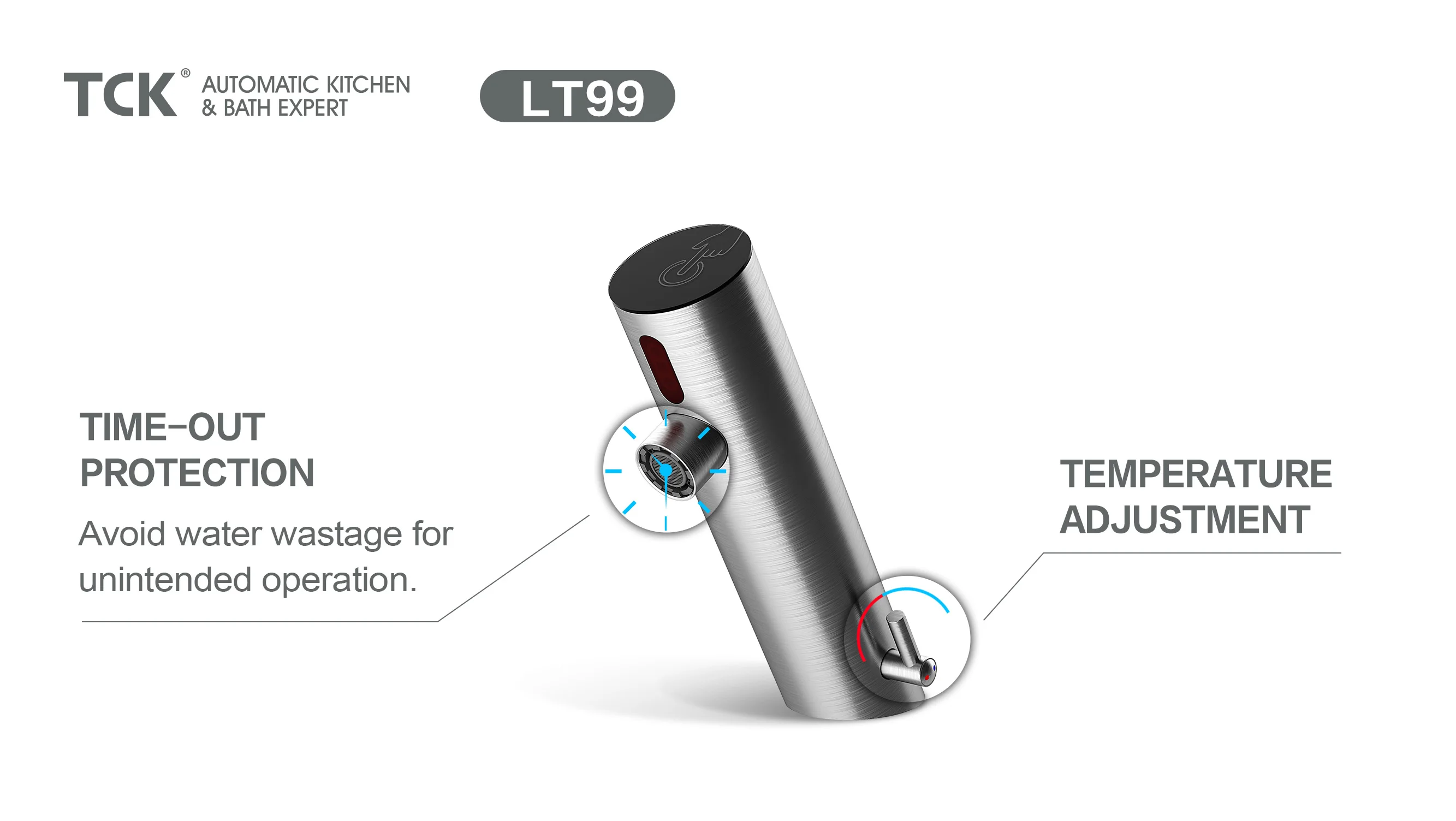

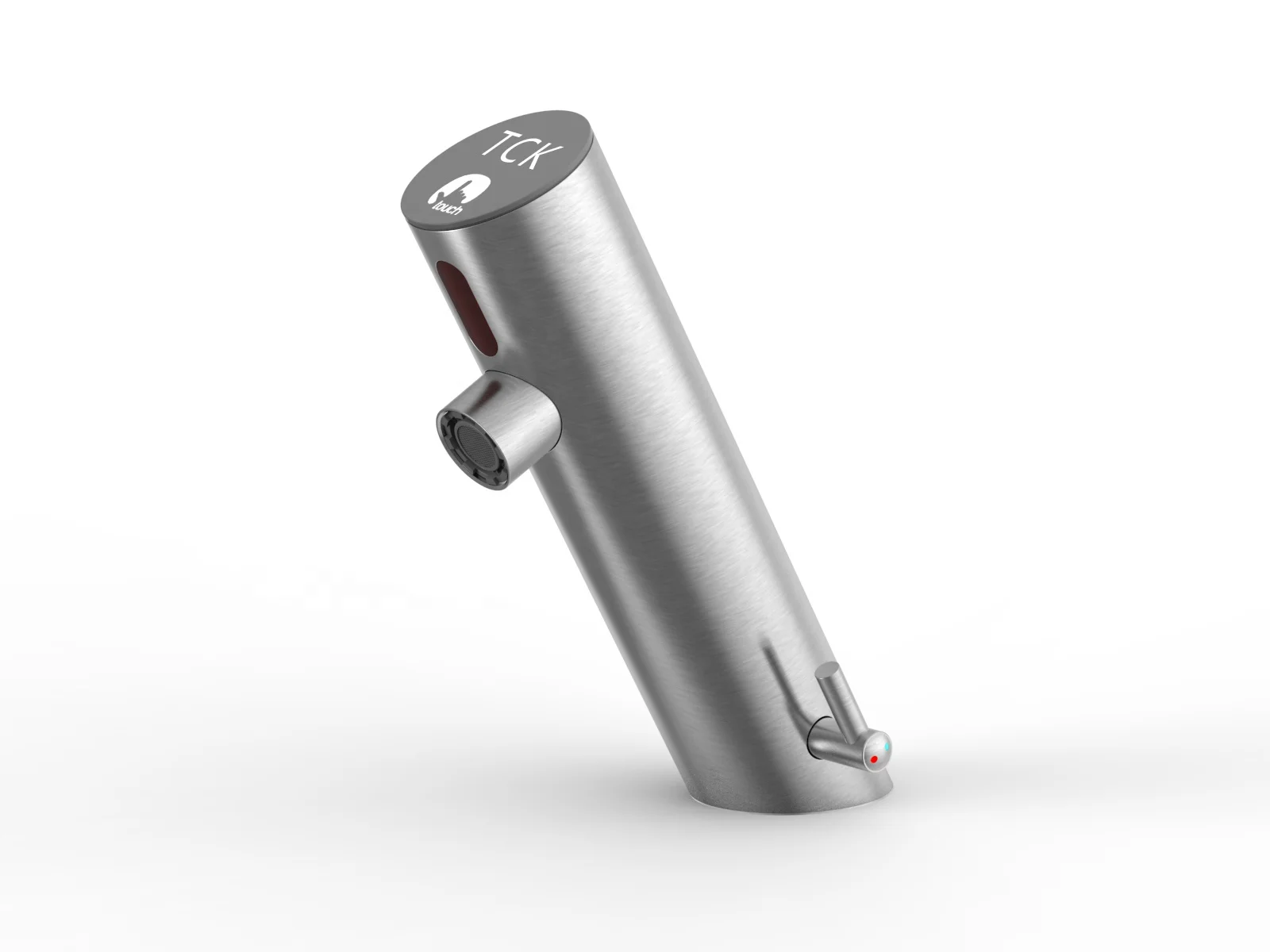

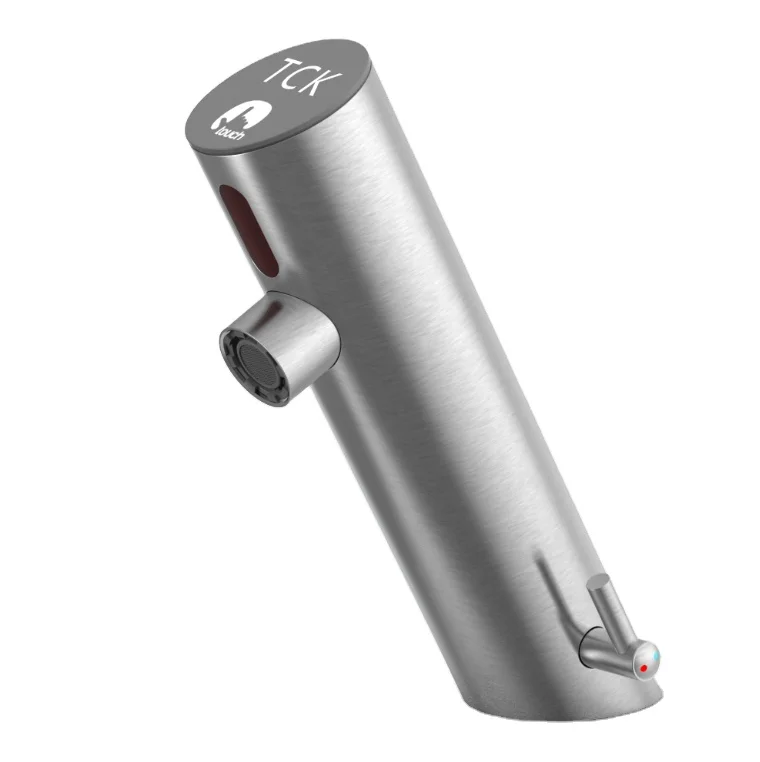

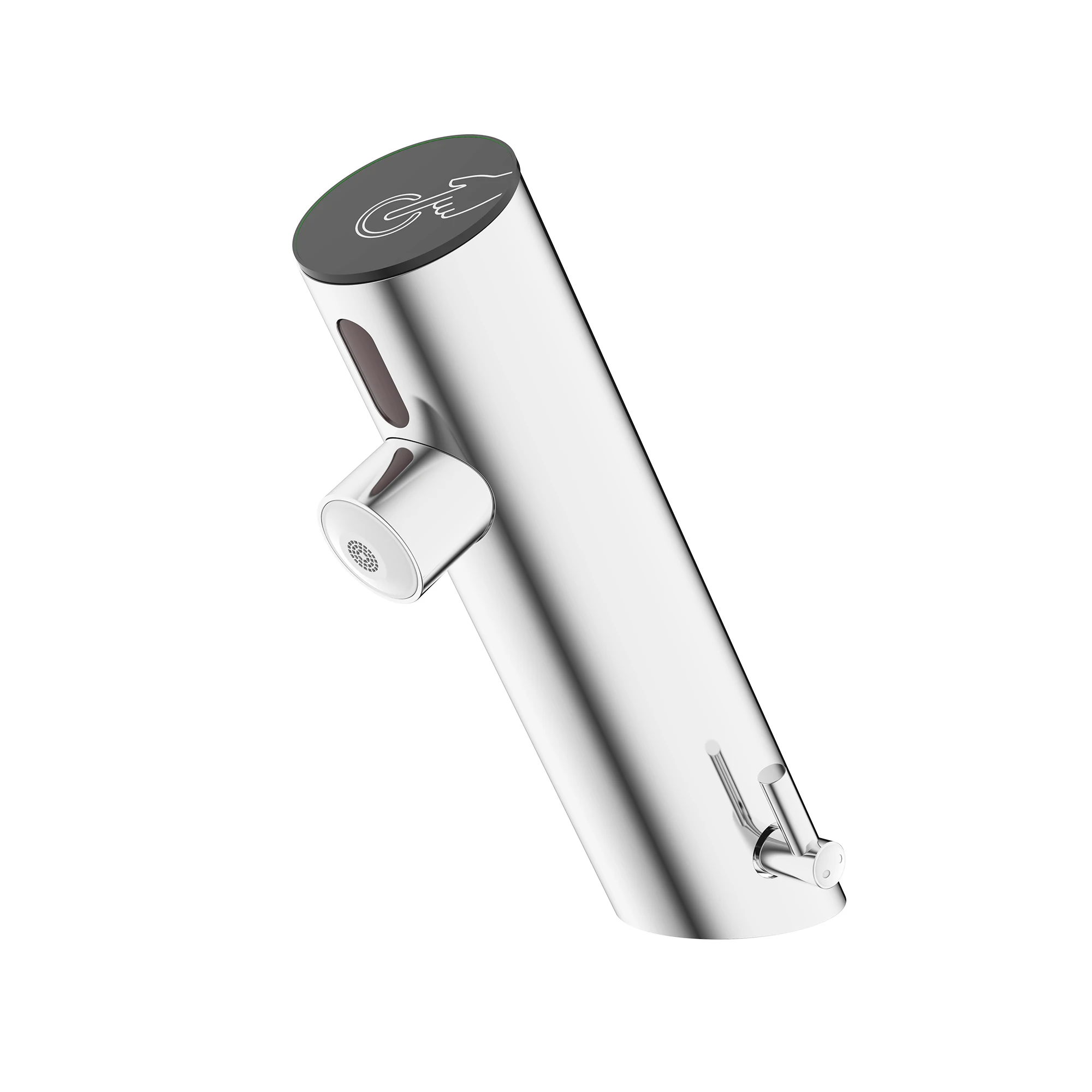

LT099C Sensor Faucet_Product Photos

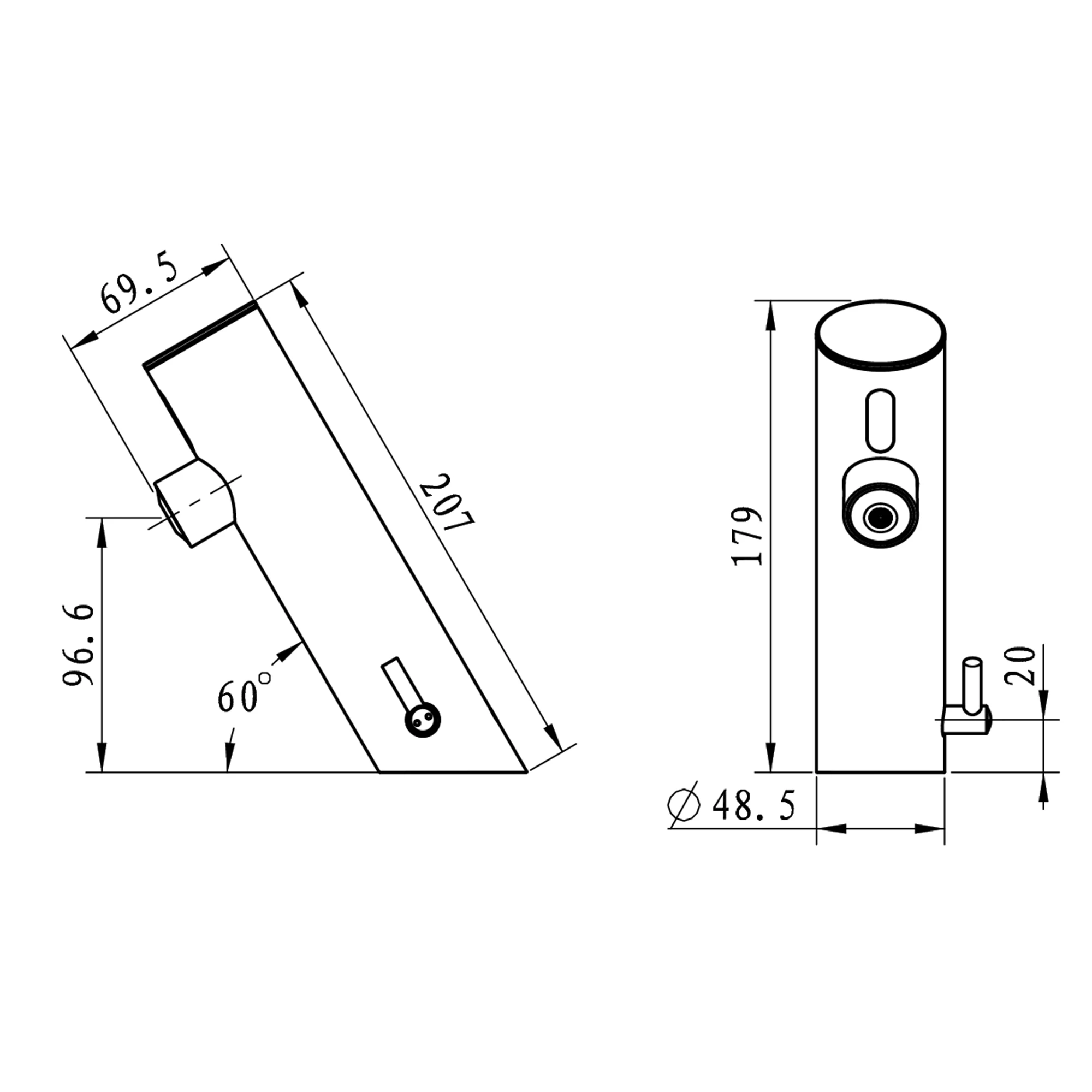

 LT099C Sensor Faucet_Product Dimensions

 LT099C Sensor Faucet_Functions and Features

• Infra-red sensor activation in faucet body for instant water flow


• Touch sensor activation for user experience for long time water flow


• Temperature control by manual handle


• Adjustable sensing distance by a magnet


• Timeout Protection: water flows more than 60S±10%, faucet will stop automatically


• Improves water and energy efficiency


• Easy to use and installation


• Mains and battery powered options included


• Vandal resisitant Power-off protection


• Power-off protection


• Low-voltage protection


• Reverse polarity protection

LT099C Sensor Faucet_SPECIFICAITON
01	Product Model No.	LT099C
02	Function	Integral Infra-red Sensor Faucet with Temperature Control Infra-red Sensor Activation for instant water flow Touch sensor activation, touch on, touch again off
03	Size	48.5*134.25*179mm
04	Faucet Material	HPb59-1
05	Surface Finish	Chrome Plated; ASS 24h Grade 10
06	Operating Voltage	DC; AC&DC; AC DC:6V; 4*AA Battery; AC 110-220V
07	Working Ambient Temp.	1℃~55℃
08	Ambient relative humidity	≤95%
09	Water Supply Temp.	≤75℃
10	Water Supply Pressure	0.05MPa~0.8MPa
11	Water Flow Rate(Q)	Under(0.10±0.01)MPa, 3L/min≤Q≤7.5L/min
12	Power Consumption	DC standby mode≤0.2mW
		AC standby mode≤2W;  Working mode≤4W
14	Sensor Activation Time	Under(0.10±0.01)MPa, Open≤1s; Close≤1.5s
15	Sensing Distance	22 ± 10%cm(to 297x297mm whiteboard, Adjustable)
16	Sensing Distance	Magnet Adjusting
17	Low-voltage Protection	If vlotage is under 3.9V, indicator light illuminates 2 times every 2-3 seconds,  alarms and closes solenoid valve automatically
18	Power-off Protection	If power is off, close solenoid valve automatically
19	Reverse polarity Protection	If reverse polarity happens, inductive components will not work
20	Timeout Protection	If water flows more than 60S±10%(Adjustable), faucet will stop automatically
21	Life Span	Product >500,000 times
22	Inlet Connection	G1/2"-14; Adjustable
WE RESERVES THE RIGHT OF FINAL INTERPRETATION FOR THE PRODUCT XIAMEN OLT CO.,LTD



LT099C Sensor Faucet_Applicaiton Scenarios

• Hotel


• Airport


• Hospital


• Supermall, Supermarket


• Goverment Office, Building


• ......

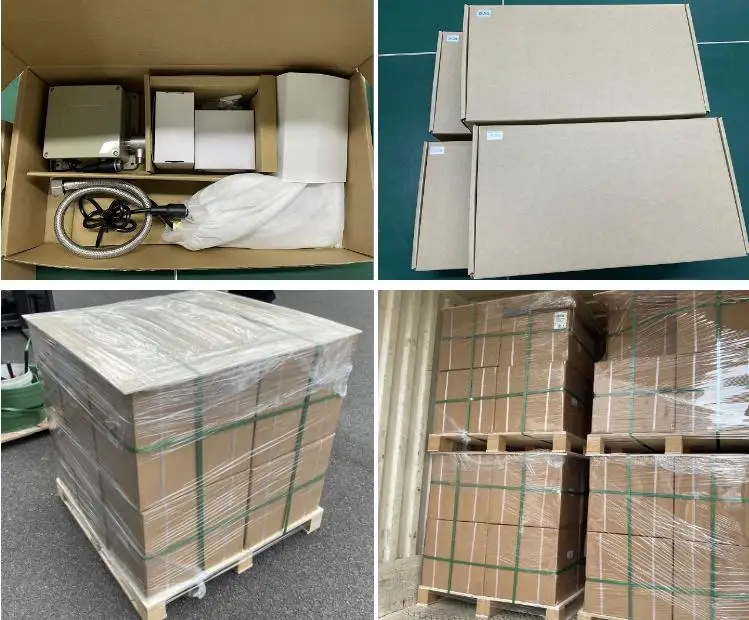

LT099C Sensor Faucet_Pacakges

• Neutral Paper Box(Customized Packing Design accapetable)


• One Piece Per Box, 8 Boxes In One

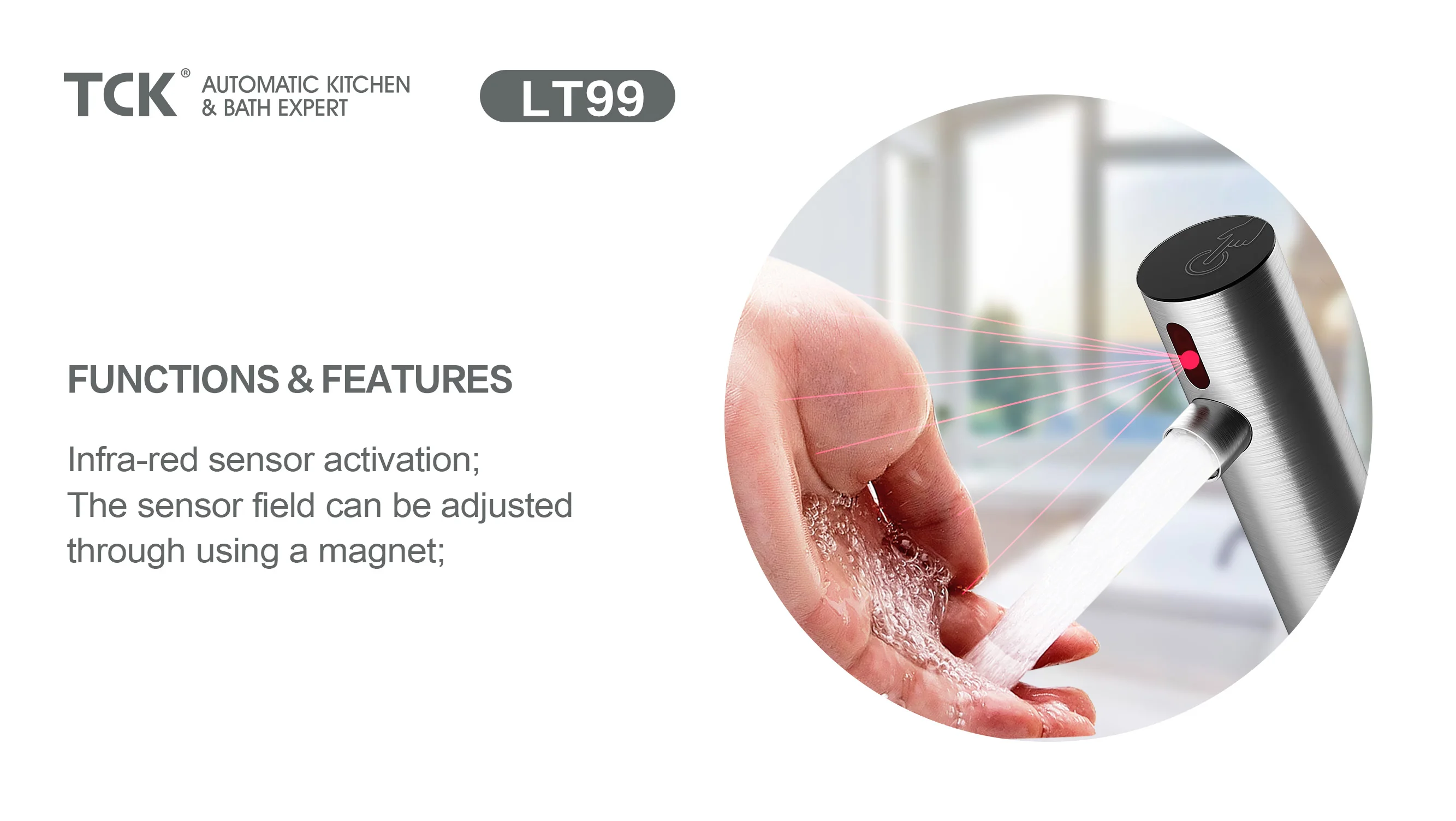

LT099C Sensor Faucet Details_Infra-red Technology

• Touchless infra-red sensing technology


• Detects hands' motion and turns the water on and off automatically


• Hands in the sensing range, faucet turns on, water will flow out


• Hands our of the sensing range, faucet turns off, water stops flowing in 1.5 seconds

Save as much water and energy as possible

Touchless! Contactless! Convenient!



 LT099C Sensor Faucet Details_Touch Sensor Technology

• Touch once, faucet turns on, water will flow out


• Touch again, faucet turns off, water stops flowing in 1.5 seconds


• If user forgets to touch again, faucet will turn off within 60s ±10%s, that is TCK's Timeout Protection.



  LT099C Sensor Faucet Details_Adjustable Sensing Distance by Magnet

• Magnet close to the sensor


• Start the adjustment when the LED indicator illuminates continuously


• Put Hand(s) in the position with the distance needed


• End the adjustment when the LED indicator stops illuminating


• Default Setting Sensing Distance is 15cm±10%, adustable

  LT099C Sensor Faucet Details_Temperature Adjustment

Set lever to desired water temperature for optimal comfort and to avoid the risk of scalding

By UsingManual Knob

Clockwise to decrease

Counterclockwise to increase

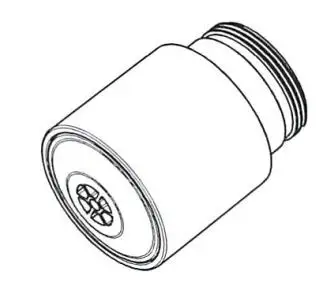

LT099C Sensor Faucet Details_Neoperl  Aerator

Shape the water stream, reduce faucet noise and fulfil national norms

Save water and energy

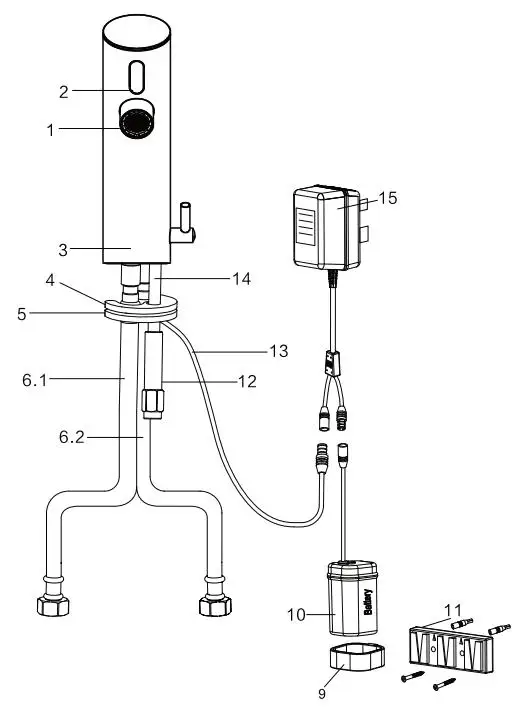

LT099C Sensor Faucet Details_Spare Parts and Filter

Special filter design. Purifying heavy metal, particles, and impurities.

Improving water experience and health by imporving the water quality.

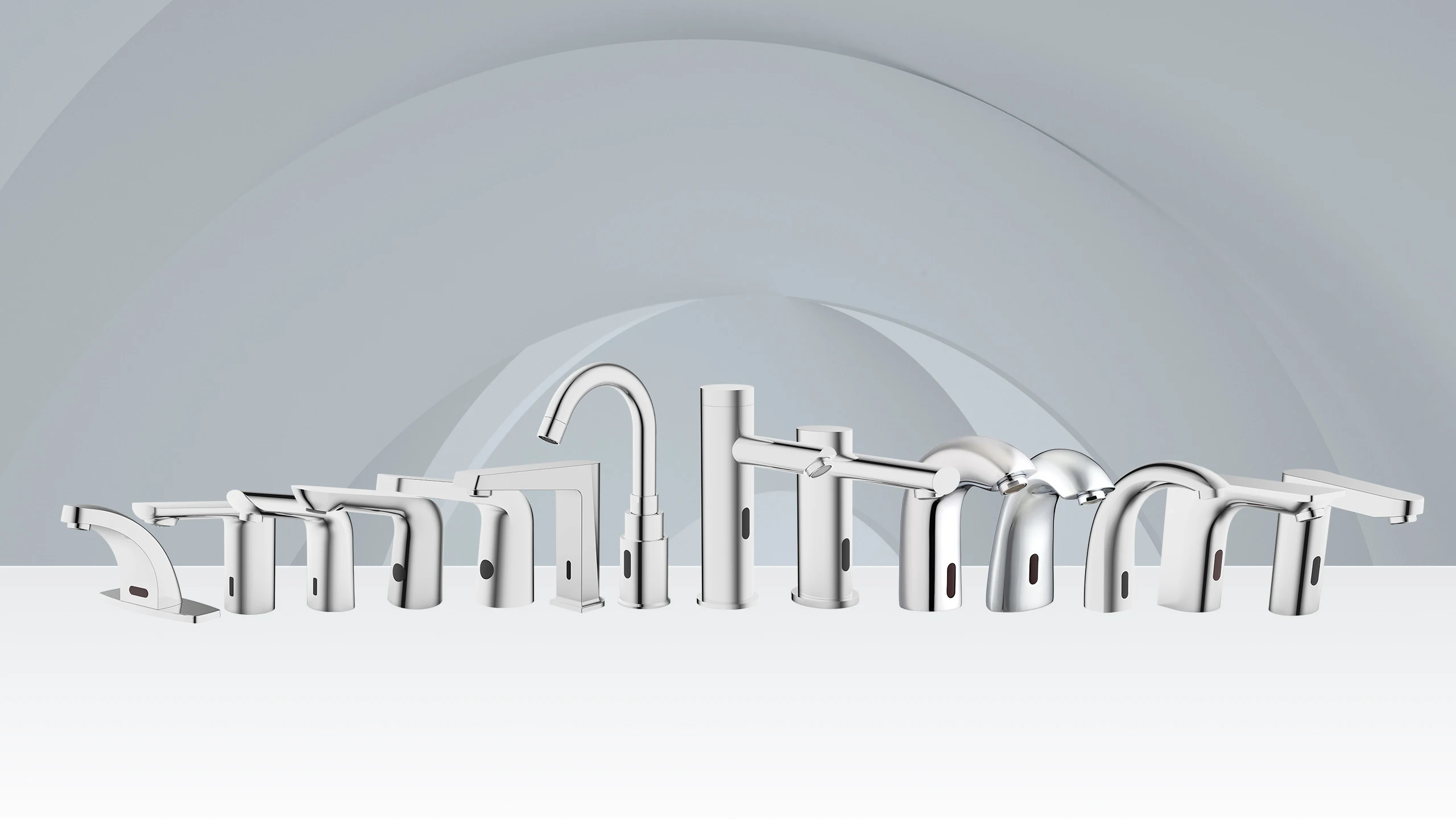

Related Products













Xiamen OLT CO., LTD

Xiamen OLT CO., LTD also known as TCK.

"TCK" is our brand, standing for "Technologically Creative Kingdom."

Started in 2002, TCK specializing in R&D, and production of top-quality automatic kitchen and bath products.

19 years of background and experience

80+ national patents

50+ Countries

31+ science and honors

7+ International certifiates

OEM\\ODM\\JDM business mode



TCK Company







TCK in International Fair

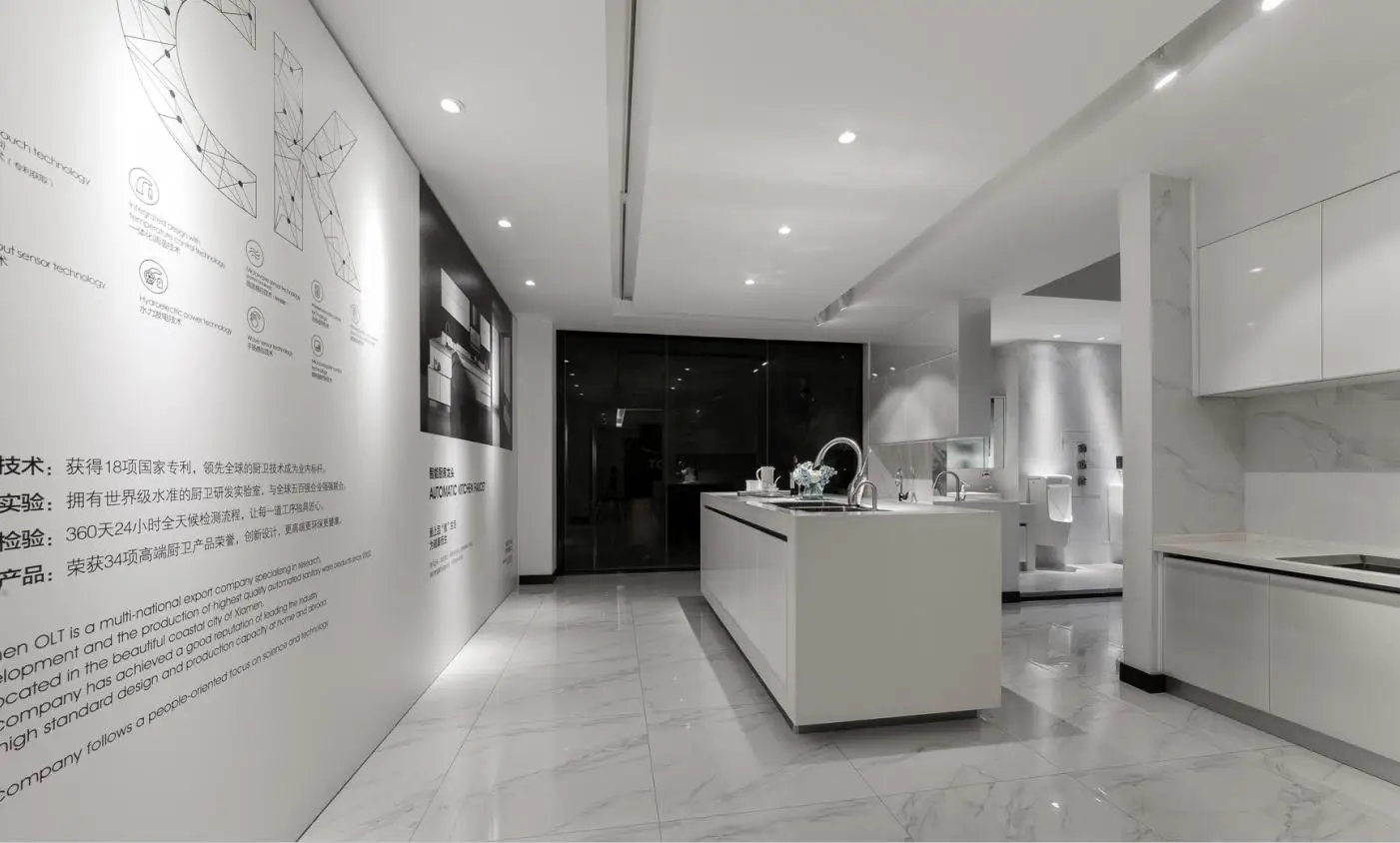

TCK_Showroom

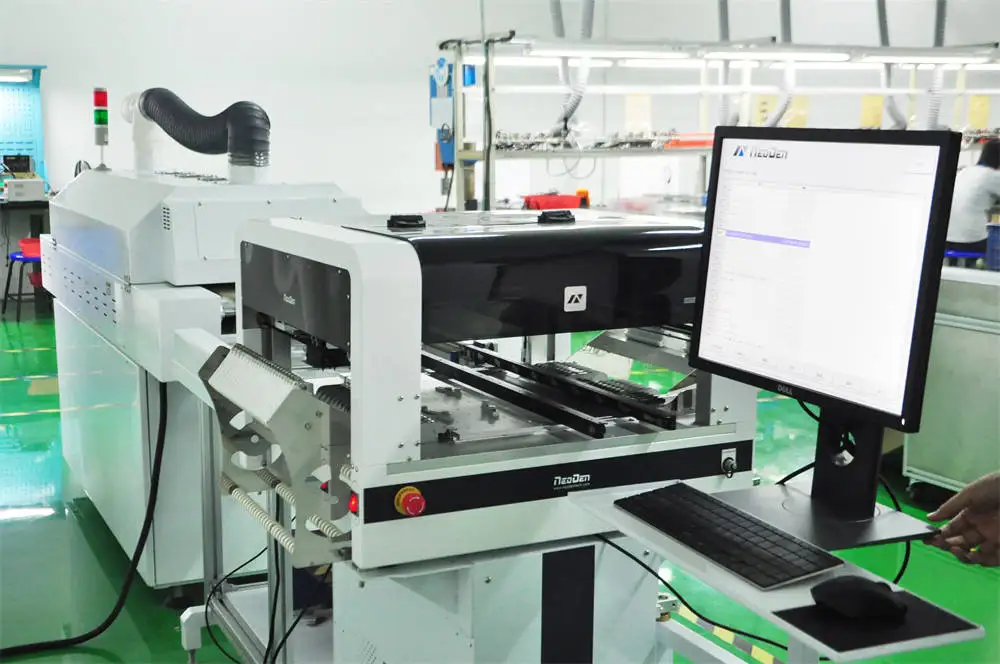

TCK_A Manufacturer:

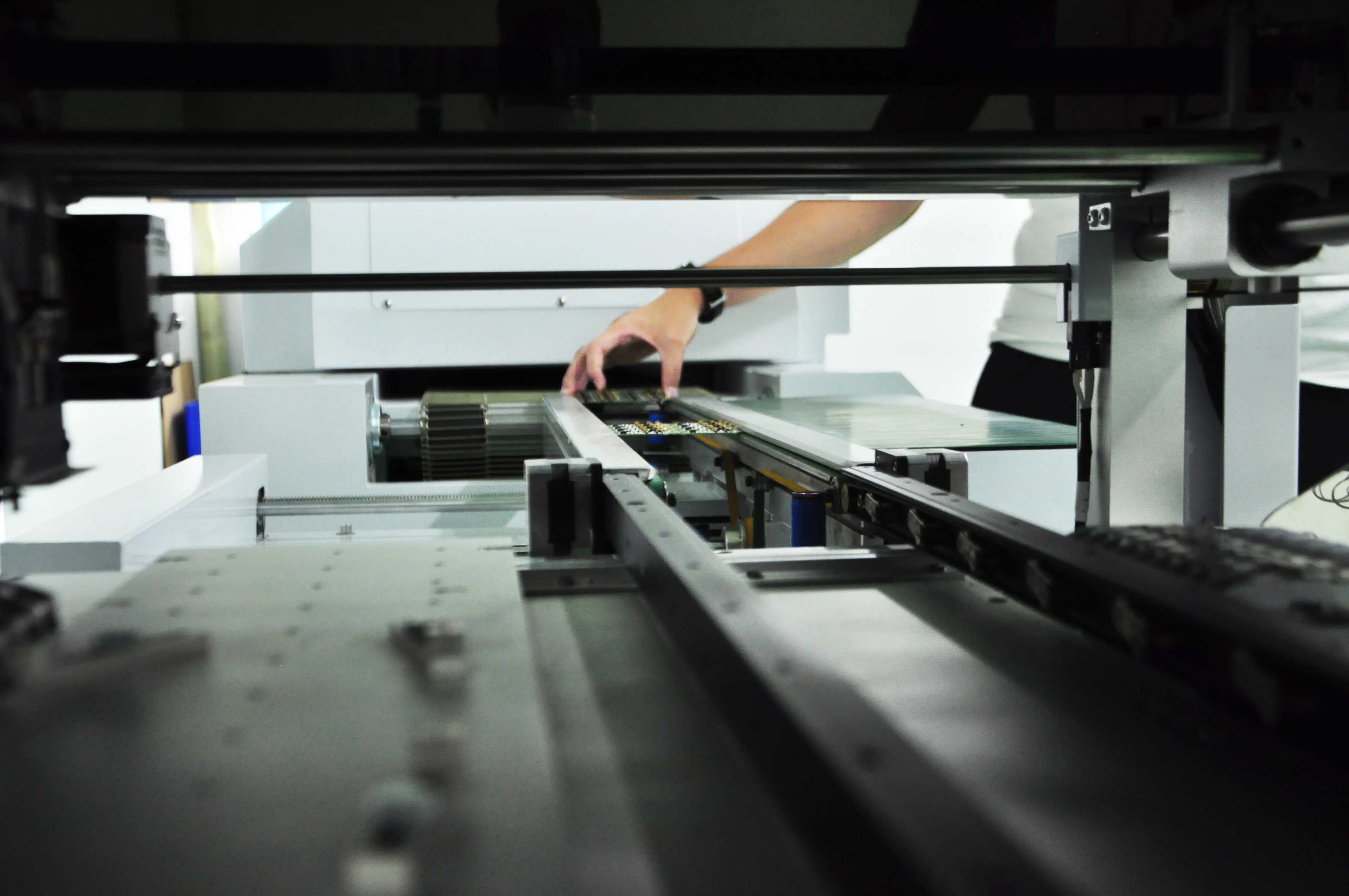

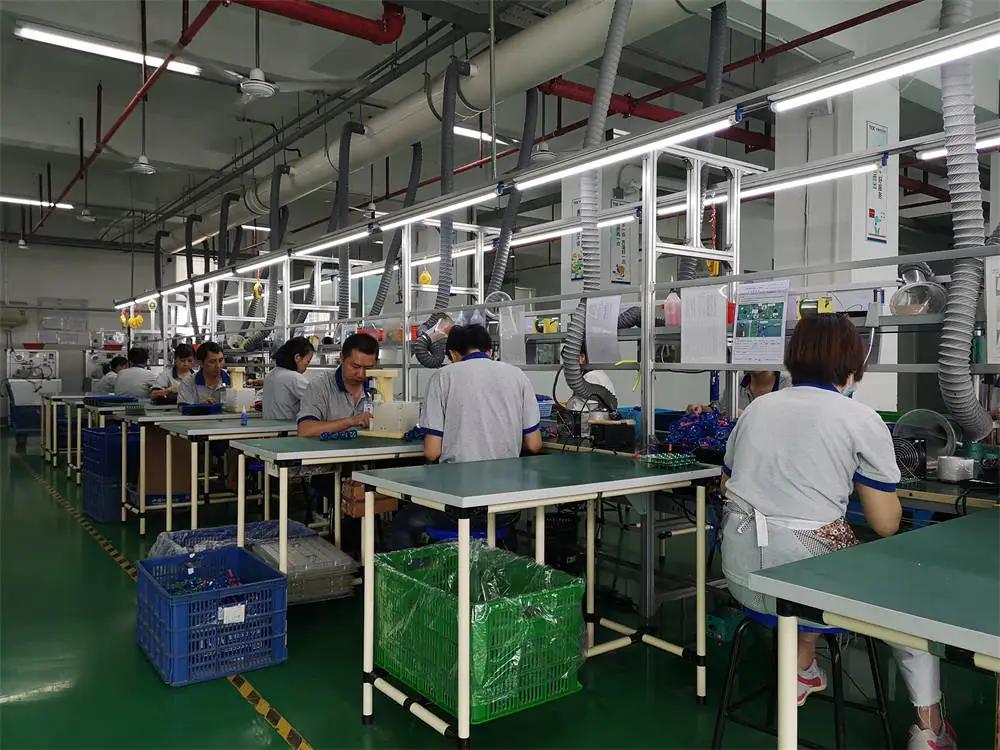

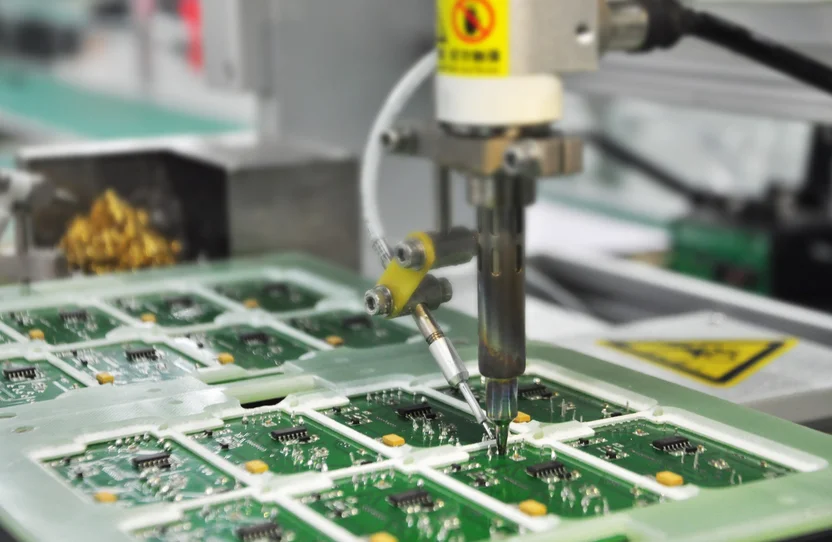

We have 12 production lines in our workshop for:

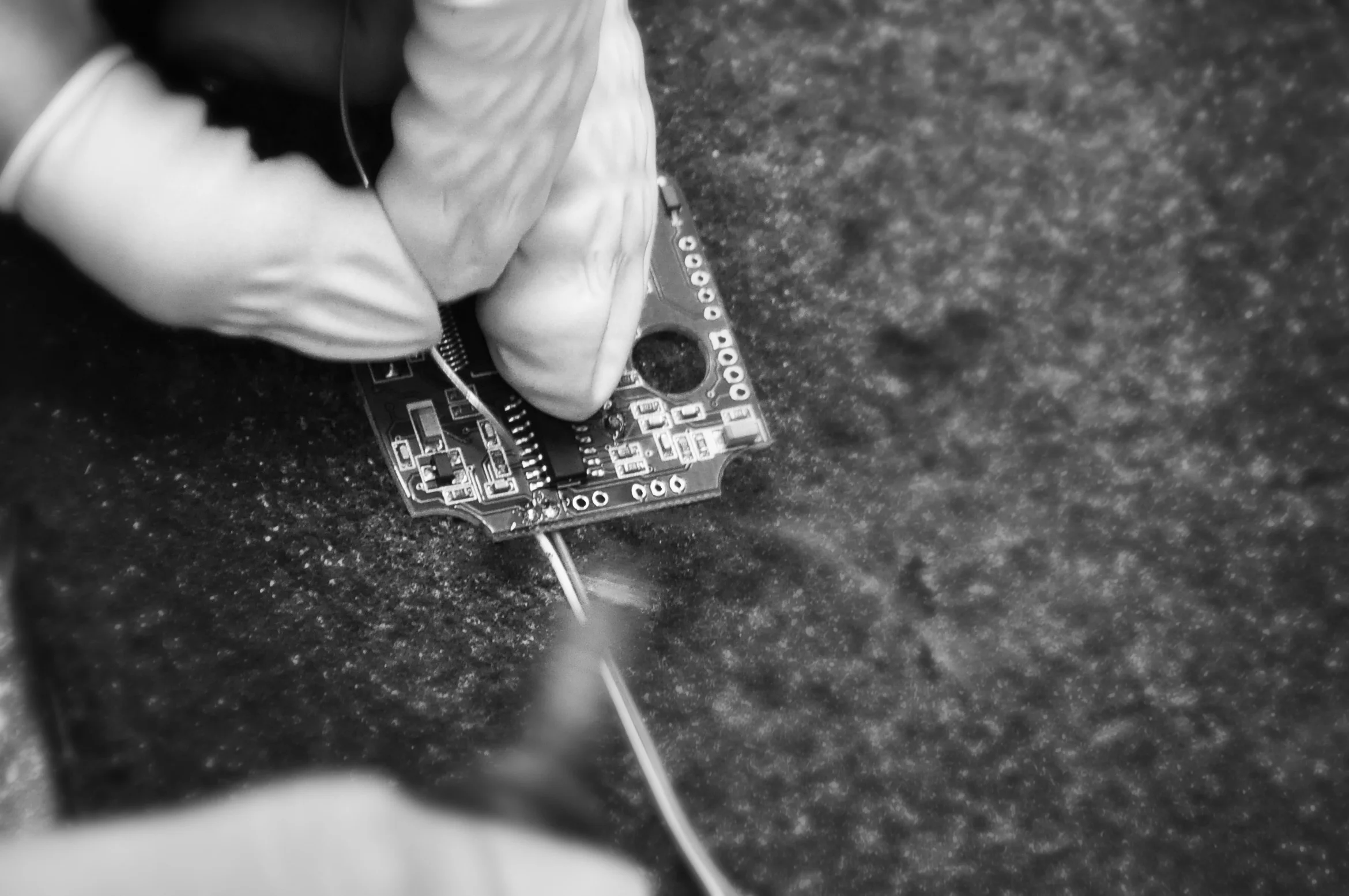

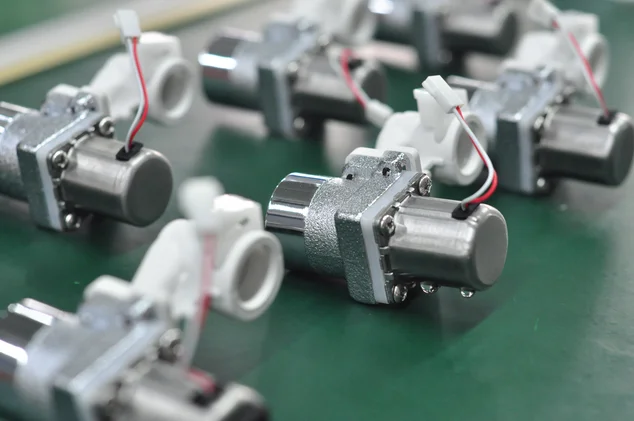

Sensor, Control box, Assemable, Packing, Testing

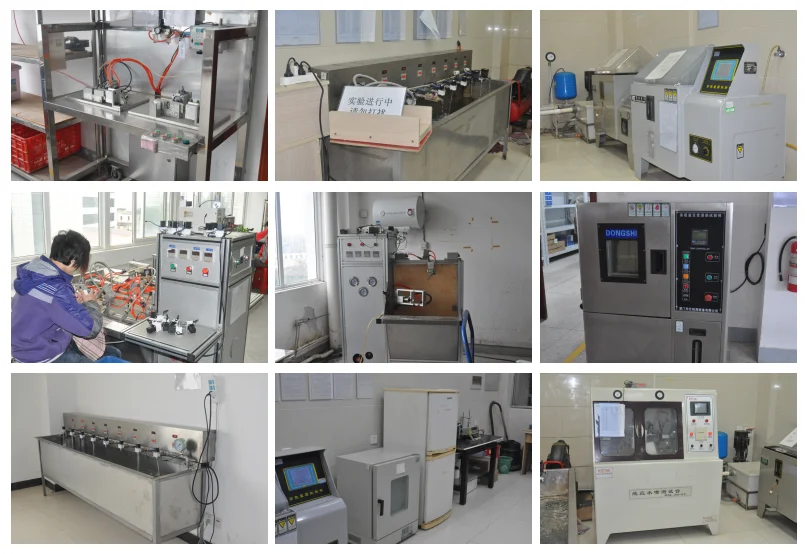

Testing Capability

To supply the qualified product, TCK equips with different necessary testing equipments

to make sure all the material and production are 100% qualified

1) Acid Salt Spray Testing

2) 3D printer

3) RoHS material testing

4) Air leakage testing

5) High /low temperature testing for electronic components

6) Precision instrument

7) Life testing

.......







Cetificates Capability:

Our product have been marketed worldwidely, mainly to US, EU, Asia. Most of our models are Cupc,CE,Wras,Watermark and other Certified.

To meet our different customers' requirement, We provide different water flow areator,various approval hoses and material to meet the market.
