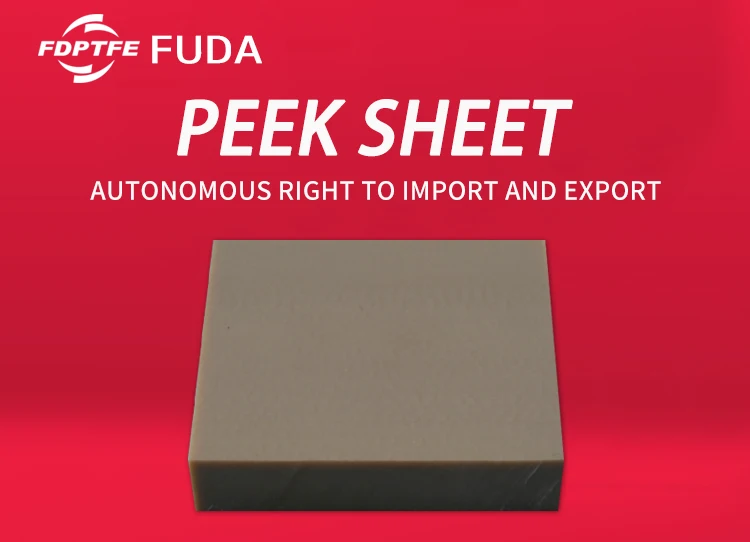

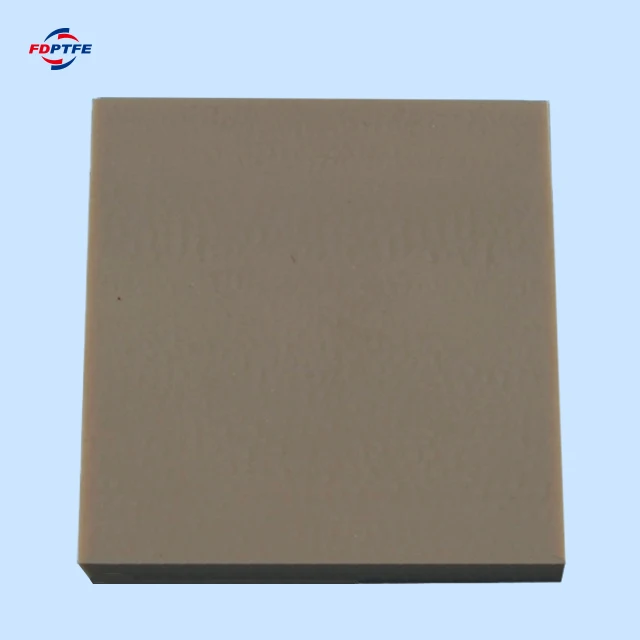

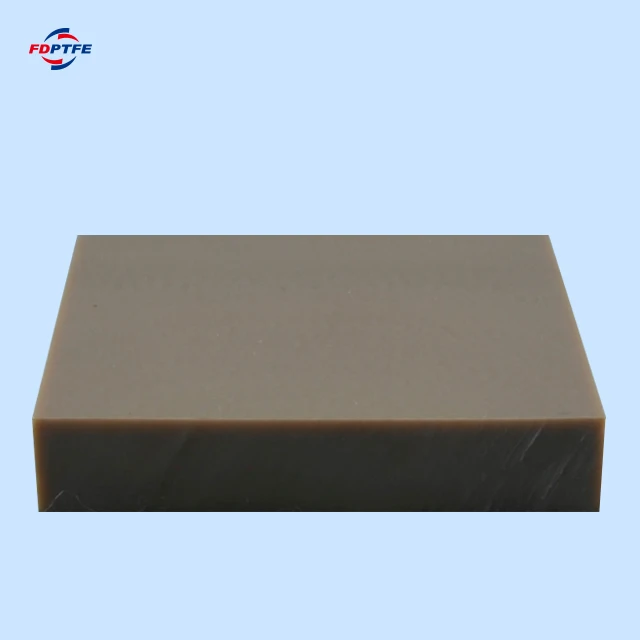

FUDA 0.5mm carbon fiber peek sheet with excellent strength stiffness and dimensional stability

Item

Test Standard

Unit

PEEK450G

PEEK450GL30

PEEK450CA30

PEEK450FC30

Color

Natural or Black

Natural or Black

Black

Black

Density

ISO 1183

g/cm3

1.3±0.01

1.5±0.01

1.4±0.01

1.43±0.01

Water Abs. (25℃.24Hrs)

ISO 62

%

0.5

0.11

0.06

0.06

Mould shrinking percentage

3mm,170℃, Flow direction

%

1.2

0.4

0.1

0.3

Perpendicular to flow direction

%

1.5

0.8

0.5

0.5

Melting point

DSC

℃

343

343

343

343

Distortion temperature

ASTM D648

℃

163

315

315

293

Continuous using temperature

UL 74685

℃

260

260

260

260

Coefficient of thermal expansion

ASTM D696

10-5℃

4.7

2.2

1.5

2.2

Tensile strength(23℃)

ISO527-2/1B/50

Mpa

100

155

220

134

Tensile elongation(23℃)

ISO527-2/1B/50

%

34

2

1.8

2.2

Bending strength(23℃)

ISO 178

Mpa

163

212

298

186

Compressive strength(23℃)

ASTM D695

Mpa

118

215

240

150

Lzod impact strength ( no gap)

ISO 180/U

KJm-2

No crack

51

46

32

Rockwell hardness

ASTM D785

99

103

107

102

Flammable level

UL 94

V-0 @mm

1.5

1.5

1.5

0.75

Dielectric strength

IEC 248

KV/mm

1.8

1.9

Dielectric constant

IEC 250

3.2

3.3

Surface resistivity

Ω

1015Ω

1015Ω

3×106Ω

5×106Ω

If need other parameter, please contact us!

PEEK450G: 100%PEEK

PEEK450GL30: PEEK+30%Glass fiber

PEEK450CA30: PEEK+30%Carbon fiber

PEEK450FC30: PEEK+(10% Carbon fiber+10% Graphite+10% PTFE)
