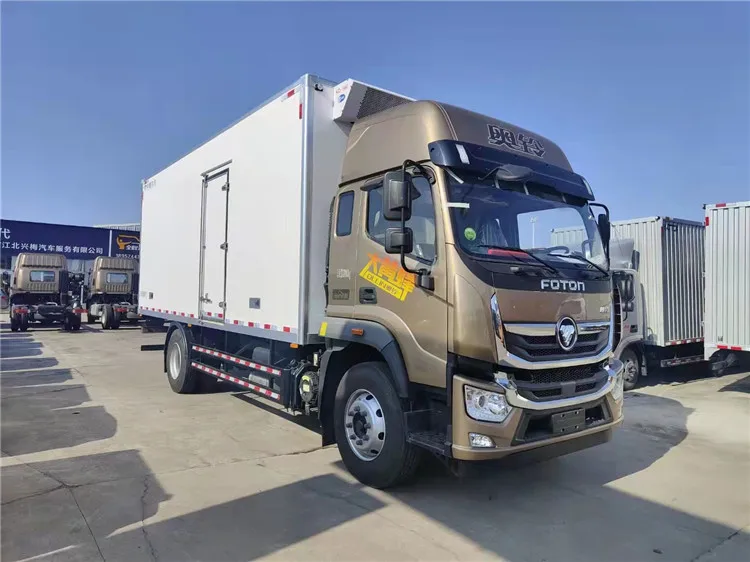

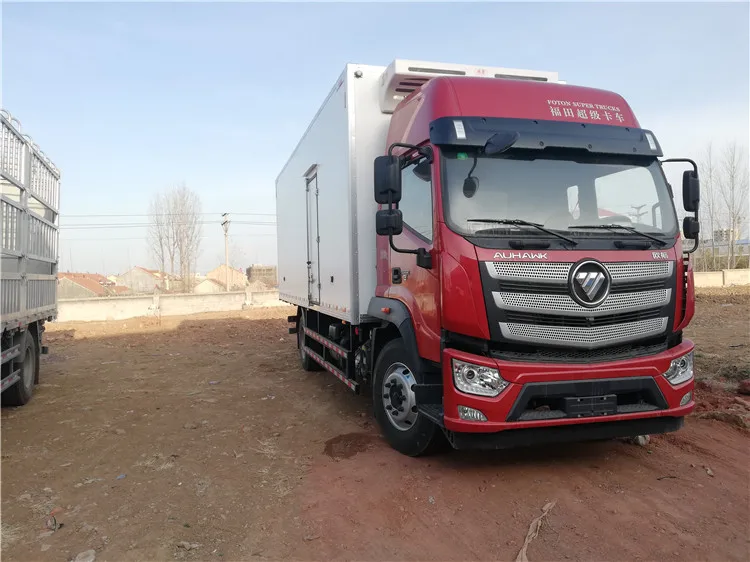

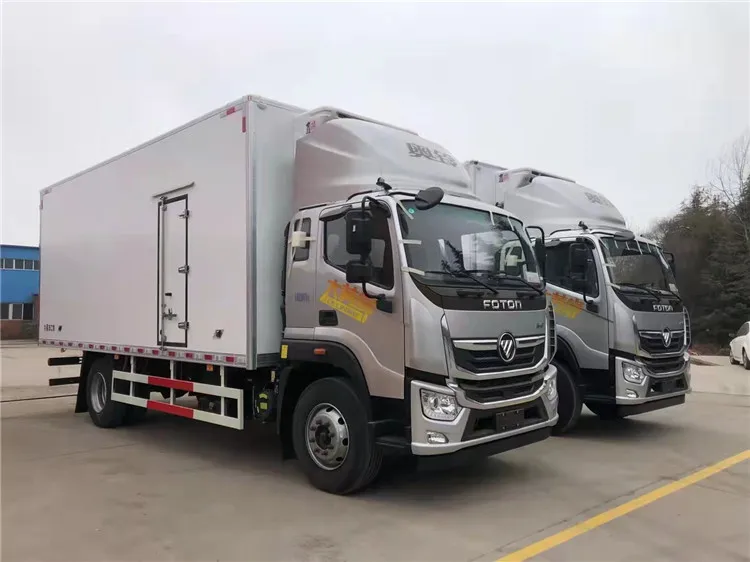

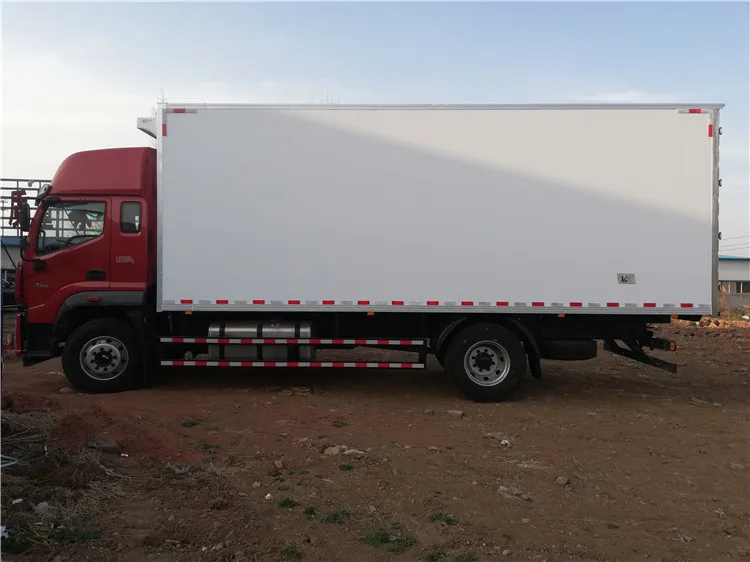

Hot Sale Small Refrigerator Box Truck Freezer Refrigerated Truck For Frozen Food Transport (1600520030445)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description










Two ways packaging delivery—CKD or CBU
Many floor material option






1.The advanatages of Truck Bodies
 1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core
2).Light in weight:40% lighter than metal body.
3).it is be good at strength and long life.
4).Non-corrosion, non-pollution, anti-brine, acid and soda-resisting
5).The panel used for the truck body was constructed in type of sandwich.
6).The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
1)Outer/inner skin is FRP panel
2)polyurethane insulated ,PU foam density 42-45kg/m3
3)304 stainless steel locks ,hinges,door frame, wrap angle
4) aluminium alloy Edge Protector
5)EPDM rubber door seal
6)thickness: 62mm ,82mm,102mm or other special demands, body size as you demanded
7)side door is optional
8)Light in weight: 40% lighter than metal body.
9) Better insulation:  K value less than 0.3w/m2k..
10)High in strength and long life: 5 times longer than metal body.
11)Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12)Easy to be assembled and repaired at site.
Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type
Temperature range,-18°C--+25°C,special request reach to -40°C
 The Thickness
1)Front wall panel:85mm
2)Rear wall panel:85mm
3)Side wall panel:85mm
4)Roof wall panel:105mm
5)Floor wall panel:105mm
6)With the dimensions, the truck body can be the best Refrigeration Effect. But we also can change the       Thickness by your requirements. And the thickness range is from 25mm to 150mm
Truck body, FRP truck body, FRP refrigerated truck body, FRP Cargo box, FRP truck box, FRP insulated truck body, reefer van body,
reefer truck body, Truck body panels, CKD truck body, Freezer truck body, isolation truck body, Isolated cargo box, truck box, truck van body, Van truck body, cargo van body, meat transport truck  body, truck cold box, truck cool box, REFRIGERATED TRUCK BODY ckd


Specification




Technical parameters of complete vehicle
Product Trademarks
Announcement batch
The product name
Refrigerated trucks
Product model
BJ5186
Total Mass (Kg)
18000
Tank volume(m3)
Rated Load Mass (Kg)
9495,9430
Dimensions(mm)
8500,9050,9430x2550x3850,3950
Kerb Quality (Kg)
8375
Cargo compartment size(mm)
6200,6800,7200x2450x2500,2600
Rated passenger (person)
Approach/Departure Angle (°)
18/12
Front/Rear Overhang (mm)
1270/2430,1270/2630,1270/3010,1320/2380,1320/2580,1320/2960
Shaft load(Kg)
6500/11500
Maximum speed (Km/h)
100,89
remark
Technical data of the chassis
Chassis model
BJ1186
Chassis brand
Foton
Production enterprises
Production address
Futian Industrial Park, Zhucheng Economic Development Zone, Shandong Province
Number of axes
2
Number of tires
6
wheelbase
4800,5150
Tire specifications
10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR,295/60R22.5 18PR
Number of leaf spring plates
10/10+8,3/4+3,10/8+8
Front track(mm)
1922,1970,2020,1960
Rear track(mm)
1800,1830,1860
Fuel type
diesel oil
Emissions are based on standards
GB17691-2018 Country VI.
Engine model
Engine manufacturer
Displacement (ml)
Power(Kw)
B6.2NS6B230
F4.5NS6B190
F4.5NS6B220
B6.2NS6B245
B6.2NS6B260
Dongfeng Cummins Engine Co., Ltd.
Beijing Foton Cummins Engine Co., Ltd.
Beijing Foton Cummins Engine Co., Ltd.
Dongfeng Cummins Engine Co., Ltd.
Dongfeng Cummins Engine Co., Ltd
6200
4500
4500
6200
6200
169
140
162
180
191


Strong Insulated Truck Body / Freezer Box / Refrigerated Van Box Body Panels
Composite Truck Body Type
Insulated Truck body
Outside Dimension
14FT*7FT*7FT
PU/XPS
Density: 45KG/CBM
Panel Structure
Fiberglass sandwich Polyurethane/Extruded polystyrene
Front/Side/Rear Panel
Panel Thickness: 85mm
Roof/Floor Panel
Panel Thickness: 105mm
Rear Door Frame
Double Open Assembled Stainless Steel Door Frame
Sub-frame
Painted Z-Steel
Box Structure
Panels assembled with Fiberglass profile and fiberglass corner
Side Door
RHS single open side door; Dimension:750mm*1400mm
Assemble Glue
Kommerling 240; Kommerling 125; Enough Quantity
Lights & Switch
LED; Water-proof; 12V/24V Convertible
Water Piping Set
Left and Right Front Corner


Equipment: chassis, the heat preservation box body--standard material is glass fiber reinforced plastic, 8mm polyurethane insulation layer, Standard back open door and refrigeration unit;
Optional: polyurethane material, color steel plate, stainless steel, etc, 5mm insulation layer, side open door;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc
1.Famous chassis isuzu refrigerated truck,isuzu mini van truck
2.Good performance isuzu refrigerated truck,isuzu mini van truck
3.Factory price isuzu refrigerated truck,isuzu mini van truck
4.Fully past ISO &3C isuzu refrigerated certificate,isuzu mini van truck .
5.5 tons mini refrigerated truck, refrigerator freezer truck
The advanatages of Insulated/Freezer Van Body 1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core. 2).Light in weight:40% lighter than metal body. 3).It is good at strength and long life.


Company Profile








Shandong Shenghao Special Purpose Vehicle Co., Ltd. was established in 2020 and more than 78 Employees (6 professional technology R & D). It is located in Zhucheng truck production base, coastal blue economic zone of Shandong Peninsula. At present, our company is mainly engaged in the R & D, manufacturing and sales design of special vehicles, including refrigerated vehicle body, dry truck body, truck body, truck body panel, meat transport vehicle body and other types of van body you want, as well as refrigerated compartment, insulation compartment, wingspan compartment, FRP honeycomb panel compartment, logistics stowage transport vehicle, van transport vehicle, medical garbage vehicle, livestock and poultry transport vehicle, corrugated board, aluminum plate, warehouse grid compartment Hydraulic tail plate transporter, etc.
The company has advanced technology and equipment in the international industry. It adopts today's European and American classic structure and advanced refrigeration compartment plate making technology. The product quality and performance have reached the international leading level. The products sell well at home and abroad and are widely praised by customers. Such as South America, East Asia, Africa, domestic market and Central America.








Cooperative Client








Package & Transport






for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing




FAQ




1. What are your shipping terms?
Usually, we ship our truck bodies CKD (fully disassembled) or SKD (semi disassembled) by container, and assembled trucks are also
shipped by container, but in small quantities
2. Our truck is a Korean or Japanese brand, does your truck body fit it?
Of course, the general global light truck can be divided into 10ft, 11ft, 12ft, 14ft, 15ft, 16ft, 18ft according to the length of
the cargo box, and the medium truck has 20-32ft. The body can be matched with different brands of trucks just by adjusting the distance of the beam.
3. Is it difficult to install the body CKD or SKD?
Our company has ten years of truck body export experience. We can provide the easiest to assemble truck body ckd
4. Why should you buy from us instead of other suppliers?
For the past 10 years, our company has only produced truck bodies. Our more specialized truck body.
5. What are your payment terms?
T/T 30% as deposit, 70% for copy of bill of lading
6. What are your delivery terms?
EXW,FOB,CFR,CIF
7. What is your delivery time?
Usually within 10 days
8. Can it be produced according to customer requirements?
Yes, we can produce according to customer's technical drawings and specifications
