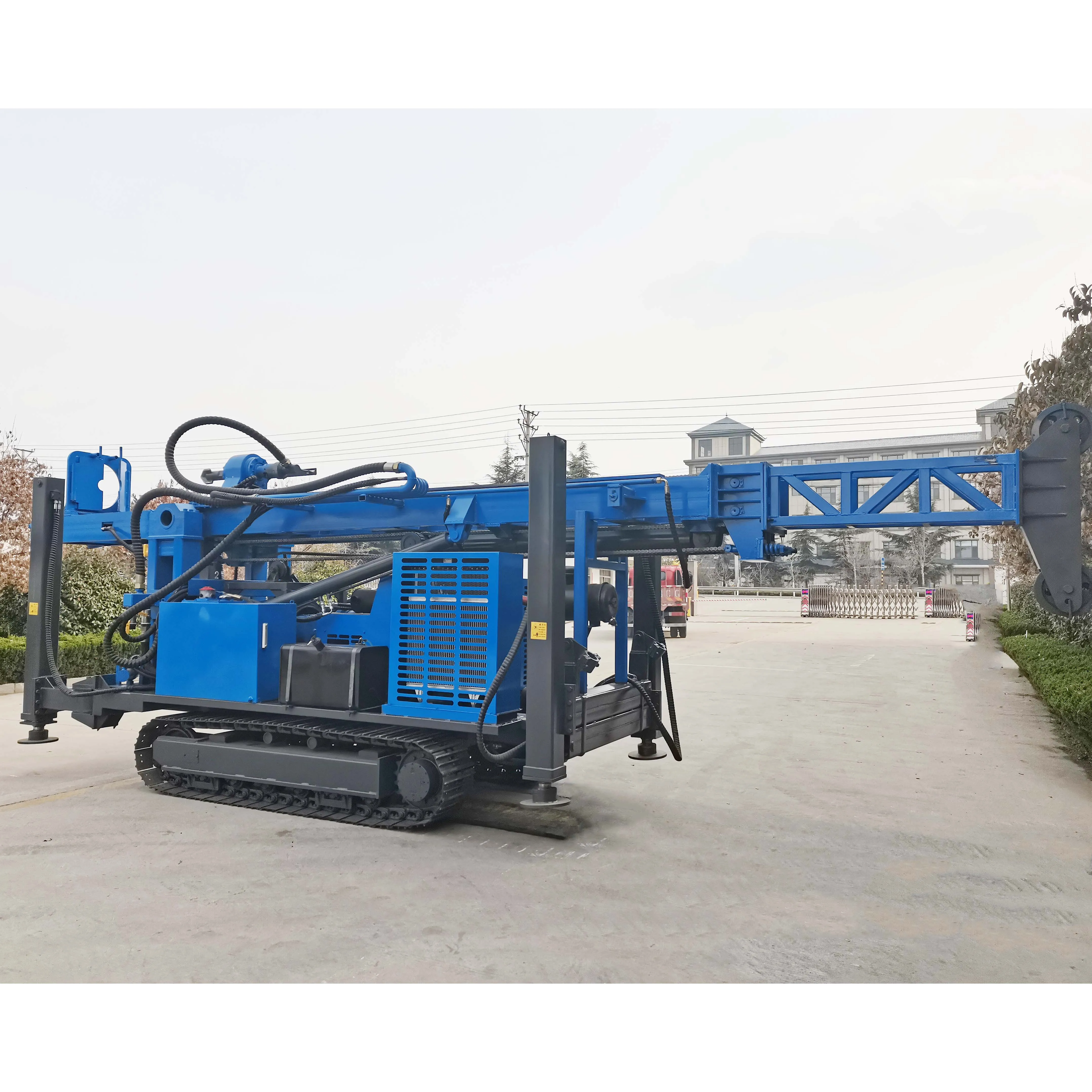

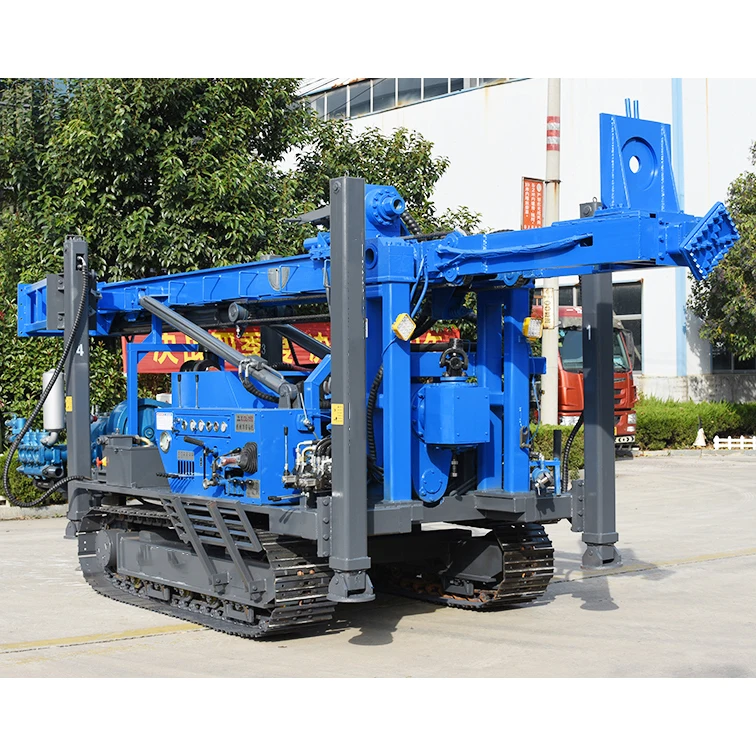

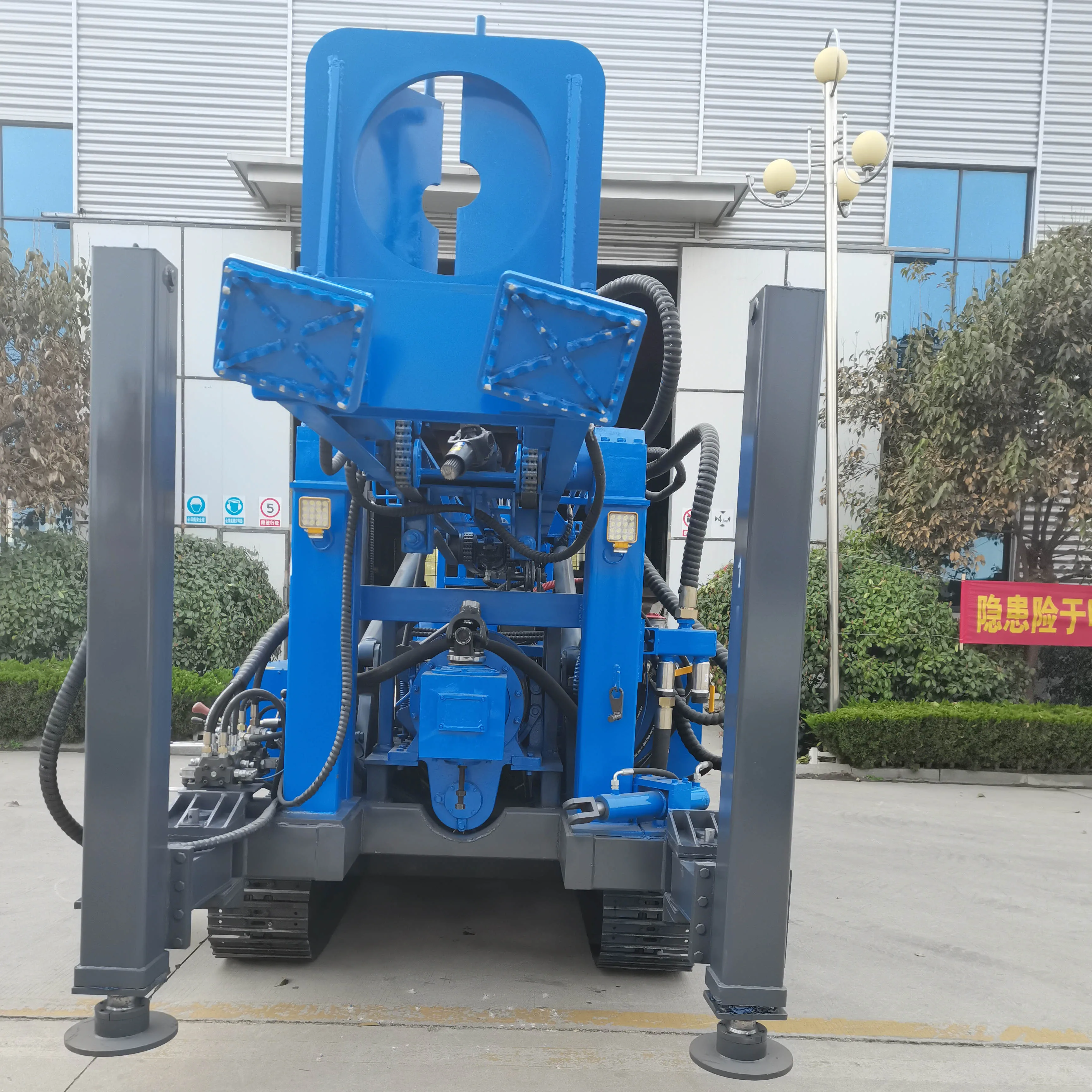

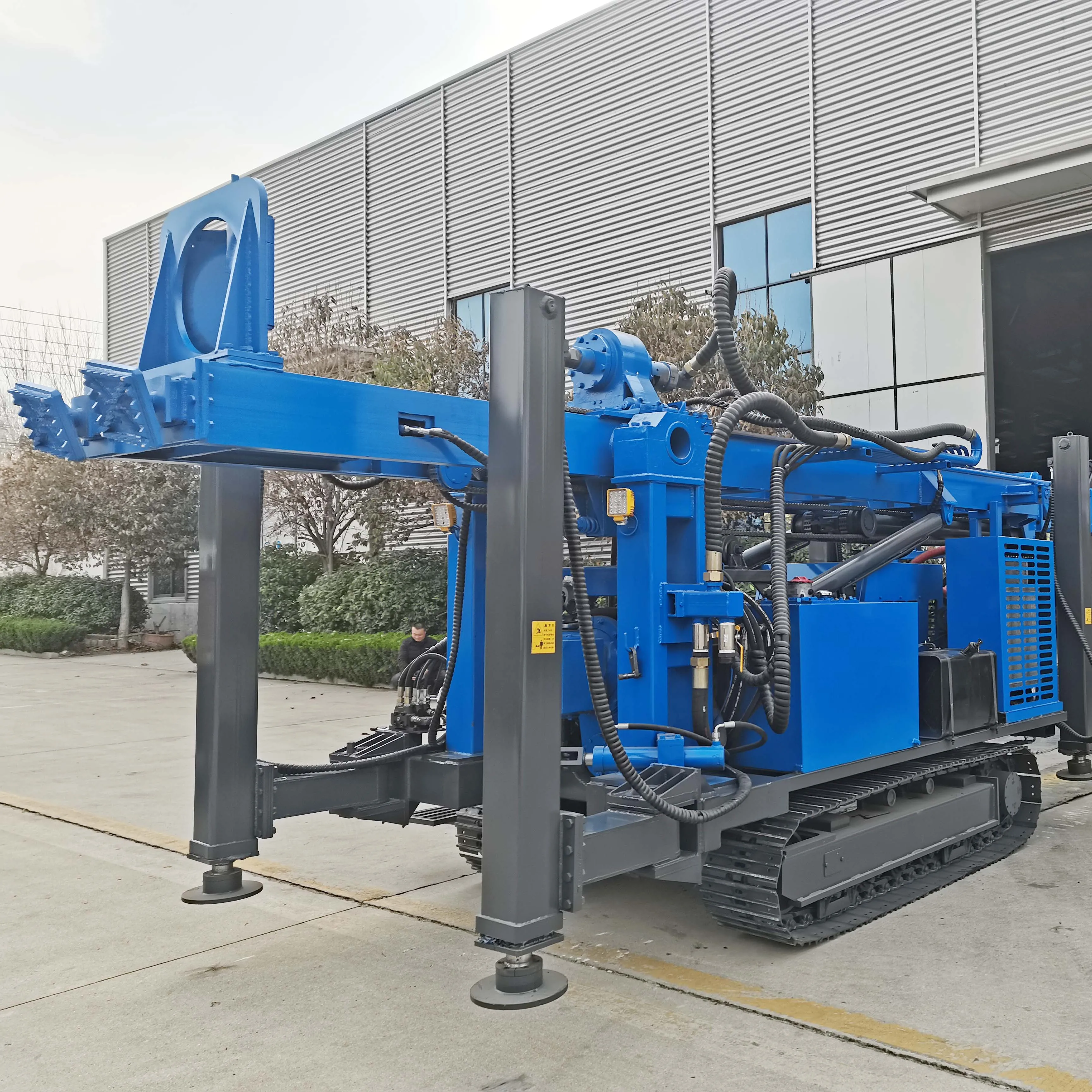

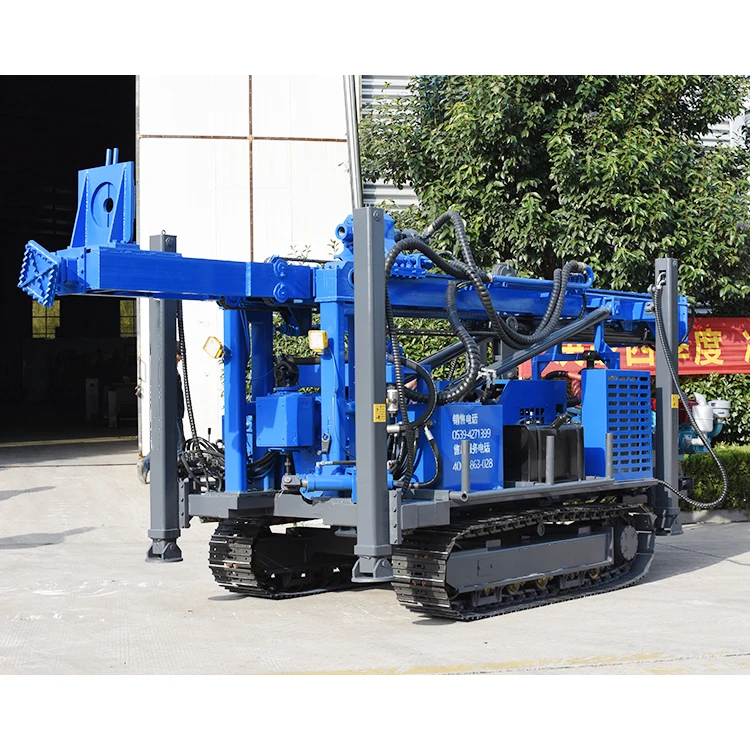

Crawler mounted diesel rock core sampling drilling rig in geotechnical projects

Product Overview

Description

Crawler mounted diesel rock core sampling drilling rig in geotechnical projects

A. Machine introduction
DKXL500 mechanical top drive drilling rig is a kind of drilling equipment that can be independently developed by the company 75-90 ° drilling, water drilling, and gas drilling function (national invention patent: ZL201510479602.4), using a 5-speed manual transmission, wide speed range, forward and reverse switching sensitive and convenient, transmission efficiency is doubled than hydraulic transmission, power energy consumption is greatly reduced, more efficient and energy-saving. Solve the problem of difficult drilling of soil air DTH hammer and low construction efficiency of rotary drilling rigs in hard rock layers, gravel and pebble layers.

B. Main technical data about Multi-angle core sampling drilling rig

Model	DKXL280	DKXL350	DKXL500	DKXL350B
Machine weight(T)	5	7.5	11.5	7.5
NQ wire-line core drilling depth	450m	800m	1200m	800m
Drilling depth for water well	280m	350m	800m	350m
Drilling angle (degree)	75-90	75-90	75-90	0-90
Drill rod length(M)	2	3	3	3
Walking speed (km/h)	2	2	2	2
Max.climbing capacity	20	20	20	20
Main motor power (kw)	58	65	92	65
Using air pressure (mpa)	1.05-2.46	1.05-2.46	1.05-2.46	1.05-2.46
Air consumption (m3/min)	16-35	16-35	16-35	16-35
Rig lifting force(KN)	100	240	240	75
Swing speed (rpm)	33-1120	27-901	43-1080	27-901
Swing torque (N.M)	9800	10500	16500	10500

C. Machine application about multi-angle core sampling drilling rig:

It can be used to drill water well equipped mud pump or air compressor;
It also can be used for NQ, HQ, PQ wire line core drill to get geology sample

D. Packing and trasportation about multi-angle core sampling drilling rig

20GP or 40HC container according to your purchasing quantity;

E. Company brief introduction

We are specialized in water well drilling rigs and core drilling rig machine research and development, manufacturing enterprises. At the same time, we are the first sales agent of Kaishan and Zhigao brand products;
The company has been committed to the professional production of water well drilling rigs and core drilling rigs and the sales and maintenance of drilling tools and air compressors for more than 20 years. It has accumulated rich professional maintenance technology and thoughtful and meticulous after-sales service experience. It has accumulated through extensive contacts with users a lot of usage data.
We always firmly believes that "the market is the only standard for testing products", keep innovating closely with market demand, and always meet customer needs as the corporate responsibility, and sincerely cooperate with users to create a better future!

F. FAQ
Q1.Are you manufacture?
Ans.: Yes, we are factory with more than 20 years of manufacturing experience.and we have independent import and export rights of goods and have 10 years of experience in international trade
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. Do you test all your machine before delivery?
Ans.: Yes, we have 100% test before delivery and share the test video to you.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one. And we provide videos for machine install and operation.
Q5. What is your terms of payment?
Ans.: 30% T/T as deposit, and the balance will be paid before delivery. We'll show you the photos and testing videos of the products and packages before you pay the balance.
Q6.Could you supply english manual book for our machine?
Ans: Yes, we will attach it with the machine when we delivery your machine.
Q7. Could you supply all spare parts when we need?
Ans.: Yes, we will provide after-sales service and equipment accessories for life
Q8. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q9.Could you supply any certificates for your machine?
Ans.: Yes, we can supply CE IS09001 etc certificate if you need;
