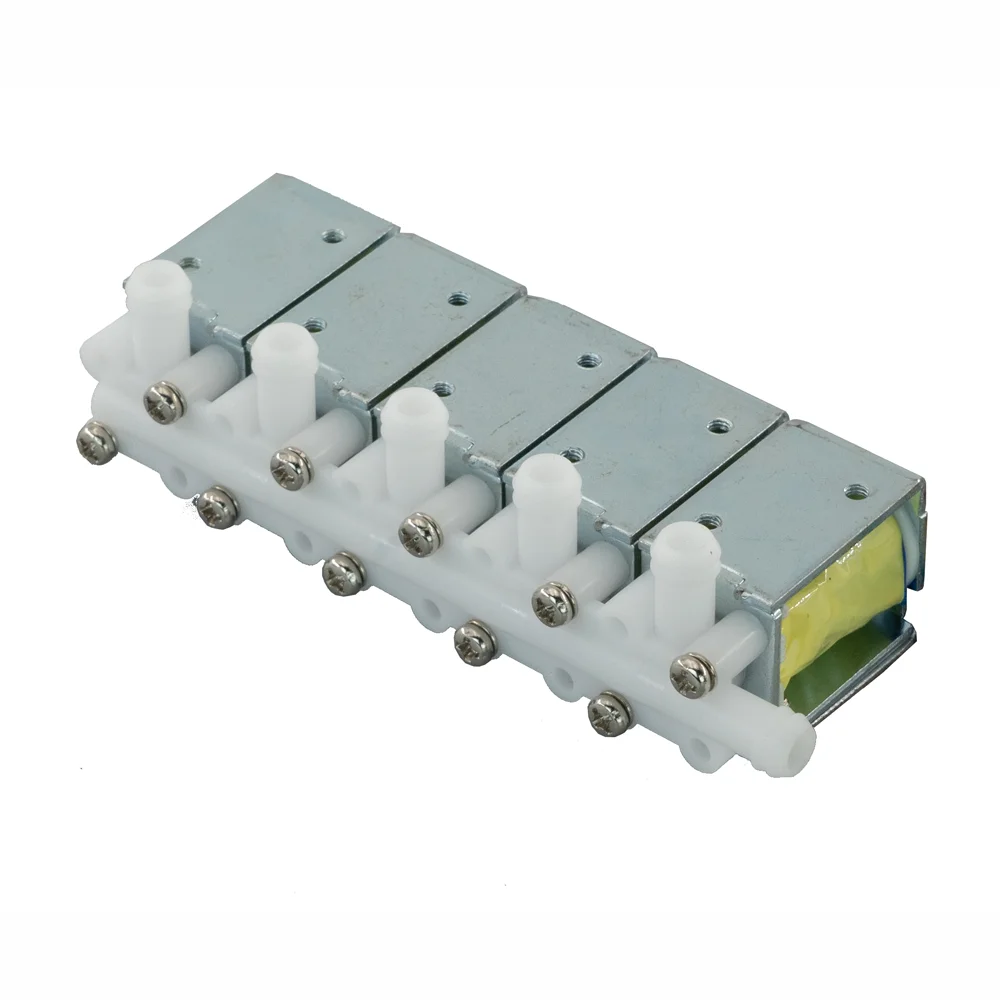

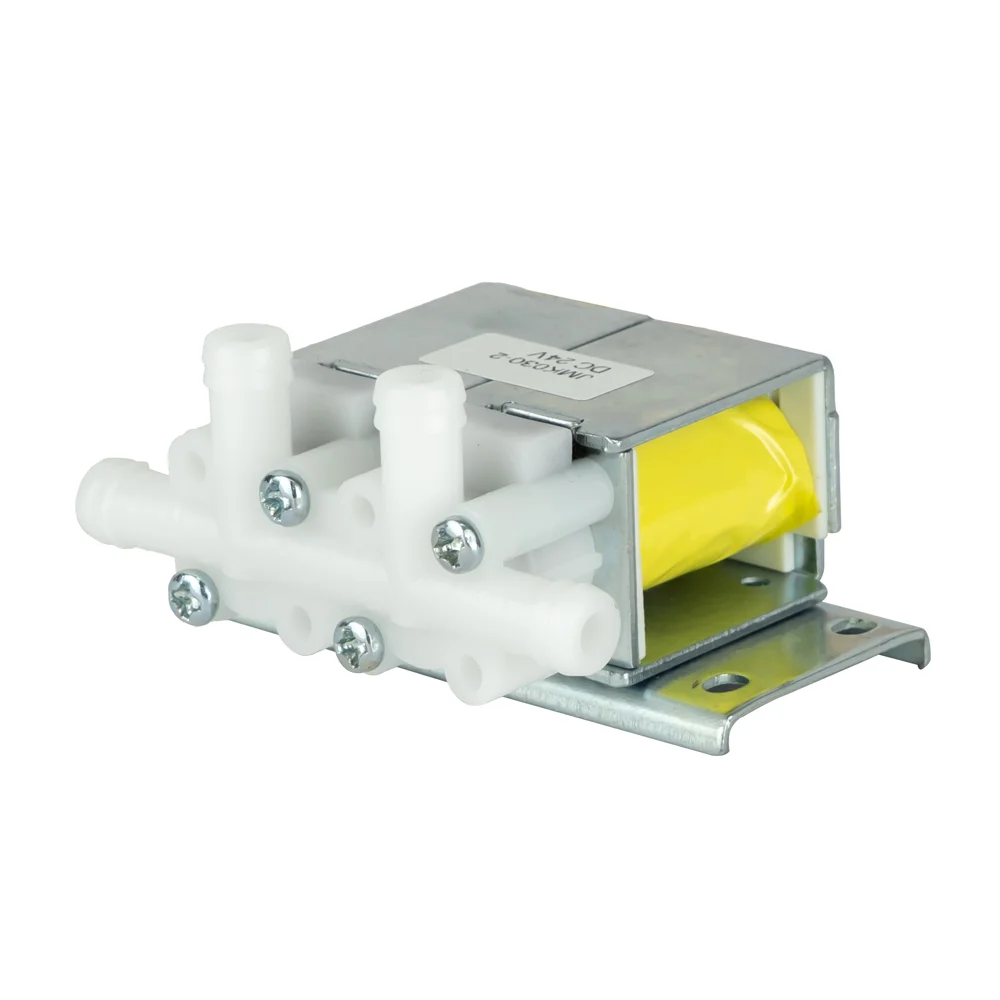

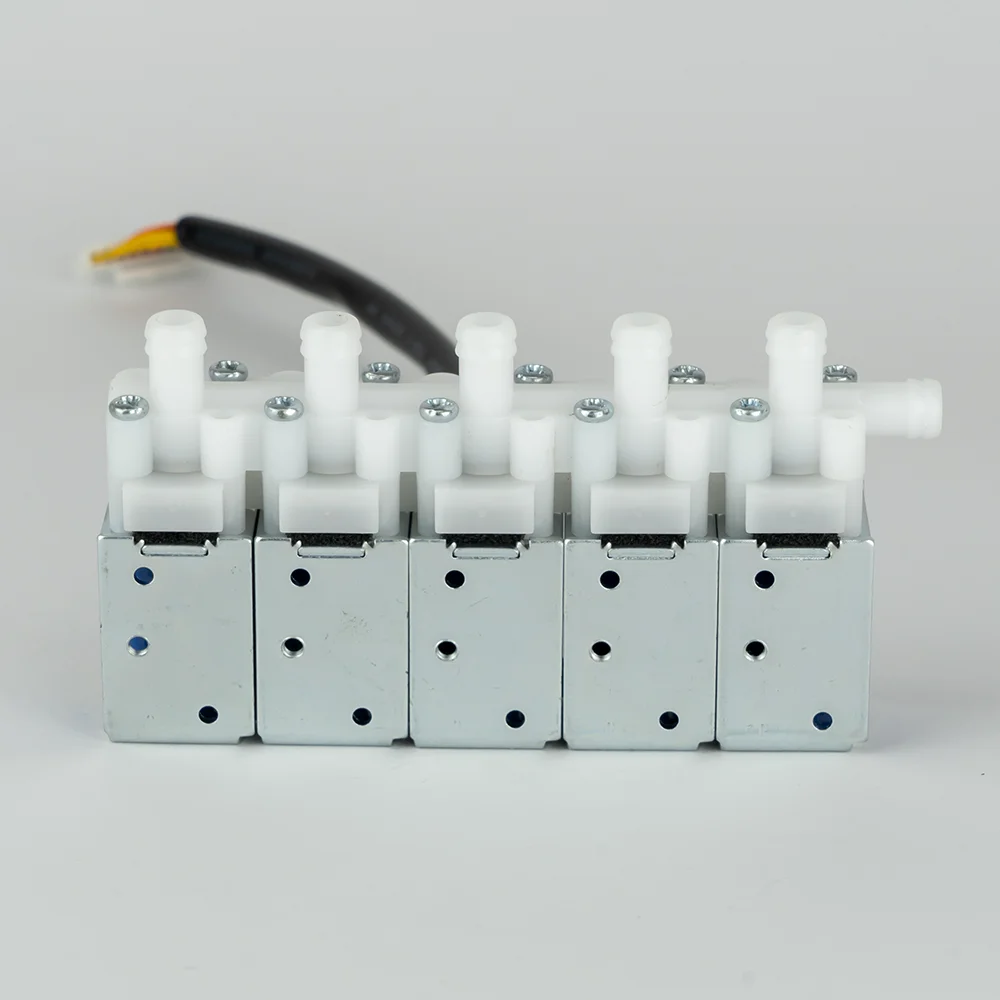

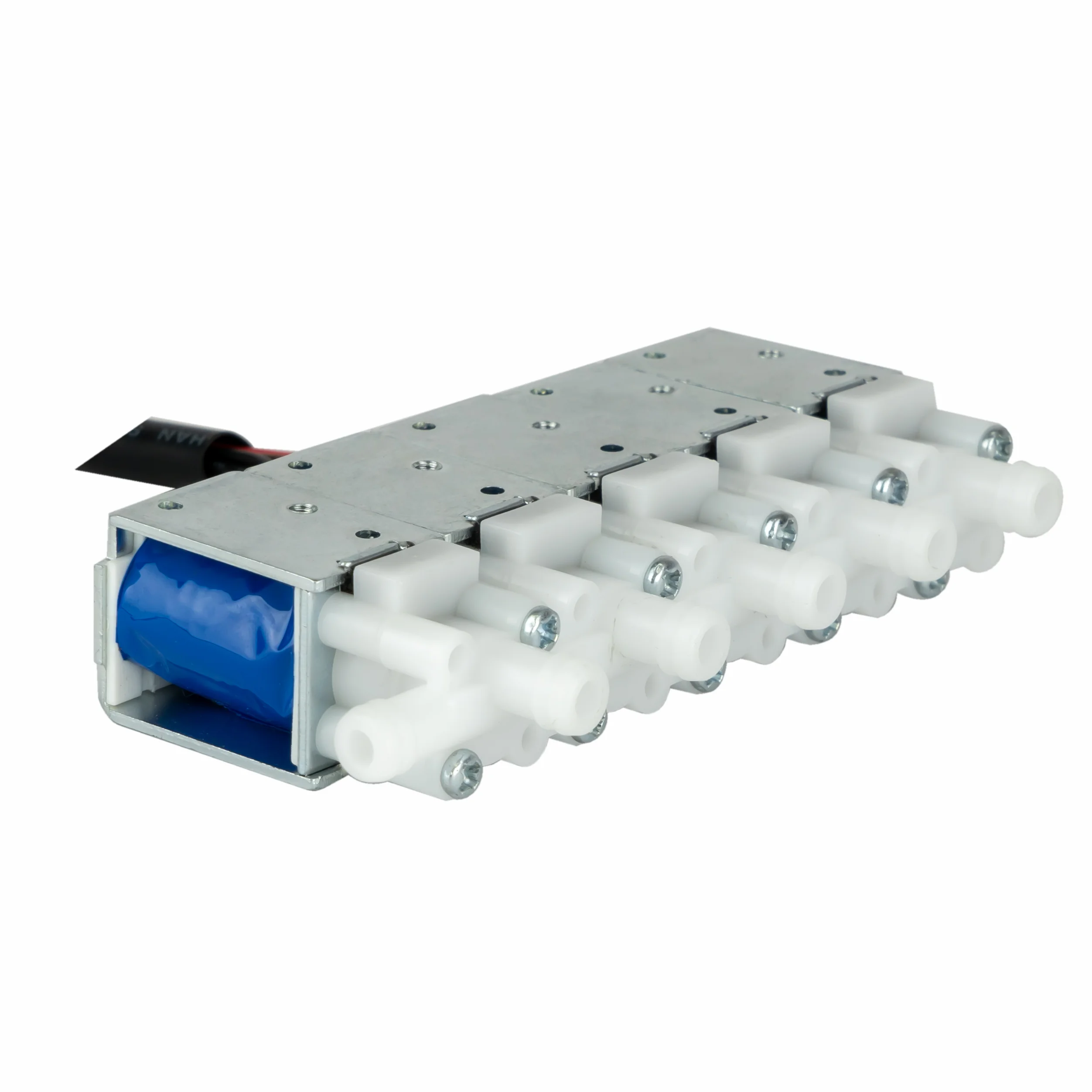

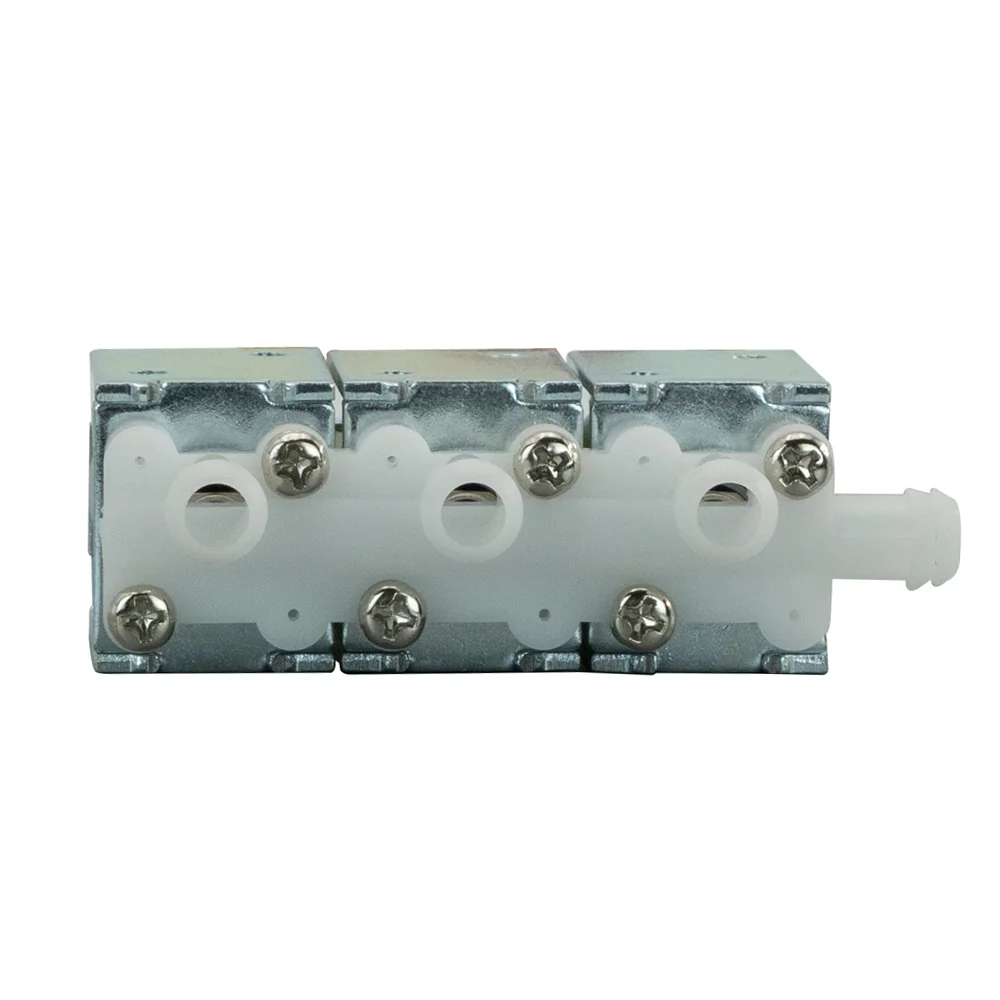

dc 12 v to 24 v micro 24 volt medical devices medical equipment latching 3 way solenoid valve
- Category: >>>
- Supplier: Jetmaker (Xiamen)Technology Co. Ltd.
Share on (1600520056599):
Product Overview
Description

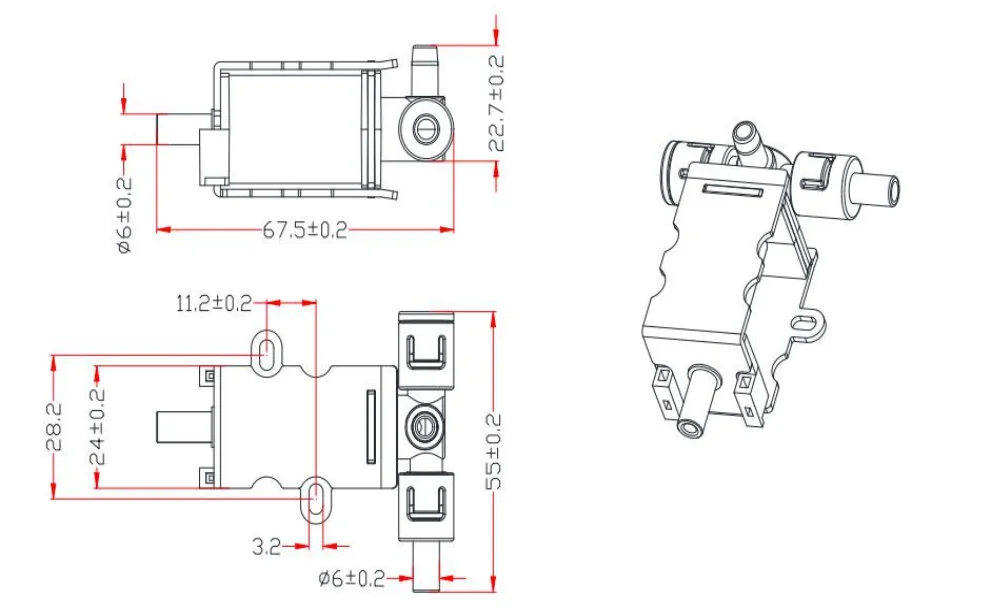

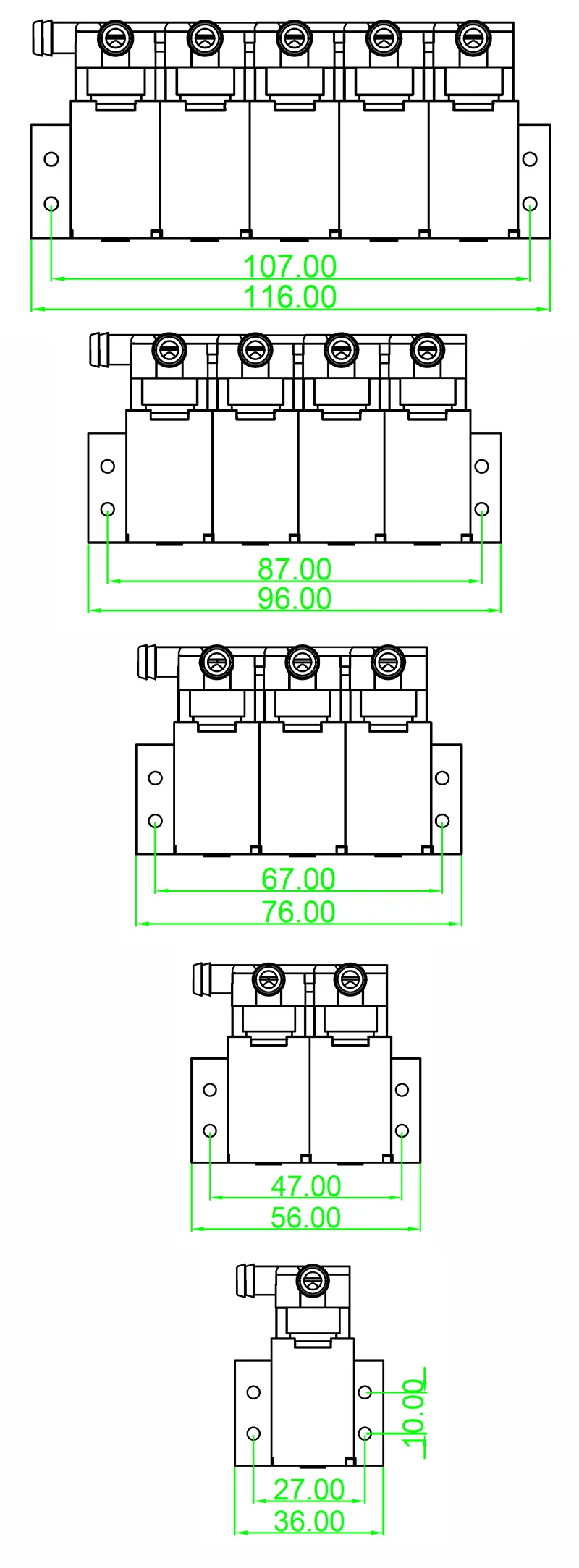

Details Images
型号 Model | JMV030-5 | ||||||
额定电压 Rated Voltage | DC12V | DC24V | |||||
电压使用范围 | DC12V±15% | DC24V±15% | |||||
额定电流 Rated Current | ≤150mA | ≤350mA | |||||
额定功率 Rated power consumption | 3.5W±15% | 3.4W±15% | |||||
使用压力范围 | 0~60KPa | ||||||
环境温度范围 | -10~40℃ | ||||||
气密性 Leakage | No power-on state: the air pressure at the air inlet is not less than 45 KPa / At 90% voltage state: the air pressure at the air outlet should not drop below 25KPa within 3 minutes | ||||||
排气速度 Exhaust speed（300～15mmHg) | The air outlet of the solenoid valve is connected to a 500ml air storage container and a pressure gauge, and the container pressure is from 45KPa The time to drop to 20KPa should not exceed 4 seconds | ||||||
寿命 Rated Life | 1 million times (no load, 0.5 seconds on and 0.5 seconds off) | ||||||
Application
Company Profile
Why Choose Us
FAQ
Q1.Can I have a sample order for it?
A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.
A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order?
A:Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements /our recommend model with suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you have ability to do ODM service?
A1: Warmly welcome your ODM requirement based on our production line and our R&D team with more than 20 years experience on pump &
motors.
A2: ODM service based on offered sample.
A3:Modify & creative new function based on our product series.
Q6: What's your payment terms?
A: T/T & LC, small amount accept paypal. Big amount ok for 30% down payment & balance against copy bill of loading.
For more need, please just contact us and we will reply within 24hours on working days.
