50L herbal whey lactose processing liquid extraction equipment
- Category: >>>
- Supplier: Shanghai Pilotech Instrument & Equipment Co. Ltd
Share on (1600520074385):
Product Overview
Description
Product Description

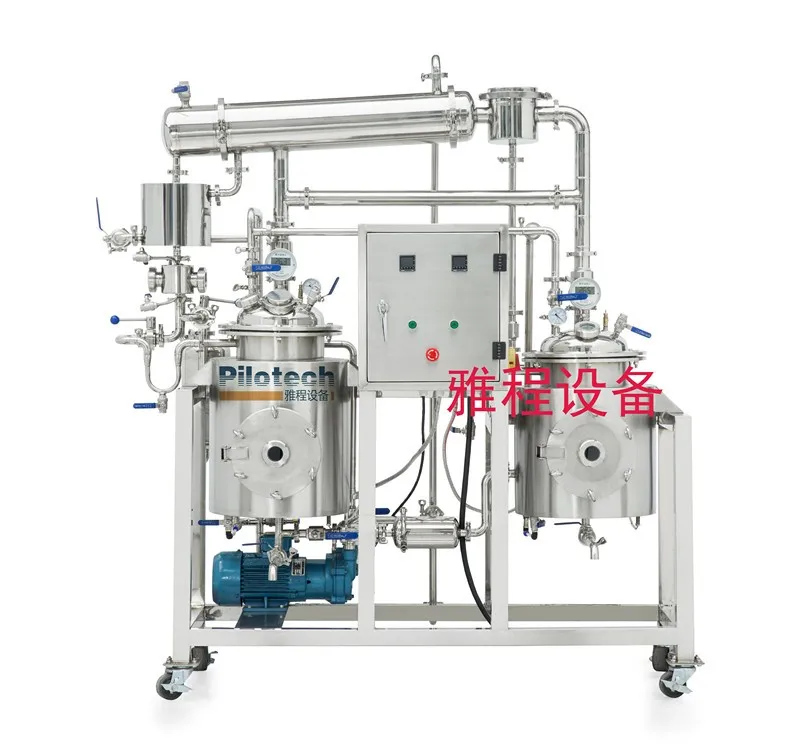

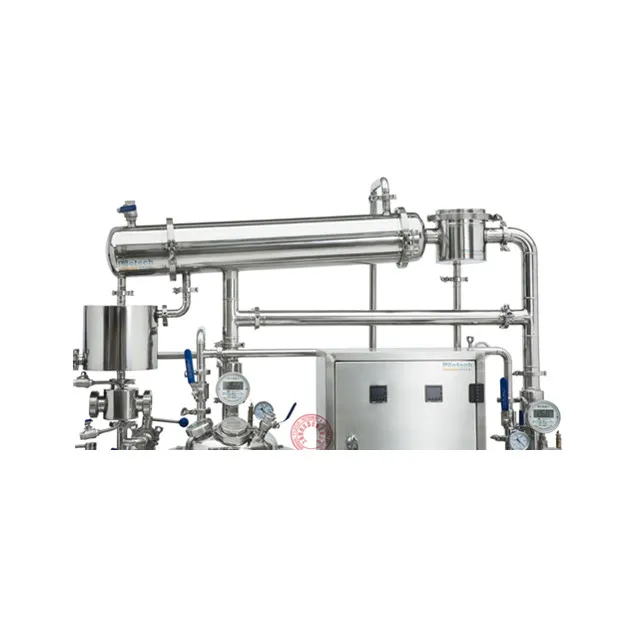

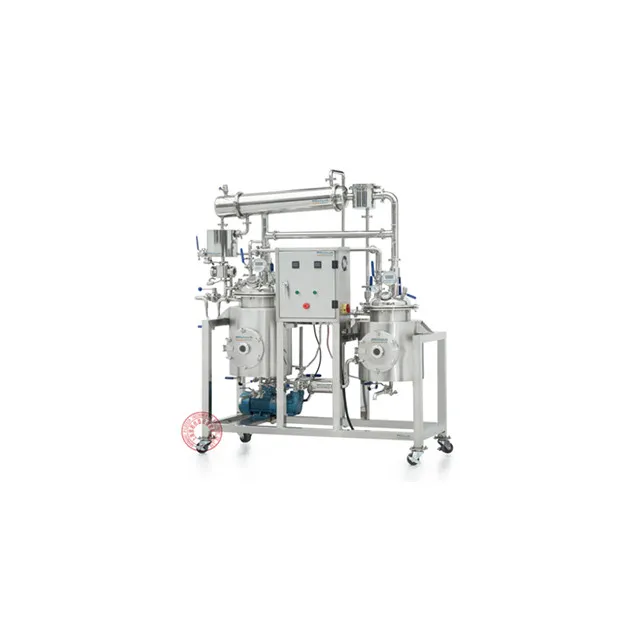

50L laboratory multifunctional extraction tank

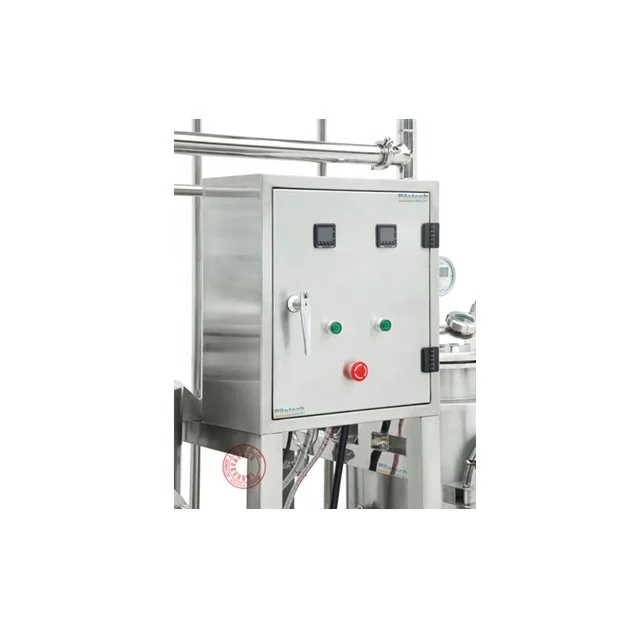

Shanghai Pilotech YC-050 experimental multifunctional extraction, concentration and recovery unit is a new product developed by our company on the basis of learning from similar products at home and abroad. It is suitable for the extraction and concentration of Chinese herbal medicines and natural products (water and organic solvents) and volatile aromas. The recovery of oil, the concentration specific gravity is 1.1-1.3. Equipment composition: extraction tank, reflux condenser, oil-water separator, vacuum pump, recovery tank, concentration tank, temperature controller, stainless steel frame and connecting pipe valves, instruments, etc.
MAIN FEATURE.
1) The floorarea is small, only 2.0 square meters, and it can be used when it is connected to water and electricity. The minimum feeding amount is 2KG, and the maximum feeding amount is 10KG.
2) The extraction system is equipped with a reflux condenser and an oil-water separator, which can effectively recover the volatile aromatic oil in the material.
3) Jacketed water bath heating (no pressure in the interlayer), uniform heating
4) The set is equipped with a concentration tank, which can be concentrated under vacuum and reduced pressure, and the concentration efficiency is higher, with the concentration specific gravity can reach 1.1-1.3.
5) It can be adapted to water extraction and alcohol extraction. It is a pilot plant for natural plant medicine extraction. It is suitable for scientific research institutions, universities, hospitals, pharmaceutical factories, and food industries which need to extract Chinese herbal medicine, tea juice and fruit juice, also helpful to the concentration and recovery of the organic solvents.
6) It integrates multifunctional extraction, vacuum concentration and ethanol recovery, and can perform heat reflux circulation extraction, concentration, conventional extraction, concentration, water precipitation (alcohol precipitation) and other operations, which simplifies the operating procedures
7) The parts of the unit in contact with the materials are all made of stainless steel, which can work under negative pressure and normal pressure.
8) Concentration at low temperature, ensuring product quality, dynamic circulating evaporation, improving heat exchange efficiency, effectively solving the problem of heat exchange efficiency decreasing as the concentration increases, saving energy consumption, and improving work efficiency
9) On-line ultrasonic extraction function is optional: using energy-concentrated ultrasonic generator, due to the unique physical effect and cavitation effect of ultrasonic, it can promote the breakage or deformation of plant cell tissue, vibration, acceleration impact, and sound pressure between solute particles The shear equivalent stress is strengthened, and the extreme high temperature and high pressure at the local point of the material makes the large-volume Chinese medicinal materials fully contact the ultrasonic probe, accelerates the uniform precipitation of the active ingredients in the raw material medicine, and the extraction rate is significantly higher than that of the traditional process. Ultrasonic extraction is extraction at room temperature, which effectively reduces the loss of heat-sensitive components. Optional frequency range: 15KHz, 20KHz, 28 KHz, 30 KHz, 35 KHz, 40 KHz, 50 KHz, 60KHZ.
2) The extraction system is equipped with a reflux condenser and an oil-water separator, which can effectively recover the volatile aromatic oil in the material.
3) Jacketed water bath heating (no pressure in the interlayer), uniform heating
4) The set is equipped with a concentration tank, which can be concentrated under vacuum and reduced pressure, and the concentration efficiency is higher, with the concentration specific gravity can reach 1.1-1.3.
5) It can be adapted to water extraction and alcohol extraction. It is a pilot plant for natural plant medicine extraction. It is suitable for scientific research institutions, universities, hospitals, pharmaceutical factories, and food industries which need to extract Chinese herbal medicine, tea juice and fruit juice, also helpful to the concentration and recovery of the organic solvents.
6) It integrates multifunctional extraction, vacuum concentration and ethanol recovery, and can perform heat reflux circulation extraction, concentration, conventional extraction, concentration, water precipitation (alcohol precipitation) and other operations, which simplifies the operating procedures
7) The parts of the unit in contact with the materials are all made of stainless steel, which can work under negative pressure and normal pressure.
8) Concentration at low temperature, ensuring product quality, dynamic circulating evaporation, improving heat exchange efficiency, effectively solving the problem of heat exchange efficiency decreasing as the concentration increases, saving energy consumption, and improving work efficiency
9) On-line ultrasonic extraction function is optional: using energy-concentrated ultrasonic generator, due to the unique physical effect and cavitation effect of ultrasonic, it can promote the breakage or deformation of plant cell tissue, vibration, acceleration impact, and sound pressure between solute particles The shear equivalent stress is strengthened, and the extreme high temperature and high pressure at the local point of the material makes the large-volume Chinese medicinal materials fully contact the ultrasonic probe, accelerates the uniform precipitation of the active ingredients in the raw material medicine, and the extraction rate is significantly higher than that of the traditional process. Ultrasonic extraction is extraction at room temperature, which effectively reduces the loss of heat-sensitive components. Optional frequency range: 15KHz, 20KHz, 28 KHz, 30 KHz, 35 KHz, 40 KHz, 50 KHz, 60KHZ.
Detailed Images
Parameters of YC-050 | ||
Power | 18KW | |
Voltage | 380V | |
Extraction tank volume | 50L | |
The effective volume of the extraction tank | 0.05m³ | |
The minimum feeding amount | 2KG | |
The maximum feeding amount | 10 KG | |
Evaporation capacity (clear water) | 8～12 Kg/h | |
Evaporation chamber vacuum degree | ~-0.08MPa | |
Precision of temperature | ±2℃ | |
Cooling water consumption | 1.2t/h | |
Cooling water pressure | <0.3 MPa | |
Functions | extract , concentrate , volatile essential oil recovery | |
Dimensions | 1850*1000*1980mm | |
Machine Material | SUS 304 Stainless Steel | |

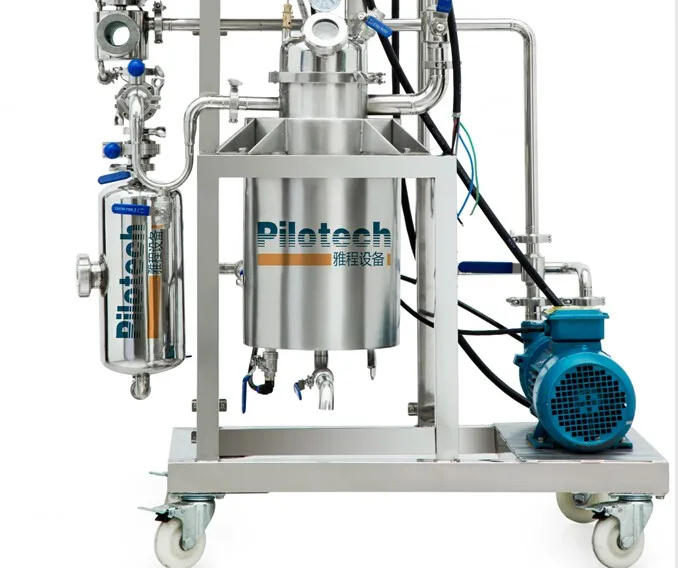

EXTRACT TANK
CONCENTRATE TANK
OIL-WATER SEPEARTOR
THE TANK TO RECOVERY THE SOLVENT
GLASS SIGHT TO VIEW THE PROCESS
Outputs

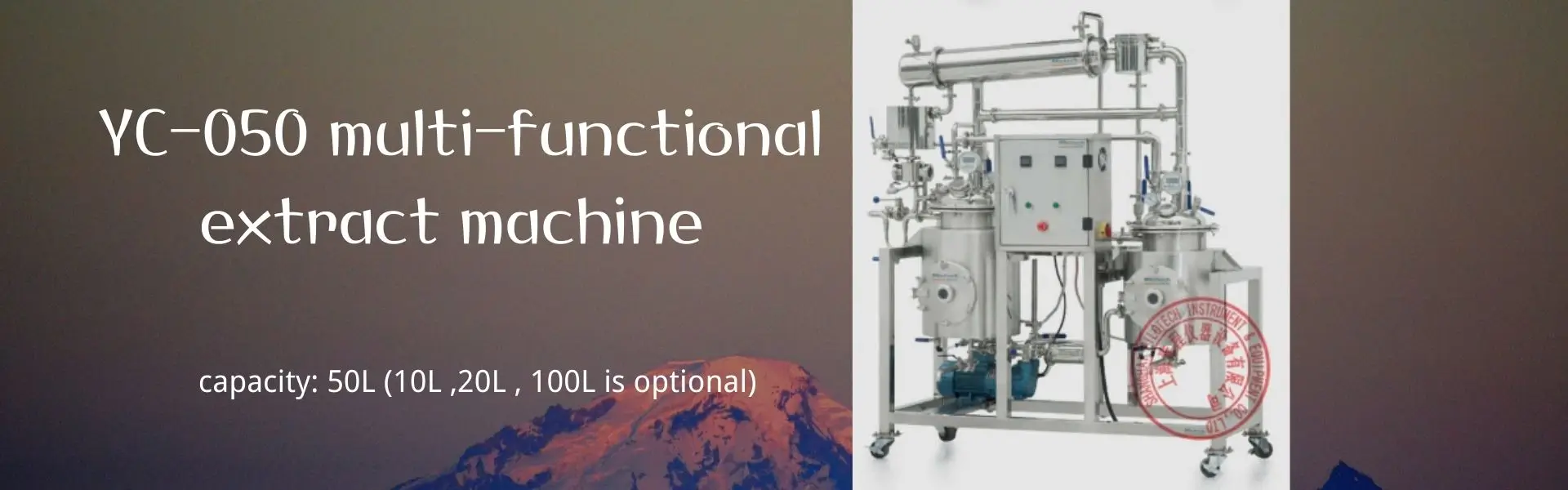

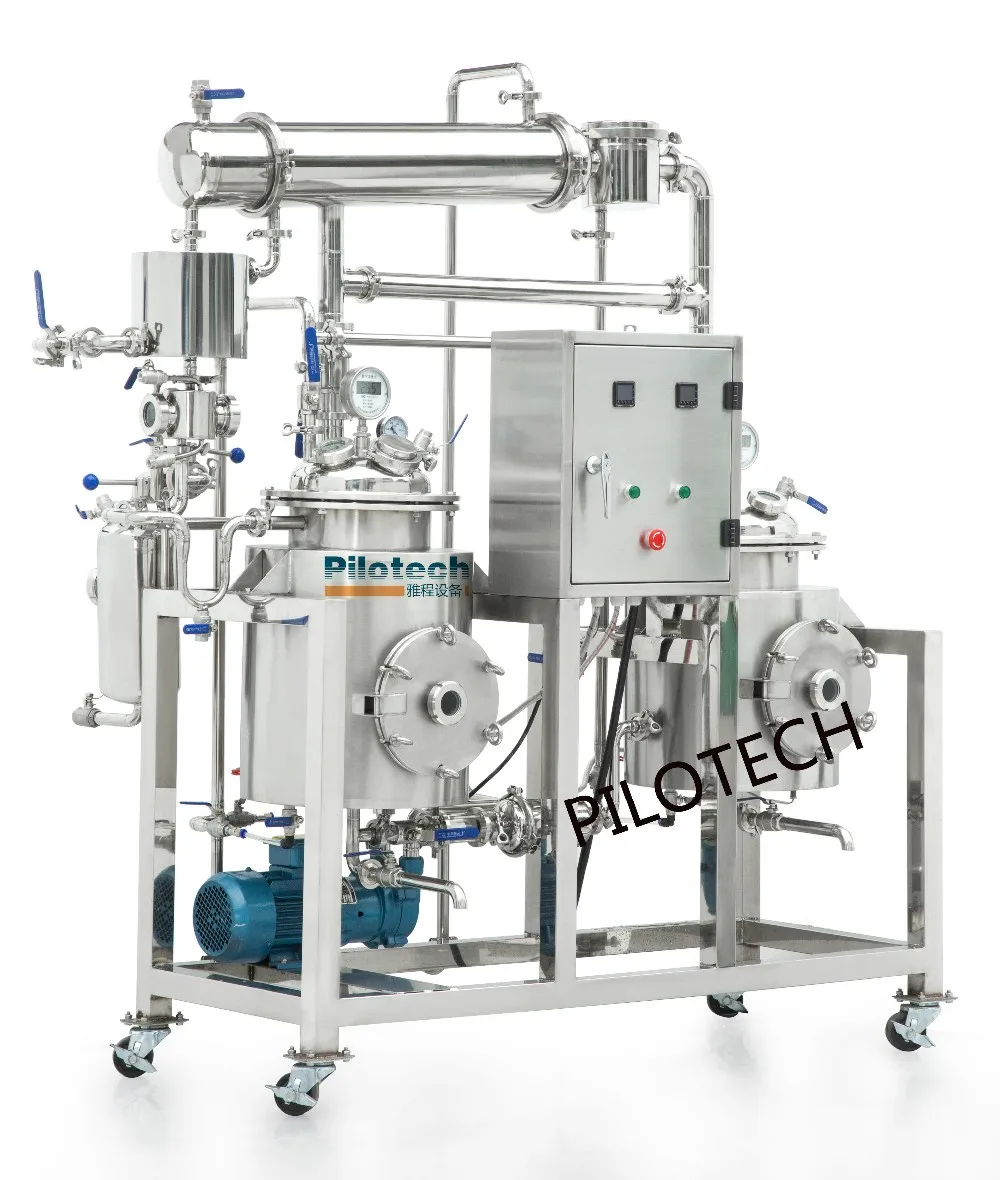

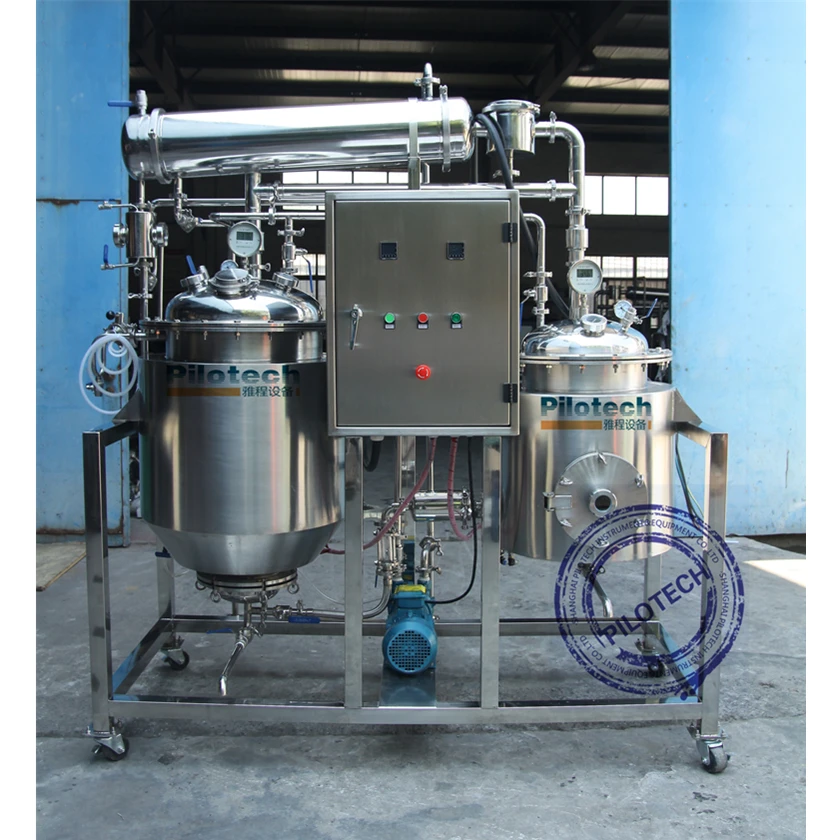

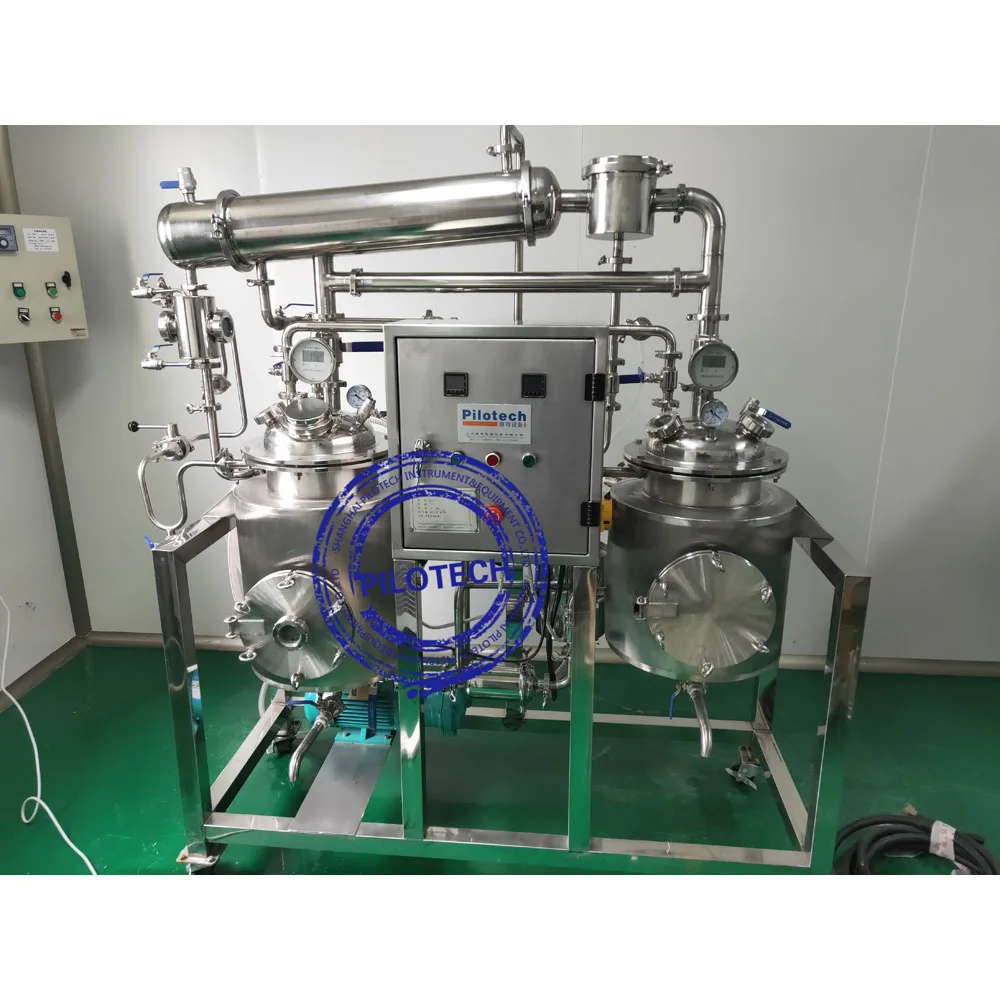

50L lab extract machine
Our extraction tank is multifunctional . Mainly used for the extraction and of plants , concentrate the extracing liquid , recovery of volatile essential oils . Such as tea , hemp , seeds , roses , Chinese herbal medicine , etc .
Its functions include hot reflux extacting , percolating extracting , vacuum low-temperature extracting and vacuum low temperature concentrating , volatile essential oil recovery.
Weclome to consult us !
Contact person: Vicky Xiang
Email : vicky@shpilotech.com
Whatsapp : +86 13311639216

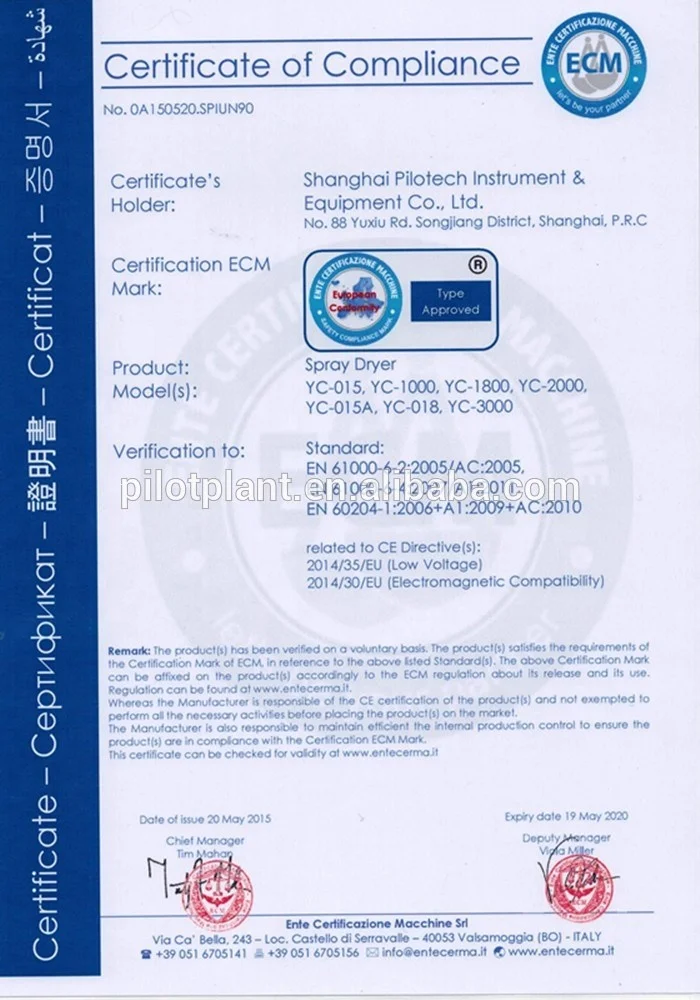

Certifications

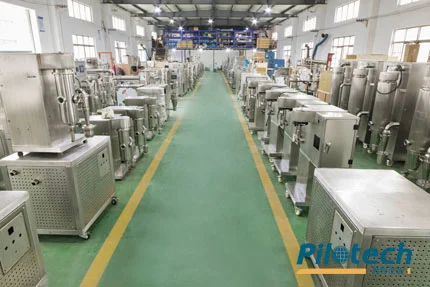

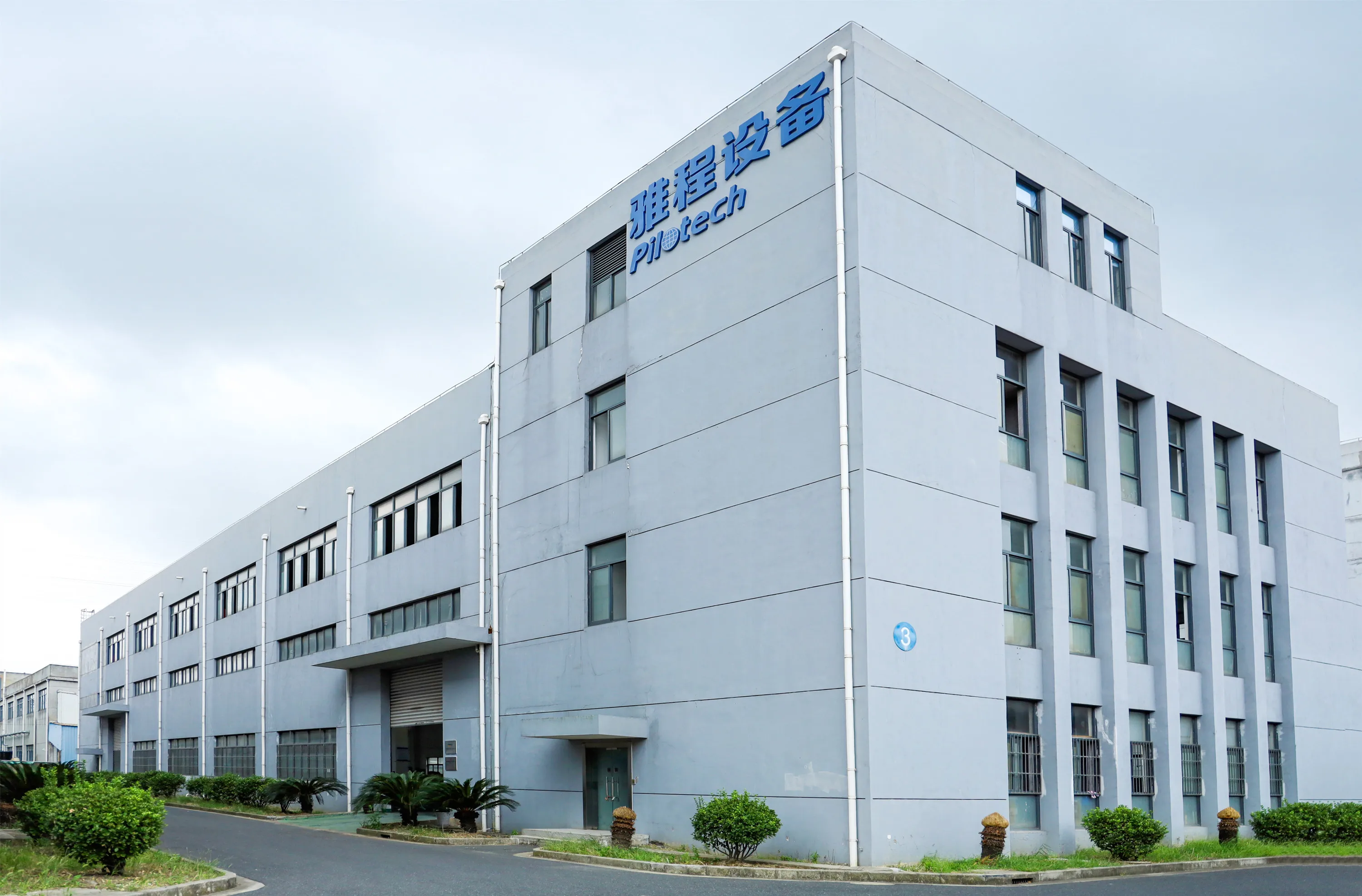

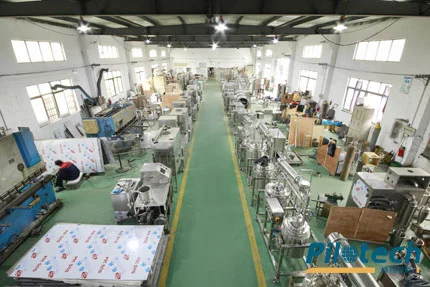

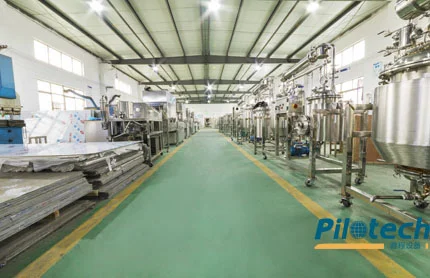

Our factory
We have been focused on the research, development and production of extraction tank used in the laboratory since 2005 . The extraction tank low noise and little impact on the environment , are suitable for laboratory.In China, the extraction tank is quite popular among pharmaceutical companies , the universities related to the medicine , food science and engineering . Exported to 50 countries , 2000+ users around the world .
Pilotech extraction equipment is suitable for small-scale , medium-scale and pilot tests in labs, with specifications of 5L, 10L, 20L, 50L, 100L, and 200L. We can also customize our products according to your order, properties of your materials and your capacity.
Customer Photoes
Our Service
Pre-Sales Service
* quick response
* detailed quotation
* professional production solution and transportation solution
After-Sales Service
* one year warranty
* training how to install and operate the machine
*24/7 technical support by mail /whatsapp/skype/mobile phone
packaging
The package is standard export Tri-ply wood. We will use pe film for packing or pack it according to customers special request.The tri-plywood packing are very firm, suitable for sea, air and land transport ,express(UPS, Fedxex, DHL).
FAQ:
1. How is the sales service of company's products ?
We offer one-year warranty for all the products, and for products within the warranty period, we provide free services for all non-human damages. After the warranty expires, we will only pay the cost.
2. How is the stability and durability of the company's products ?
The company has been established for 20 years, and 90 percent of products have been adopted in Chinese colleges and universities. The first produced products have still used by customers currently, and the products are very durable. In China, before the purchase of equipment, many teachers in the university will carefully listen to the views of colleagues on usage. Pilotech Equipment has good performance and stability and achieved a good reputation, and the purchases of numerous new customers are recommended by old customers.
3. As for the foreign market,what kind of policy that Pilotech has on dealers?
Pilotech welcoms the dealers to sell our products, and we will provide dealers with strong technical support and competitive prices.Pilotech hopes to grow and develop together with national distributors.
4. Can you ship to my country?
We can ship to all the countries around the world via Express,Sea,Air.
5.How much is the shipping charge to my country?
The shipping charge depends on your located country and the weight of the package.
How can I track the whole shipping process?
We will send you a BL tracking number.you can track the whole shipping process on the website.
