1000l 2000l 3000l Paint Electric Heating Double Jacket Ace Mixing Tank

product mix

The design and manufacture of the whole electric heating mixing tank meet the strict and harsh "GMP" specification requirements, achieve the purpose of economic use, safety, high efficiency, sanitation, thorough cleaning and convenient disassembly and cleaning, and have been affirmed by users.

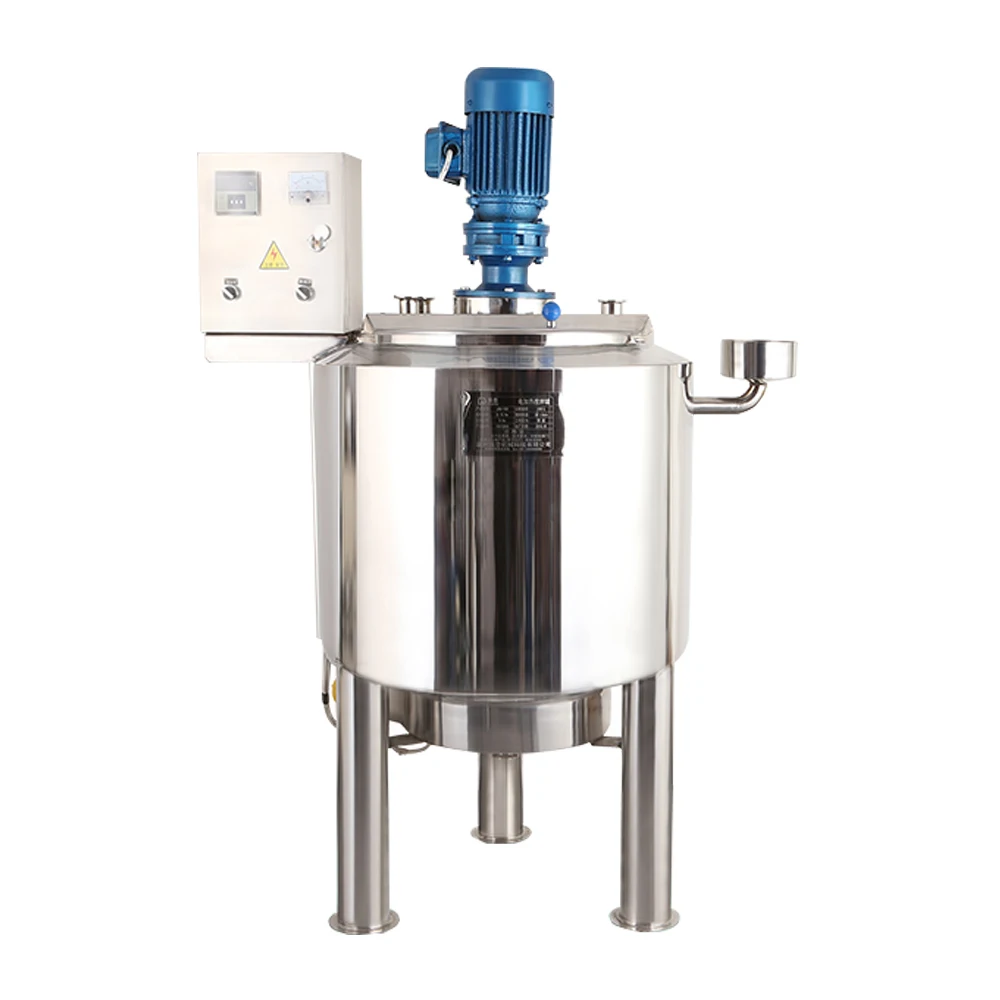

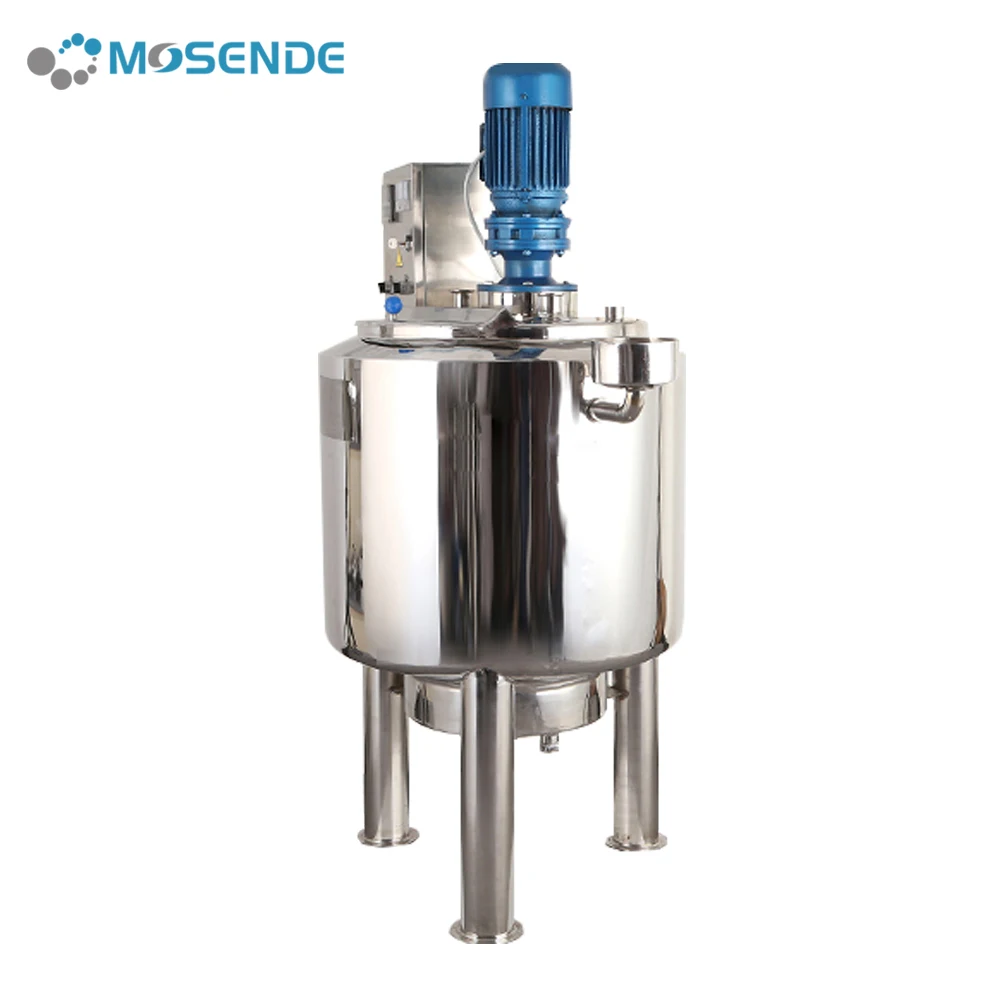

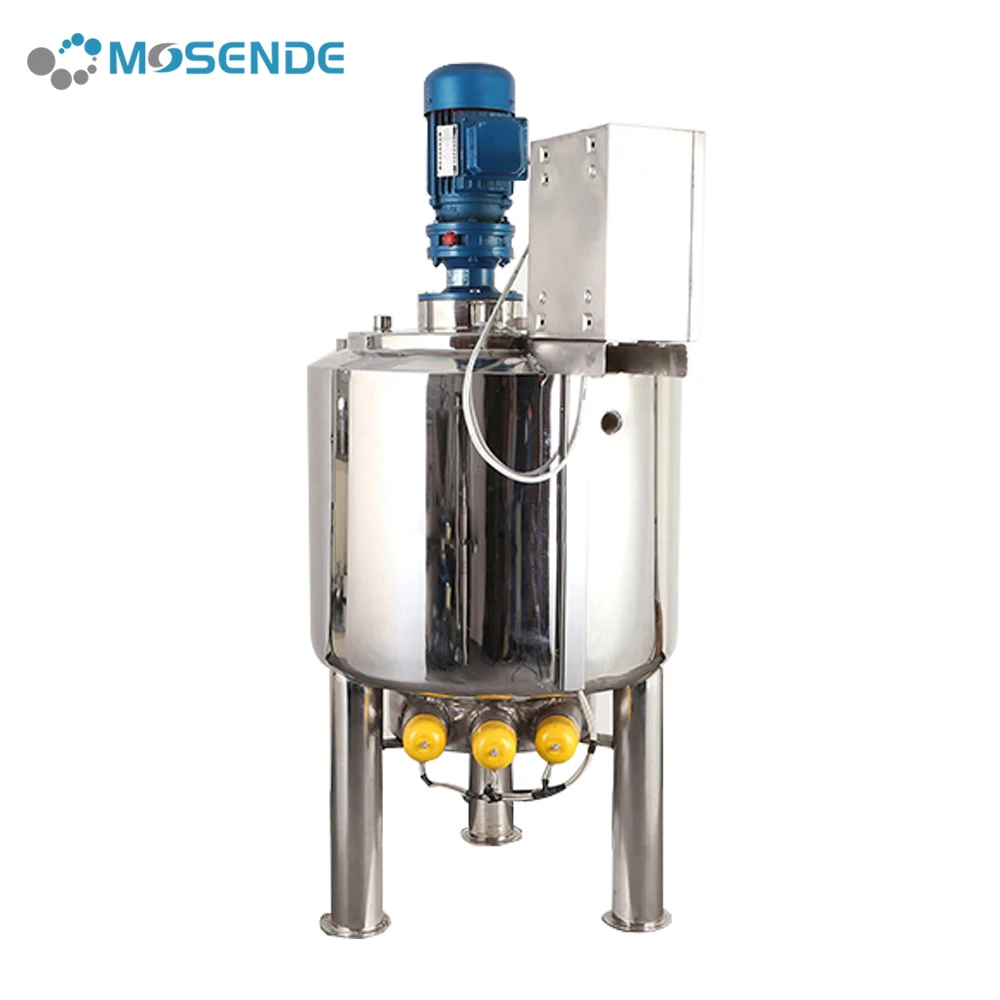

Structural form of equipment: double openings of upper flat cover, lower cone bottom head, bottom discharge and vertical three legs.

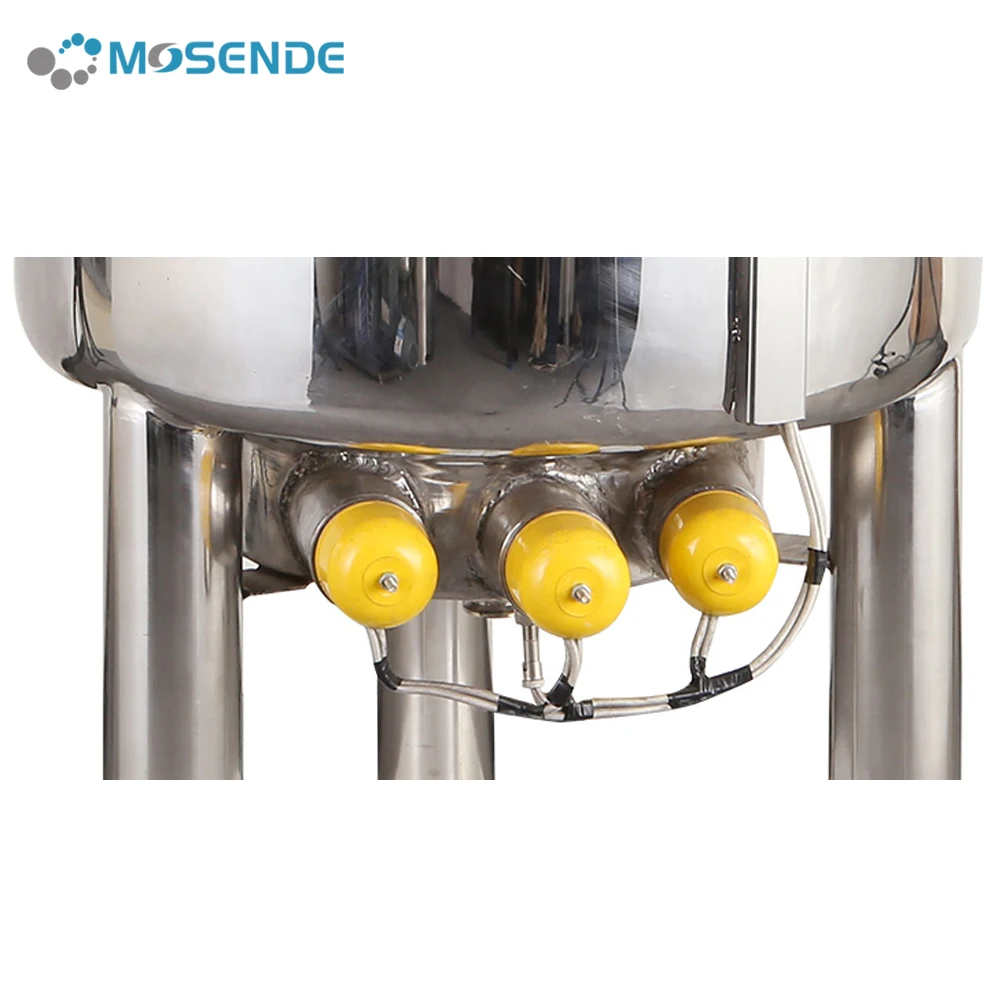

Functions and characteristics of electric heating mixing tank: it can heat (the medium in the jacket is heated by the electric heating pipe, the heat energy is transmitted, the materials in the tank are indirectly heated, and the temperature is automatically controlled) for heat preservation, cooling and mixing.

It has the following characteristics:

1) Stainless steel 304 / 316L shall be used for the inner tank of the tank and the parts and components in contact with materials, and stainless steel 304 shall be used for other materials of the tank.

2) The inner tank is polished with mirror surface (roughness ra0.4um), and the outer decorative surface cylinder is polished with mirror surface, which is clean and beautiful.

3) The mixing adopts constant speed or speed regulation to meet the mixing requirements of different loading and different process parameters (frequency conversion speed regulation, and online real-time reading of mixing speed value, output frequency, output current and other values)

4) Operation state of the mixing device: the materials in the tank are mixed quickly and evenly, the load operation of the mixing transmission system is stable, and the channel sound of the load operation is ≤ 40dB (a) [lower than the national and ministerial standards of < 75db (a)], which greatly reduces the noise pollution of the laboratory.

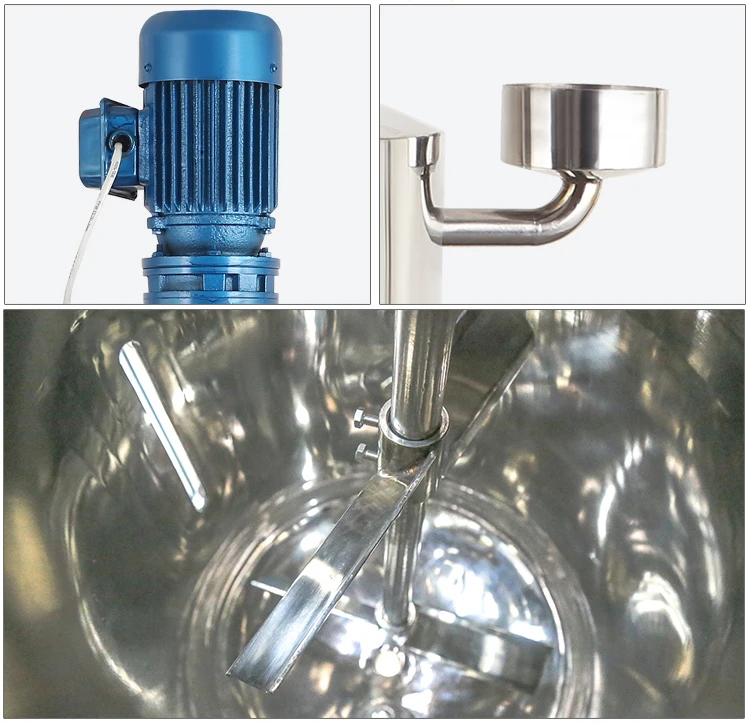

5) The mixing shaft seal adopts sanitary, wear-resistant and pressure resistant mechanical seal, which is safe and reliable.

6) A device is specially set to prevent the materials in the tank from being polluted after the oil leakage of the reducer, which is safe and reliable to ensure that the materials have no pollution risk.

7) About one third of the area of the upper flat cover is an open movable cover, which is convenient for feeding and thorough cleaning, and the discharge at the bottom of the tank is clean without material liquid retention.

8) A movable baffle is set in the tank, which meets the mixing requirements and has no dead corner for cleaning, so it is more convenient for disassembly and cleaning.

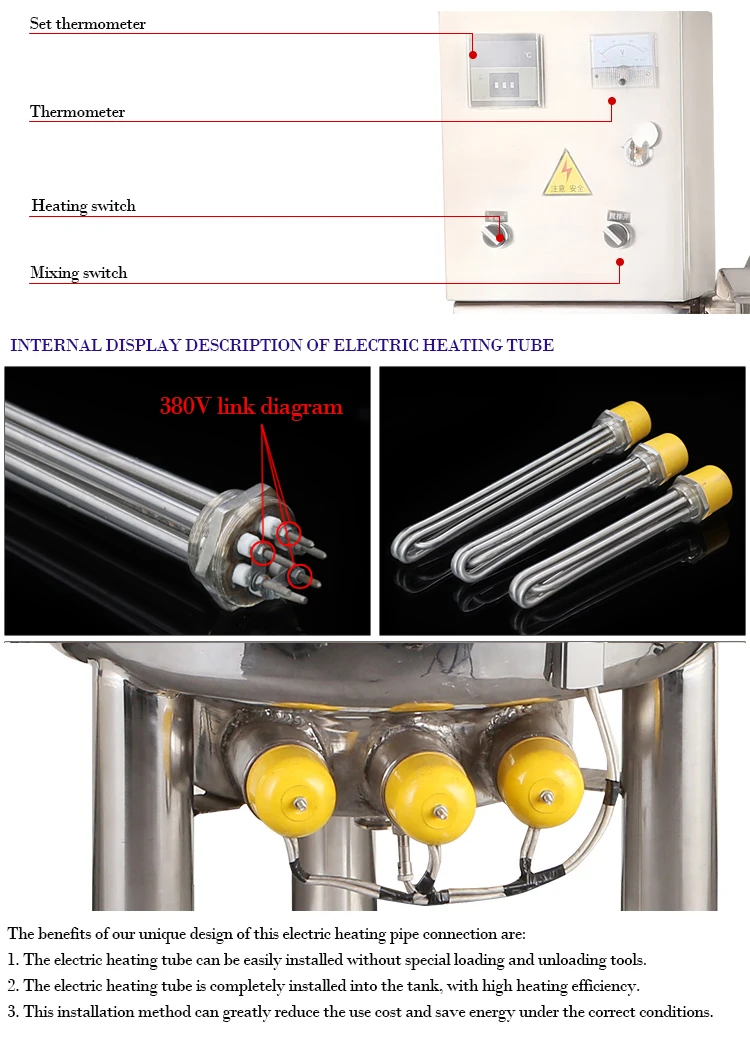

9) Automatic temperature control, sensitive temperature control and high precision (digital display temperature controller and PT100 sensor are adopted, which is easy to set, economical and durable)

10) All process interfaces are connected by short quick assembly, which is smooth, easy to clean and convenient for assembly and disassembly.

Simple and convenient installation and use: only connect the required power line (380V / three-phase four wire) in the wiring terminal of the electric control box, and add materials and heating medium into the tank and jacket respectively

technical parameter

Technical document support: provide equipment drawings (CAD), installation drawings, product quality certificates, installation and operation instructions, etc.

Where's your company? How do I get to your company?

Our company is located in Building A3, Dongtai Founder Industrial Park, No. 78 Luntou Road, Haizhu District, Guangzhou City, Guangdong Province, China. You can fly to Guangzhou Baiyun International Airport, and then we will arrange a special person to pick you up.

Are you a what type company?

We are an innovative enterprise integrating processing, manufacturing and trade.

What kind of service does it offer?

We can provide customers with common laboratory equipment and equipment and pharmaceutical, chemical industry applications of reactor tanks and supporting temperature control equipment.

How strong is your company?

Our company was founded in 2006, has its own leading brand in the country, our products sell well in China, covering most of the laboratories, deeply loved and praised by users. We have many cooperative production bases in different cities in China, concentrating the best production resources and providing the best quality products. We design a wide range of products, we have professional technical engineers, can provide customers with solution design, product customization services.

How about the quality of your products?

Product quality is not only a customer concern, but also our most important issue! We even the importance of product quality, the company has set up a strict testing system, only after strict performance testing of products, issued testing certificates can be allowed to leave the factory, you can rest assured to buy.
