Product Description

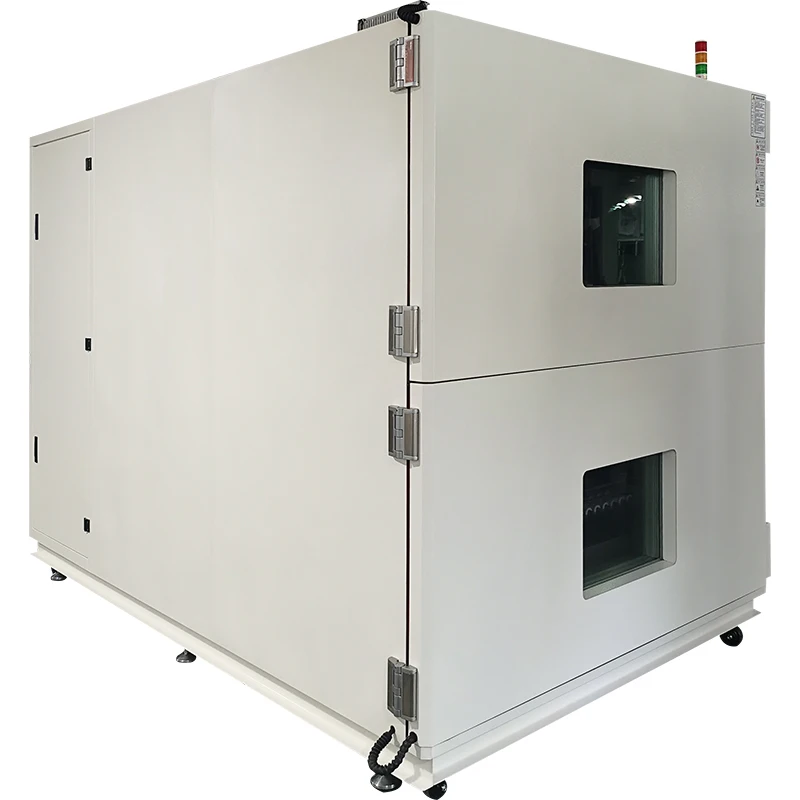

New Design Carbonization Testing Machine 2 zone Thermal Cycle Shock Test Chamber Laboratory Testing Equipment

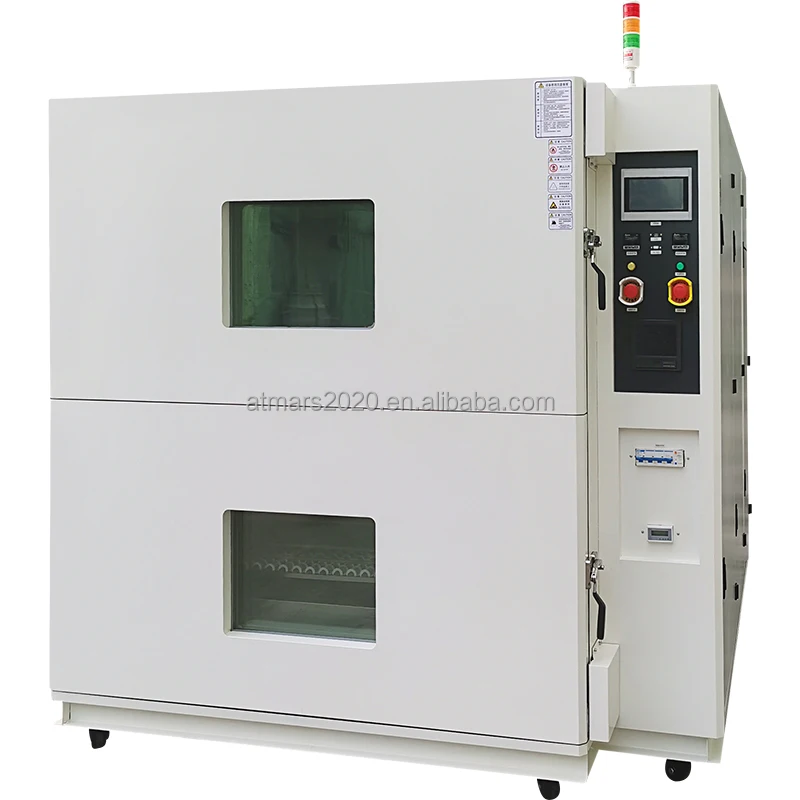

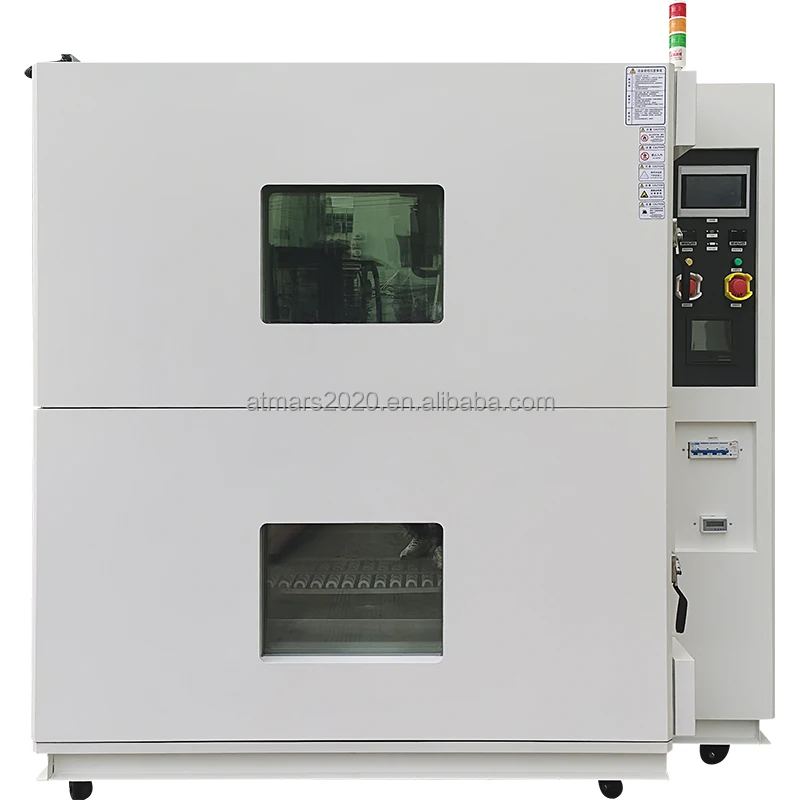

pecifications of ATS2-150N Series Temperature Test Chamber
*Performance is based on ambient temperature +25 ℃ or circulating water temperature +25 ℃, empty load.
Model
|
ATS2-
|
150A
|
150B
|
150C
|
Performance
|
Temperature range
|
-55℃ to +180℃
|
-70℃ to +180℃
|
-75℃ to +180℃
|
Thermal shock range
|
-40℃ to +150℃
Hot: +60℃ to +150℃
Cold: -40℃ to -10℃
|
-55℃ to +150℃
Hot: +60℃ to +150℃
Cold: -55℃ to -10℃
|
-65℃ to +150℃
Hot: +60℃ to +150℃
Cold: -65℃ to -10℃
|
Temperature fluctuation
|
≤±0.5℃
|
Temperature deviation
|
≤±2.0℃
|
Temperature uniformity
|
±2.0℃
|
Recovery time
|
≤5min.
|
Transfer time
|
≤10sec.
|
Temperature overshoot
|
≤±2.0℃
|
Hot zone
|
+60℃ to +180℃
|
Preheating time
|
+60℃ to +180℃ in 30min.
|
Cold zone
|
-55℃ to -10℃
|
-70℃ to -10℃
|
-75℃ to -10℃
|
Precooling time
|
+20℃ to -55℃ in 45min.
|
+20℃ to -70℃ in 45min.
|
+20℃ to -75℃ in 45min.
|
Test room
|
-40℃ to +150℃
|
-55℃ to +150℃
|
-65℃ to +150℃
|
Exposure time
Test room recovery time
|
High temperature exposure for 30min.
|
Low temperature exposure for 30min.
|
within 5min.
|
Workspace volume
|
480L
|
Workspace dimensions
(WxDxH)mm
|
600*500*600 |
Exterior dimensions
(WxDxH)mm
|
1480*2065*2515 |
Material
|
Interior
|
Matte SUS #304 Stainless Steel Plates
|
Exterior
|
Powder Coated Carbon Steel Plates
|
Seal
|
Imported Silicone Seal
|
Insulation
|
Hard Polyurethane Foam Insulation and Glass Wool
|
System
|
Heating
|
Nichrome Wire Electric Heater
|
Refrigeration
|
German GEA Cascade Semi-Hermetic Compressors or Other Brands
Air-cooled or Water-cooled Cooling Mode for Option
Zero Ozone Depletion Potential (ODP) Refrigerant - R404A / R23
|
Allowable ambient conditions
|
Temperature: +5℃ to +35℃;
Relative humidity: ≤85%RH (No condensation);
Air pressure: 86kPa to 106kPa
|
Electrical supply
|
AC 380 (1±10%)V (50±0.5)Hz 3 Phase 4 Wire plus Earth Wire
|
Custom options available
|
