3inch 1HP 750W 72V 200M Head Agriculture DC Solar power Submersible Borehole Deep Well Water Pump kit with solar panel

Product Overview

Description

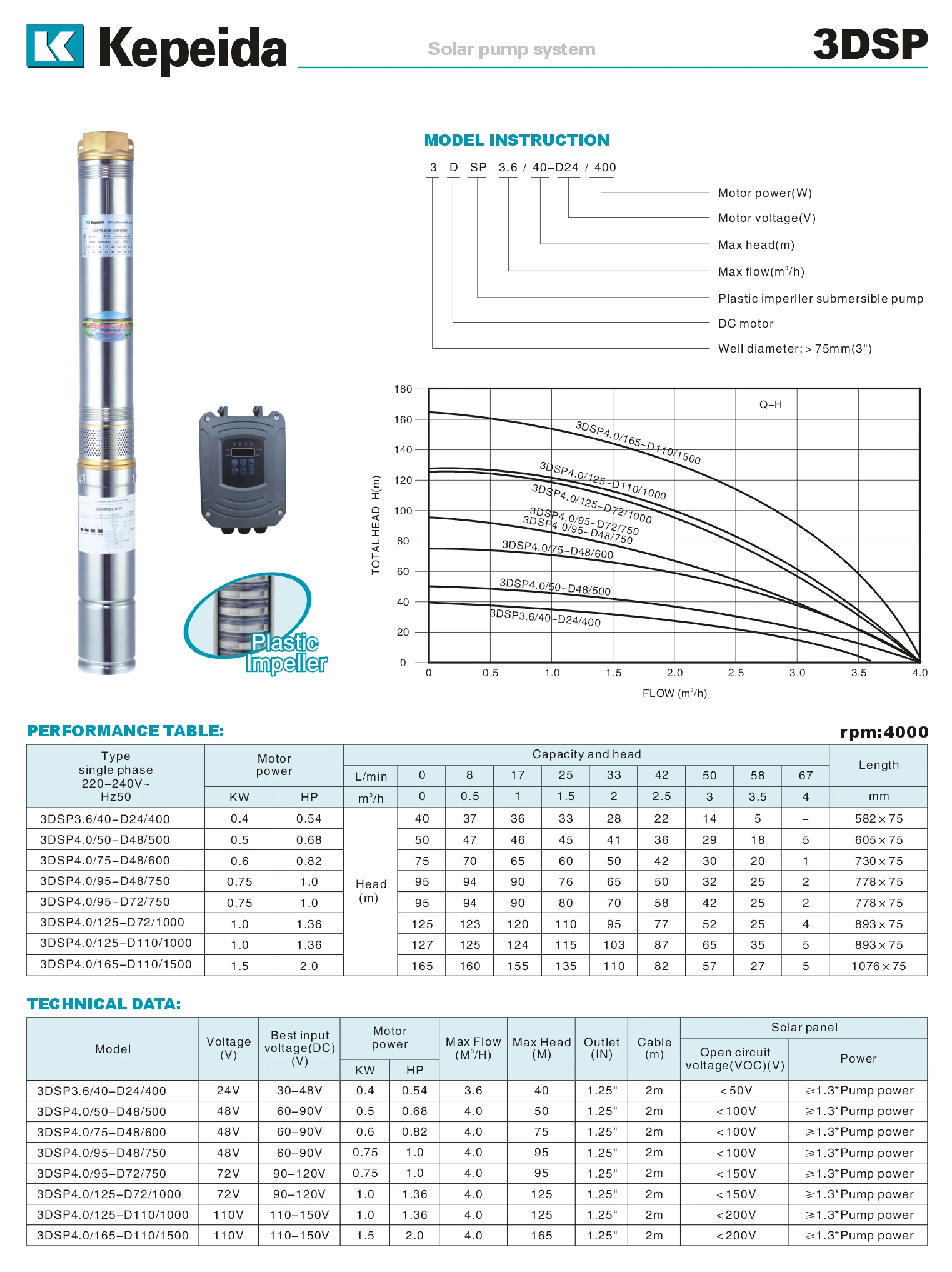

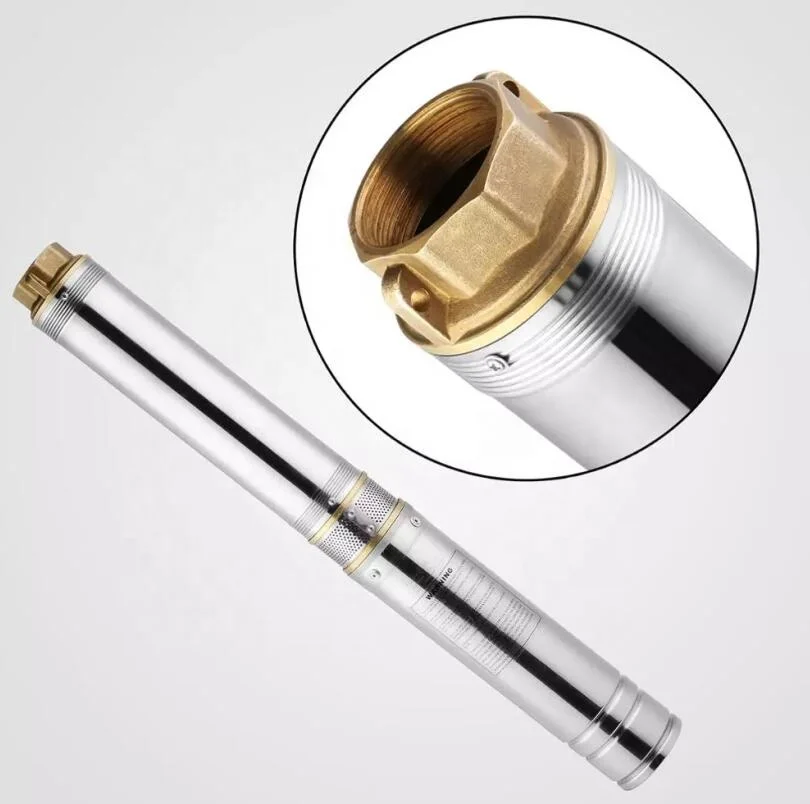

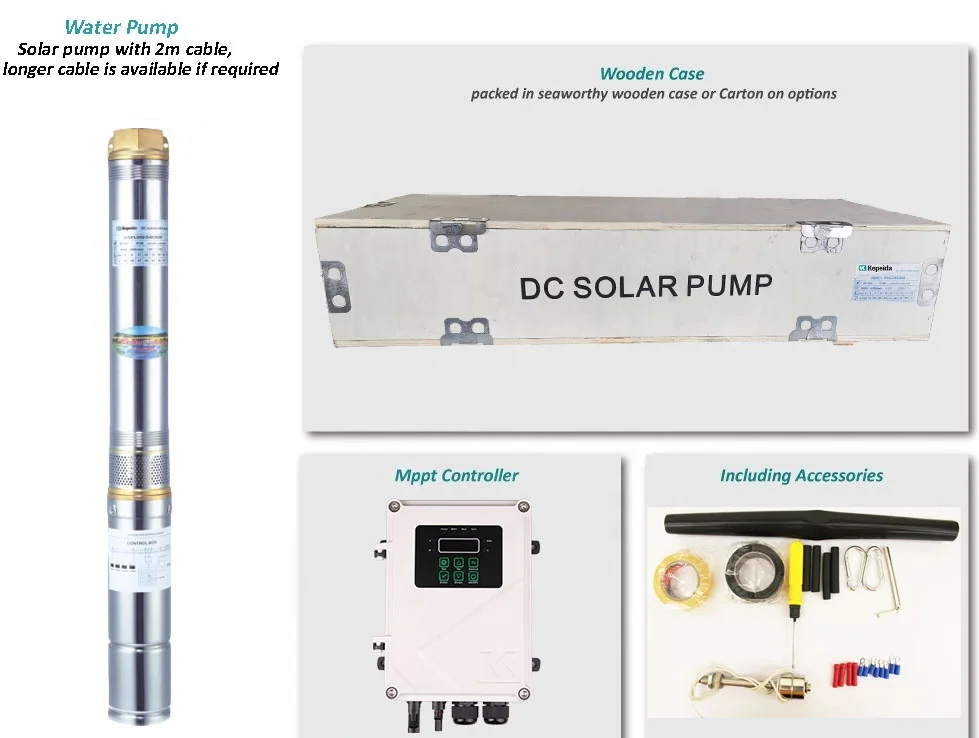

1.Pictures Of Solar Pump

Model	Pump	Solar Array	Max.flow	Max.head	Outlet
	Voltage/	Voltage/	M³ /H	M
	Power(W)	Power(W)
4DSP5.0/28-D24/250	24/250	36/320	5	28	1.25"
4DSP5.5/38-D24/400	24/400	36/520	5.5	38	1.25"
4DSP5.5/58-D48/750	48/750	72/960	5.5	58	1.25"
4DSP10/50-D48/750	48/750	72/960	10	50	1.5"
4DSP6.0/80-D72/1000	72/1000	108/1320	6	80	1.25"
4DSP10/70-D72/1000	72/1000	108/1320	10	70	1.5"
4DSP15/40-D72/1000	72/1000	108/1320	15	40	1.5"

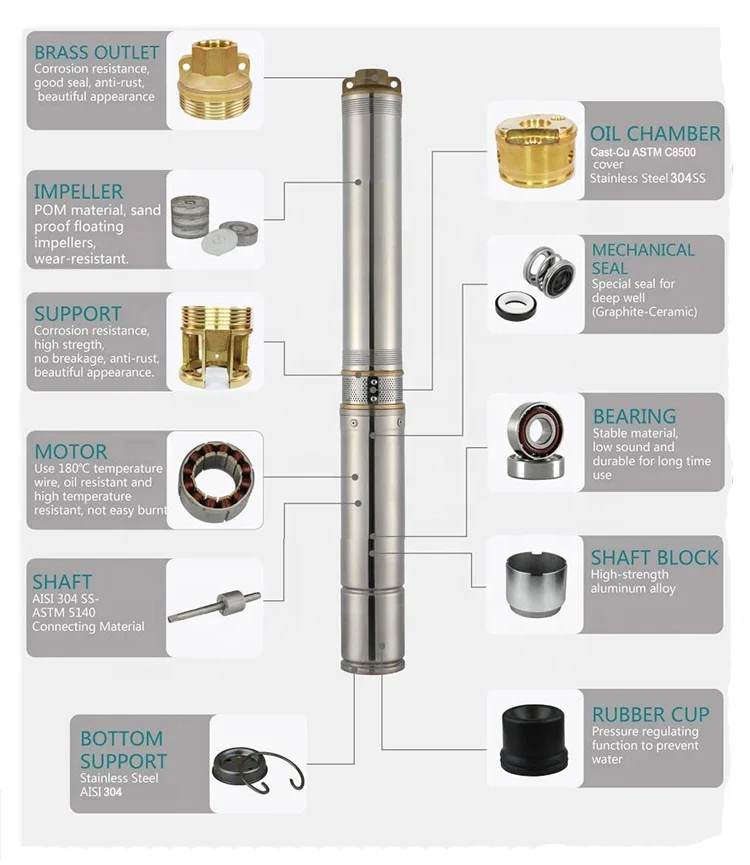

2.Description Of Solar Pump





Pump body	Stainless Steel
Motor body	Stainless Steel
Machanical seal	Silicon carbide-Tunsten carbide
Coupling And Outlet	Brass
Impeller	POM
Insulation Class	B
Protection	IP ×8
Diameter of Outlet	1.25”,1.5"

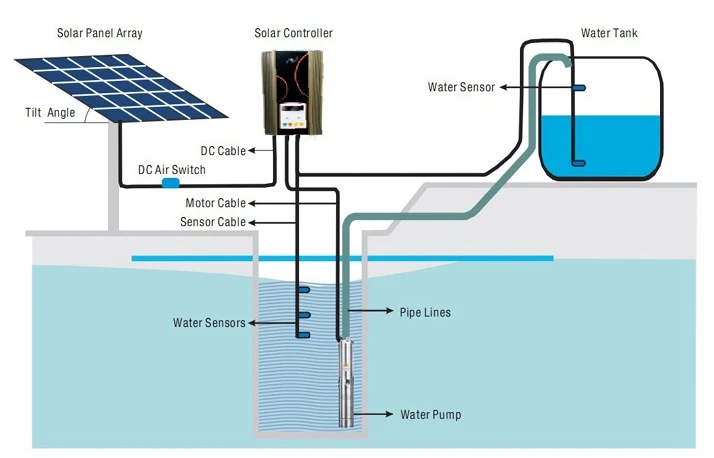

3.Application

4. Production Line of Product

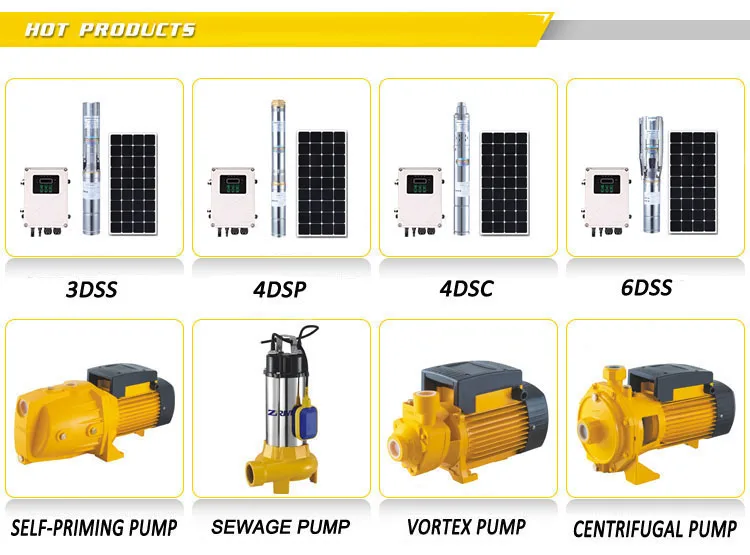

5.More Products For You To Choose

6.Sample Room





7.Exhibitions and Customers

8.Our Company View

——25 years experience for manufacturing pumps.
——Around 150-170 employee.
——30000-40000 pcs capacities for water pumps each of month.
——3 Buildings of working area,it’s totally around 21 floors with 500000.00 square meters.
——Main equiments: Auto-washing machine,CNC machine,Auto-painting equiments,Auto-spoil winding machine,Ultrasonic machine and Auto production line,etc.
——Totally capacities around 50000.00 pcs each of year foe kinds of household. pumps ,agriculture pumps and Industry pumps.
——Have testing room and QC department; Have our own research and development team.



 9.Our services

1.All enquiries will be valued and replied with 24 hours;

2.we will give you any professional suggest, according to different market and products for new customers;

3. Our Inspect Department will test each batch to ensure high quality, with material test & performance test;

4.Quick & efficient delivery to guarantee your inventory;

5.Good package to protect the products;

6.Your any feedback will be highly appreciate to make sure we can do better and better;

7.Accept OEM & ODM, our strong design team support custom products according to customer requirement;

10.Pack&Delivery

Packaging Details
STRONG CARTON PACKING WITH EXPORT STANDARD. IF EACH MODEL MORE THAN 500PCS CAN MAKE COLORED STRONG CARTON
Delivery Time:8-15 days for samples; 30 days for batch goods
