Nonwoven Fabric Machinery Textile Non Woven Fabric Machine for KN95 /N95 fabric cloth making Productiom line
- Category: >>>
- Supplier: Hubei Huiyu Machinery Equipment Co. Ltd.
Share on (1600520122733):
Product Overview
Description
Hubei Huiyu Machinery and equipment Co., Ltd. is located in Hubei Jianghan Plain, which is the thoroughfare to nine provinces. Convenient transportation by land, sea and air, an hour's drive from Wuhan International Airport, also our company is very close to Xiantao City, the hometown of non-woven fabrics.
Model No. | S / SS / SSS / SMS / SSMS / SMMS / SSMMS | ||||||
M(Product width) | 1600mm | 2400mm | 3200mm | ||||
Equipment Size | 31*20*10m | 32*21*10m | 34*22*10m | ||||
Speed | 400m/min | 400m/min | 400m/min | ||||
Gram Weight | 12-150g/㎡ | 12-150g/㎡ | 12-150g/㎡ | ||||
Yield(according to 70g/㎡) | 10-11T/Days | 15-16T/Days | 20-22T/Days | ||||
With independent import and export rights, customers at home and abroad, Hubei Huiyu company provides one-stop services such as plant planning, equipment installation and commissioning, personnel training, process arrangement and so on.The standard widths of the main products are: 1.6 meters, 2.4 meters, 3.2 meters, 4.2 meters. Special width can also be customized according to customer requirements.
We insist on providing satisfactory service for our customers and friends with product quality, stable equipment and high quality after sale. we sincerely welcome friends from all walks of life and customers at home and abroad to come to negotiate business and seek common development.
Products Description
Hubei Huiyu Machinery Equipment Co., Ltd.
Our company specializing in the production of PP spunbonded (S, SS, SSS, SSSS), PP spinning and melting (SMS, SMMS, SMSS, SSMMS),PP/PE two-component, PET polyester nonwovens production line.
The standard widths of the main products are: 1.6 meters, 2.4 meters, 3.2 meters, 4.2 meters. Special width can also be customized，according to customer requirements.We insist on providing satisfactory service for our customers and friends with product quality,stable equipment and high quality after sale. we sincerely welcome friends from all walks of life and customers at home and abroad to come to negotiate business and seek common development.

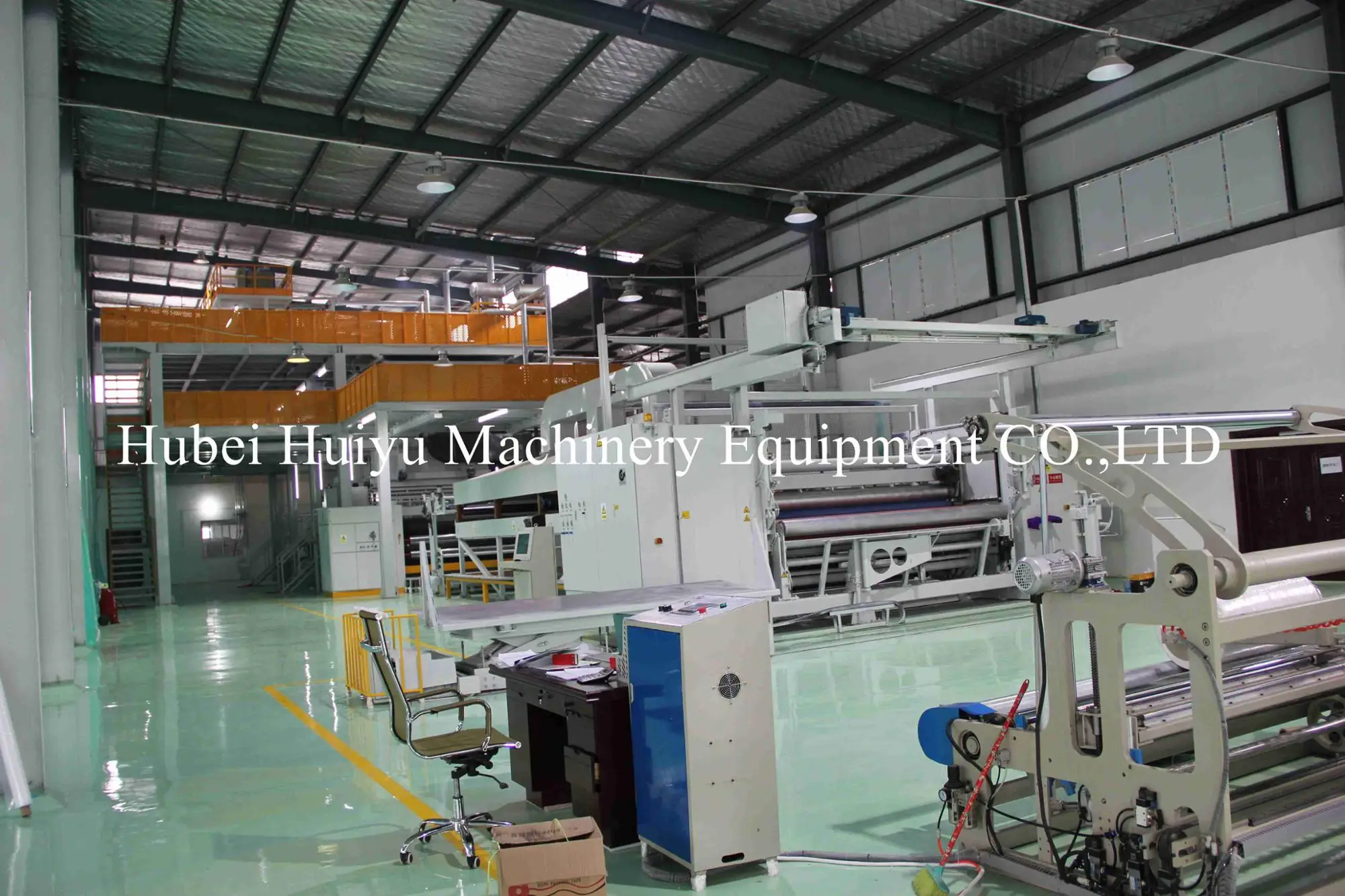

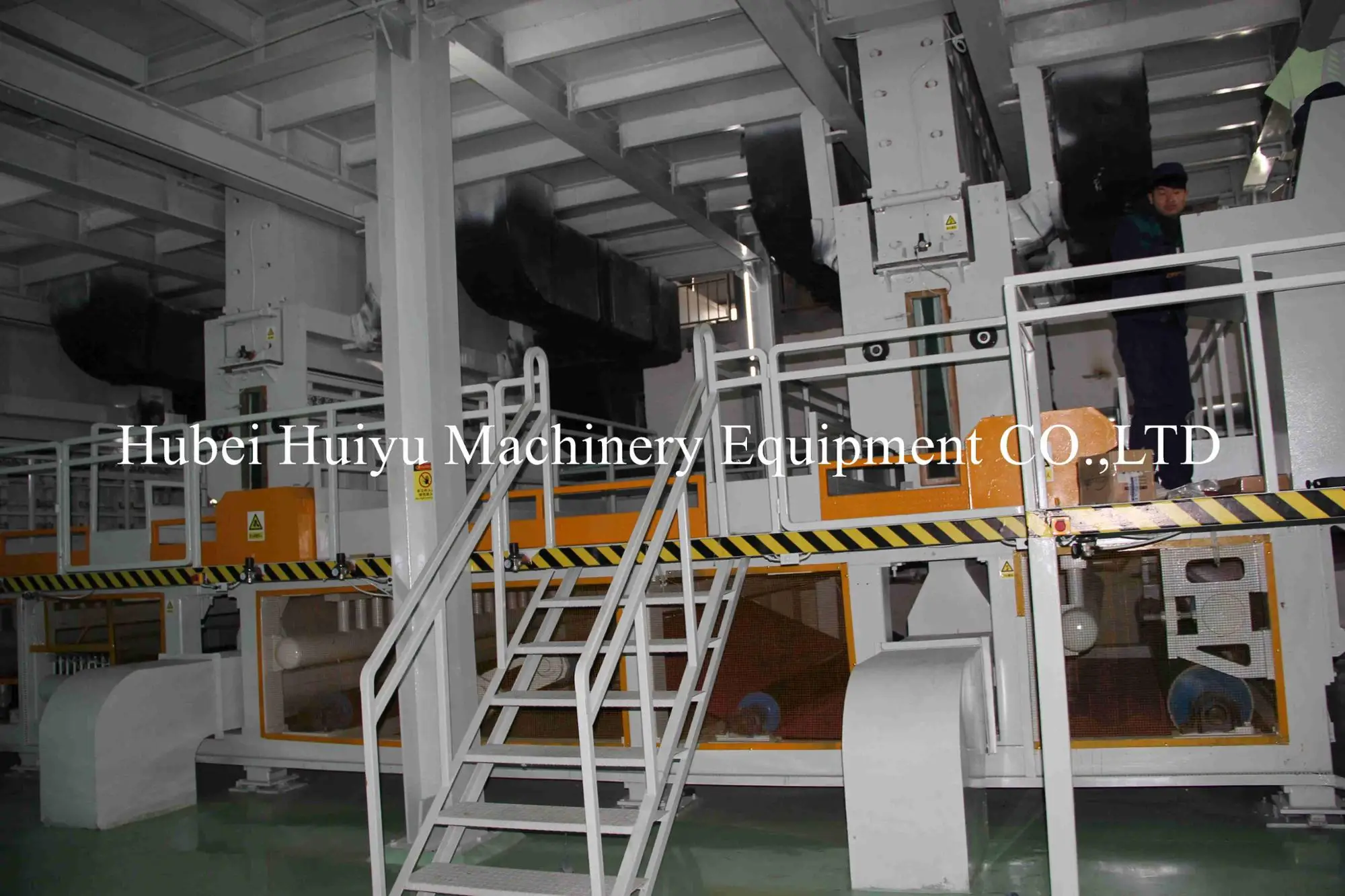

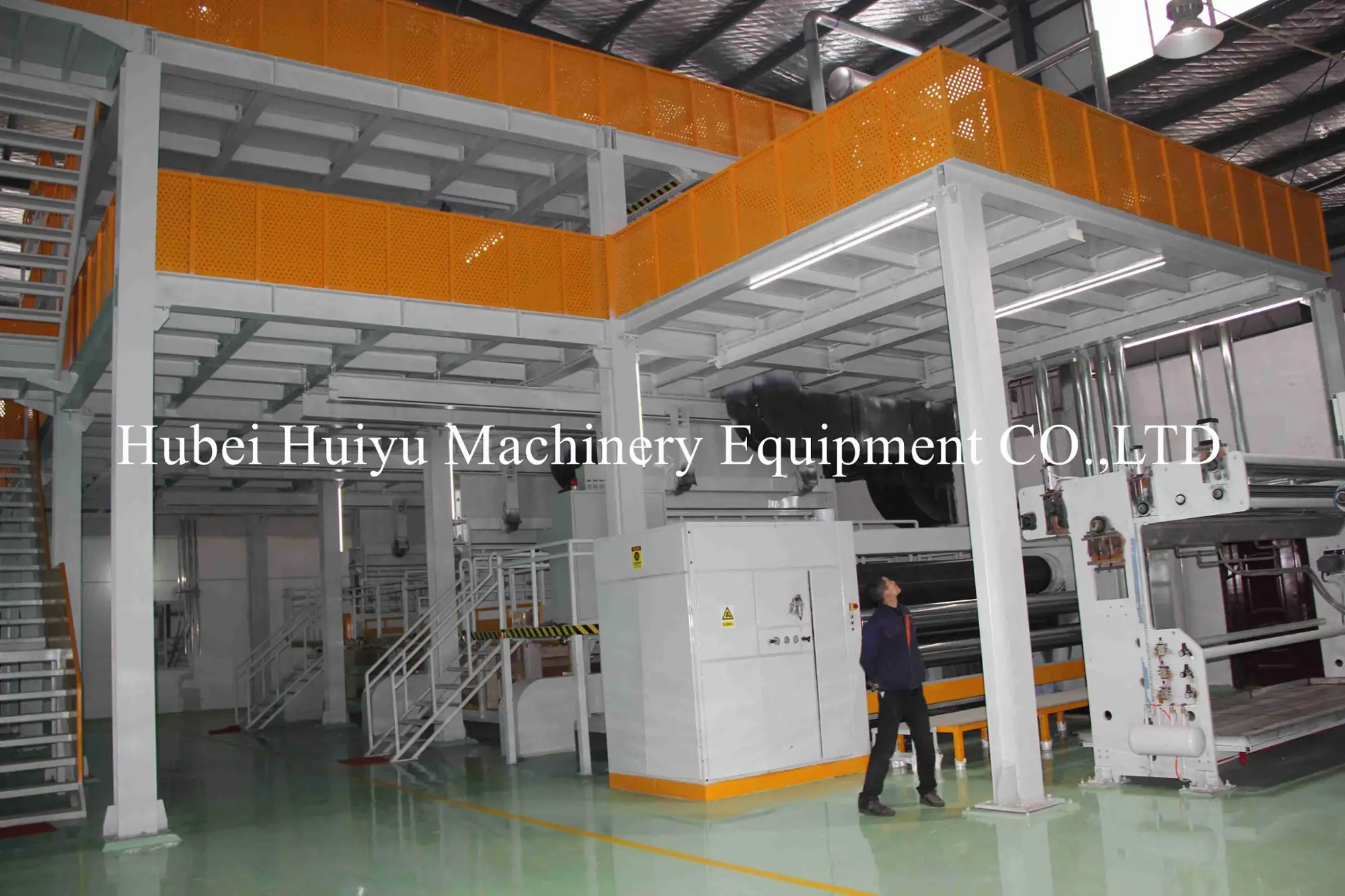

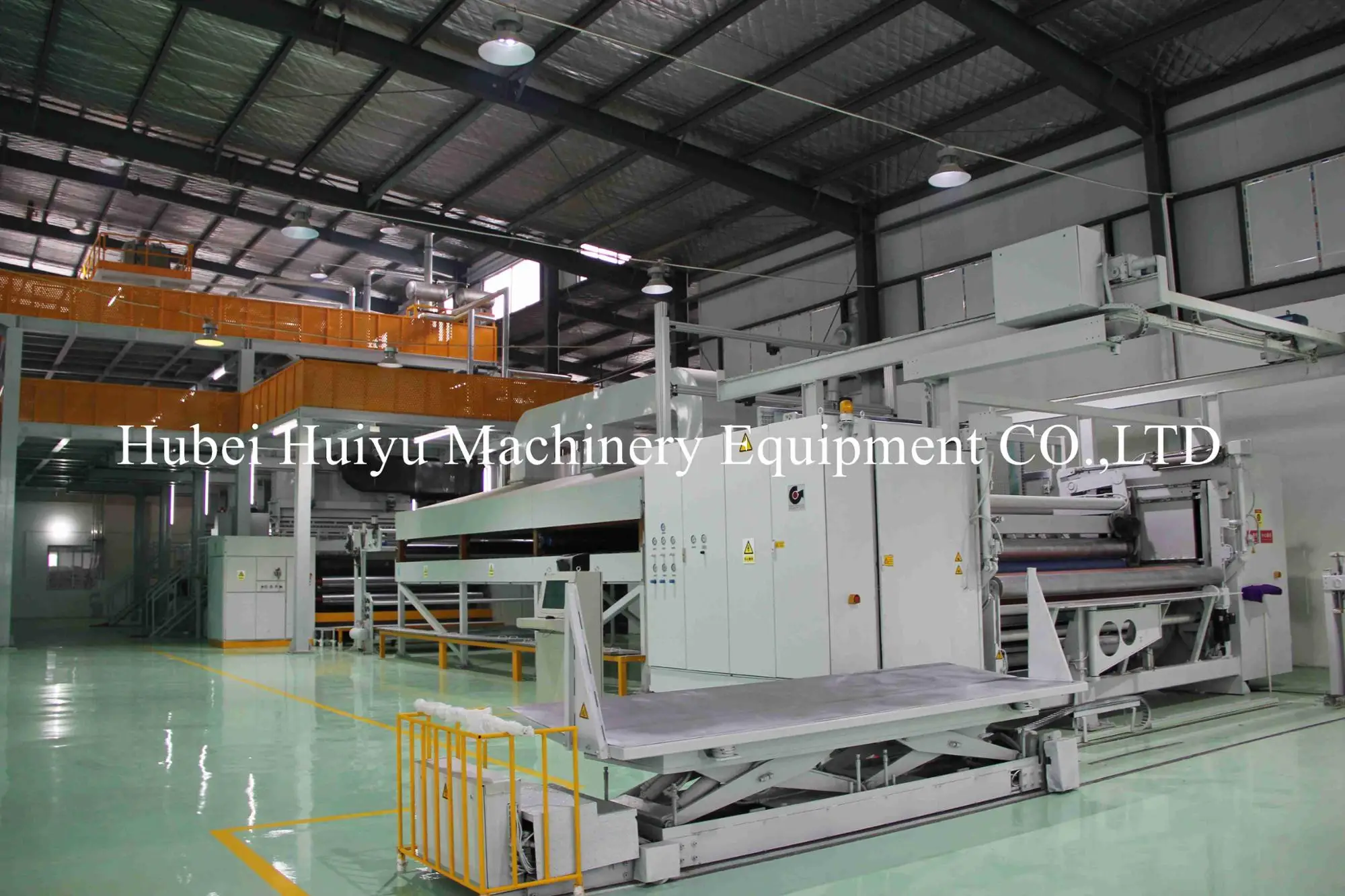

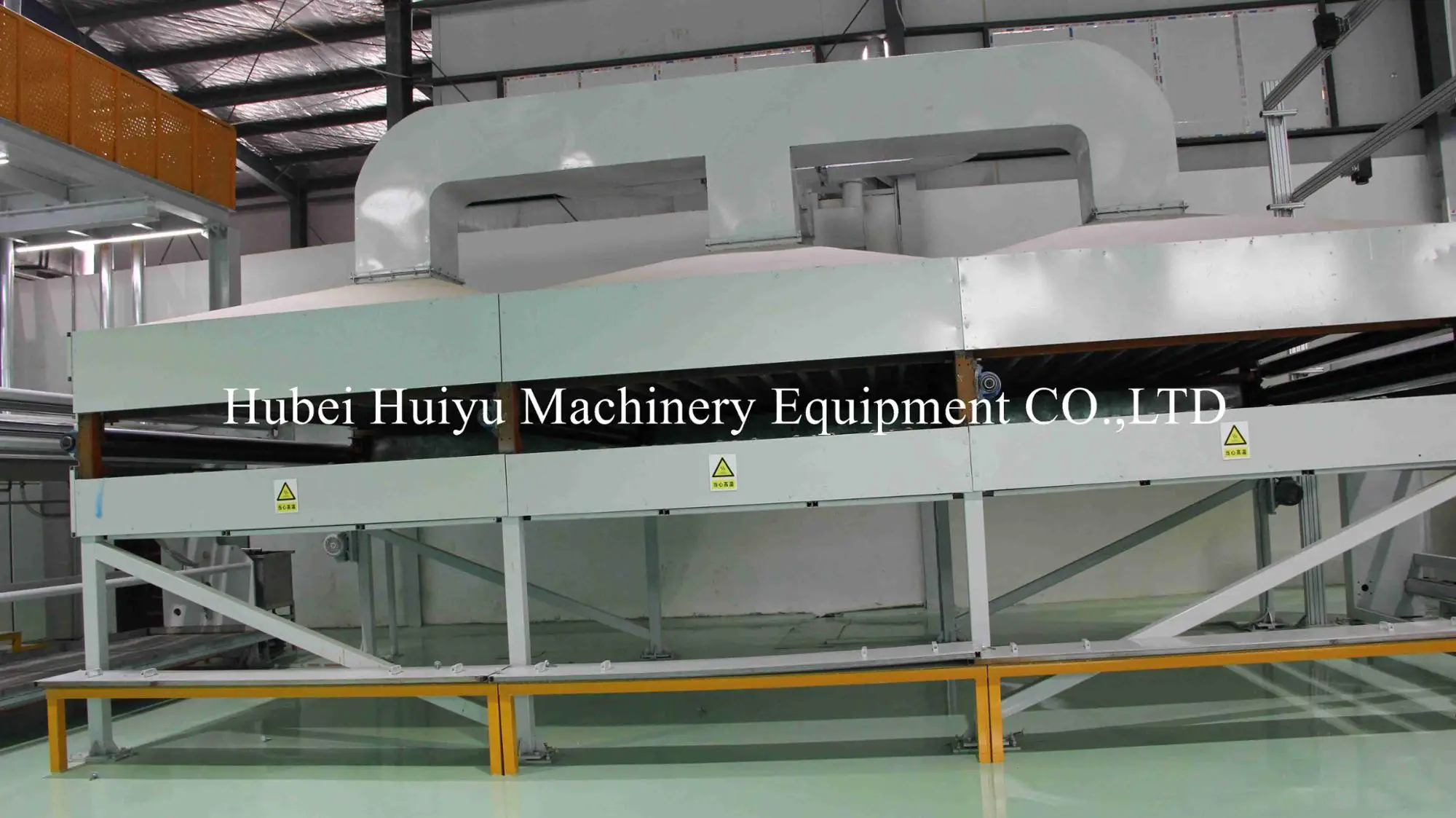

Real shot of finished product
This machine is suitable for PP spunbond non woven fabric making. It used PP chips as raw materials input, undergoes the process
of extrusion, spinning, quenching, closure air stretching,webformation,calendaring,winding and cutting as per requirements and then packed for storage and delivery.
S Production line | HY | Output(Ton/Day) | Speed (m/min) | Instal capaaty (KW) | Power consumption /Ton | Machine size (m) |
1.6m | 4-5 | 150 | 280 | 800kw/h | 10*20*10.5m | |
2.4m | 6--7 | 150 | 320 | 800kw/h | 14*20*10.5m | |
3.2m | 9 | 150 | 400 | 800kw/h | 17*20*10.5m | |
SS Productionline | HY | Output(Ton/Day) | Speed (m/min) | Instal capacty (KW) | Power consumption /Ton | Machne size (m) |
1.6m | 8-9 | 300 | 400 | 800kw/h | 10*30*10.5m | |
2.4m | 12-13 | 300 | 550 | 800kw/h | 14*30*10.5m | |
3.2m | 16-17 | 300 | 650 | 800kw/h | 17*30*10.5m | |
SSS Production line | HY | Output(Ton/Day) | Speed (m/min) | Instal capacty (KW) | Power consumption /Ton | Machine size (m) |
1.6m | 13-14 | 350 | 630 | 600-800kw/h | 13*30*10.5m | |
2.4m | 20-21 | 350 | 800 | 600-800kw/h | 15*30*10.5m | |
3.2m | 27-28 | 350 | 1100 | 600-800kw/h | 17*30 10.5m | |
SMS Production line | HY | Output(Ton/Day) | Speed (m/min) | Instal capacity (KW) | Power consumption /Ton | Machne size (m) |
1.6m | 10-11 | 300 | 760 | 1200kw/h | 15*30*10.5m | |
2.4m | 15-16 | 300 | 950 | 1200kw/h | 18*30*10.5m | |
3.2m | 20-21 | 300 | 1250 | 1200kw/h | 21*30*10.5m | |
SMMS Production line | HY | Output(Ton/Day) | Speed (m/min) | Instal capacity (KW) | Power consumption /Ton | Machne size (m) |
1.6m | 13-14 | 400 | 1100 | 1400kw/h | 18*40*10.5m | |
2.4m | 21-22 | 400 | 1350 | 1400kw/h | 20*40*10.5m | |
3.2m | 28-30 | 400 | 1700 | 1400kw/h | 22*40*10.5m |
Helpful hints：
The above finished products are all installed and debugged by our company and successfully run and put into production. They are all real shooting parts.
Tip:
All of our machines have CE ISO certification, quality assurance. My company after sale perfect, once purchased, lifelong maintenance.
Spunbonded nonwoven fabric production process:
The waste recovery device researched by our company ensures a high conversion rate of materials and refuses waste. Every link is precisely controlled, reaching 99% of the conversion.

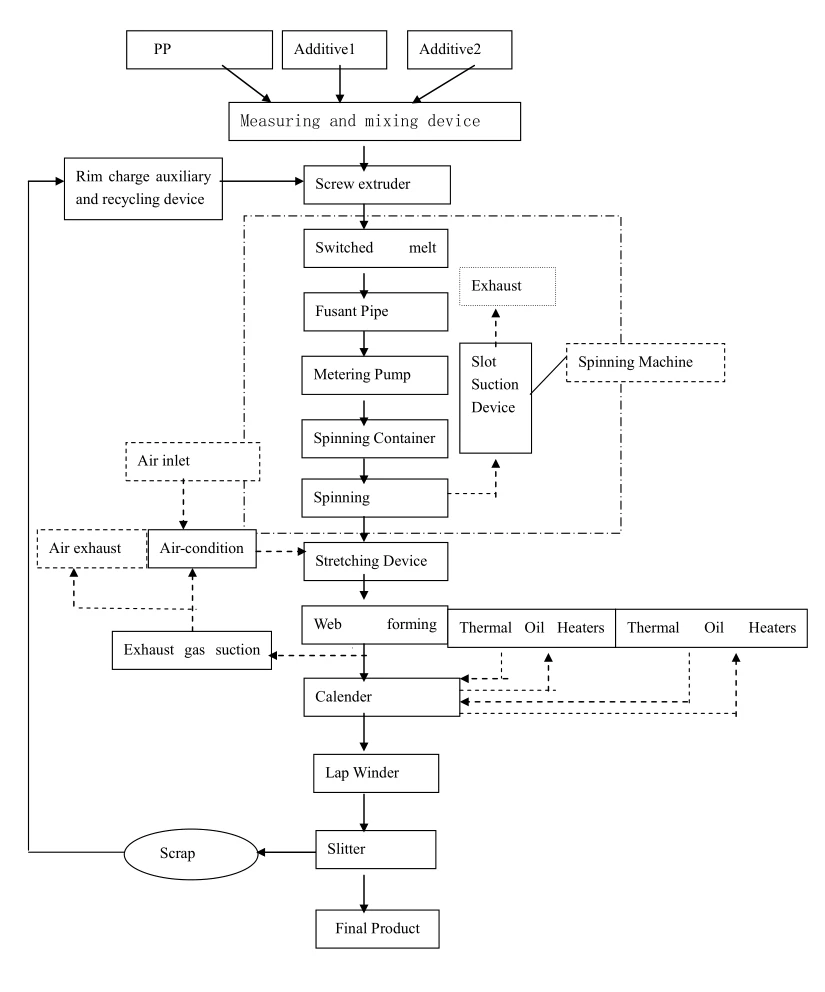

Process diagram:
This is the process flow chart of spunbonded non-woven fabric line. The whole assembly line has clear structure and perfect function. The role and function of each link are clearly visible.
R&D
In product research and development, Hui Yu company at all costs, to explore more advanced non-woven technology.
Introduce excellent scientific research achievements at home and abroad, transform and improve them. And hiring good engineers, spending more than 32% a year on innovation.
Product Application Introduction
Some of the application areas of the product are shown below. Due to the variety of machine models and types produced by our company, no matter which field your desired product is applied in, we can find the right model for you, and debug the equipment so that it can be successfully put into operation.
Strengths:
1.Quality Control in whole process, provide individual high cost-effective nonwoven lines, helping customer cost saving.
2.Focus on non woven equipment research and development in 14 years. Install and run more than 400 lines all over the world.
3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for
each customer.
4.Over 20 person team for machine after sales service. Ensure the customers can get quickly and professional installation and debugged in time.
2.Focus on non woven equipment research and development in 14 years. Install and run more than 400 lines all over the world.
3.Import high precision CNC machine from Japan. The key parts machining in house, ensure to provide high quality machine for
each customer.
4.Over 20 person team for machine after sales service. Ensure the customers can get quickly and professional installation and debugged in time.
FQA
Q1.Do you offer installing service?
Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.
Q2.What is your warranty?
We offer 1-2 years warranty upon the different parts.
Q3.How long is your delivery time?
Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.
Q4.Are you factory or trading company?
We are factory with export rights. We manufacture machines and export to customers by ourself.
Q5. Where is your factory located? How can I visit it?
Our factory is located in Tianmen City, Hubei Province, which is famous for making non-woven fabric machinery. You can take a plane to Wuhan Tianhe Airport, or take a high-speed train to Tianmen South Station, I will pick you up
Sure. We will despatch our technical workers to oversea sites to instruct and help install the machines, meantime to train the workers of customer until they can produce fabric by themselves.
Q2.What is your warranty?
We offer 1-2 years warranty upon the different parts.
Q3.How long is your delivery time?
Generally the production time needs 3-6 months upon condition. We will confirm you the exact time when you place order.
Q4.Are you factory or trading company?
We are factory with export rights. We manufacture machines and export to customers by ourself.
Q5. Where is your factory located? How can I visit it?
Our factory is located in Tianmen City, Hubei Province, which is famous for making non-woven fabric machinery. You can take a plane to Wuhan Tianhe Airport, or take a high-speed train to Tianmen South Station, I will pick you up
