2023new arrival 1/1.8 CMOS sensor 1080p 60fps cheap medical endoscope camera system
- Category: >>>
- Supplier: Shenzhen Shinuoqi Electronic Technology Co. Ltd.
Share on (1600520175415):
Product Overview
Description
Products Description
Features:
1、Signal input:SDI 1080P 60FPS/DC12V power supply
2、supports camera，JPG format; Udisk2.0 record, AVIformat

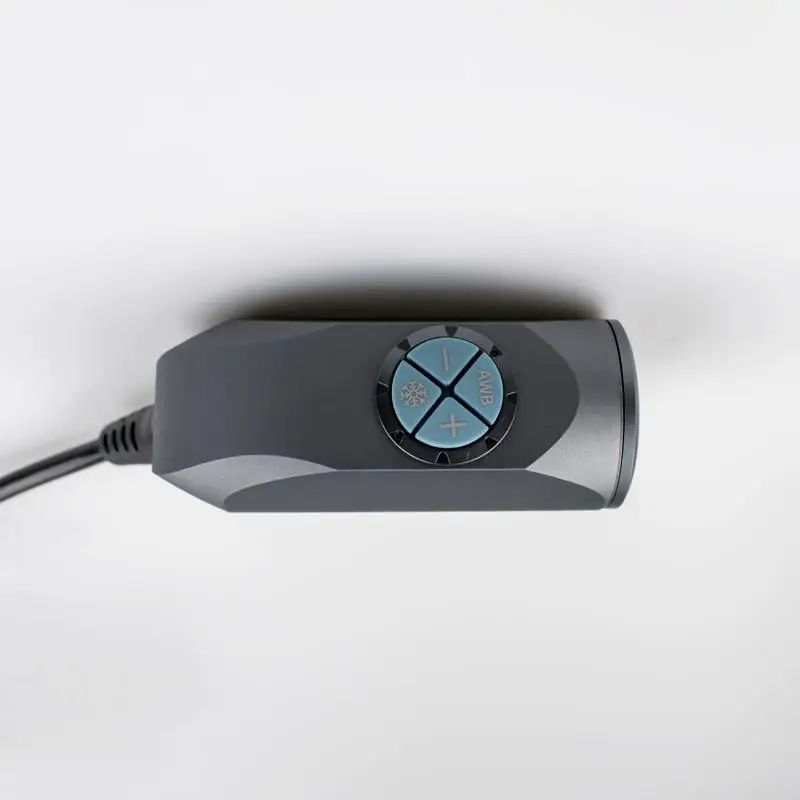

3、supports AWB/Freezen/zoom in and out/Brightness zoom in and zoom out and other shortcut key functions
4、RTC accurately displays the date and time
5、Support network transmission protocol and RS232 protocol
2、supports camera，JPG format; Udisk2.0 record, AVIformat
3、supports AWB/Freezen/zoom in and out/Brightness zoom in and zoom out and other shortcut key functions
4、RTC accurately displays the date and time
5、Support network transmission protocol and RS232 protocol
Introduction:

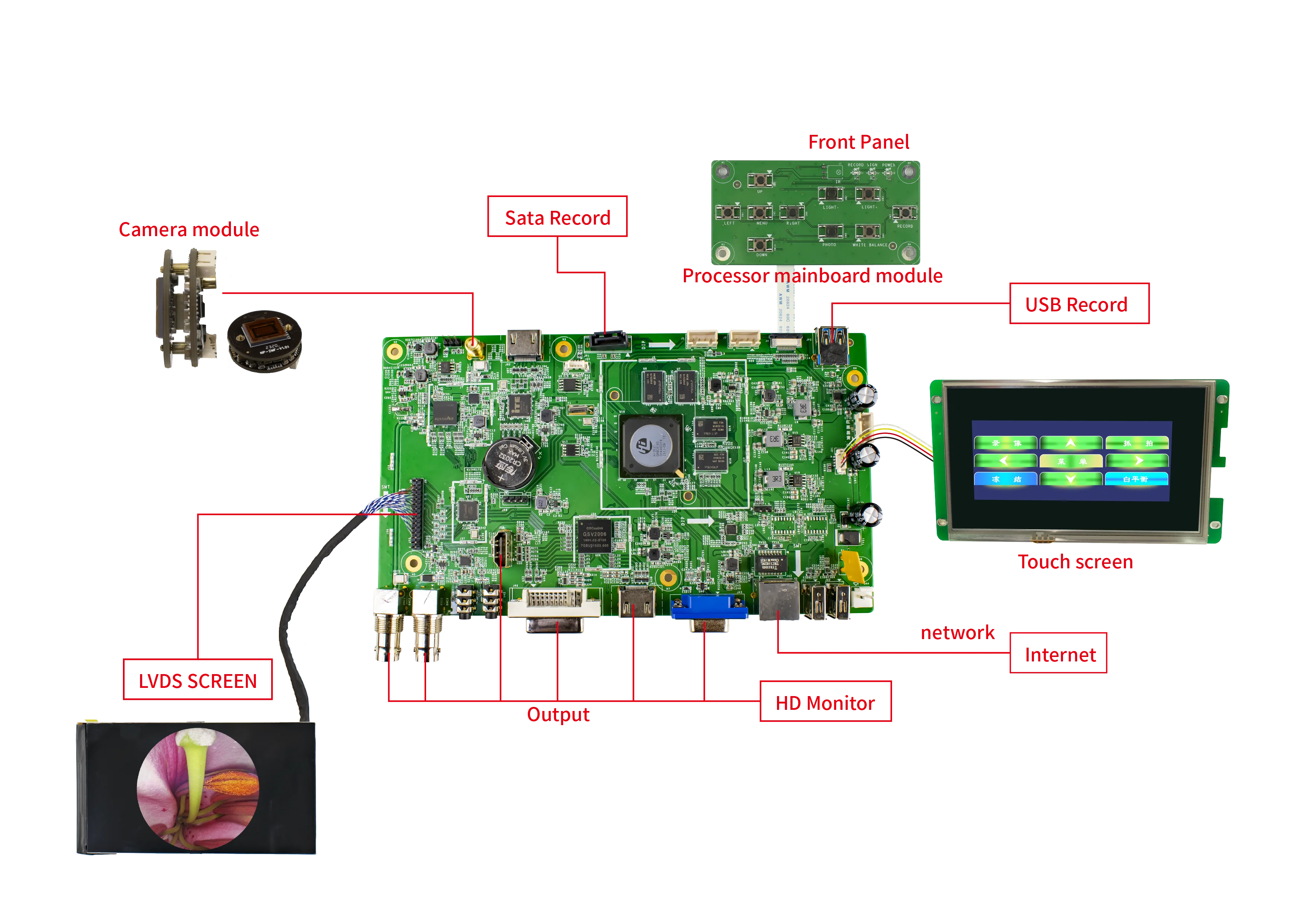

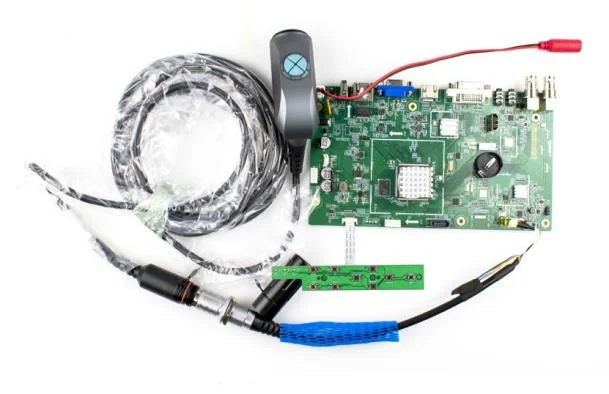

This product is a full-featured endoscopy solution designed specifically for industrial medical treatment. With camera, video, video storage function, input SDI 1080P 60FPS, output HDMI/DVI/V-GA/LVDS/SDI/CVBS, with control mainboard menu and shortcut keys function. It is widely used in the medical industry.
DVR mainly functions and parameter:
Input | SDI 1080P 60FPS |
Output | 2*HDMI+DVI+VGA+LVDS+SDI+CVBS |
Resolution | 1920*1080 |
Keypad control | Through RX/TX control the main board menu and shortcut key ( AWB/Freezen/zoom in and out/Brightness zoom in and out) |
Network port | Support network transmission protocol, network software online upgrade |
U disk | U disk USB2.0 (up to 32GB) to record and take photos |
RTC time | Support DVR time modification and data saved |
HDD | Support video storage, video online viewing |
RS232 | Support debugging/serial screen/camera front connection |
Power supply | DC12V+/-5% ＜6W |
Working current | 450mA+/-20mA |
Working temperature | -30℃ to 70℃ |
size | 120*210MM |

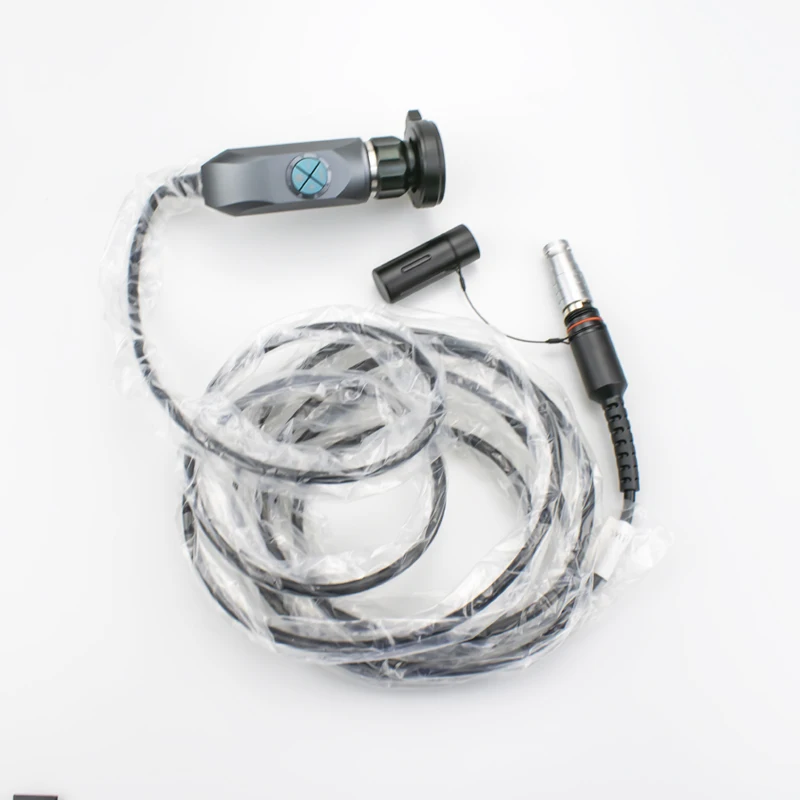

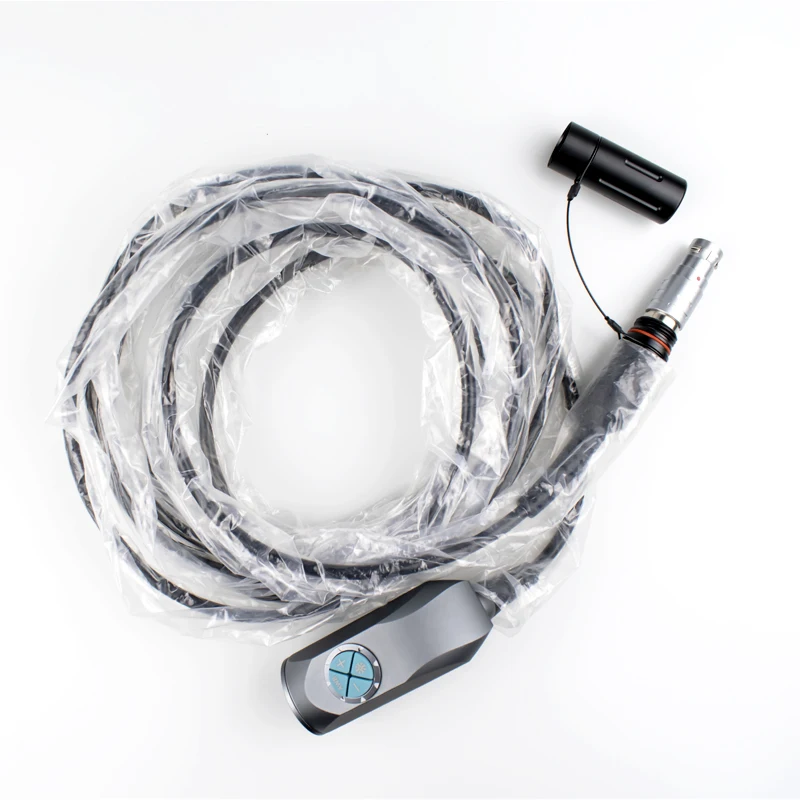

Camera Specification
Sensor | 1/1.8’’ Sony CMOS | AWB | SUPPORT |
Resolution | 1080p@60fps | Freezen | SUPPORT |
Min Illumination | 0.019 lux | 3D-DNR | SUPPORT |
Effective resolution | 1845(H) x 1097(V) | BLC | SUPPORT |
DNR | ＞42dB | HLC | SUPPORT |
Digital zoom | 1-10X | Color gain | SUPPORT |
Title goes here.

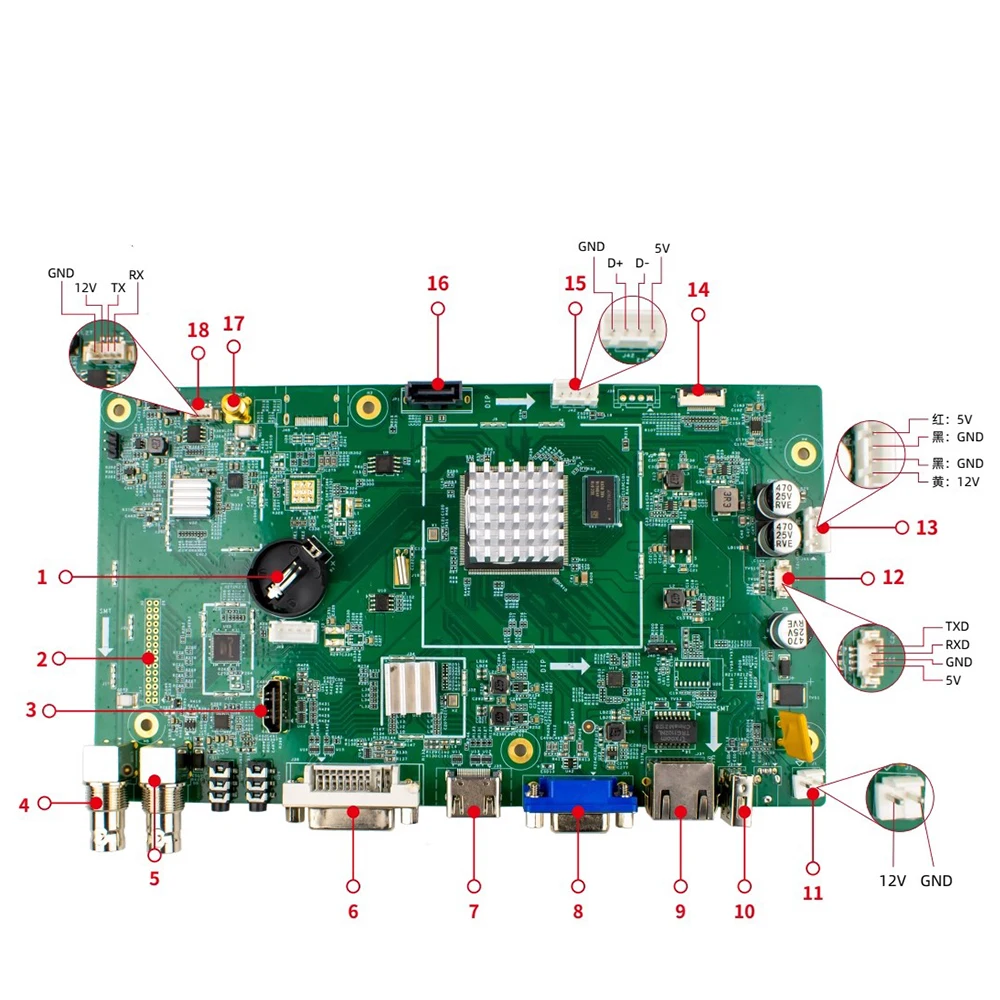

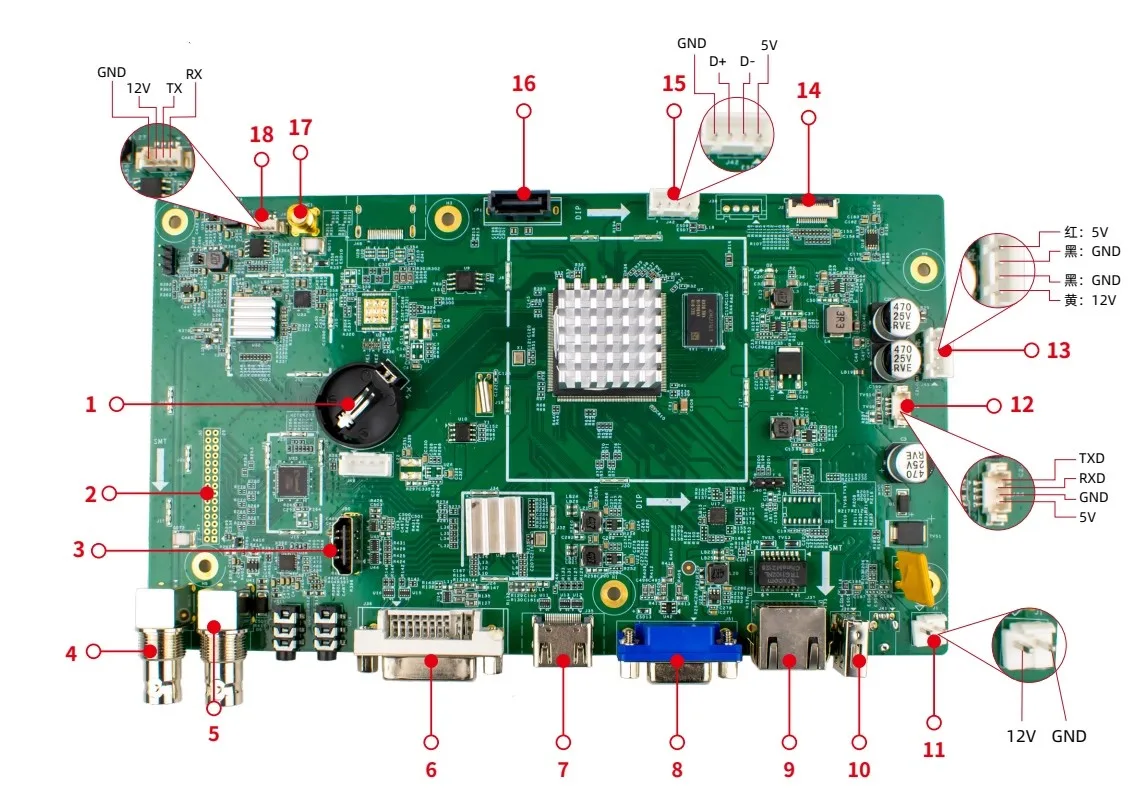

1. RTC clock: 3V RTVC battery, DVR time modified 13.HDD power supply interface: 12V/GND/GND/5V
2. LVSDS base: output signal to LVDS screen 14. Button board interface: connect to button board
3. HDMI1 port: HDMI output 15. USB interface: USB2.0,
4. SDI port: SDI loop out 16. SATA: Hard disk signal transmission line
5. CVBS/TV output 17. SDI port: SDI signal input port
6. DVI port output: DVI output 18. Serial port to motherboard:
7.HDMI2 port: HDMI output 12V/GBD/TX/RX It can supply power to the camera, the serial
8. VGA: VGA output port baud rate is 115200, the definition of the 4PIN on the
9. Network port: camera is: 12V-red, GND-black, TX-green, RX-white
10.USB interface
11.12V power supply: 12V/GND
12.Serial screen: TXD/RXD/GND/5V
