Color Plastic sorter optical PP PET ABS PVC flakes machine cleaning and granule sorting for wholesale
- Category: >>>
- Supplier: Hefei Longbow Optoelectronic Technology Co. Ltd.
Share on (1600520206586):
Product Overview
Description
Product Description

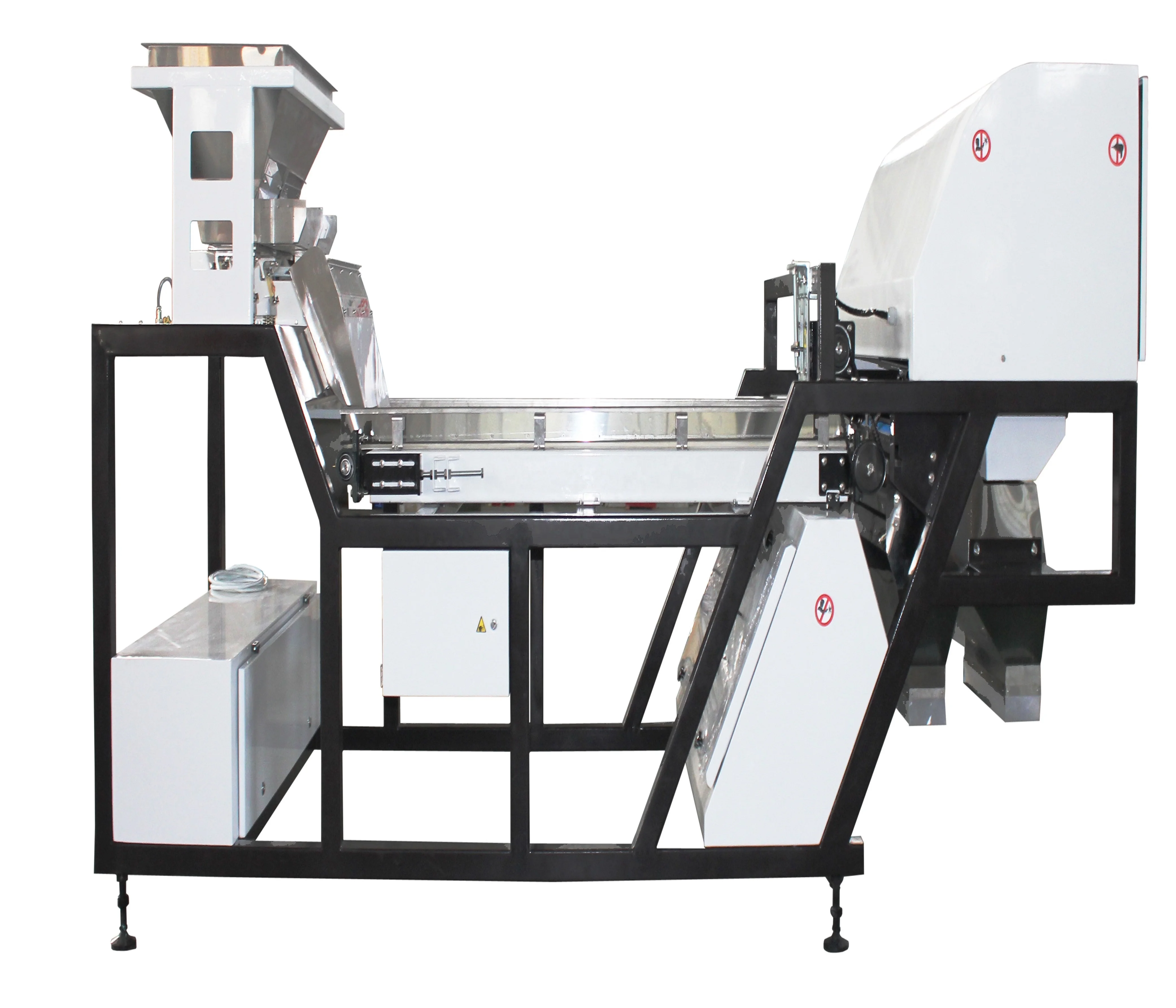

Intelligent AI Color Sorter Belt with CCD for Plastic Color Sorting Machine from Factory CT600
ABS plastic:good and bad after sorting
PET plastic:good and bad after sorting
Machine parameters:
Model name | M64 | M96 | M128 | M192 | M256 | M320 | M448 | M512 | M640 | ||||||||
Output(tph) | 0.1-0.3 | 0.2-0.4 | 0.3-0.5 | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.8-1.0 | 1.0-1.3 | 1.2-1.5 | ||||||||
Power(kw) | 0.9 | 1.0 | 1.2 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 5.0 | ||||||||
Volatge(V/Hz) | 110-380v/50-60Hz | ||||||||||||||||

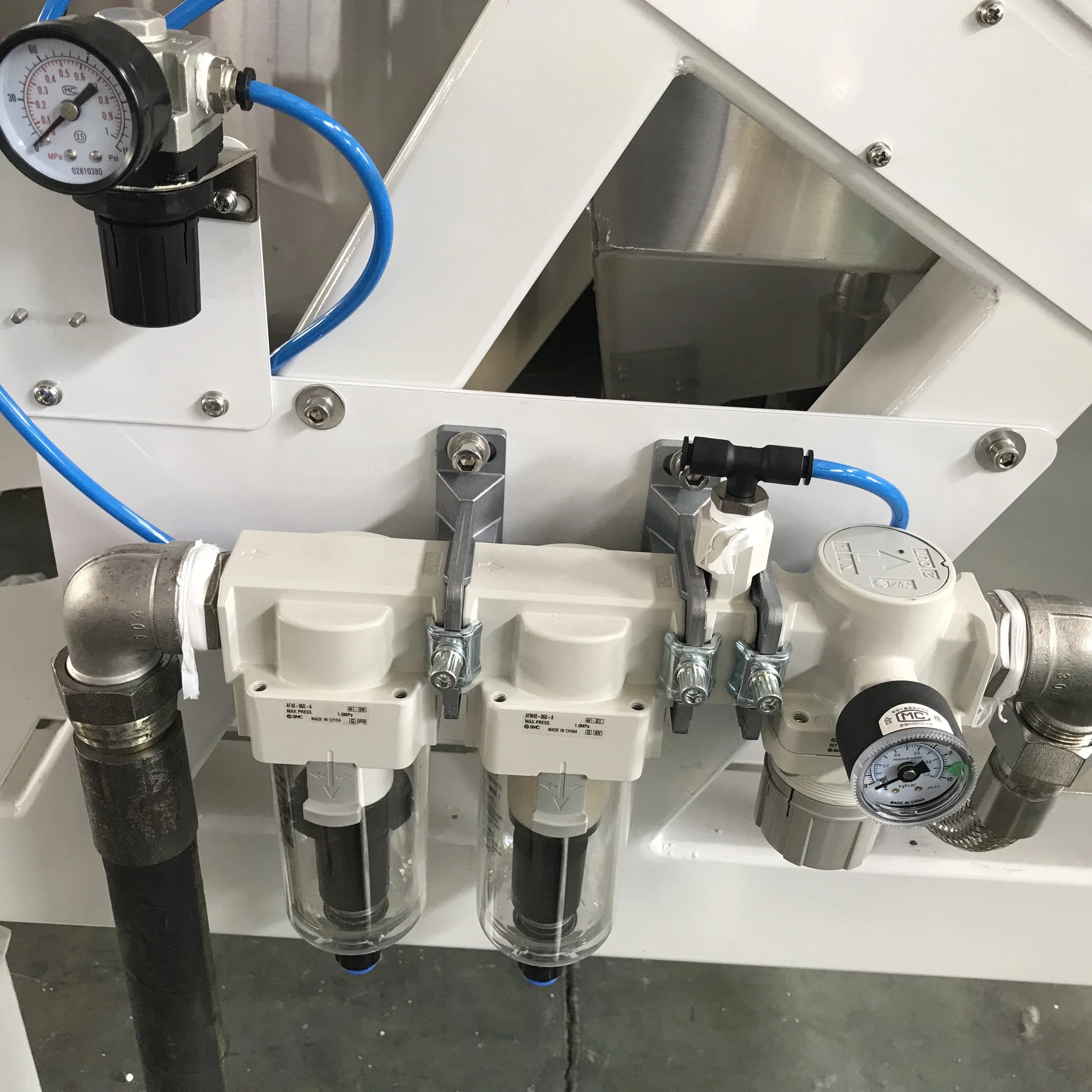

Air Pressure(Mpa) | >=0.6 | ||||||||||||||||
Channels | 64 | 96 | 128 | 192 | 256 | 320 | 448 | 512 | 640 | ||||||||
Sorting Accuracy | 99.99% | ||||||||||||||||
Net weight(kg) | 270 | 450 | 700 | 1000 | 1050 | 1150 | 1250 | 1350 | 1450 | ||||||||
Oversize(m) | 1*1.5*1.6 | 1.2*1.5*1.6 | 1.5*1.6*2 | 1.8*1.6*2 | 2*1.6*2 | 2.5*1.6*2 | 3*1.6*2 | 3.5*1.6*2 | 4*1.6*2 | ||||||||
Note: | Above parameters based on pet flakes with 3% impurity rate, the real capacity will be effected by the specific material and their impurity rate in fact. | ||||||||||||||||

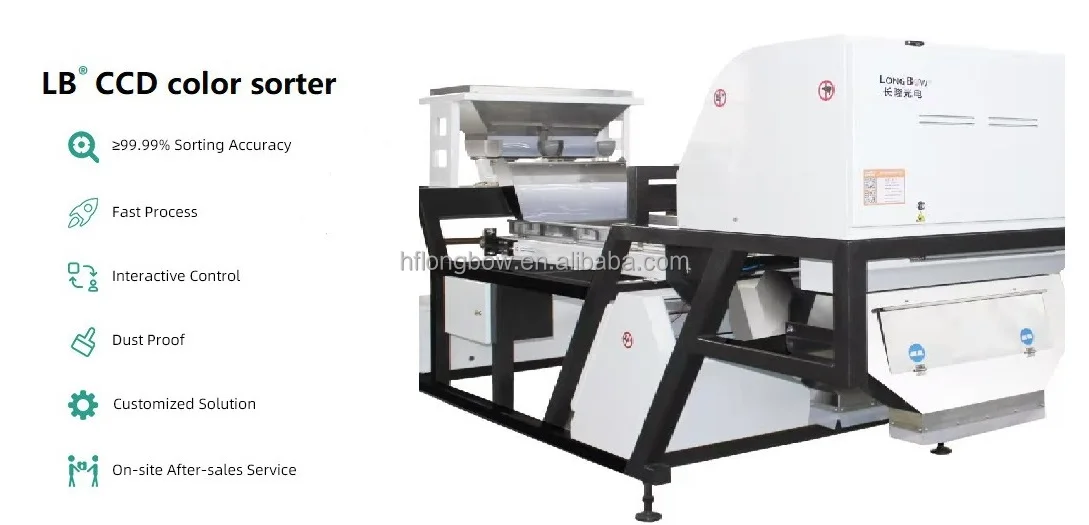

Color sorter is a machine which used for separating the bad grain from the raw material through the color difference between the rejection and finished products. M series of color sorter adopting 5000+ pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system and wifi function.
How to get quotation and the most suitable model recommendation?
Please contact us according to the following questions if you need color sorter prices:
1.What kinds of the material are you planning to sort processing?
Food materials:Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Plastic materials:Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
2.How about the capacity(output) to sort processing for the raw materials per hour, 200KGS, 500KGS, 1000KGS, 2000KGS or others?
3.Show us the raw material size range and impurity rate to estimate the appr. capacity. 3 pictures of raw material;Acceptable material and Rejected material picture.
Detailed Images
Machine Parts

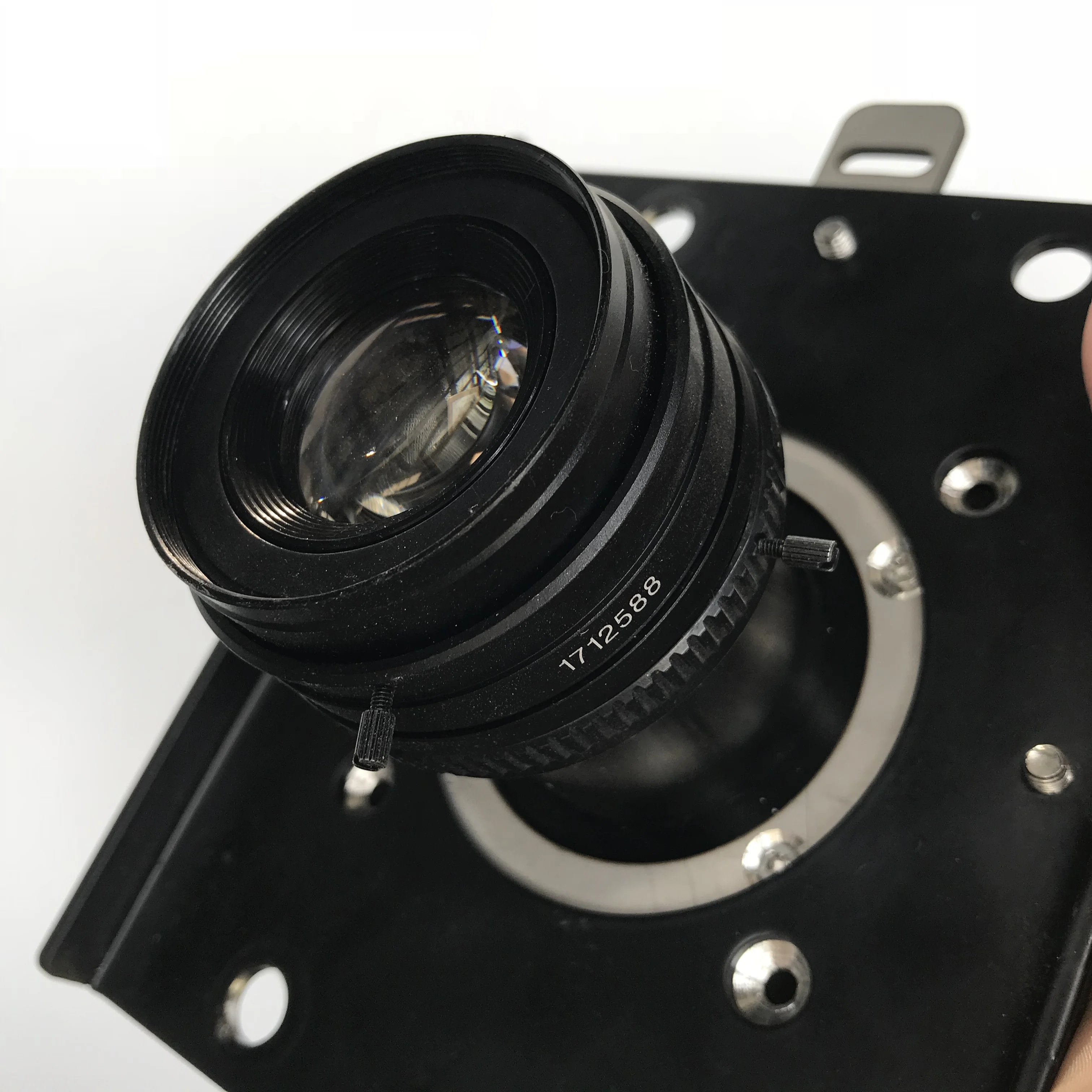

Name: CCD camera
Brand: Phoenix
Original: Japan
5340 linear industrial CCD camera with high precision allows high definition identification and high speed sorting.
Main Features

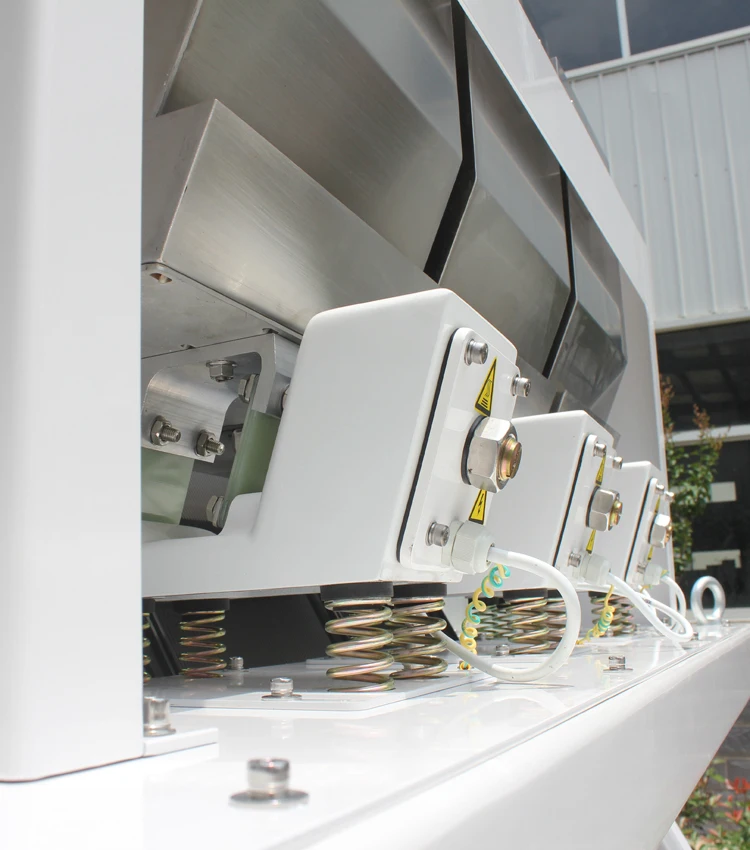

Name: MAC mechanical ejector
Brand: Longbow
Original: Germany
A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy maintenance, and improved color accuracy.
Machine Parts
Name: Control Board with CCD sensor
Brand: Toshiba
Original: Japan
Most advanced ccd technology can sort materials accurately.
Toshiba CCD sensor;
American process chip
Main Features
Name: LED Light source
Brand: Mingwell
Original: Taiwan,China
Ten million kinds of color sorting with a fully adjustable colourspectrum.
Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change the light source.
Applications
Our Company
About Us:
Hefei Longbow Optoelectronic Technology Co., Ltd is a high & new technology enterprise which is professionally engaged in research and manufacture of intelligent color (identifying) sorting equipment for many years.
Our history:
2002-Devoted ourselves into the R&D also production of the 1st generation color sorter in China.
2005-Developed color sorter machine control system based on DSP chip,and applied the Fuzzy Control Theory to color sorting industrial,then first-generation CMOS color sorter with DSP chip.
2011-Work with the most advanced color sorter supplier in the world. Participated ourselves into R&D,producing,selling and management.Mastered core technology of the most advanced color sorter in the world.
2014-Set up Hefei Longbow Optoelectronic Technology Co.,Ltd in Hefei, China, and registered the "LONGBOW" trademark.
2015- Launched Longbow US series rice color sorter.
2016- Launched Longbow CS series multi-functional color sorter.
2017-Launched Longbow CCS series multi-functional color sorter with 5000+ pixel CCD camera and higher frequency ejectors.
2018-Launched Longbow CR series rice color sorter.
https://hflongbow.en.alibaba.com/
We manufacture vertical sorting machine also belt-type sorters for different size agricultural and industrial products, such as rice,bean,seeds,corn,wheat,paddy, plastic and glass etc.

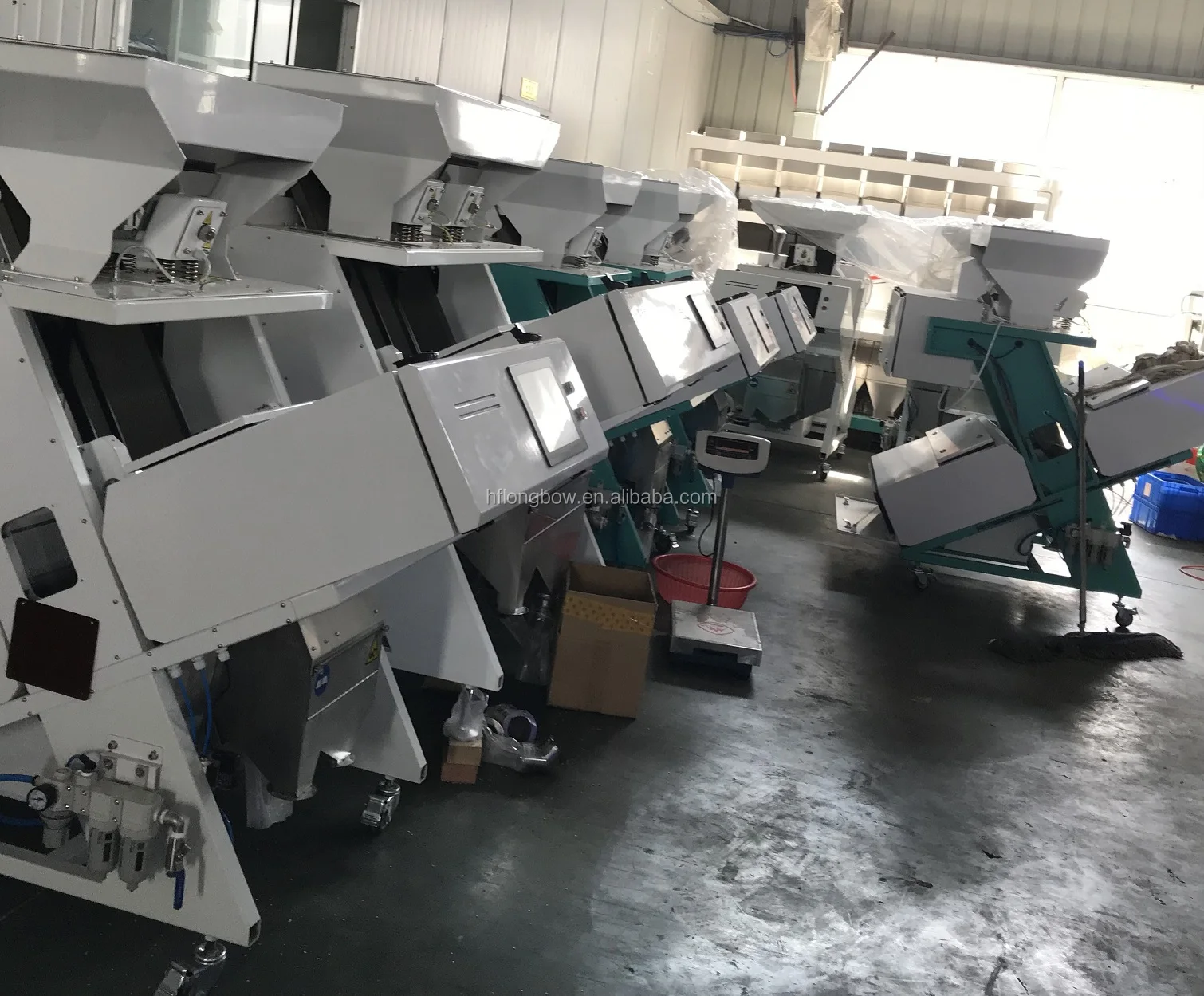

With many years experience in CCD color sorting technology,more than 5000 sq.m workshop,our 120 works are here aiming at supplying the more competitive identificating machine and much more better after-sale service.
Summer- International sales
Company name:Hefei Longbow Optoelectronic Technology Co.,Ltd
Add:Cross of Fenglin Rd and Jinrong Rd., Shuangfeng Development Zone,231131, Hefei, Anhui,China
T/F: +86-63807035 / 66509985
Cell phone &Whatsapp & wechat: +8615205651655/18655954627
Email: summer at forsort.com ;
www.forsort.com
Contact Us
Welcome your inquiry for more details and factory quotation,please just click" inquiry" button to contact with me~
via wechat +86-15205656155 or whatsapp.
Thank you so much!
