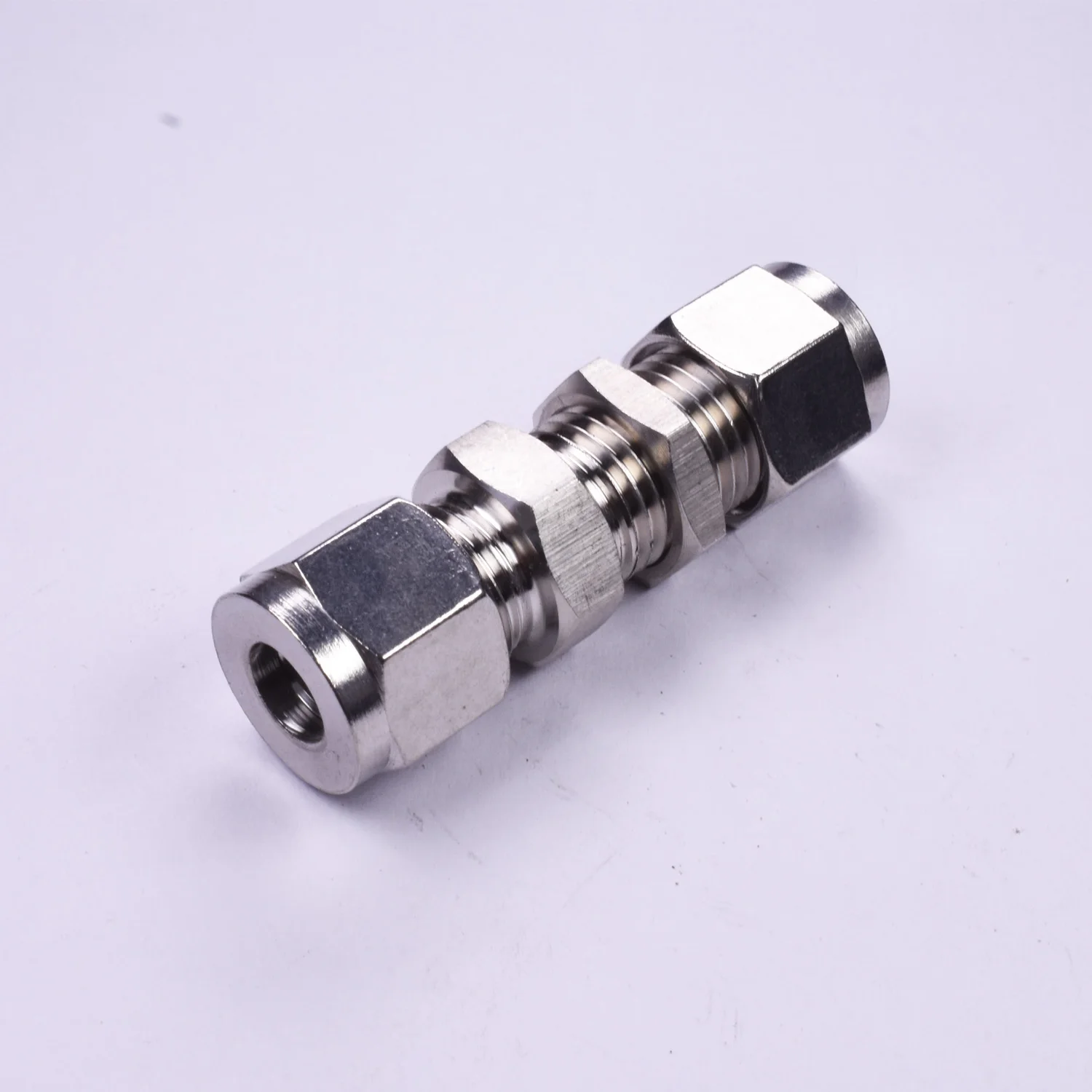

3/8 Inch Tube Bulkhead Union 316 Stainless Steel Compression Double Ferrule Fittings Connector Armored Ferrule Joint
- Category: Pipe Fittings >>>
- Supplier: Taizhou Chuanxiong Electric Co. Ltd.
Share on (1600520208054):
Product Overview
Description
Product Description
Name: Stainless steel 316 straight terminal ferrule connector
Connector default thread: ZG thread. For other standard threaded joints such as G, M, NPT, please contact customer service.
Inch thread: 1 minute = 1/8 2 minutes = 1/4 3 minutes = 3/8 4 minutes = 1/2 6 minutes = 3/4
Application areas:
The working principle of the ferrule joint is to insert the steel pipe into the ferrule, lock it with the ferrule nut, contact the ferrule, cut into the tube and seal. It does not need to be welded when connected to steel pipes, which is conducive to fire protection, explosion protection and high-altitude operations, and it can eliminate the disadvantages caused by inadvertent welding. Therefore, it is a relatively advanced connector in the pipelines of system automatic control devices such as oil refining, chemical, petroleum, natural gas, food, pharmaceutical, and instrumentation. Suitable for oil, gas, water and other pipeline connections.
Assembly method of card sleeve type pipe joint:
The performance of the ferrule type pipe joint is not only related to the material of the part, manufacturing accuracy, heat treatment, etc., but also the relationship with the quality of the assembly. Therefore, it should be assembled as follows.
1: Cut the pipe on the special machine according to the required length, or you can cut it by hand. The perpendicularity of the cut plane and the center line of the pipe should not be more than half of the tolerance of the pipe exterior.
2: Remove the inner and outer round burrs, metal shavings and dirt from the pipe end.
3: Remove the anti-rust oil and dirt from each part of the pipe joint.
4: Put the curtain in order, put the ferrule on the tube, then insert the tube into the bottom of the taper hole in the connector body, and place the ferrule. While tightening the nut, turn the tube until it stops, and then tighten the nut 1 ~ 1 1/3 turns.
Features: The ferrule joint has the characteristics of reliable connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, and safe and reliable work.
Connector default thread: ZG thread. For other standard threaded joints such as G, M, NPT, please contact customer service.
Inch thread: 1 minute = 1/8 2 minutes = 1/4 3 minutes = 3/8 4 minutes = 1/2 6 minutes = 3/4
Application areas:
The working principle of the ferrule joint is to insert the steel pipe into the ferrule, lock it with the ferrule nut, contact the ferrule, cut into the tube and seal. It does not need to be welded when connected to steel pipes, which is conducive to fire protection, explosion protection and high-altitude operations, and it can eliminate the disadvantages caused by inadvertent welding. Therefore, it is a relatively advanced connector in the pipelines of system automatic control devices such as oil refining, chemical, petroleum, natural gas, food, pharmaceutical, and instrumentation. Suitable for oil, gas, water and other pipeline connections.
Assembly method of card sleeve type pipe joint:
The performance of the ferrule type pipe joint is not only related to the material of the part, manufacturing accuracy, heat treatment, etc., but also the relationship with the quality of the assembly. Therefore, it should be assembled as follows.
1: Cut the pipe on the special machine according to the required length, or you can cut it by hand. The perpendicularity of the cut plane and the center line of the pipe should not be more than half of the tolerance of the pipe exterior.
2: Remove the inner and outer round burrs, metal shavings and dirt from the pipe end.
3: Remove the anti-rust oil and dirt from each part of the pipe joint.
4: Put the curtain in order, put the ferrule on the tube, then insert the tube into the bottom of the taper hole in the connector body, and place the ferrule. While tightening the nut, turn the tube until it stops, and then tighten the nut 1 ~ 1 1/3 turns.
Features: The ferrule joint has the characteristics of reliable connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, and safe and reliable work.
Connection | Double ferrule |
Postal code | Hexagon |
Custom made | Usable |
Working pressure at thread end | 6000 Psig (413 bar) |
Size | 1/16" 1" 3mm 25mm |
OEM | Usable |
Application | Pipe Lines Connect |
Applicable medium | Water. Oil. Pharmaceutical |
