Price:$40,144.00 - $50,144.00

Quantity:


Product Overview

Description



Product Description




Specification


Type
Full arc-CCM
Radius (M)
3-14m
Number of Strand
1-10
Section(mm)
70² -200² 165*225 180*400 180*600 Φ80-500
Length billet (m)
2-12
Variety of steel available
Low alloy steel, pinion steel, bearing steel, spring steel.
Casting speed(m/min)
V=0-5
Mould length (mm)
812 850 900 1000
Cutting method
Auto torch cutting
Control method of second cooling
Manual/Automatic watering system
Method of pushing billet
Billet pushing car, Chain push car, Bridge push car


Packing & Delivery






Supply Scope




Billet Caster Supply Scope
NO.
Item
Customer Option
1
automation control system
2
ladle turret and ladle car
3
copper mold tube and billet mold housing
4
withdrawal straightening unit
5
dummy bar and parking device
6
mold oscillator
7
strand guide
8
dynamic secondary cooling system
9
segment
10
roller table
11
TCM torch cutting machine
12
cross transfer
13
cooling bed
14
spare parts of continuous casting machine
15
billet caster operation and maintenance training
16
refractory material for CCM using
17
steel structure fabrication


Products Description






Parts introduction

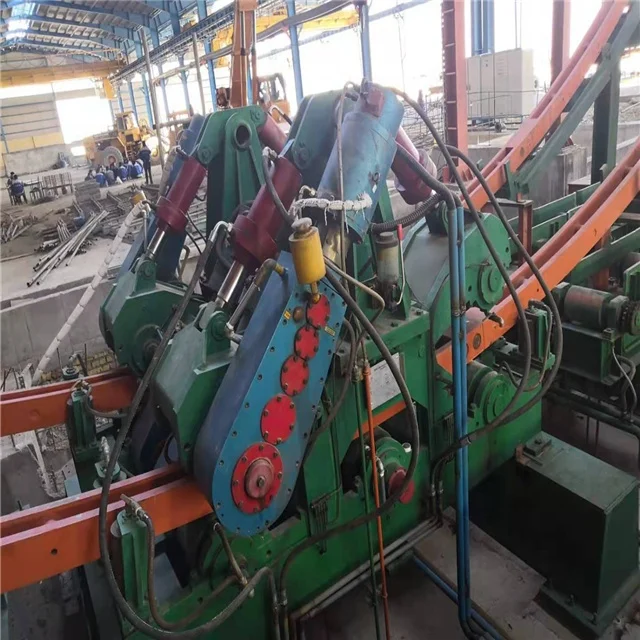

1. Energy-saving withdrawing and straightening machine
Energy-saving withdrawing and straightening machine is a key parts of continuous casting machine which is used insert the dummy bar into mould and withdraw strand from mould and straighten it with dummy bar. Range of Radius: 3-14m


2. High-efficiency mould
Water jacket:4-8mm
Copper tube length(mm): 812 850 900 1000

3. Ladle turret:
Ladle turret plays the role of move the molten steel from ladle to pouring position. It consist of Rotary arm, rotary bearing,
transmission device.
Load Compacity: 50-200 ton.
Angle of rotation: 360 degree
Rotating speed: 1 rotation/min.
Swing motor capacity: 7.5-15kw

4. .Dummy bar and dummy bar storage
Transmission speed: 0-4m/min


FAQ


1. What is a steel billet continuous casting machine?

-- The production process of the high temperature molten steel be continuously casted into certain section shapes and sizes is
called continuous steel casting.

2. What is the composition of a continuous casting machine? (see below sketch)

-- General, the continuous casting machine is composed by molten steel carrier (ladle, rotary table), middle steel teeming ladle,
casting mold, cooling system, straightening roll and bending roll, cutting machine, dummy bar, etc.

3. What is the advantage of a continuous casting machine?

a) Simplify the production process and improve the production efficiency and increase the metal yield.

b) Save energy consumption and greatly reduce the production costs.

c) Good quality of steel billets.
