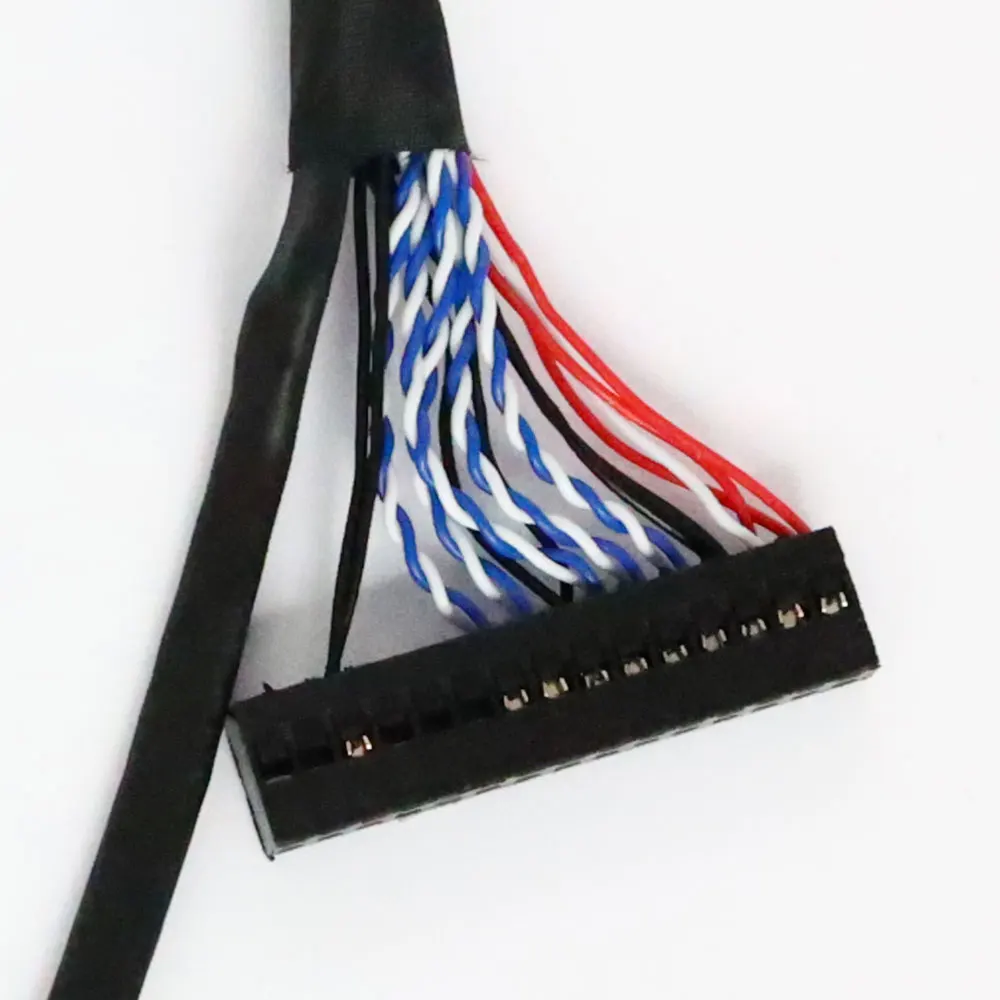

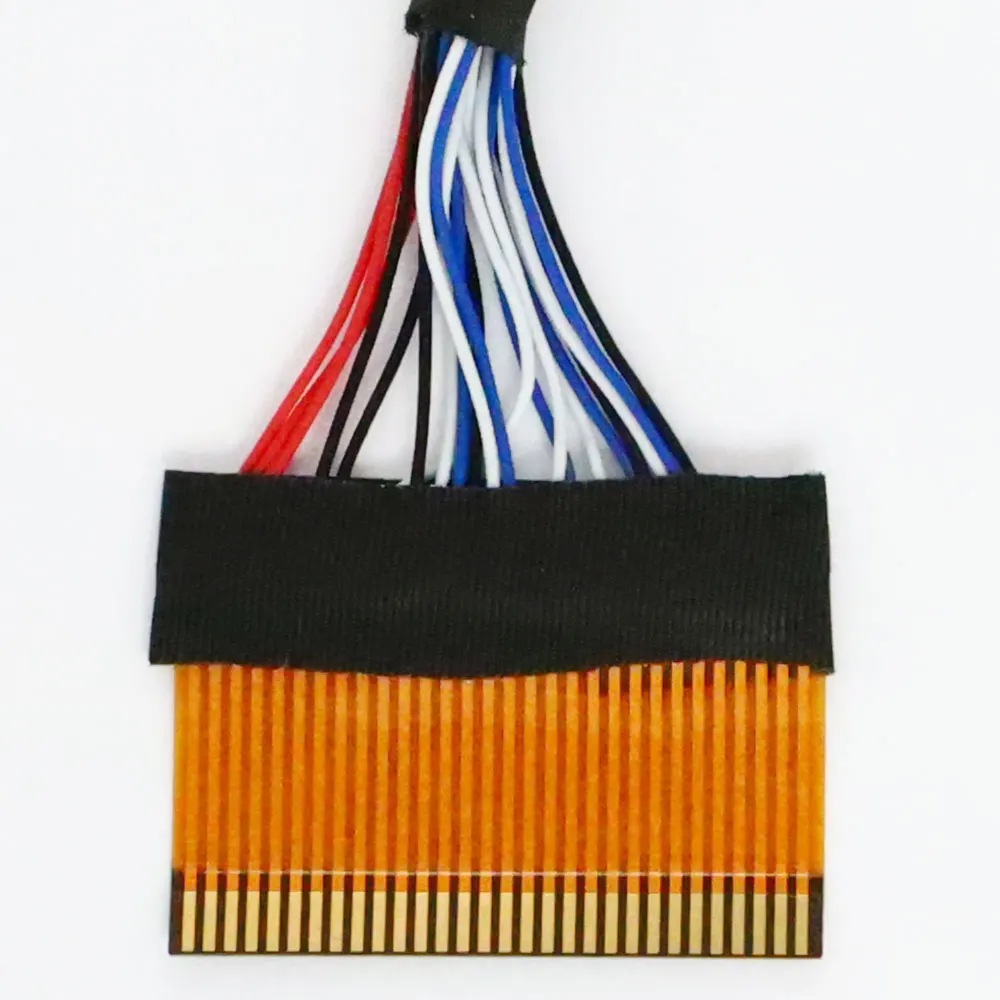

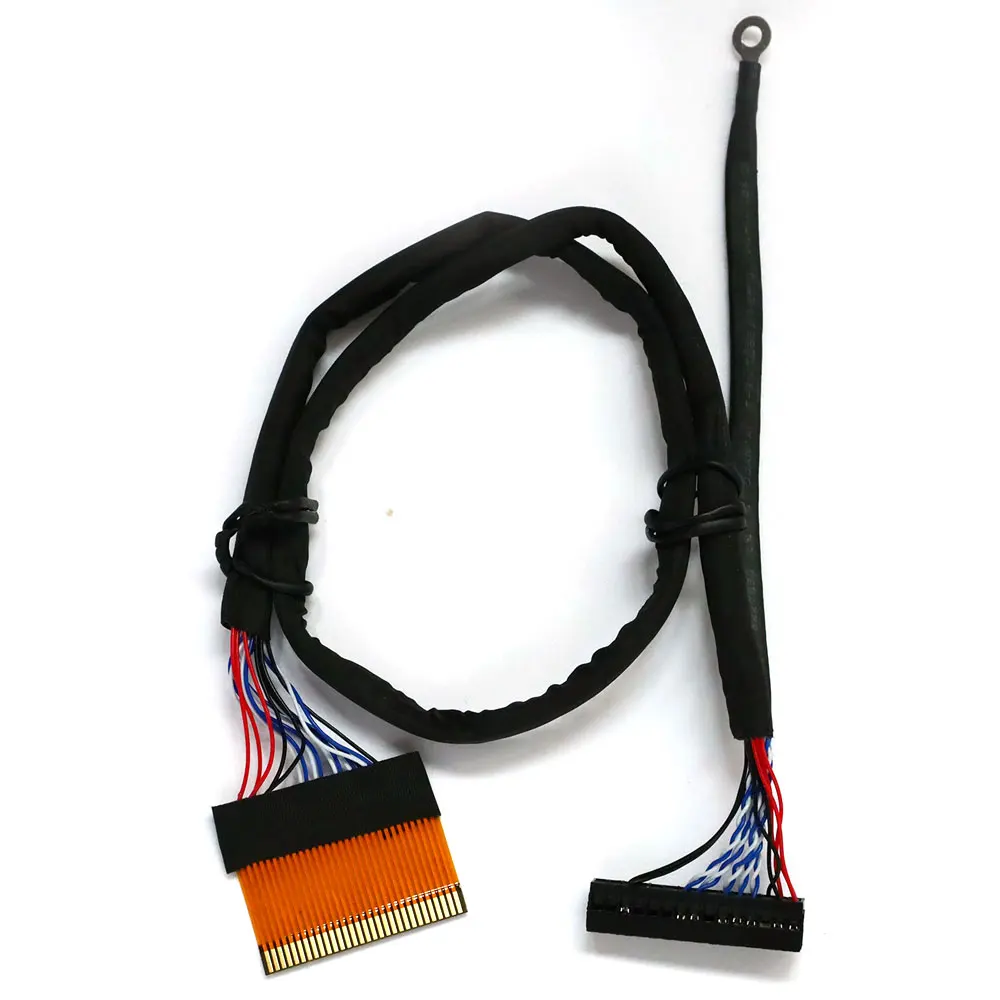

LVDS Cable 30 Pin with Silver Conductive Cloth LCD Cable
- Category: >>>
- Supplier: Shenzhen KOAR Electrical Co. Ltd.
Share on (1600520216803):
Product Overview
Description
Product Description
Factory wholesale cable material lvds 30 pin which 16 pins used signal transmission 14 pins are used power supply

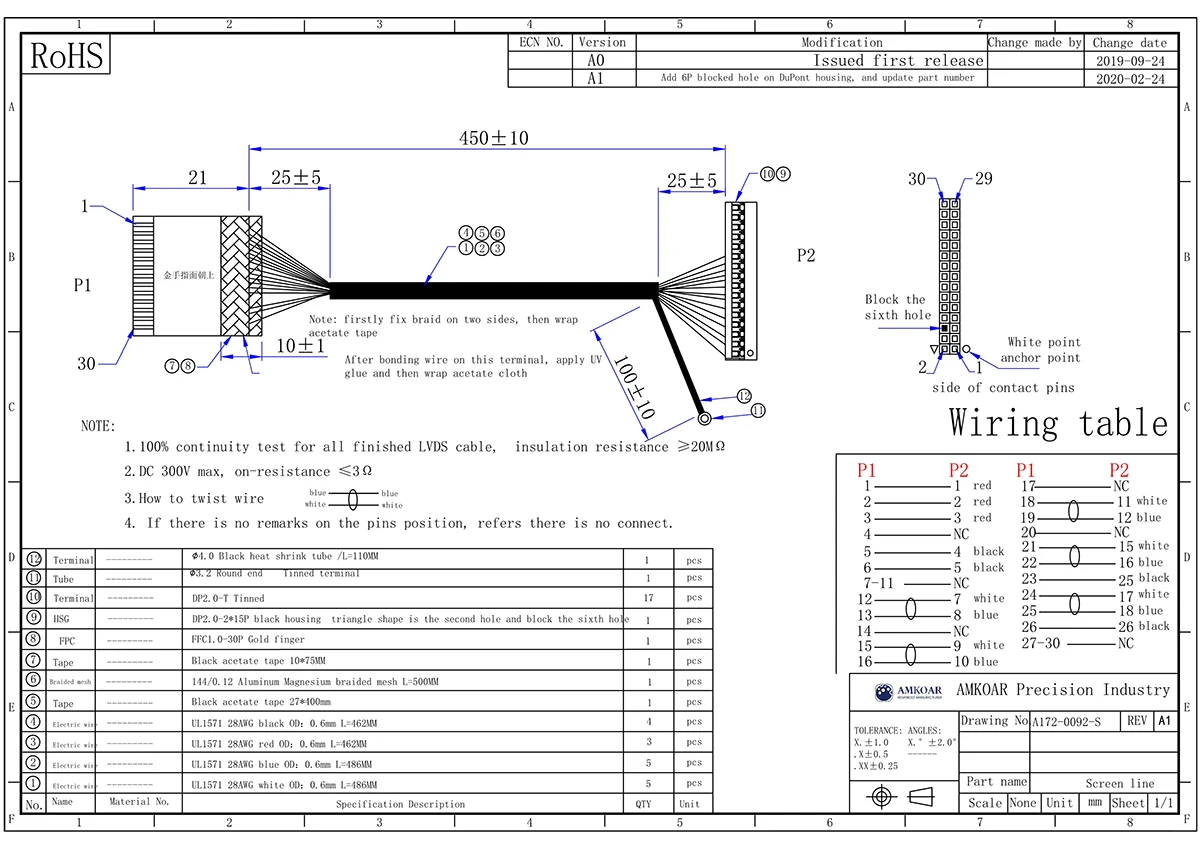

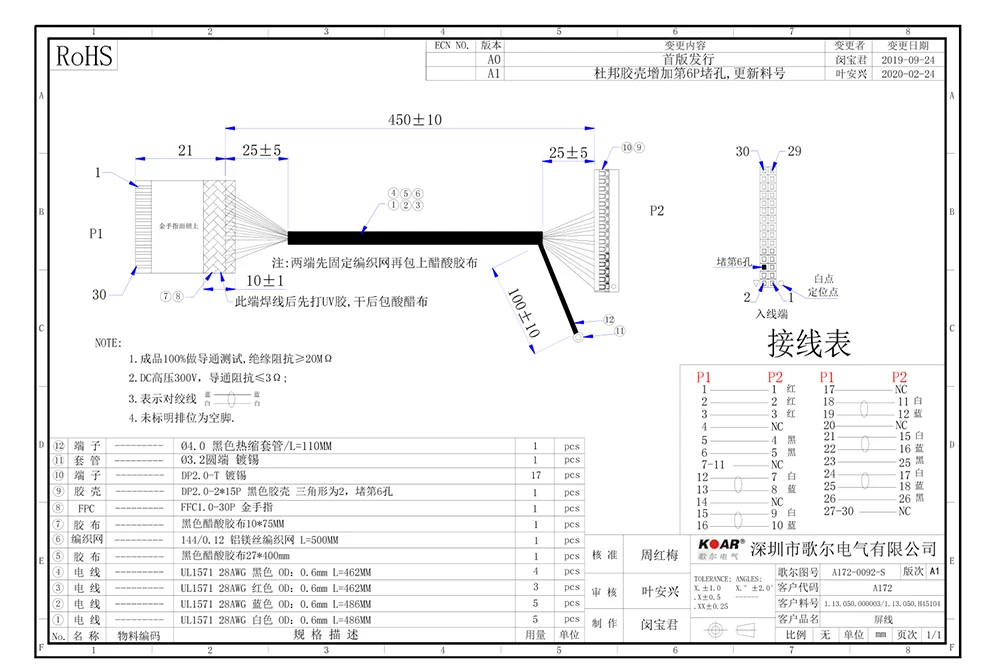

| LVDS Cable's Attributes & Parameters | ||||
| Item | Basic Attribute | Parameter | ||
| ID | Model No. | A007-0311-P | ||
| Connector | Connector Attribute | Screen Connector Parameter | Board Connector Parameter | |
| Terminal | DP-2.0 | FIX-T | ||
| Housing | DP2.0 (2X15P) | FI-X | ||
| Pin number | 30 | 30 | ||
| Pin pitch | 2.0mm | / | ||
| Wire | Wire type | UL1571 | ||
| Wire gauge & wire number | 28AWG | |||
| Length | 270 mm | |||
| Twisted pair or others | Twisted pair | |||
ABOUT KOAR
Custom production
Our Advantage
Certificate

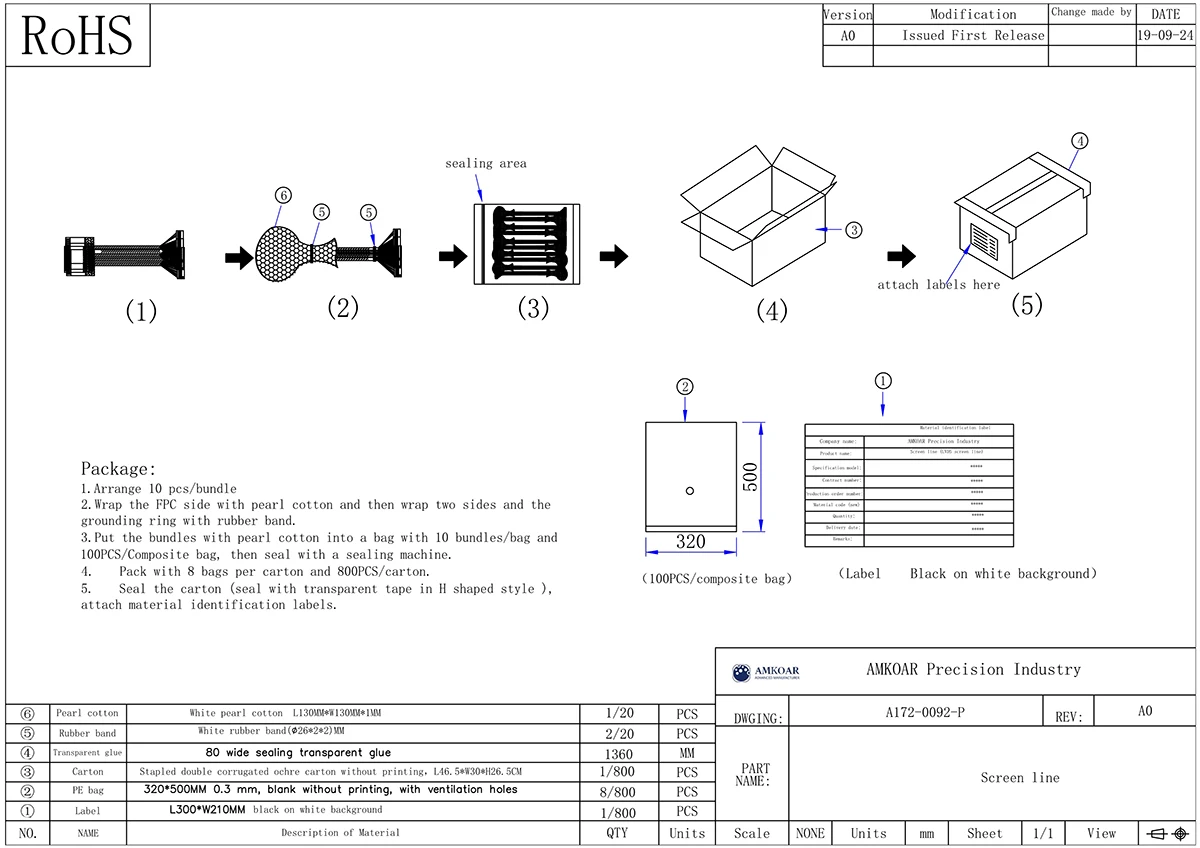

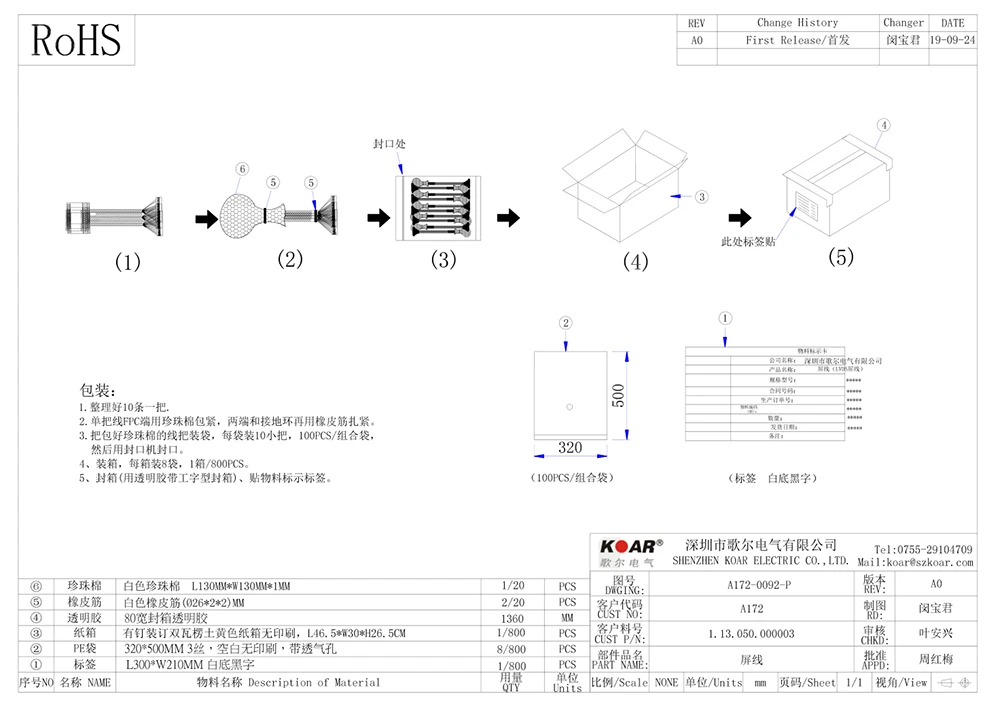

Packing & shipping
