Rugged Courier Surveying Logistic Industrial Data Barcode Scanner Terminal NFC PDA Handheld Device
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (1600520224252):
Product Overview
Description
Appearance
X6 PDA 2D Scanner
X6 PDA 2D Scanner with Pistol Grip

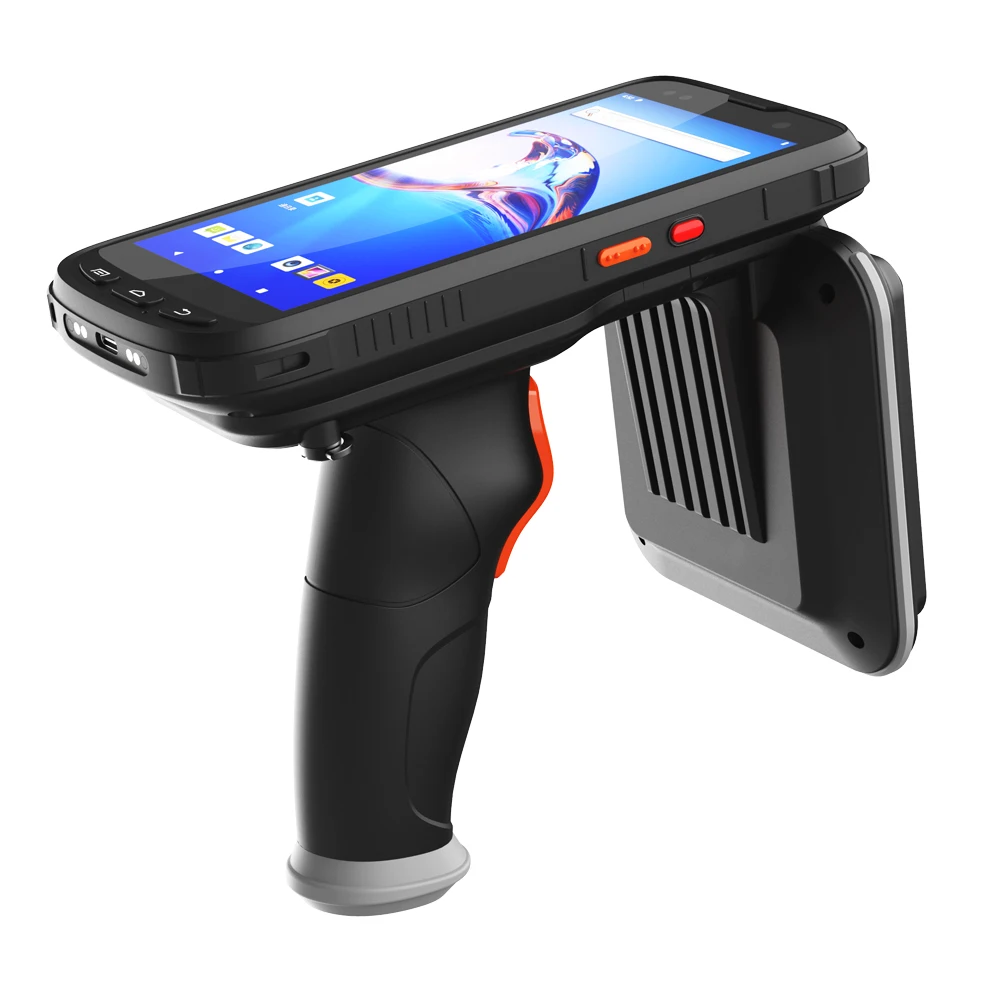

X6 Handheld UHF RFID Reader
Products Description
Product Paramenters
X6 SPECIFICATIONS | ||||
PHYSICAL CHARACTERISTICS | ||||
Dimension | 166mm(H)x79mm(W)x18mm(D)±2 mm | |||
Weight | Net Weight :360g (including battery&wrist strap) | |||
Display | Gorilla Glass 3 9H 5.5 in. TFT-LCD(720x1440)touch screen with backlight | |||
Backlight | LED backlight | |||
Expansions | 1 PSAM, 1 SIM, 1 TF | |||
Battery | Rechargeable li-ion polymer, 3.8V, 4800mAh | |||
PERFORMANCE CHARACTERSTICS | ||||
CPU | Cortex A73 2.0GHz octa-core | |||
Operating System | Android 10.0 | |||
Storage | 2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | |||
USER ENVIRONMENT | ||||
Operating Temp. | -20℃ to 50℃ | |||
Storage Temp. | -20℃ to 70℃ | |||
Humidity | 5%RH to 95%RH(non-condensing) | |||
Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |||
Sealing | IP65, IEC compliance | |||
ESD | ±15kv air discharge, ±8kv direct discharge | |||
DEVELOPMENT ENVIRONMENT | ||||
SDK | Handheld-Wireless Software Development Kit | |||
Language | Java | |||
Environment | Android Studio or Eclipse | |||
DATA COMMUNICATION | ||||
WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; | |||
WCDMA(850/1900/2100MHz); | ||||
GSM/GPRS/Edge (850/900/1800/1900MHz); | ||||
WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | |||
WPAN | Blue-tooth Class v2.1+EDR, Blue-tooth v3.0+HS, Blue-tooth v4.2 | |||
GPS | GPS(embedded A-GPS), accuracy of 5 m | |||
COLOR CAMERA | ||||
Resolution | Rear 13 megapixel, front 5.0 megapixel | |||
Lens | Auto-focus with LED flash | |||
RFID NFC | Frequency | 13.56MHz | ||
Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | |||
R/W Range | 2cm to 5cm | |||
PSAM SECURITY(OPTIONAL) | ||||
Protocol | ISO 7816 | |||
Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | |||
Slot | 2 slots(maximum) | |||
ACCESSORIES | ||||
Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable | |||
Optional | Carrying Case, Cradle | |||
DATA CAPTUER | ||||
BARCODE READER(OPTIONAL) | ||||
2D CMOS Imager | Zebra SE4710 | |||
Symbologies | PDF 417 , Micro PDF 417 Composite, RSS, TLC-39 Datamatrix , QRcode Micro QR code, Aztec, Maxi Code, Postal Codes , US PostNet, US Planet, UK Postal,Australian Postal , Japan Postal, Dutch Postal. etc. | |||
COLOR CAMERA | ||||
Resolution | Rear 13 megapixel, front 5.0 megapixel | |||
Lens | Auto-focus with LED flash | |||
RFID READER(OPTIONAL) | ||||
NFC | Frequency | 13.56MHz | ||
Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | |||
R/W Range | 5cm to 8cm | |||
UHF | Frequency | 865~868MHz or 920~925MHz | ||
Protocol | EPC C1 GEN2 ISO 18000-6C | |||
R/W Range | 0 m to10.0 m(tags and environment dependent) | |||
Antenna Gain | Circular antenna(3dBi) | |||
ACCESSORIES | ||||
Standard | 1xPower Supply; 1xLithium Polymer Battery 1xType-C cable | |||
Optional | Cradle | |||
Certifications

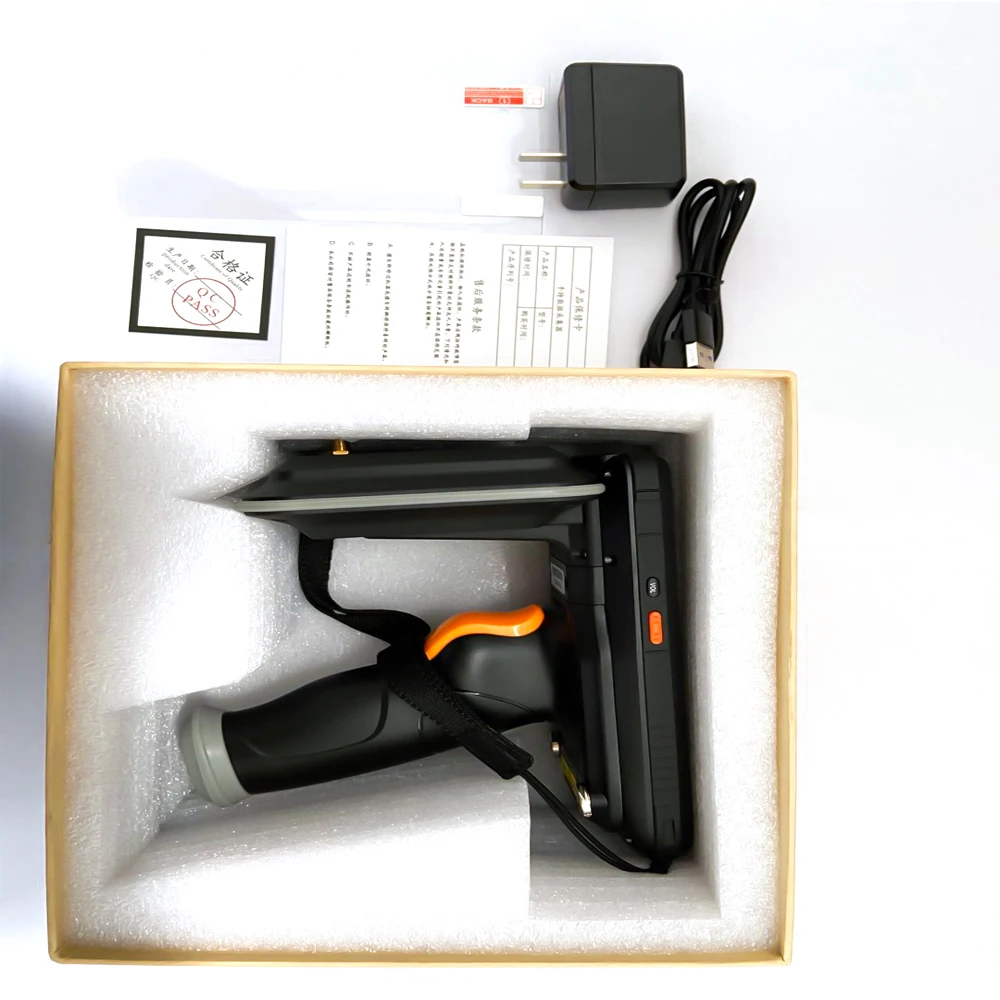

Packing and Shipping
Standard Packaging
International Express
contact
Jason | Sales Manager
Jason | Sales Manager
Shenzhen Rugline Technology Co., Ltd.
T:+86-0755-89221485;
M:+86-13713810467;
Skype: xcl.jason ;
Whatsapp: +86-13713810467;
E: jason@rugline-tech.com
T:+86-0755-89221485;
M:+86-13713810467;
Skype: xcl.jason ;
Whatsapp: +86-13713810467;
E: jason@rugline-tech.com
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
