Rolam GK 1200AC Crash Lock Bottom Corrugated Paper Printing Food Box Folder Gluer Machine
- Category: >>>
- Supplier: Zhejiang New Luolan Machinery Co. Ltd.
Share on (1600520246128):
Product Overview
Description
Product Description
Rolam AC Corrugated Box Automatic High-Speed Folder Gluer
1. Multi-type work capabilities
2. Advanced domestic technology PLC
3. Imported electronic components
4. Stable and easy to control and operate.
5. For all kinds of cardboard, corrugated packaging boxes
6. Correction function
Specification
Name | |||||
model | GK-1200AC | GK-1450AC | GK-1600AC | ||
Paper Material | Cardboard 210-800g A/B/E Corrugated | ||||
Max. Liner speed | Max. 260 meter/minute | ||||
Feeding way | Automatically and continuously feeding | ||||
Way of folding | Fold 2 and fold 4 are 180° | ||||
Glue Material | Water-base cold glue | ||||
Power Supply | 3P380V50HZ | ||||
Total power | 12kw | 14kw | 14kw | ||
Weight | 8T | 9T | 10T | ||
Over dimension | 13.5x1.85x1.6m | 13.5x2.1x1.6m | 15x2.3x1.6m | ||
Samples Parameter
Certifications
Company Profile
VR
Details Images
Paper Feeding Section
Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board.
To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment more convenient and stable. Baffle on the left and right can be adjusted upper and down to shorten
adjusting and carton changing time.
To ensure that the paper feeding is not skewed, the unique structure keeps more simple and convenient adjustment of pressing board. Push structure make supporting cardboard adjustment more convenient and stable. Baffle on the left and right can be adjusted upper and down to shorten
adjusting and carton changing time.

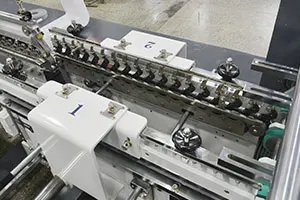

Aligner section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

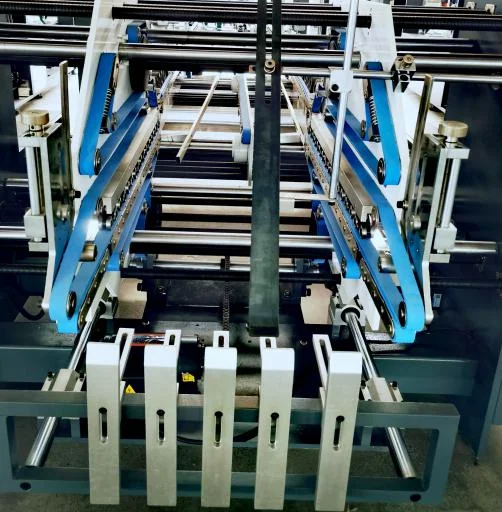

Crash lock bottom section
Compiete set of crash lock bottom device makes the lock bottom part perfectly .Sectional-type upper belt board with special
design.
design.

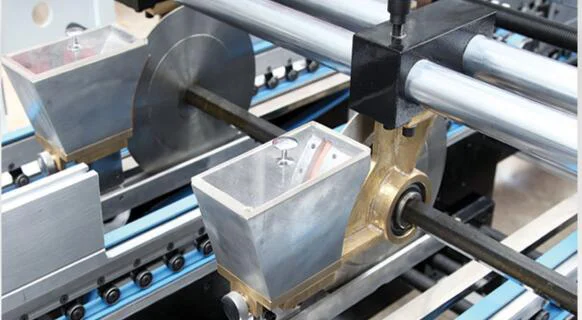

Lower gluing tank

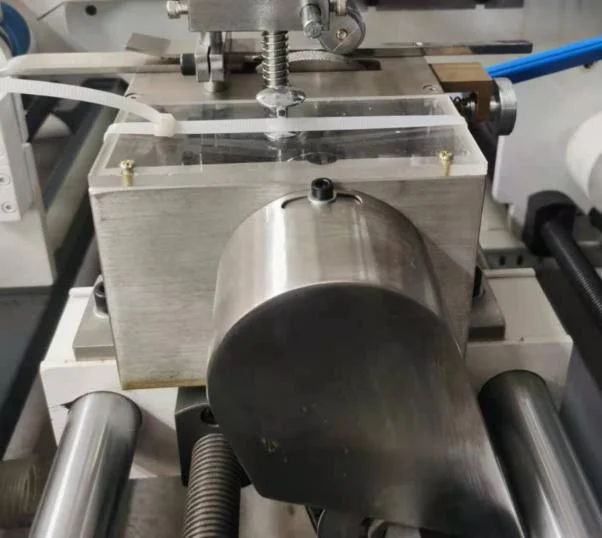

Equipped with the lower gluing tank.

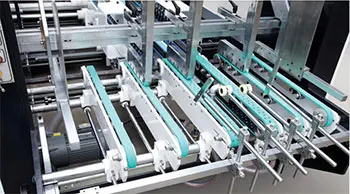

Folding and closing

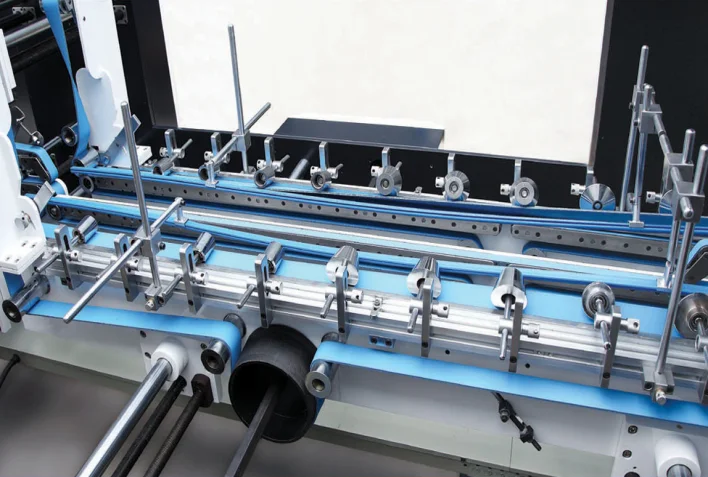

The folding is equipped with the driving belt, folding belts have corrective function,
extension work, make the box forming more stable.
extension work, make the box forming more stable.

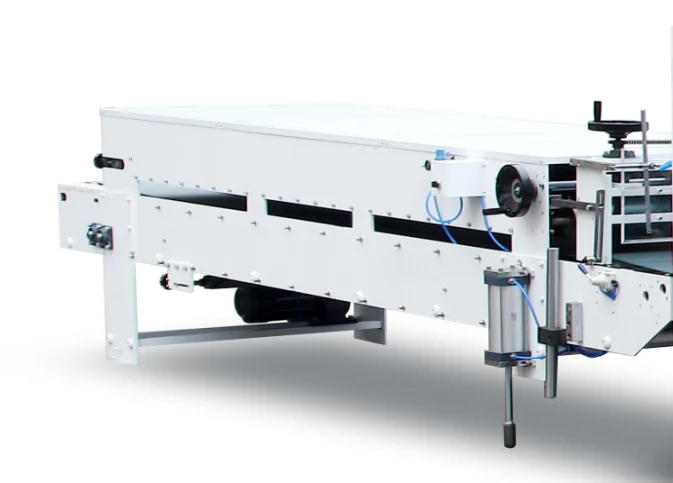

Trombone section
Independent motor drive can be used to control the adjustable size of the belt.
Paper collection adopts cylinder pressure system, easier to adjust pressure, make
the box more effectively gluing.
Paper collection adopts cylinder pressure system, easier to adjust pressure, make
the box more effectively gluing.
Transmission
Press: Equipped with one-touch pneumatic pressure adjustment, easy operation.
Press has two functions:
1.waiting, when feeding is paused, press will auto enter into waiting state
2.Travel switch, pause the machine in case of wrong collecting
Press has two functions:
1.waiting, when feeding is paused, press will auto enter into waiting state
2.Travel switch, pause the machine in case of wrong collecting
Packing & Delivery

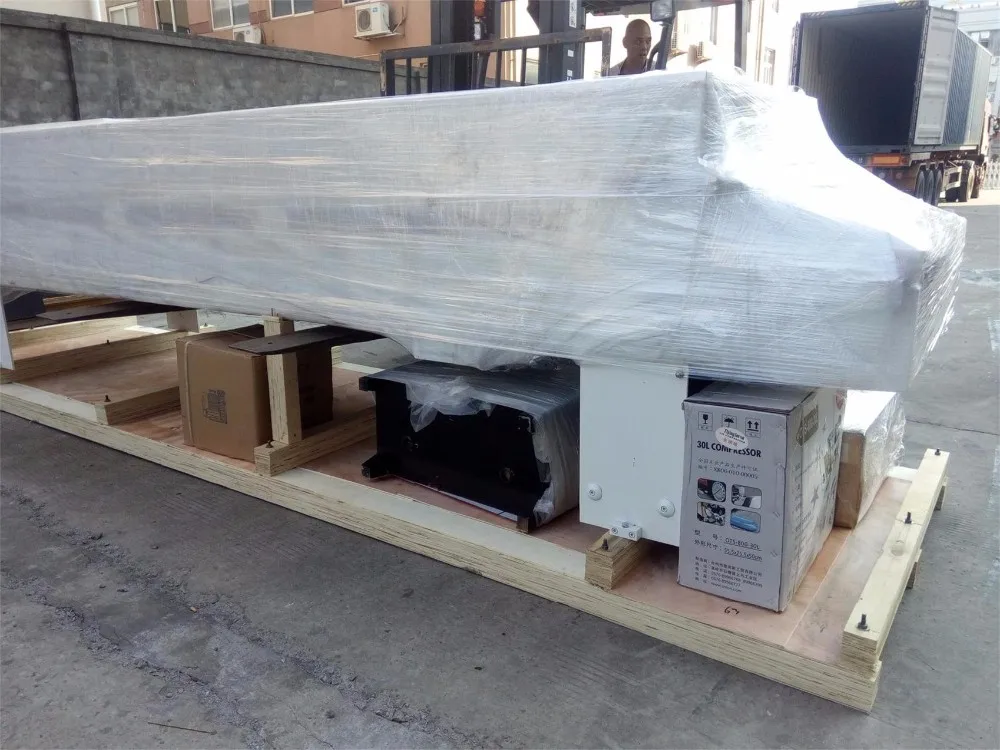

Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, also some are according to the customer's requirement.
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.We are a professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don't hesitate to contact us. We will reply to you at the first time as we can.
