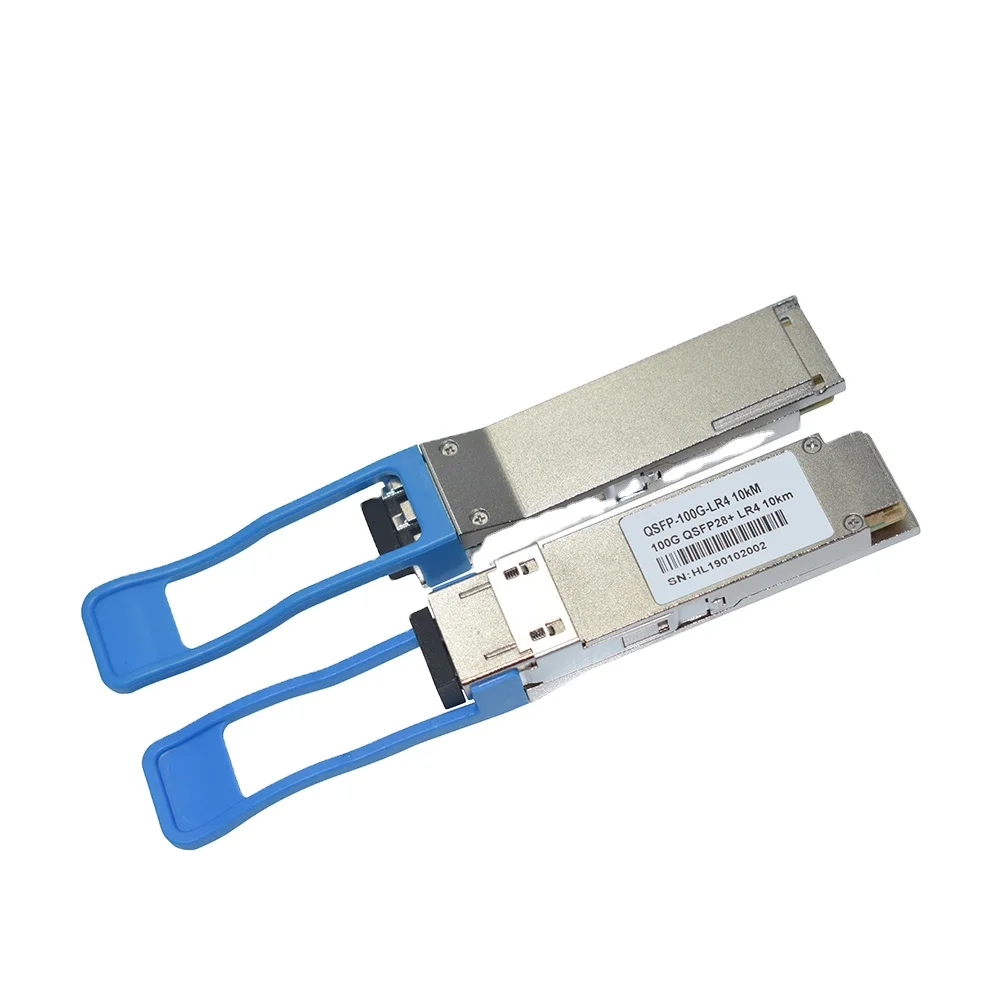

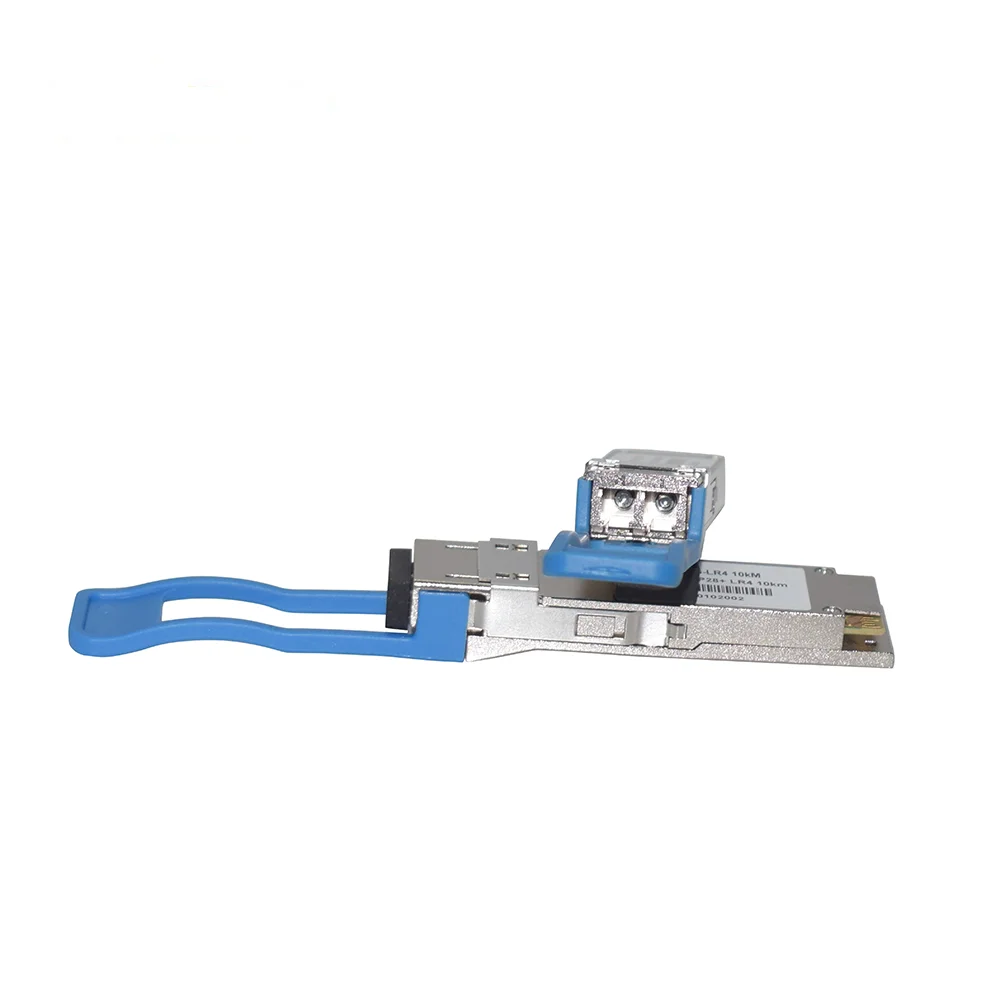

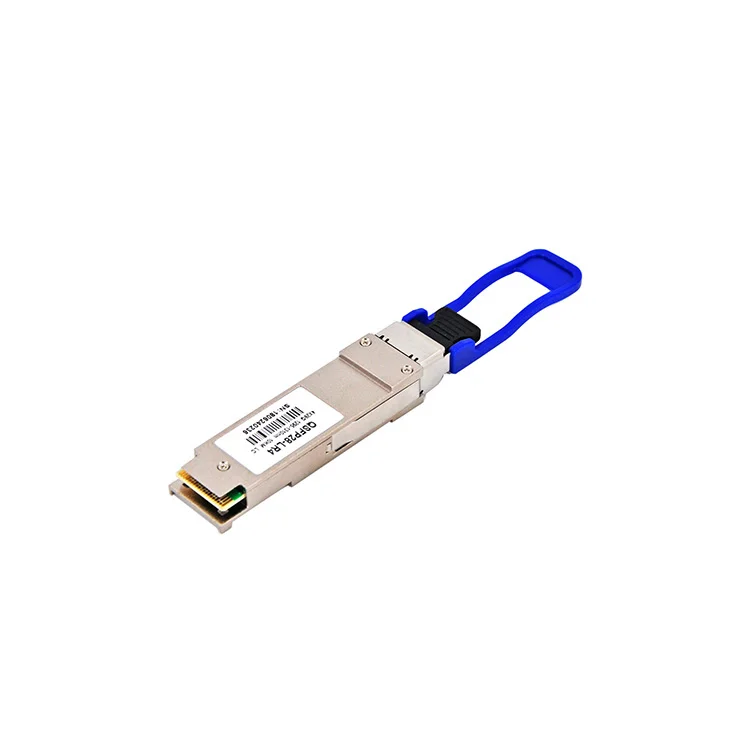

100GBASE LR4 Ethernet Links 100G QSFP28 LR4 10 km 1310nm LC Fiber Optic Transceiver SFP Module
- Category: >>>
- Supplier: Beijing W&f Technology Co. Ltd.
Share on (1600520261733):
Product Overview
Description
Product Description
Economic and Reliable 100G QSFP28 LR4 10 km 1310nm Fiber Optic Transceiver SFP Module
Features
1. Hot pluggable QSFP28 MSA formfactor
2. Compliant to IEEE802.3ba 100GBASE-LR4
3 .Supports103. 1Gb/s aggregate bit rate
4 .Up to10km reach for G.652 SMF
5 .Single +3.3V power supply
6. Operating case temperature:0~70°C
7 .Transmitter: cooled 4x25Gb/s LANWDM DFB TOSA(1295.56,1300.05,1304.58,1309. 14nm)
8 .Receiver:4x25Gb/s PIN ROSA
9 .4x25G electrical interface(OIFCEI-28G-VSR)
10. Maximum power consumption 4.0W
11 .Duplex LC receptacle
12. RoHS-6 compliant
1. Hot pluggable QSFP28 MSA formfactor
2. Compliant to IEEE802.3ba 100GBASE-LR4
3 .Supports103. 1Gb/s aggregate bit rate
4 .Up to10km reach for G.652 SMF
5 .Single +3.3V power supply
6. Operating case temperature:0~70°C
7 .Transmitter: cooled 4x25Gb/s LANWDM DFB TOSA(1295.56,1300.05,1304.58,1309. 14nm)
8 .Receiver:4x25Gb/s PIN ROSA
9 .4x25G electrical interface(OIFCEI-28G-VSR)
10. Maximum power consumption 4.0W
11 .Duplex LC receptacle
12. RoHS-6 compliant
General
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard. The module converts 4 input channels of25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission .Reversely on the receiver side ,the module de- multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309. 14nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LANWDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to10km links and compliant to optical interface with100GBASE-LR4 requirements specified in IEEE 802.3baClause88.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+
Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard. The module converts 4 input channels of25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission .Reversely on the receiver side ,the module de- multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309. 14nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LANWDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to10km links and compliant to optical interface with100GBASE-LR4 requirements specified in IEEE 802.3baClause88.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+
Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Specification
Absolute Maximum Ratings | ||||||||||||
Parameter | Symbol | Min | Max | Unit | ||||||||
Storage Temperature | Tstg | -40 | +85 | °C | ||||||||
Operating Case Temperature | TOP | 0 | 70 | °C | ||||||||
Operating relative humidity | RH | 0 | 85 | % | ||||||||
Supply Voltage | VCC | -0.5 | 3.6 | V | ||||||||
Damage Threshold, eachLane | THd | 5.5 | dBm | |||||||||
Recommended Operating Environment | ||||||||||||
Parameter | Symbol | Min. | Max. | Unit | ||||||||
Operating Case Temperature | TC | 0 | +70 | °C | ||||||||
Power Supply Voltage | VCC | +3. 135 | +3.465 | V | ||||||||
Data Rate,each Lane | 25.78 | Gb/s | ||||||||||
Power Consumption | P | 4.0 | W | |||||||||
Supply Current | ICC | 1.21 | A | |||||||||
Data Rate Accuracy | - | -100 | 100 | ppm | ||||||||
Control Input Voltage High | - | - | 2 | V | ||||||||
Control Input Voltage Low | - | 0.8 | - | V | ||||||||
Link Distance with G652 | - | - | 10 | km | ||||||||
Optical Characteristics | ||||||||||||
Parameter | Symbol | Min. | Typ. | Max. | Unit | |||||||
Wavelength Assignment | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |||||||
L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||||||||
L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||||||||
L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||||||||
Transmitter | ||||||||||||
Side Mode Suppression Ratio | SMSR | 30 | dB | |||||||||
Total Average Launch Power | PT | 10.5 | dBm | |||||||||
Average Launch Power, Each Lane | PAVG | -4.3 | 4.5 | dBm | ||||||||
Extinction Ratio | ER | 4 | dB | |||||||||
Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | |||||||||
Receiver | ||||||||||||
Damage Threshold, each Lane | THd | 5.5 | dBm | |||||||||
Average Receive Power, Each Lane | -10.6 | 4.5 | dBm | |||||||||
Receiver Sensitivity,each Lane | SEN | -10.6 | dBm | 5.3.1 | ||||||||
Receiver Reflectance | RR | -26 | dBm | |||||||||
LOSAssert | LOSA | -30 | dBm | |||||||||
LOSDeassert | LOSD | -13 | dBm | |||||||||
LOS Hysteresis | LOSH | 0.5 | dB | |||||||||
Parameter | Symbol | Min. | Max. | Unit | Note | |||||||
Temperature monitor Absolute error | DMI_Temp | -3 | +3 | °C | Over operating Temperature range | |||||||
Supply voltage monitor Absolute error | DMI_VCC | -0.1 | 0.1 | V | Over full range | operating | ||||||
Channel RXpowermonitor Absolute error | DMI_RX_Ch | -2 | 2 | dB | 1 | |||||||
Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA | ||||||||
Channel TX power monitor Absolute error | DMI_TX_Ch | -2 | 2 | dB | 1 | |||||||
Company Profile

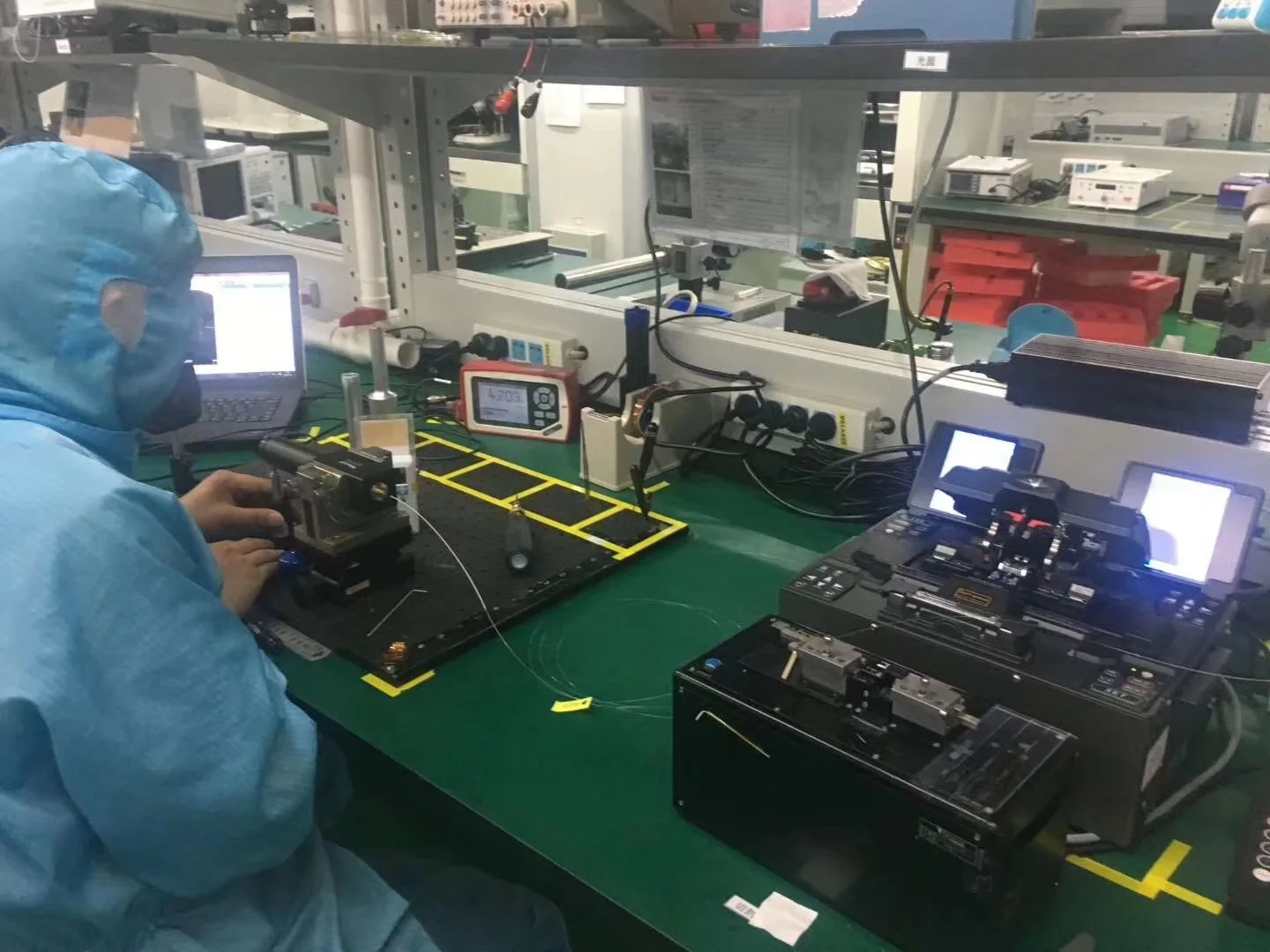

Beijing W&F technology Co.,LTD is founded in 2006.It is a hi-tech company specialized in manufacturing and trading fiber splicing machine and testing equipments . Our company is a communication test instrument supplier which is located in Beijing - the capital of China.
