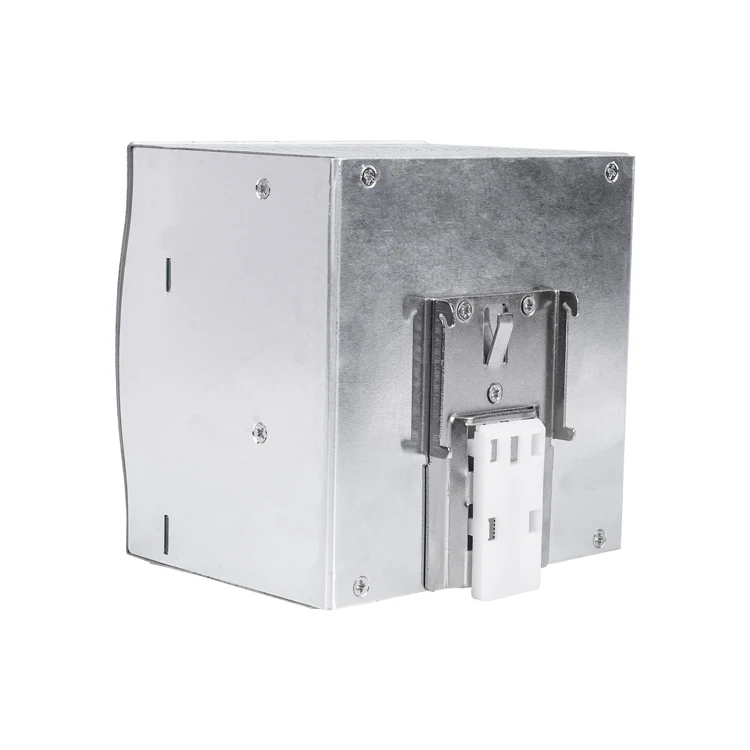

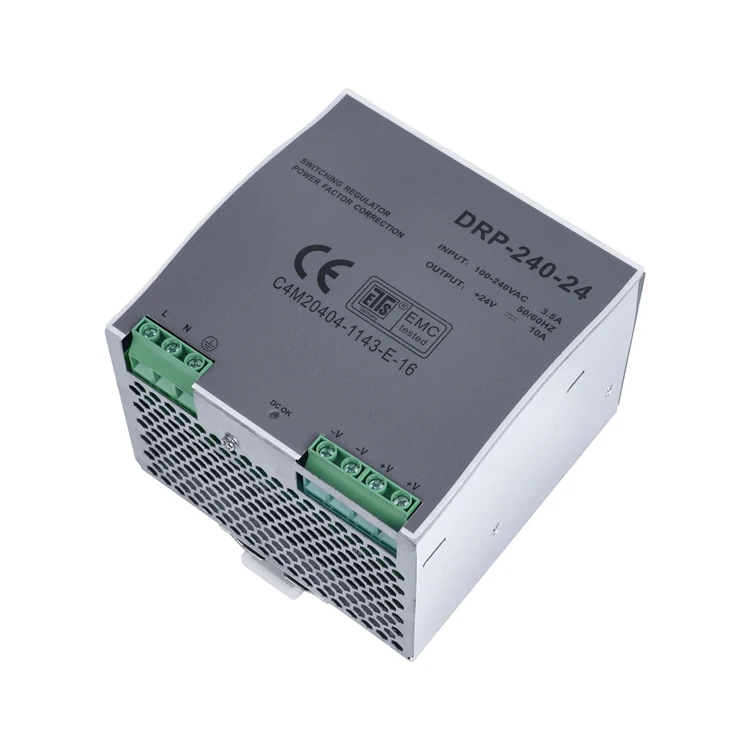

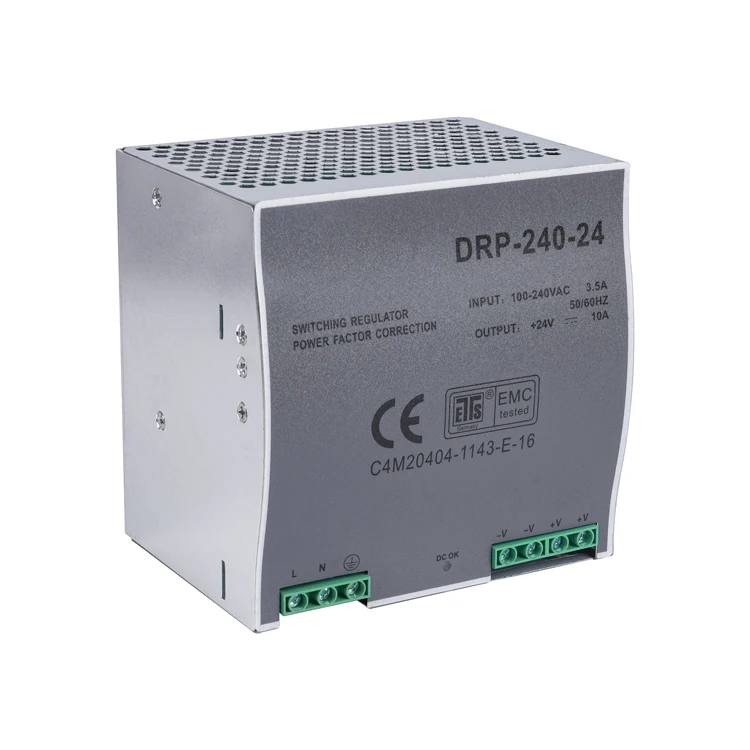

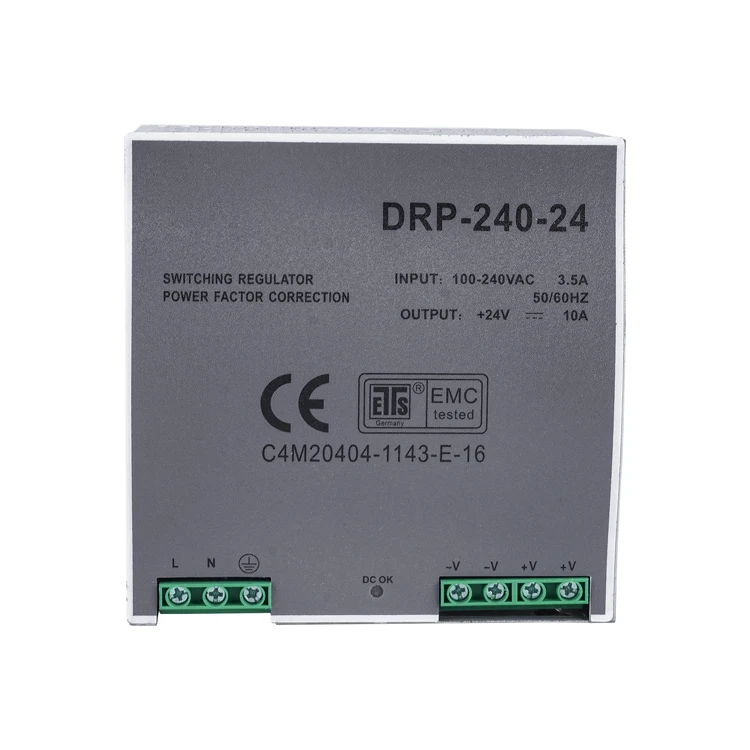

AC to DC 75W 120W 240W 480W 220VAC 24V 48V SMPS Full Range Input Din Rail Switching power supply
- Category: >>>
- Supplier: Shenzhen Xingzhiyou Technology Co. Ltd.
Share on (1600520268469):
Product Overview
Description
Product Description
Features:
* Meanwell 48V 10A SMPS
* Universal AC input/Full range
* Built-in active PFC function
* Protections: Short circuit / Overload / Over voltage / Over temperture
* Cooling by free air convection
* Can be installed on DIN rail TS-35 / 7.5 or 15
* U508(industrial control equipment) approved
* EN61000-6-2(EN-50082-2) industrial immunity level
* 100% full load burn-in test
* 3 years warranty
Applications:
* Industrial control system
* Factory automation
* Electro-mechanical apparatus
* Meanwell 48V 10A SMPS
* Universal AC input/Full range
* Built-in active PFC function
* Protections: Short circuit / Overload / Over voltage / Over temperture
* Cooling by free air convection
* Can be installed on DIN rail TS-35 / 7.5 or 15
* U508(industrial control equipment) approved
* EN61000-6-2(EN-50082-2) industrial immunity level
* 100% full load burn-in test
* 3 years warranty
Applications:
* Industrial control system
* Factory automation
* Electro-mechanical apparatus
Specification
MODEL | NDR-480-24 | NDR-480-48 | ||
OUTPUT | DC VOLTAGE | 24V | 48V | |
RATED CURRENT | 20A | 10A | ||
CURRENT RANGE | 0 ~ 20A | 0 ~ 10A | ||
RATED POWER | 480W | 480W | ||
RIPPLE&NOISE | 150mVp-p | 150mVp-p | ||
VOLTAGEADJ.RANGE | 24 ~ 28V | 48 ~ 55V | ||
VOLTAGETOLERANCE | ±1.0% | ±1.0% | ||
LINEREGULATION | ±0.5% | ±0.5% | ||
LOADREGULATION | ±1.0% | ±1.0% | ||
SETUP, RISE TIME | 1500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load | |||
HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |||
INPUT | VOLTAGERANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
FREQUENCYRANGE | 47~63HZ | |||
POWER FACTOR | PF>0.98/115VAC, PF>0.94/230VAC at full load | |||
EFFICIENCY | 92.5% | 92.5% | ||
AC CURRENT | 4.8A/115VAC 2.4A/230VAC | |||
INRUSH CURRENT | 20A/115VAC 35A/230VAC | |||
LEAKAGECURRENT | <2mA / 240VAC | |||
PROTECTION | OVERLOAD | 105 ~ 130% rated output power | ||
Protection type: Constant current limiting, unit will shut down after 3 sec., re-power on to recover | ||||
OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | ||
Protection type : Shut down o/p voltage, re-power on to recover | ||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
ENVIRONMENT | WORKING TIMP | -20 ~ +70°C(Refer to "Derating Curve") | ||
WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
STORAGE TEMP HUMIDITY | -40~+85°C 10~95%RH | |||
TEMPCOEFFICIENT | ±0.03%/°C(0~50°C) | |||
VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||
SAFETY&EMC | SAFETY STANDARDS | U508, TUV EN60950-1 approved;(meet EN60204-1) | ||
WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
ISOLATIONRESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH | |||
EMC EMISSION | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 | |||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A | |||
QTHERS | MTBF | 146.8K hrs min. MIL-HDBK-217F (25°C ) | ||
DIMENSION | 85.5*125.2*128.5mm (W*H*D) | |||
PACKING | 1.5Kg; 8pcs/13Kg/0.9CUFT | |||
Packing & Delivery
Packing:
White/brown or customized color box +Carton(double wall corrugated board); Wood case if necenarry.
Shipping:
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air freight or by Sea for large quantity, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
White/brown or customized color box +Carton(double wall corrugated board); Wood case if necenarry.
Shipping:
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air freight or by Sea for large quantity, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Recommend Products
Company Profile
OUR COMPANY
TOP DRIVER POWER SUPPLY - www.top-driver.com
Shenzhen Xingzhiyou Technology Co.ltd devote ourselves to R&D, manufacturing and exporting 5V,12V and 24V DC single output constant voltage switching mode power supplies(power adapters,led drivers) for LED module, LED strip lighting and CCTV camera monitoring etc...we have more than 15 years experience. OEM/ODM order are highly welcomed!
Shenzhen Xingzhiyou Technology Co.ltd devote ourselves to R&D, manufacturing and exporting 5V,12V and 24V DC single output constant voltage switching mode power supplies(power adapters,led drivers) for LED module, LED strip lighting and CCTV camera monitoring etc...we have more than 15 years experience. OEM/ODM order are highly welcomed!

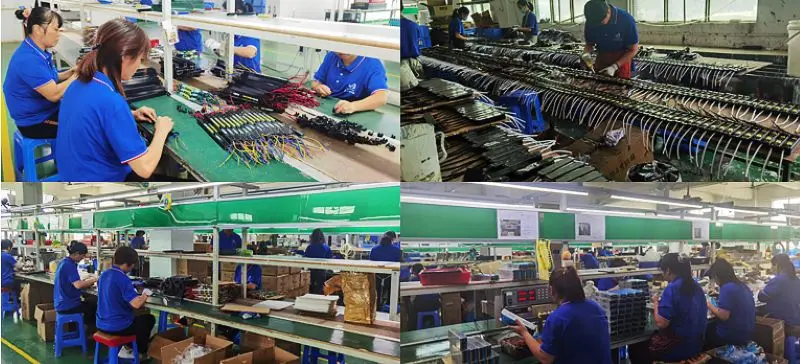

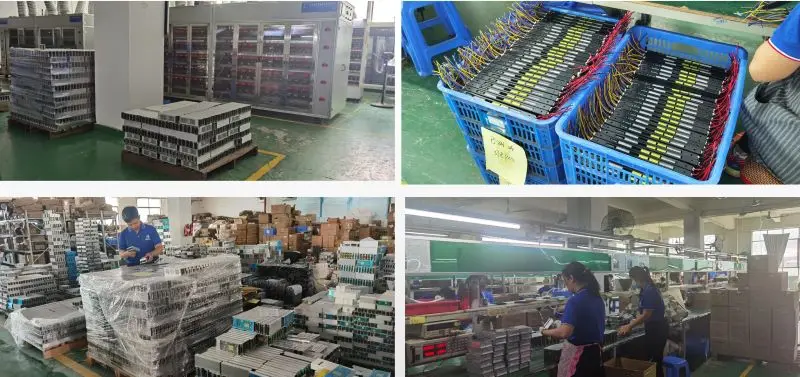

OUR Production Line
Top Driver have 6 Production line and can proceed 400,000pcs LED power supply a Month.
Our Exhibition
Top Driver in exhibitions every year, including: Hong Kong Global Resources Exhibition(Spring and Autumn edition）,Hong Kong Electronics Fair(Spring and Autumn edition），Hong Kong Lighting Exhibition, Canton Fair(Spring and Autumn edition）, Productronica Munich in Germany, Lighting Fair and security Exhibition...
Why Choose Us

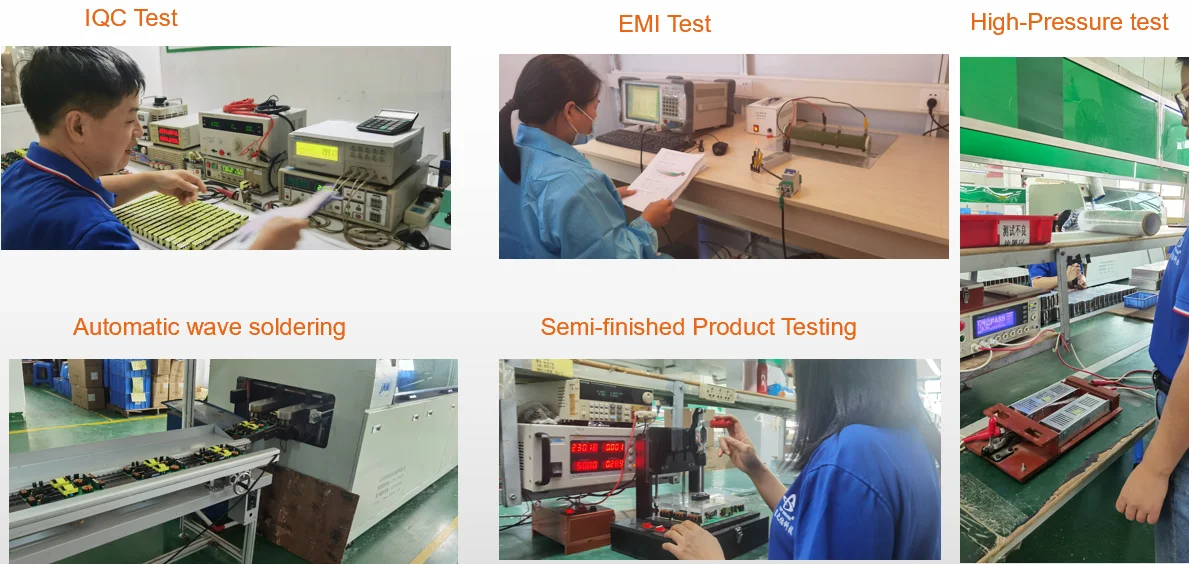

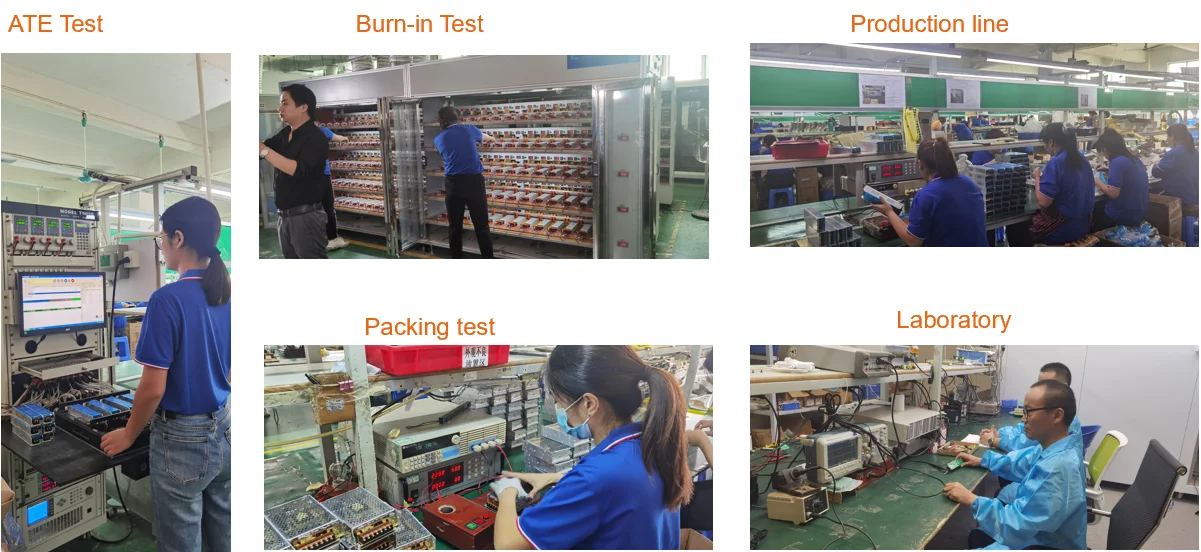

Quality is our culture
