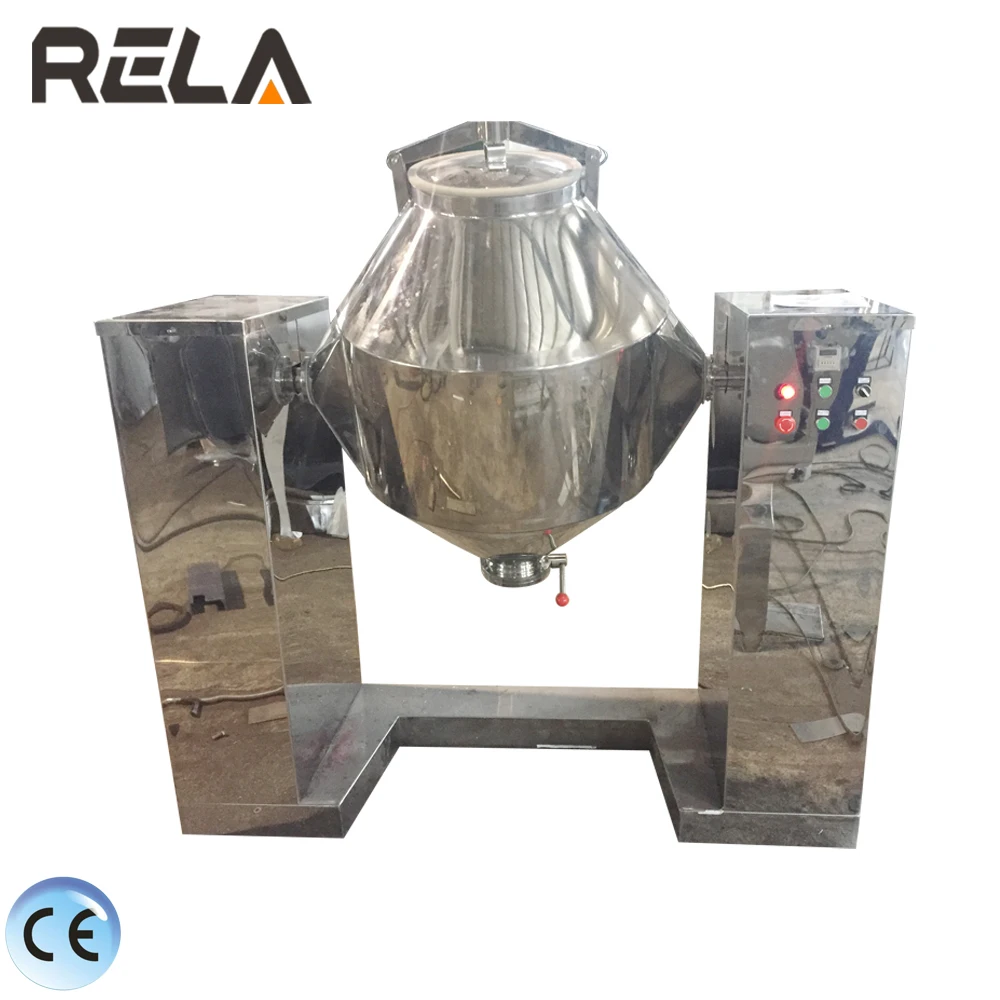

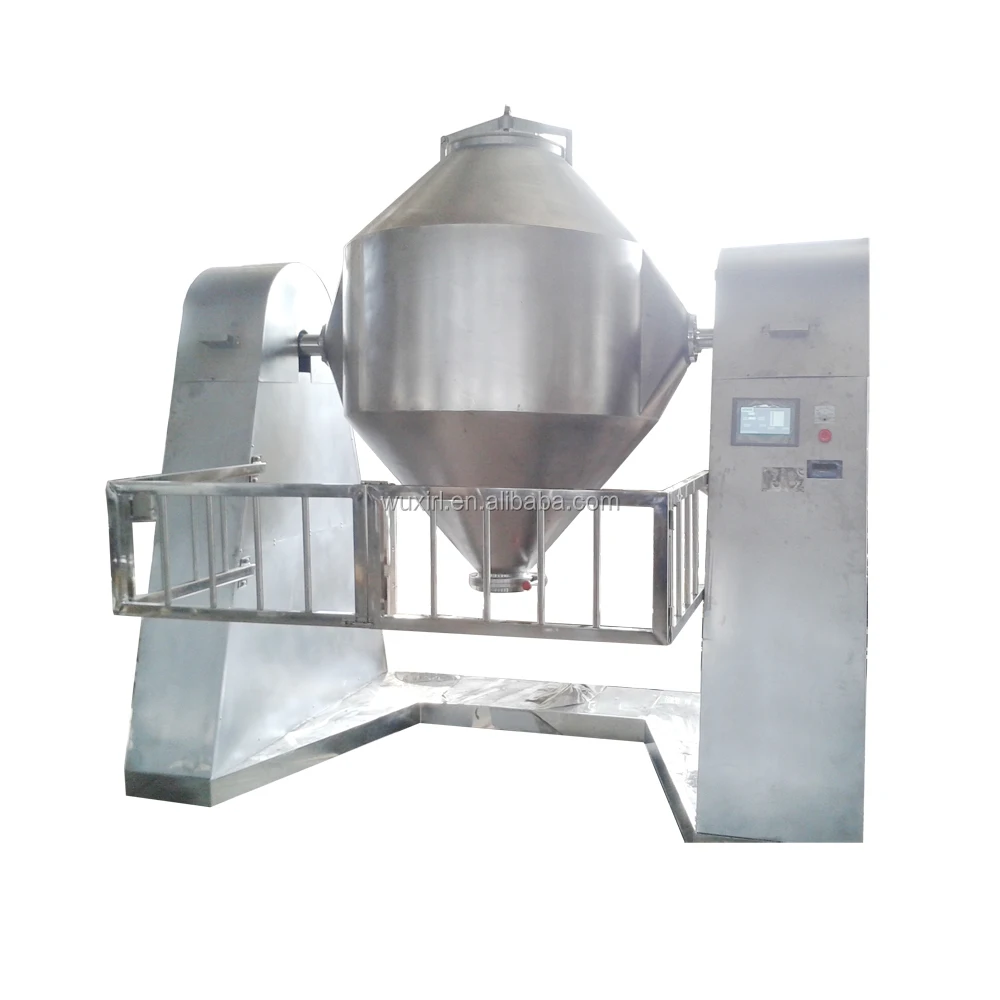

CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender
CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender
CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender
CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender
CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender
CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender
CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender

CE w type double cone dry powder shape mixer mixing machine for food protein animal feed vertical pharmaceutical screw blender

Share on (1600520269880):


Price:$4,000.00

Quantity:


Product Overview

Description



Product Description


Working principle

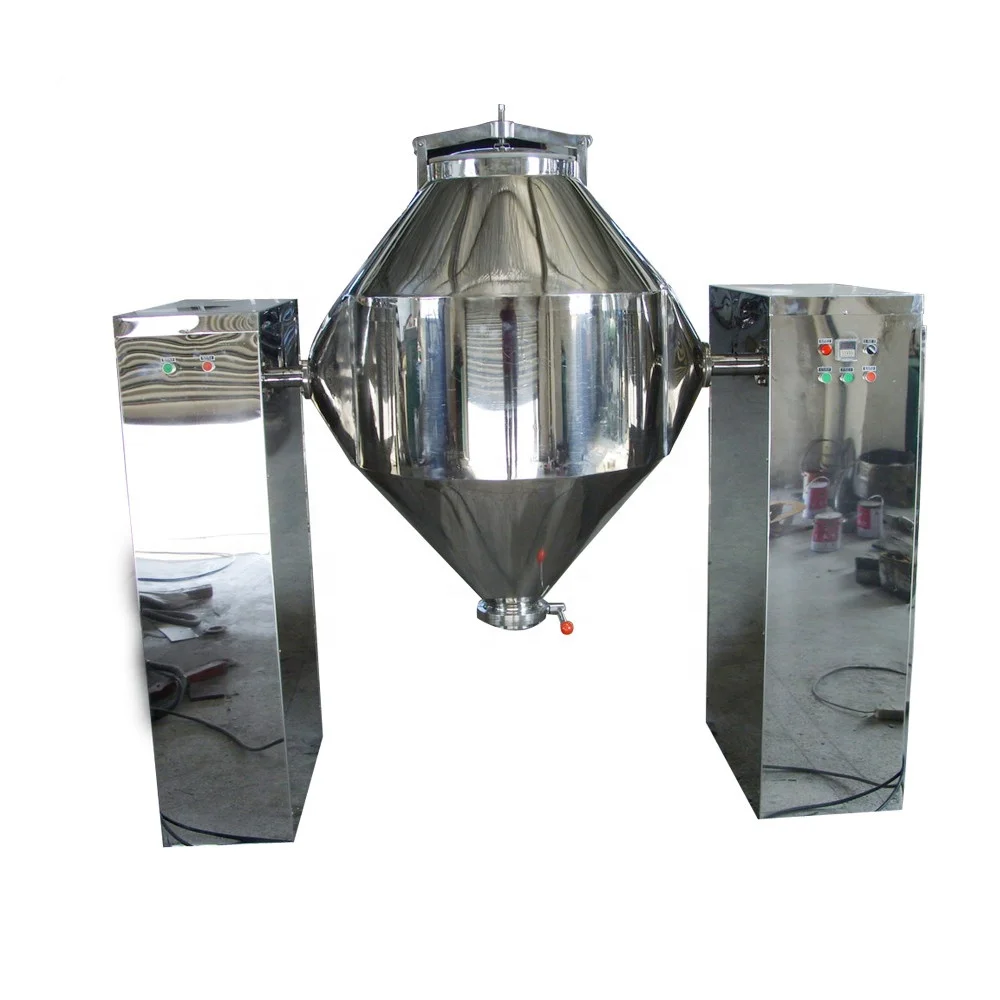

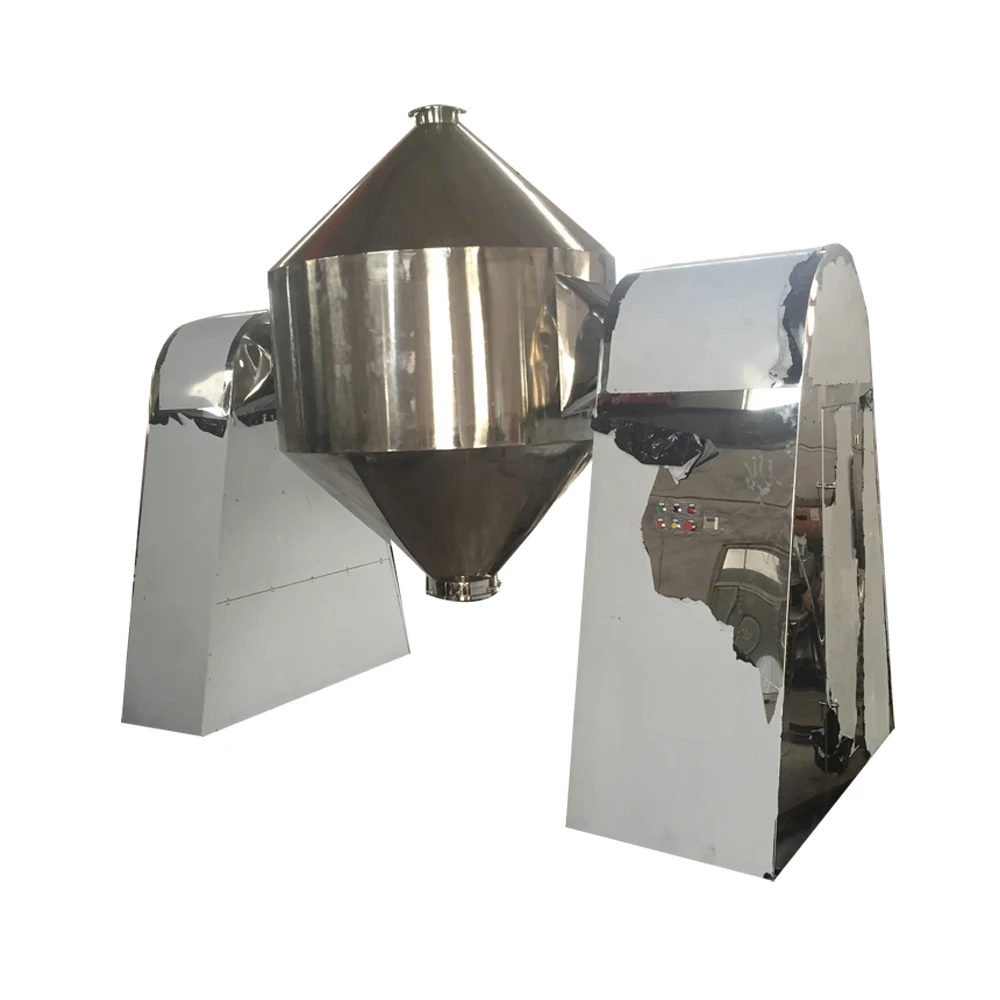

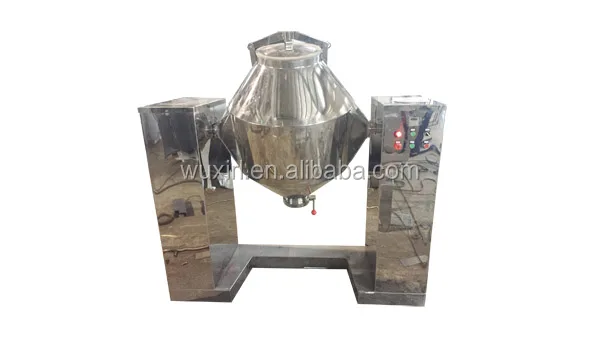

RELA Double screw cone mixer designs are most often used for the dry blending of free flowing solid.
The solid being blended in these units can vary in bulk density and in percentage of the total mixture. Materials being blended are constantly being intermixed as the shell rotates. Normal cycle times are typically in the range of 15 minutes, however can be less depending on the difficulty of blending.






Specification


Model
Gross Volume
(L)
Working Volume
(L)
Rotary Speed
(rpm)
Mixing Motor (KW)
Weight
(KG)
DCB-50
50
20-30
12
0.55
200
DCB-100
100
40-60
12
1.1
230
DCB-150
150
60-90
12
1.1
250
DCB-180
180
60-100
12
1.1
280
DCB-300
300
120-180
12
1.1
380
DCB-500
500
200-300
12
2.2
550
DCB-1000
1000
400-600
12
4
700
DCB-1500
1500
600-900
12
4
900
DCB-2000
2000
800-1200
12
7.5
1500
DCB-2500
2500
1000-1500
12
7.5
1800
DCB-3000
3000
1200-1800
7.8
7.5
2200
DCB-4000
4000
1600-2400
7.8
11
2800


Detailed image

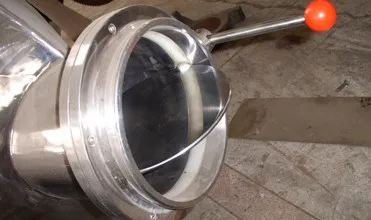

Discharge Port
1. Food grade stainless Steel.

2. Manual butterfly valve, which is changeable.

3. Hygeian rubber gasket.

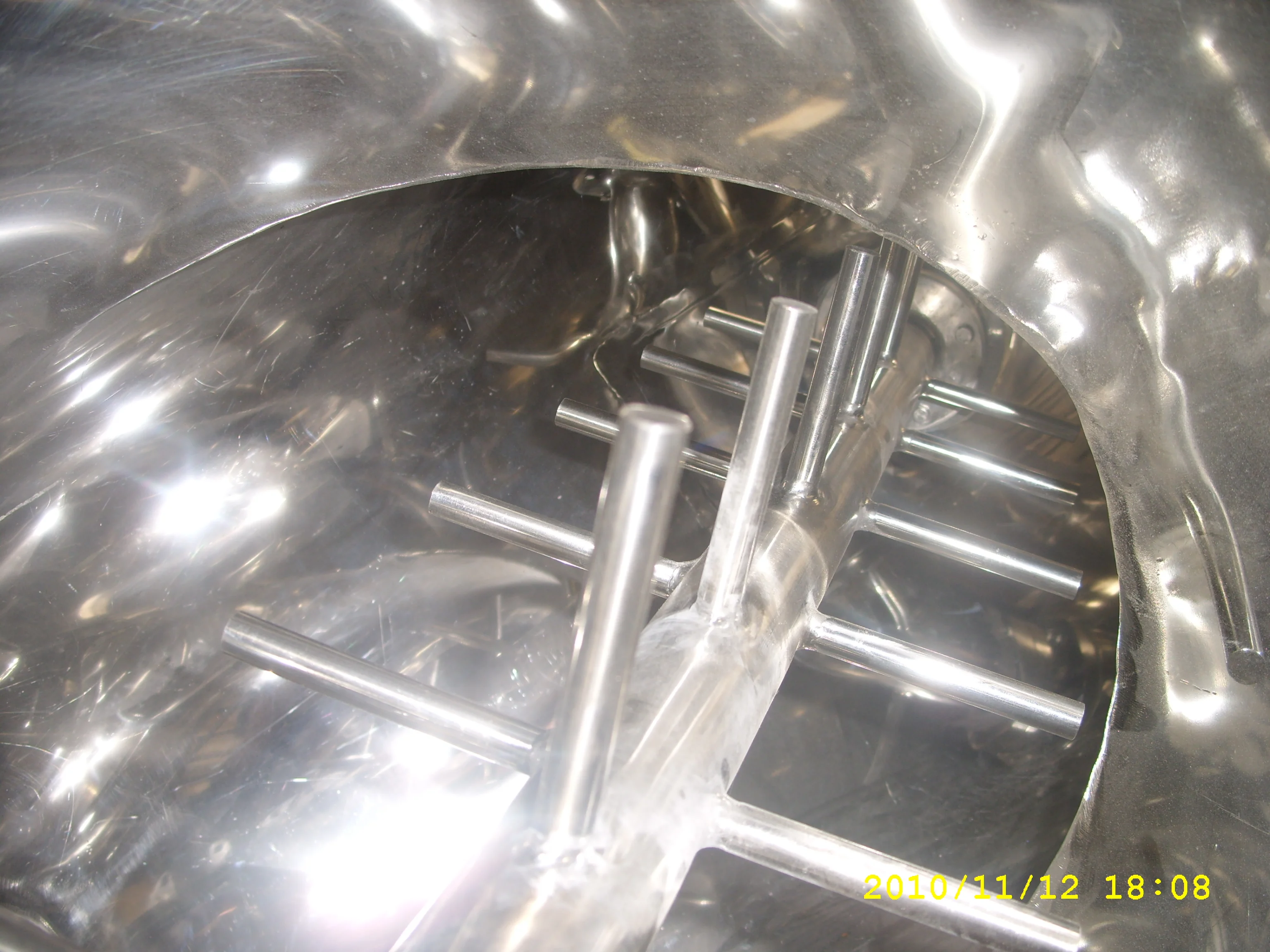

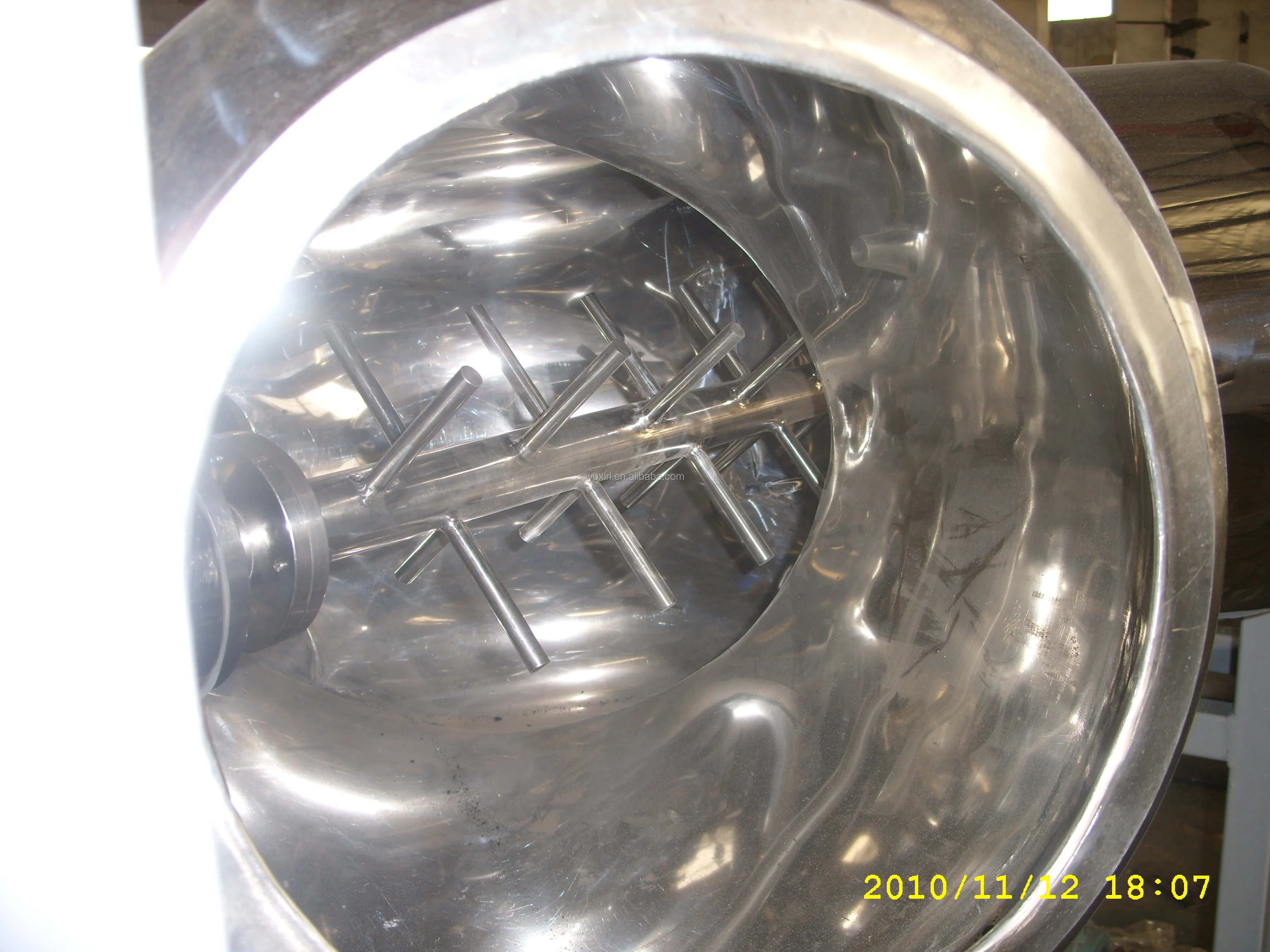

Intensifying Bar
This is optional part for better mixing result. It can break agglomerate during mixing.

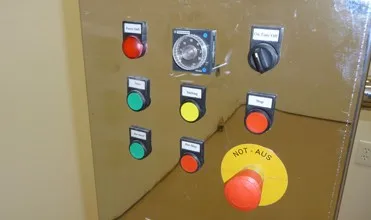

Control panel
Siemens Brand; Including: On/Off, Jog, Timer, Time Relay, Emergency button, etc.


Safety graud
1. Food grade stainless Steel.

2. Good protect operator, more safe


Packing & Delivery




Company Profile


Wuxi Rela Pharma Machine Co., Ltd, with more than 10 years experience, is focused on the powder solution, from the unit machine to the production line. Our main products are Pulverizer, Mixing machine, Conveying machine, Sifting machine, Granulator, Dryer...which are application to pharmaceutical, foodstuff, foodstuff, food additives, chemical raw material, baking ingredients...
