Stainless steel herb botanical extractor for condiments and food additive
- Category: >>>
- Supplier: Shanghai Pilotech Instrument & Equipment Co. Ltd
Share on (1600520285079):
Product Overview
Description
Ultrasonic herbal vanilla extract tank for vacuum low-temperature concentration
Product Introduction

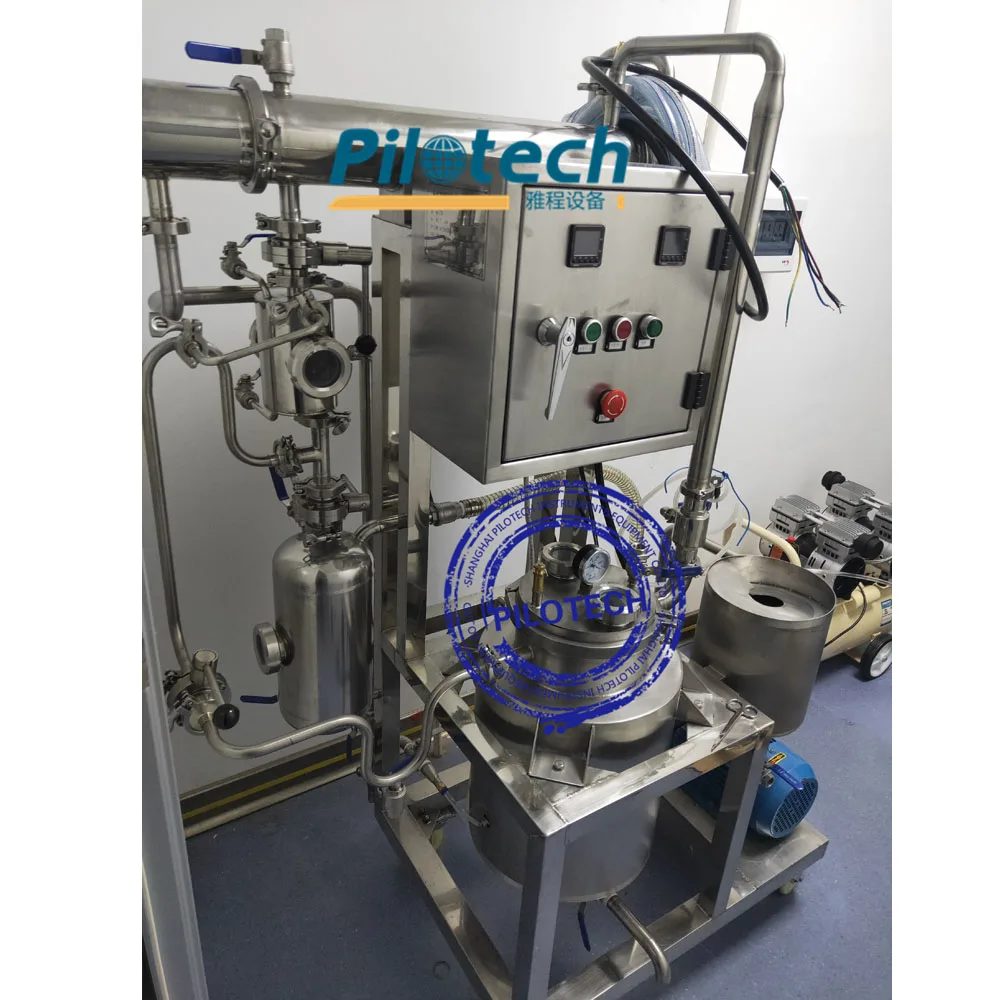

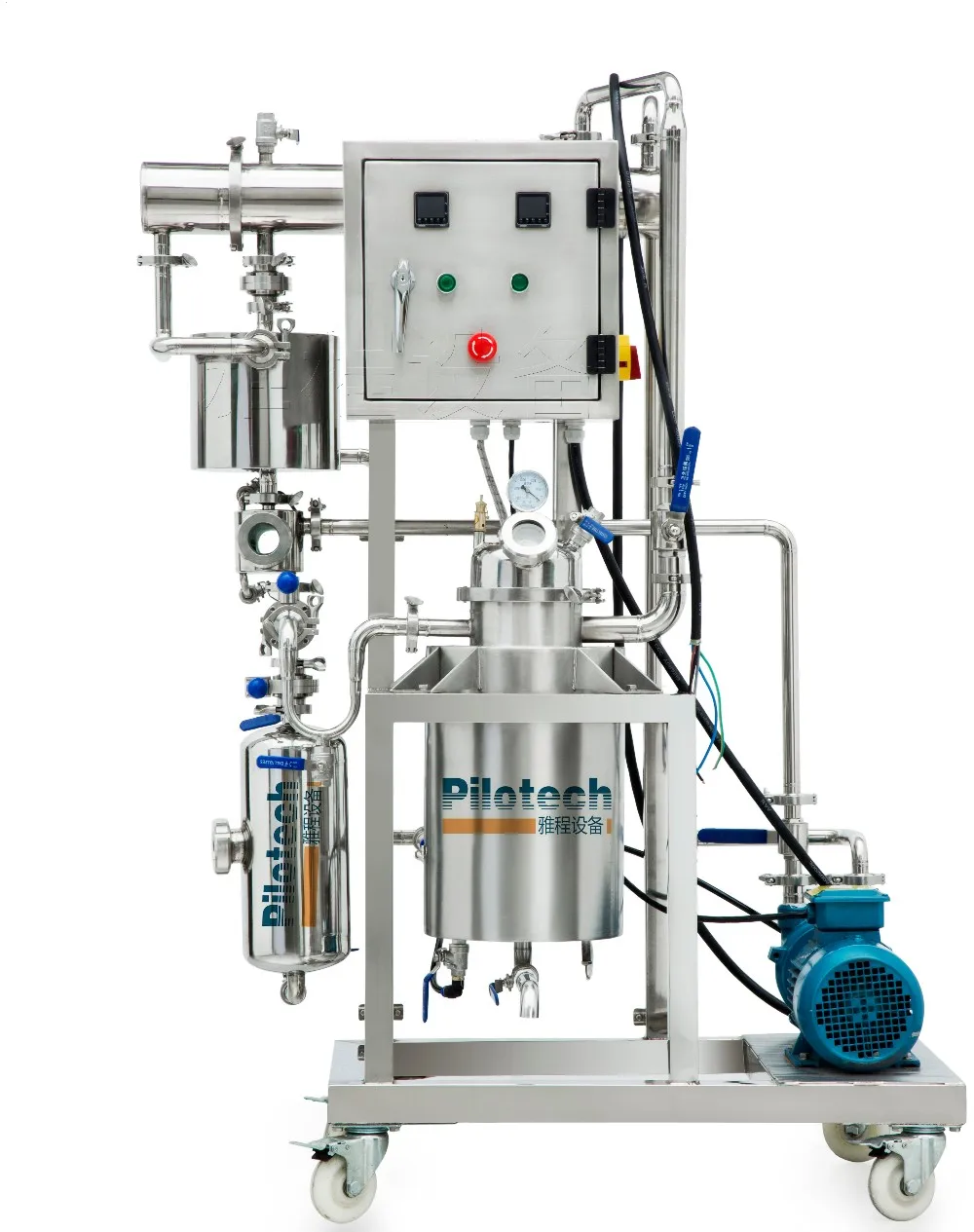

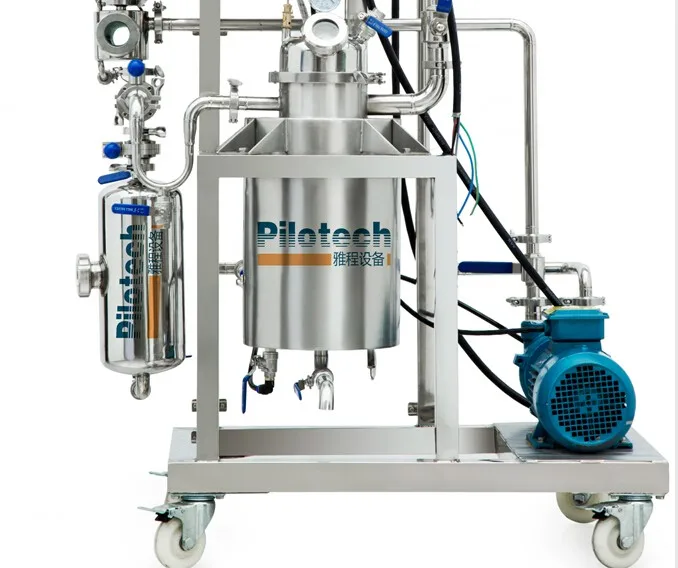

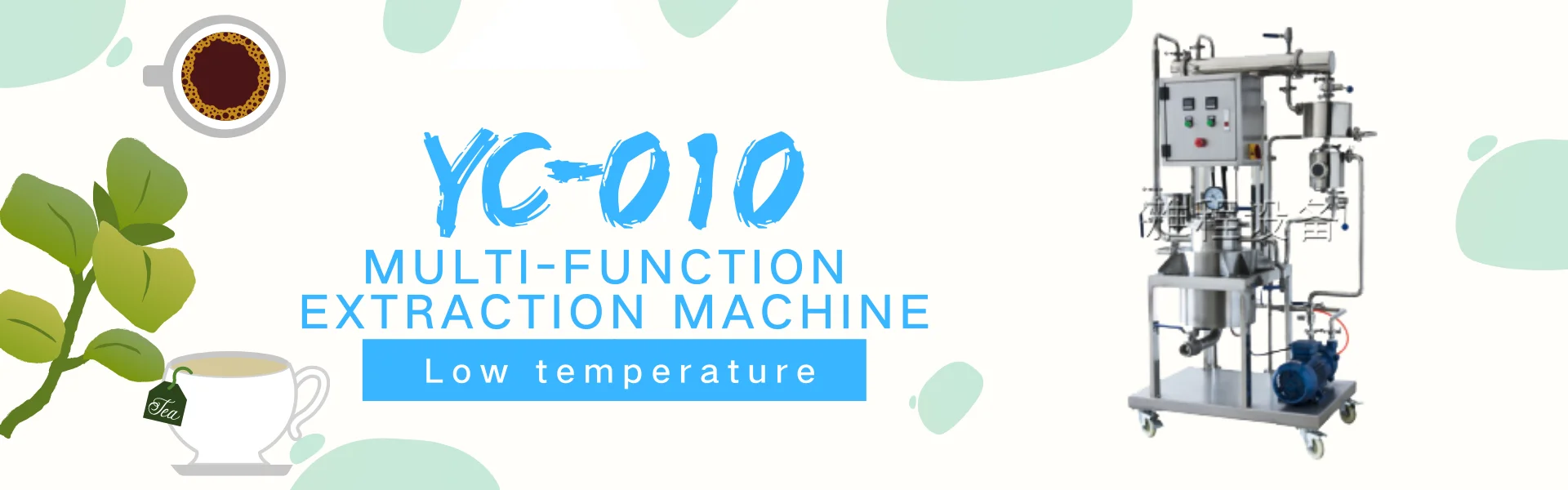

YC-010 Lab multi-functional extracting and concentration tank
Shanghai Pilotech YC-010 Lab multifunctional extraction, concentration and recovery machine is developed on the basis of international research on similar products. It can be used for the extraction/concentration of materials and natural products (water) and the recovery of volatile aromatic oils. The equipment consists of extraction tank, reflux condenser, oil-water separator, filter screen, heater, recovery tank, temperature controller, stainless steel bracket and connecting pipe valve, instrument and so on.
Functions: Atmospheric extraction (on-line ultrasonic extraction function is optional), negative pressure hot reflux water extraction, atmospheric concentration, vacuum concentration under reduced pressure.
Parameters and details
Voltage | 380V |
Power | 4500W |
Extraction tank volume | 10L |
Concentration ratio | 1.1 ~ 1.38 |
Evaporation chamber vacuum degree | 0~-0.08MPa |
Machine Material | SUS 304 Stainless Steel (SUS316 optional) |
Precision of temperature | ±2℃ |
Cooling water | 0.5t/h |
Cooling water pressure | <0.3 MPa |
Coiled tube condenser area | 0.3㎡ |
Range of application | Chinese herbal /natural product/ cosmetics/food stuff Ultrasonic extraction/Dynamic extraction/Volatile aromatic oil recovery… |
Configuration | Stainless steel extractor（10L)Tube array condensator coiled tube condenser oil-water separator pipeline sight glass Stainless steel water ring pump Omron temperature controller Stainless steel extract blue electric heater Sanitary safety valve control cabinet connection with pipe Tube Fitting Valve |

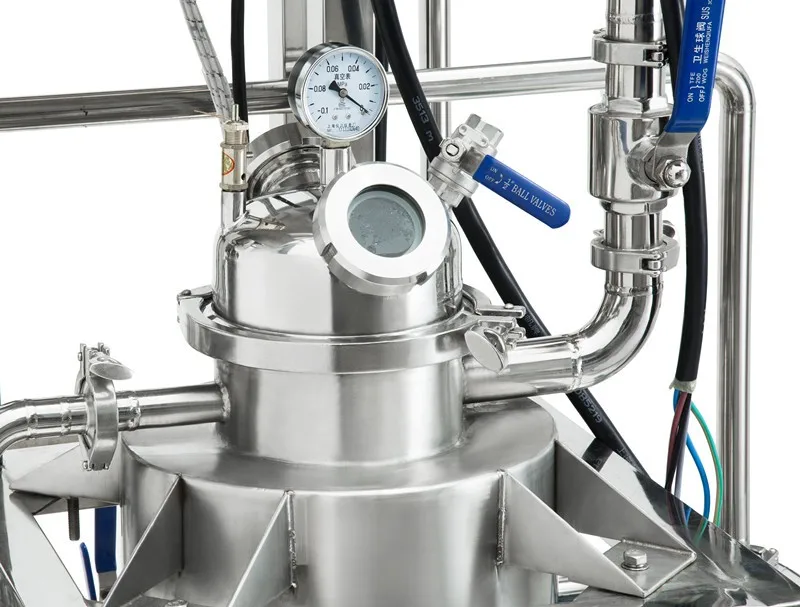

Extract Tank
Add the material and solvent into this tank to start the extracting . Integrated and compact design allows less installation area . Works directly with water and power.
Concentrate Tank
The system are equipped with outer circular evaporating concentrator with high concentrating efficiency, concentration ratio 1.1 ~ 1.38. Low temperature concentration ensures the material property stability.
Solvent Recovery Tank
When doing concentration , this tank can recovery the solvent.

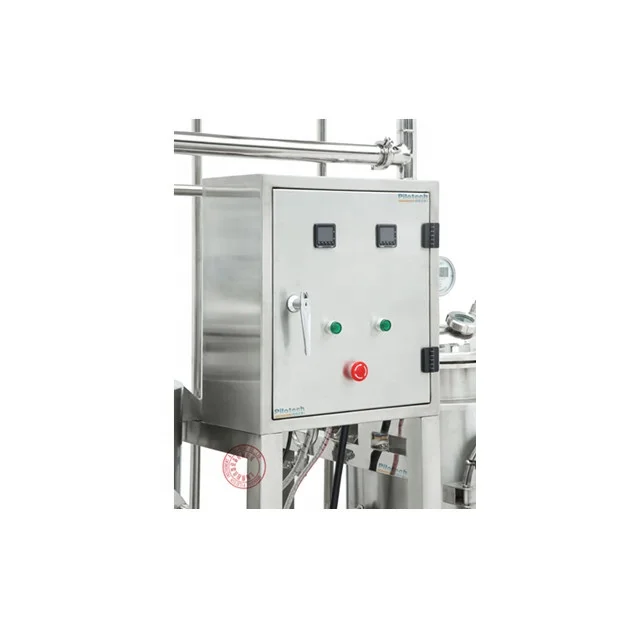

Omron Temperature Controller
This part is to operate the temperature when extracting and concentrating .

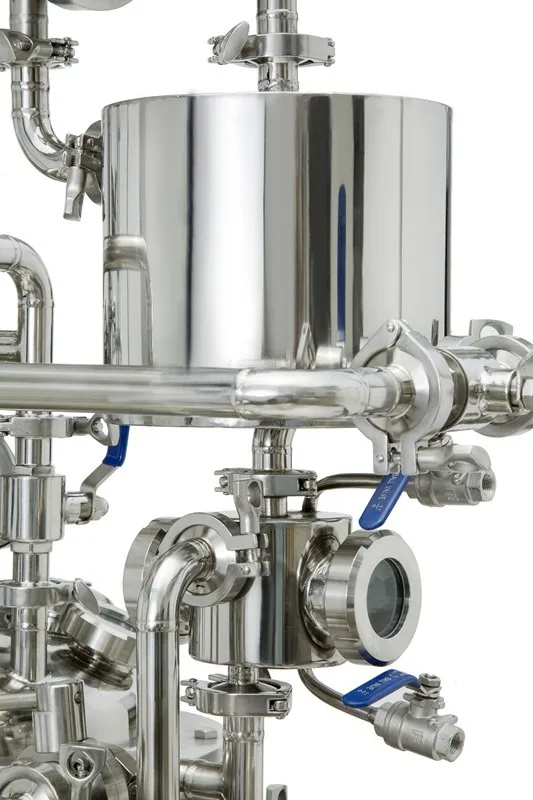

Sight Glass
Viewing the process through the sight glass.The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
Application and outputs

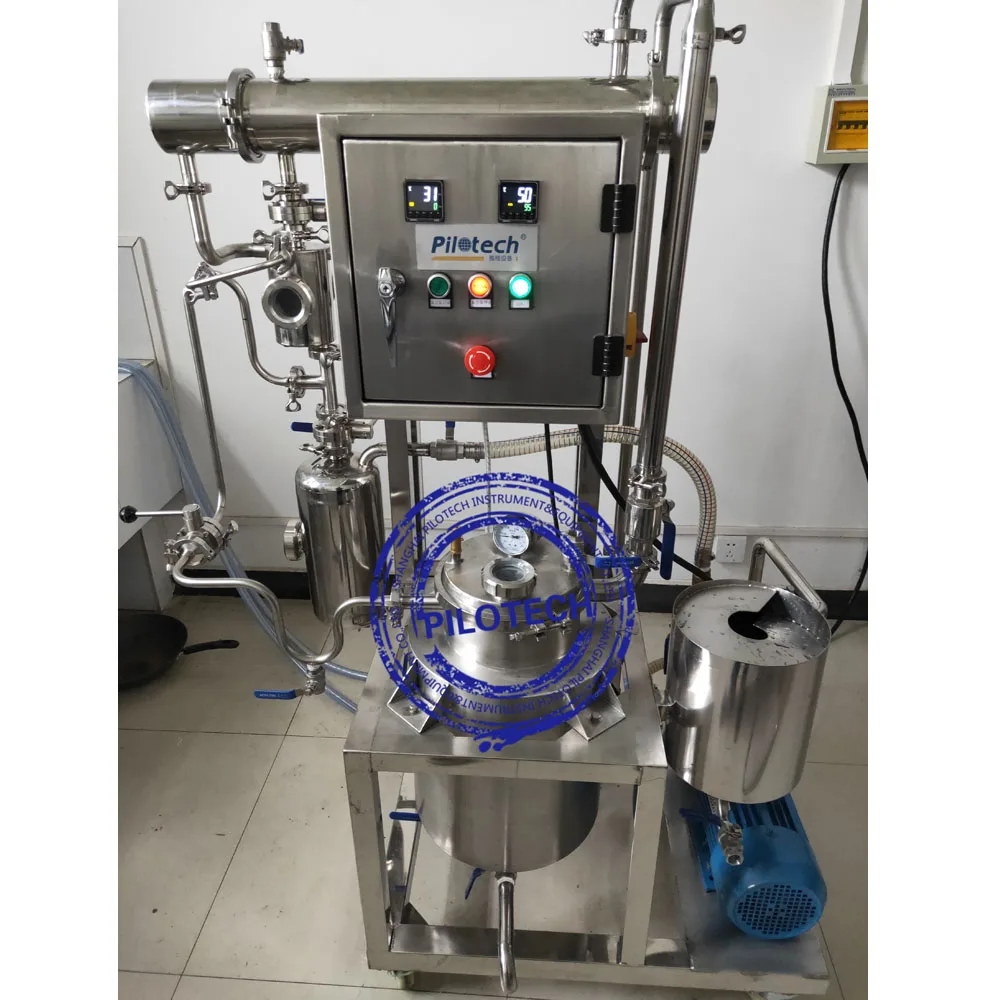

10L extracting and concentration tank
Our extract machine has a good performance for natural herb extraction.
Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of solvents in research institutions , universities , hospitals , and food industry .
Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency .
Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of solvents in research institutions , universities , hospitals , and food industry .
Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency .
FEATURES

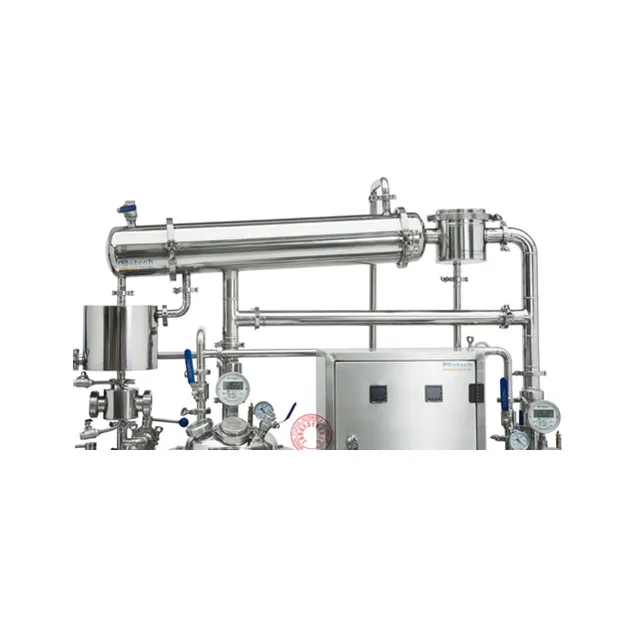

1) Extracting system is equipped with a reflux condenser, reflux cooler, oil-water separator that can recover aromatic oil in materials in an effective manner.
2) Circular heating of conduction oil (no pressure between lamination) and uniform heating. The heater is far away from the extraction tank which is more secure for organic solvent extraction and concentration.
3) Can be used to water, alcohol and solvent extraction for natural herb extraction. Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, and food industry.
4) It combines multi-functional extracting tank, vacuum concentration tank and solvent recovery tank as a whole and simplify operations with functions of heat reflux circular extraction.
5) The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
6) Low temperature concentration ensures the material property stability. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency.
7) The extraction basket to improve deslagging efficiency.
8) Optional on-line ultrasonic extraction function: adopts energy-concentrating ultrasonic generator. The unique physical process and cavatition of ultrasonic wave can break or deform plant cell tissues and enhance the strength of solute particle vibration, acceleration shock and sound pressure. Local extreme high temperature and pressure formed on materials make large-volume Chinese herbal fully exposed to the ultrasound probe, which accelerates uniform precipitation of active ingredients and significantly increases extraction rate compared with traditional techniques. Ultrasonic extraction works under normal temperature and effectively reduces the loss of heat-sensitive components.
2) Circular heating of conduction oil (no pressure between lamination) and uniform heating. The heater is far away from the extraction tank which is more secure for organic solvent extraction and concentration.
3) Can be used to water, alcohol and solvent extraction for natural herb extraction. Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, and food industry.
4) It combines multi-functional extracting tank, vacuum concentration tank and solvent recovery tank as a whole and simplify operations with functions of heat reflux circular extraction.
5) The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.
6) Low temperature concentration ensures the material property stability. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency.
7) The extraction basket to improve deslagging efficiency.
8) Optional on-line ultrasonic extraction function: adopts energy-concentrating ultrasonic generator. The unique physical process and cavatition of ultrasonic wave can break or deform plant cell tissues and enhance the strength of solute particle vibration, acceleration shock and sound pressure. Local extreme high temperature and pressure formed on materials make large-volume Chinese herbal fully exposed to the ultrasound probe, which accelerates uniform precipitation of active ingredients and significantly increases extraction rate compared with traditional techniques. Ultrasonic extraction works under normal temperature and effectively reduces the loss of heat-sensitive components.
Our factory
We have been focused on the research, development and production of extraction tank used in the laboratory since 2005 . The extraction tank low noise and little impact on the environment , are suitable for laboratory.In China, the extraction tank is quite popular among companies and universities, food science and engineering . Exported to 60 countries , 3,500+ users around the world .
Pilotech extraction equipment is suitable for small-scale , medium-scale and pilot tests in labs, with specifications of 5L, 10L, 20L, 50L, 100L, and 200L. We can also customize our products according to your order, properties of your materials and your capacity.
Our Customer
FIC in July 2021
Certificate showing
Product Packing
Support sea, air, express ,DHL, UPS, Fedex etc.
Relative Products
YC-100
Lab multi-function
extracting tank
YC-018
Pilot Lab Spray Dryer
YC-1000
Lab Spray Granulator
YC-015
Lab Spray Dryer
YC-2000
Vacuum Spray Dryer
YC-500
Benchtop Spray Dryer
Maintenance and After-sales
To ensure that the extraction equipment you purchased works well, before delivery, we will conduct sealing tests and test operating for 72 hours. If the tests and operation went well, another extraction and concentration test will be made using materials. If no failure emerged, then we will arrange for delivery. Once you receive the goods, we will send you video guidance for install and operation.
If there is any problem with the machine, you can describe the problem to us. Our engineers can know which part has the problem through your description. You can buy damaged fittings from us or in the your country after the warranty period. We tell you how to replace it. It is very easy.
If there is any problem with the machine, you can describe the problem to us. Our engineers can know which part has the problem through your description. You can buy damaged fittings from us or in the your country after the warranty period. We tell you how to replace it. It is very easy.
