Touchthink marine outdoor ip65 waterproof 15 17 19 inch 1000nits lcd industrial touch screen display monitor
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen Touch Think Intelligence Co. Ltd.
Share on (1600520298061):
Product Overview
Description

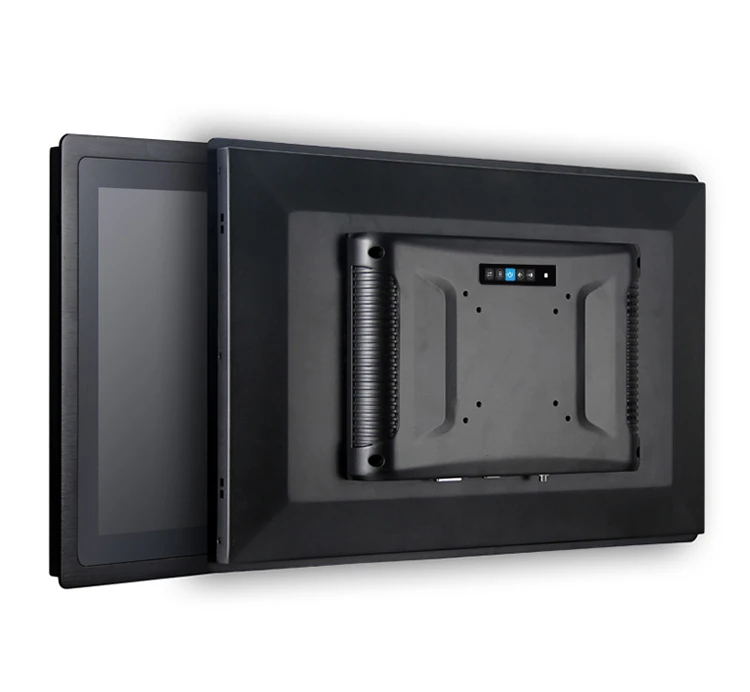

Different styles are available: 3mm bezel is suitable for embedded installation, 10mm bezel is suitable for VESA desktop
installation.
Operating system: win7/8/10, linux, android 6.0/7.1/9.0/10.0 or industrial monitor,industrial mini pc optional
Our products are widely used in industrial, medical, marine and other environments,
3D VR SHOWROOM is below, you can choose your favorite products
installation.
Operating system: win7/8/10, linux, android 6.0/7.1/9.0/10.0 or industrial monitor,industrial mini pc optional
Our products are widely used in industrial, medical, marine and other environments,
3D VR SHOWROOM is below, you can choose your favorite products
Products Description
Standard product parameters | ||||

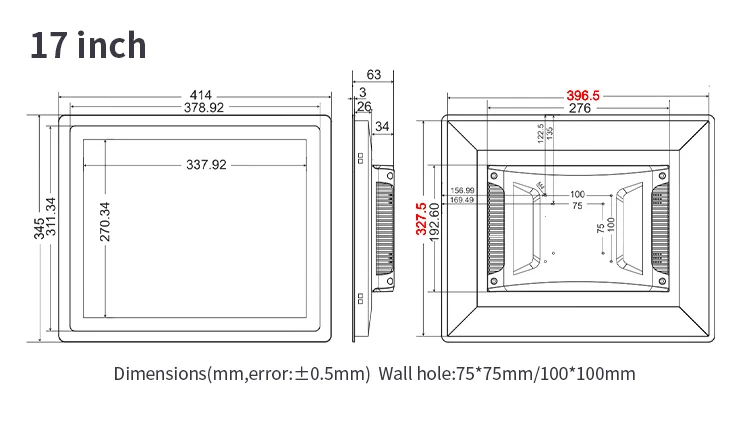

Main parameters | Size | 17 | ||
Resolution | 1280×1024 | |||
View Angel | 80/80/80/70 (L/R/U/D) | |||
Color | Chrominance：16.7M | |||
luminance | 300cd/m2 (high brightness customizable) | |||
Contrast | 1000:1 | |||
ms | 6.5ms | |||
Touch type | capacitive touch,( Resistive touch,no touch optional) | |||
Hardware | CPU | RTD2483 | ||
Menu | English,Chinese,customized language | |||
Video Input | PC-RGB:Format Up to 1920*1080@60HZ | |||
PC-RGB:Color 16bit, 24bit, 32bit | ||||
1*DC 2.0 | ||||
Key Function | AUTO,MENU,POWER,LEFT,RIGHT | |||

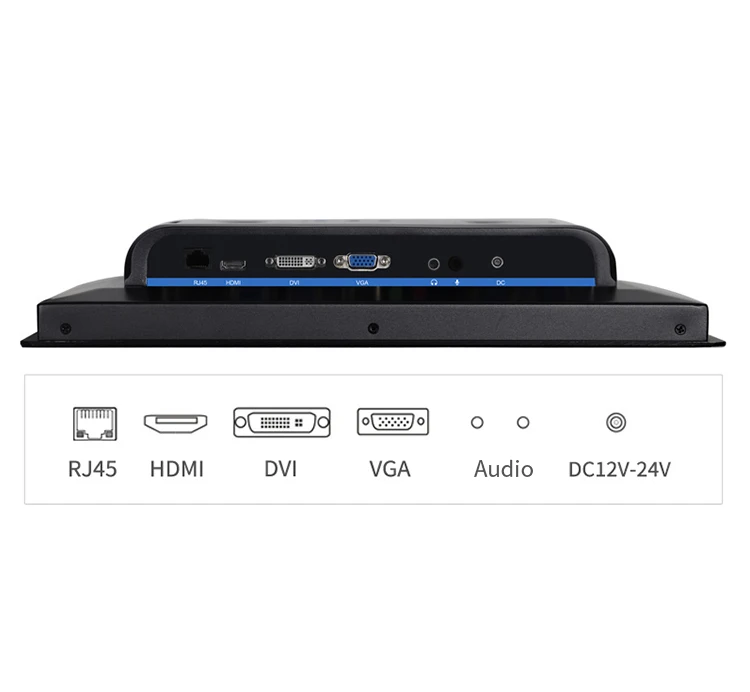

Interface | H*MI | Support H*MI-compatible,Support 1080P (max) | ||
USB | 1 | |||
RJ45 | Touch interface | |||
VGA | 1 | |||
Headphone socket | 3.5mm standard interface | |||
DVI | 1 | |||
Product reliability | Working Temperature | -10 °C to 60 °C | ||
Storage temperature | -20 °C to 70 °C | |||
Humidity | Humidity: 95% Non-Condensing | |||
MTBF | 7*24H | |||

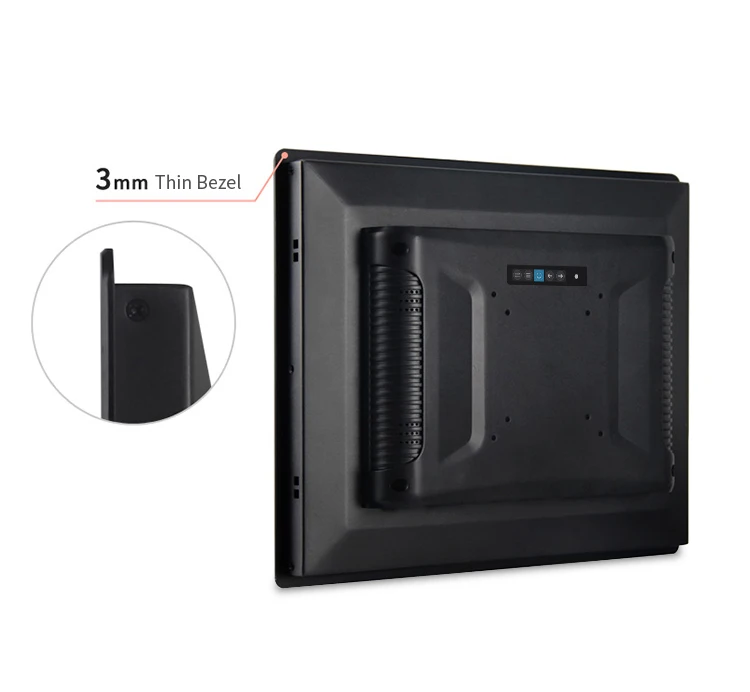

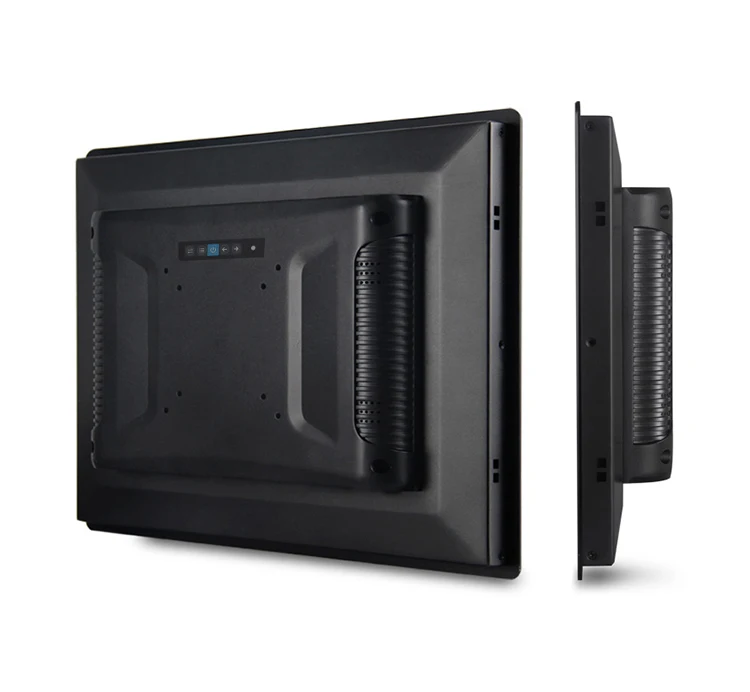

01.3mm bezel thin front panel,embedded cabinet suitable.Support embedded,wall-mounted,rack mounted,desktop,VESA support.
02.IP65 grade water-proof,dust-proof for front panel.
03.Working temperature:-10-60°
04.365Days*24hours all-weather working.
05.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
06.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
07.Compatible with various industrial systems/application.
08.Support non-touch,resistive touch,capacitive touch.
09.CE,FCC,CCC,ROHS certificate.
10.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
11.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
12.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
13.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
02.IP65 grade water-proof,dust-proof for front panel.
03.Working temperature:-10-60°
04.365Days*24hours all-weather working.
05.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
06.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.
07.Compatible with various industrial systems/application.
08.Support non-touch,resistive touch,capacitive touch.
09.CE,FCC,CCC,ROHS certificate.
10.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
11.Shock resistance standard reach GB2423,protection during transportation/working on the sea.
12.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
13.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
Application Field
Product packaging
Transport and Packing process
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
Samples: 1-5 working days
500PCS or More orders:5-15working days
Professional 360° safe pack Vacuum bage→5layer corrugated carton→thick pearl cotton protection
3D Showroom
Touchthink 360 degree 3D showroom,Click to select the product you need
VR
OEM/ODM
Professional R&D team, pre-sales and after-sales service,12 years OEM & ODM Service,Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,
excellent services, competitive prices, quick responses and prompt delivery. Therefore, we keep long-term cooperation with our customers.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,
excellent services, competitive prices, quick responses and prompt delivery. Therefore, we keep long-term cooperation with our customers.
Why Choose Us
Recommend Products
FAQ
Q: whether your industrial monitor support the oem / odm?
A: Yes, our industrial monitor support the customization with size, function, appearance, resolution, high brightness and etc
Q: Where is your industrial monitor apply?
A: Restaurant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores etc.
Q: What is the main size for your industrial monitor?
A: 7",8”, 10.1”, 10.4”,11.6", 12”, 12.1” 15”, 15.6”, 17” ,17.3‘’,19” ,19.1'',21.5”and wide screen the same size. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. free charge.
Q: What kind of inspection you can provide?
A: Touchthink has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: 3 Years Quality Quarantee!
A: Yes, our industrial monitor support the customization with size, function, appearance, resolution, high brightness and etc
Q: Where is your industrial monitor apply?
A: Restaurant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores etc.
Q: What is the main size for your industrial monitor?
A: 7",8”, 10.1”, 10.4”,11.6", 12”, 12.1” 15”, 15.6”, 17” ,17.3‘’,19” ,19.1'',21.5”and wide screen the same size. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. free charge.
Q: What kind of inspection you can provide?
A: Touchthink has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: 3 Years Quality Quarantee!
