HV 360V 400V stacked LIFEPO4 battery instead of BYD Battery Box Premium HVM 30KWH home solar Energy Storage System
- Category: >>>
- Supplier: Shenzhen Enershare Technology Company Limited
Share on (1600520301313):
Product Overview
Description
Product Description
Features:
● Single phase and split design which can meet different electricity requirements.
● It's mainly used in European and other countries with the same grid standard.

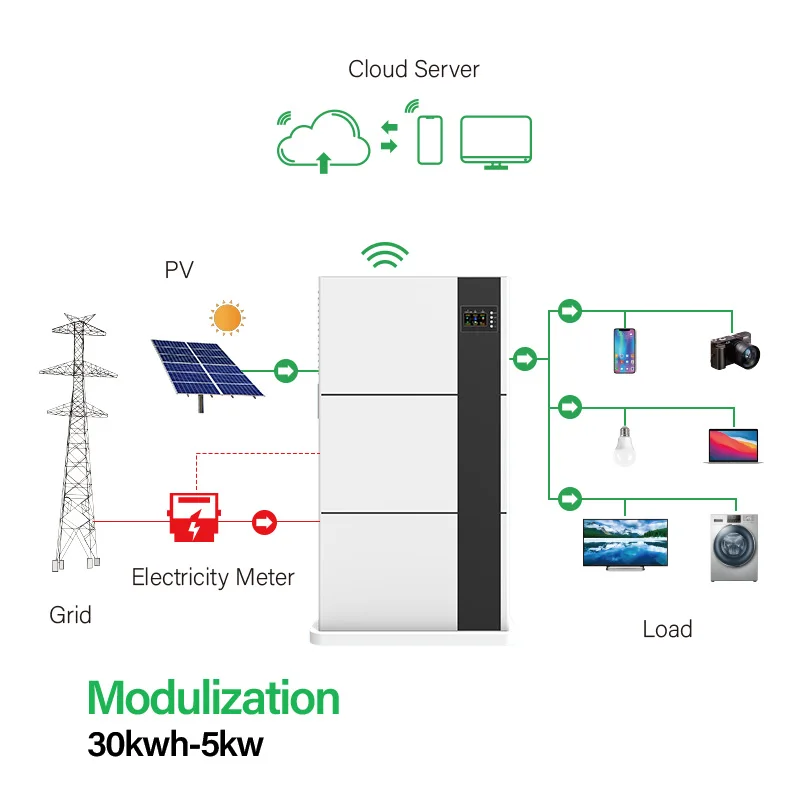

● All-In-One Design, include BMS, EMS, PCS and LFP Battery.

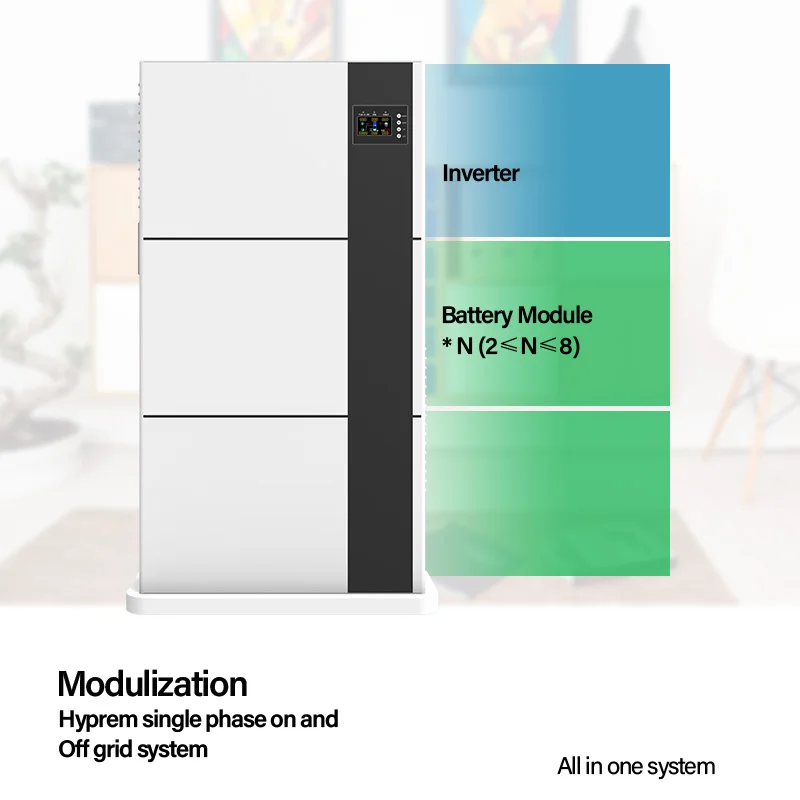

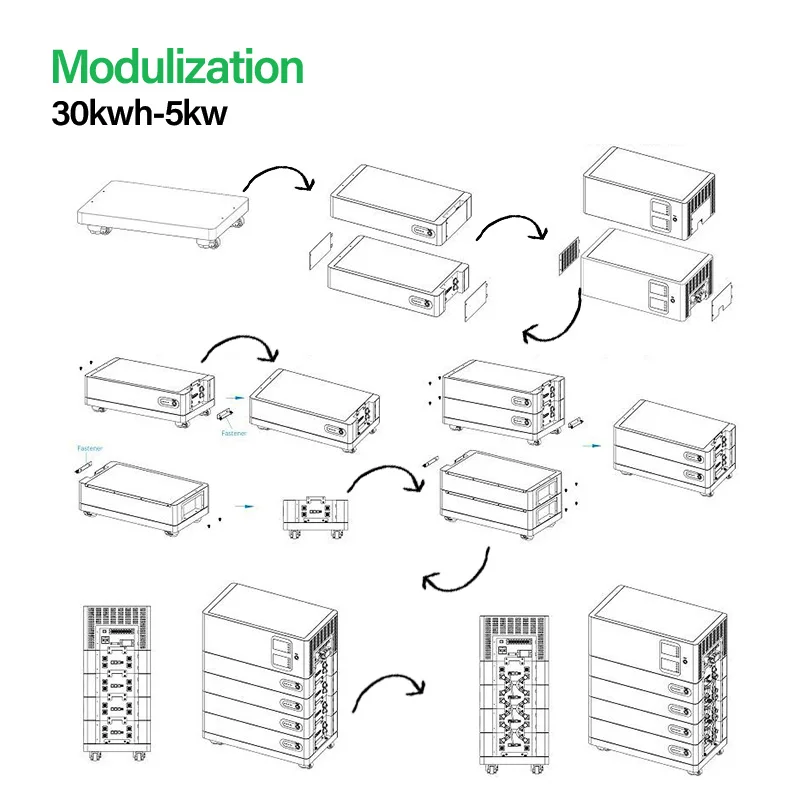

● Modulization design makes individual can move and install the product easily

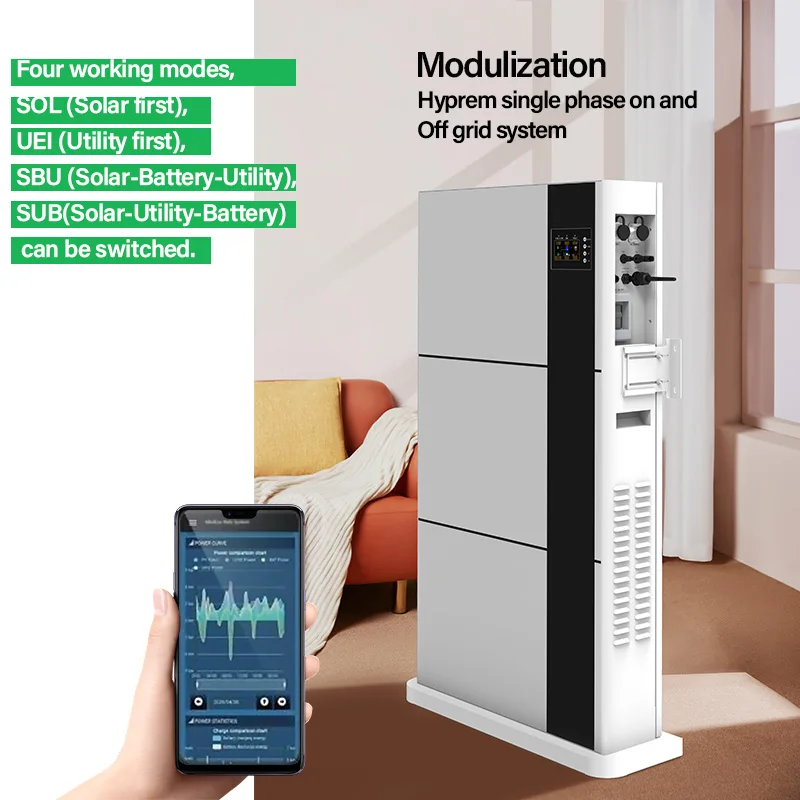

● Personal computer On-line and Phone App monitoring, iOS/Android optional. Remote control.
● Multiple protection with alarm systems, safe and reliable;
● Can install the product wall-mounted like Tesla powerwall or ground mounted.
● Single phase and split design which can meet different electricity requirements.
● It's mainly used in European and other countries with the same grid standard.
● All-In-One Design, include BMS, EMS, PCS and LFP Battery.
● Modulization design makes individual can move and install the product easily
● Personal computer On-line and Phone App monitoring, iOS/Android optional. Remote control.
● Multiple protection with alarm systems, safe and reliable;
● Can install the product wall-mounted like Tesla powerwall or ground mounted.
Model Number | Hyprem-050-2S50 | Hyprem-050-4S50 | Hyprem-050-6S50 | Hyprem-050-8S50 | Hyprem-050-12S50 | |||||
AC data(on-grid) | ||||||||||
Operation Mode | Single Phase(Load-matching mode/Backup mode/Peak-shaving mode) | |||||||||
Rating power | 5kva | |||||||||
AC input voltage range | 170~280Vac | |||||||||
AC input frequency range | 47.5~51.5Hz/57~61.5Hz | |||||||||
AC data (Battery mode) | ||||||||||
Max. output power | 5.5kva | |||||||||
Rated AC Voltage | L/N/PE /220/230/240Vac±3% | |||||||||
Rated AC Frequency | 50/60Hz | |||||||||
Switch Time | ＜10ms | |||||||||
Battery data | ||||||||||
Voltage range | 102.4V | 204.8V | 307.2V | 409.6V | 614.4V | |||||
Battery Type | Lithium iron phosphate (LFP) | |||||||||
Qty of Stackable Batteries | 2 | 4 | 6 | 8 | 12 | |||||
Total Battery Capacity | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 30.72kWh | |||||
Max charge/discharge current | 30A/30A | |||||||||
PV data | ||||||||||
Recommended PV Power | 6500W | |||||||||
Max PV Voltage | 600Vdc | |||||||||
MPPT Voltage Range | 100-550Vdc | |||||||||
Max PV Current per String | 14A | |||||||||
Qty of MPPTs | 2 | |||||||||
System data | ||||||||||
HMI | WIFI +App +LED | |||||||||
IP class | IP65+IP31 | |||||||||
Installation | Wall mounting(inverter), cabinet(battery) | |||||||||
Dimension/(W*H*D) /Weight | Depending on the Qty of Stackable Batteries | |||||||||
Details Images
Project
Why Choose Us
FAQ
1.Are you a trading company or a manufacturer?
Enershare company is a manufacturer, which is dedicated in renewable energy system integration and distribution for 15 years. We have been focusing on reliable and customized lithium battery modules, battery systems, large scale integrated energy storage systems , with a track record of 500Mwh in last three years. We have registered JV companies in UK and Bulgaria to make sure best cost, fast delivery and good service.
2. What is your quality control process?
Our factory have ISO9001 certification, from incoming materials to production, and then to delivery, there are corresponding QC control. Battery cells will be divided before assembly, and aging test will be conducted before delivery.
3.What is your warranty?
The cycle life of the battery pack can exceed 6000 cycles and warranty 10 Years, only energy storage usage.
4.Which inverters can they be compatible with?
Our lithium battery can interact with different inverters, such as Victron, DEYE, Megarevo, GOODWE, VOLTRONICS, GROWATT, K-STAR, SOLIS, STUDER, SMA.
5.What’s the lead time for mass production？
It depends on the actual situation. 48V100ah LFP battery pack,3-7 days with stock, if without stock, that will be depends on your order quantity, normally needs 20-25 days.
6. Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
7.How can I be your distributor or service partner?
Yes, please directly email to Susan@enershare.com, we can discuss about this. We need to know your target market, what application you want to cover, and estimated annual purchase volume.
Enershare company is a manufacturer, which is dedicated in renewable energy system integration and distribution for 15 years. We have been focusing on reliable and customized lithium battery modules, battery systems, large scale integrated energy storage systems , with a track record of 500Mwh in last three years. We have registered JV companies in UK and Bulgaria to make sure best cost, fast delivery and good service.
2. What is your quality control process?
Our factory have ISO9001 certification, from incoming materials to production, and then to delivery, there are corresponding QC control. Battery cells will be divided before assembly, and aging test will be conducted before delivery.
3.What is your warranty?
The cycle life of the battery pack can exceed 6000 cycles and warranty 10 Years, only energy storage usage.
4.Which inverters can they be compatible with?
Our lithium battery can interact with different inverters, such as Victron, DEYE, Megarevo, GOODWE, VOLTRONICS, GROWATT, K-STAR, SOLIS, STUDER, SMA.
5.What’s the lead time for mass production？
It depends on the actual situation. 48V100ah LFP battery pack,3-7 days with stock, if without stock, that will be depends on your order quantity, normally needs 20-25 days.
6. Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
7.How can I be your distributor or service partner?
Yes, please directly email to Susan@enershare.com, we can discuss about this. We need to know your target market, what application you want to cover, and estimated annual purchase volume.
