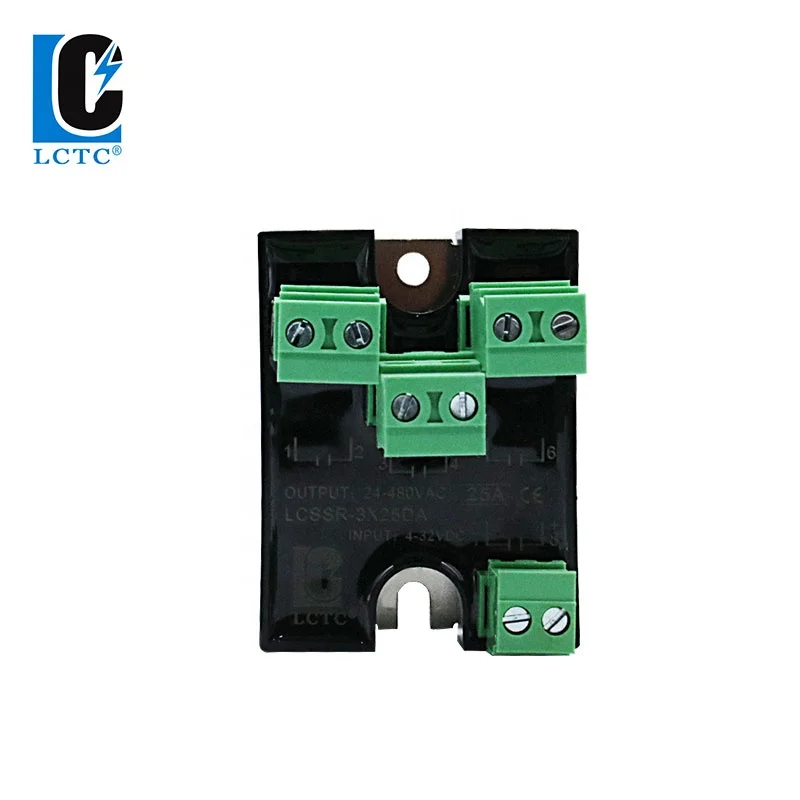

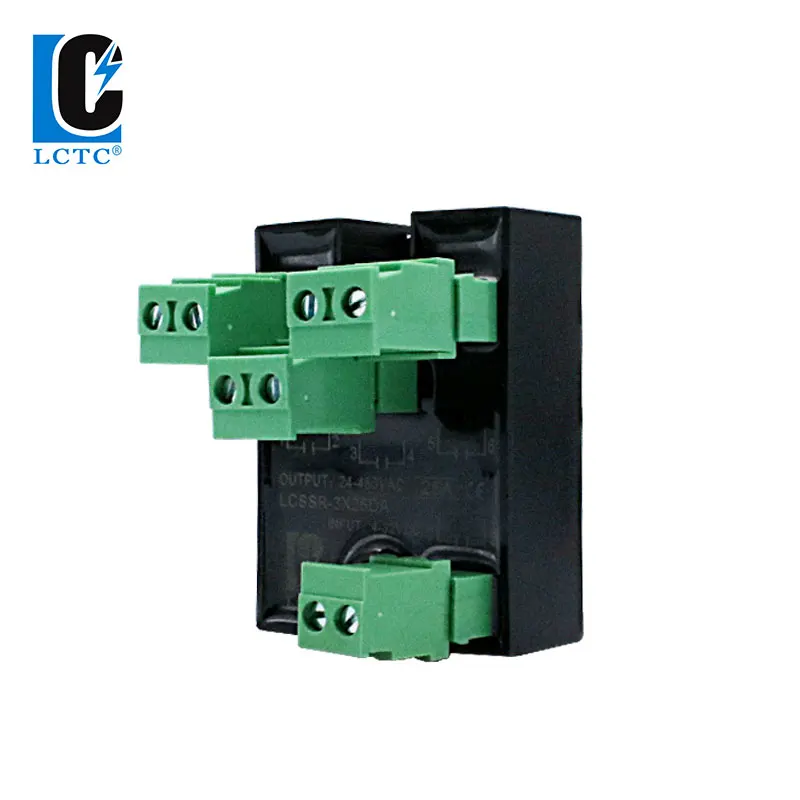

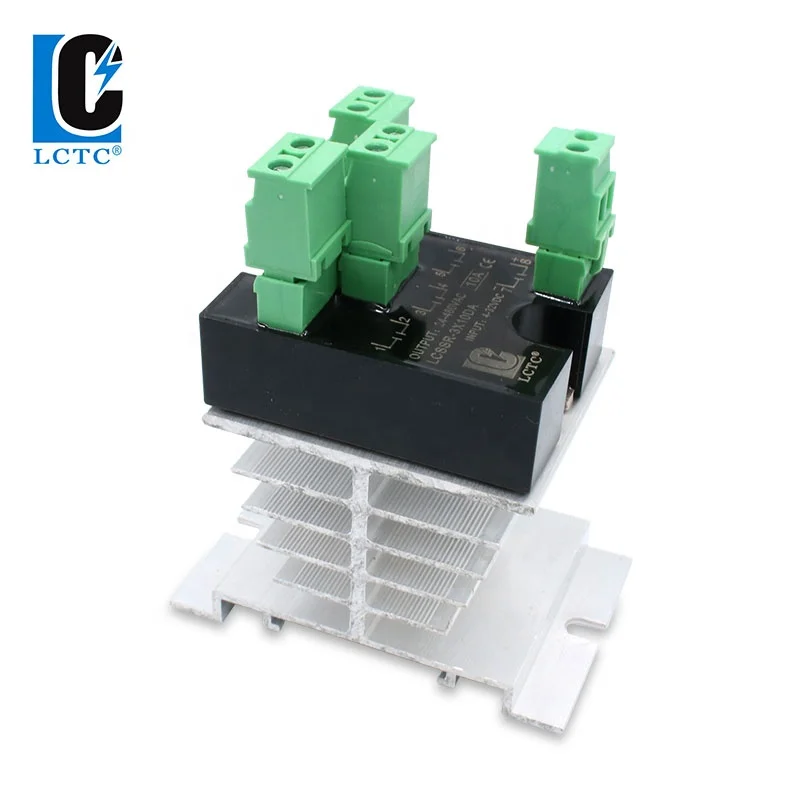

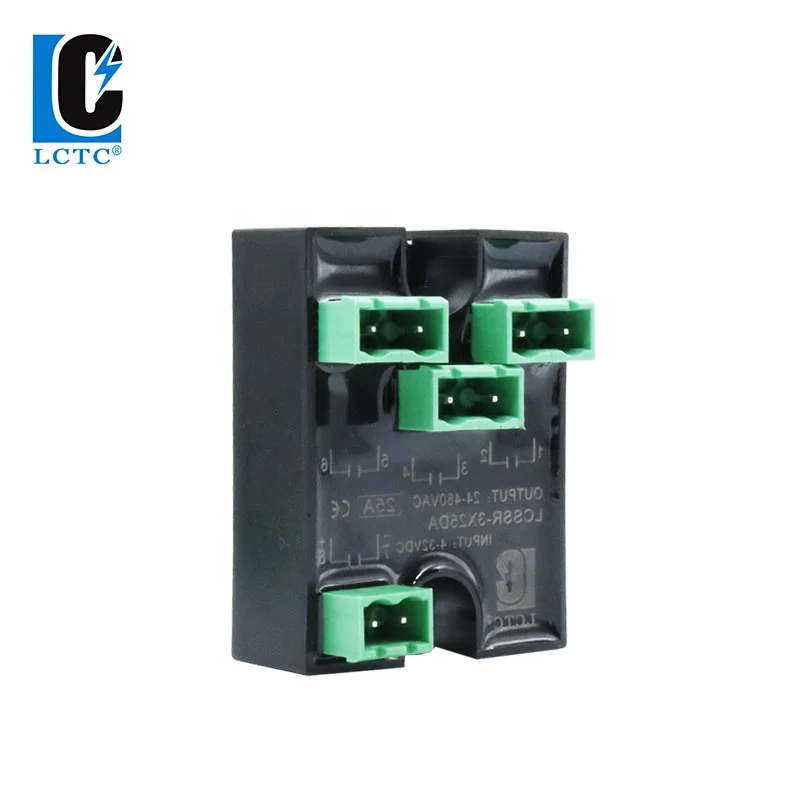

3 phase Solid State Relay With Heat Sink SSR 25A DC Control AC 3 Phase SSR 4 32VDC to 24 280VAC
- Category: >>>
- Supplier: Zhejiang Leichi Technology Co. Ltd.
Share on (1600520314065):
Product Overview
Description
Product Description
3 phase Solid State Relay With Heat Sink SSR 25A DC Control AC 3 Phase SSR 4-32VDC to 24-280VAC
Features
1.Built-in TVS to protect triac.
2.With LED indicator.
3.Zero-cross Or Random turn on.The default is zero cross SSR.Random turn-on needs to be customized.
2.With LED indicator.
3.Zero-cross Or Random turn on.The default is zero cross SSR.Random turn-on needs to be customized.
Precautions
1.If load can bring high surge current(such as bulb,etc),make sure that ssr can bear the surge current.
2.If surge current exceed range,must connect a fast fuse to output terminal.
3.If instantaneous voltage exceed range,must connect a varistor to output terminal in parallel,recommend 750V varistor.
1.If load can bring high surge current(such as bulb,etc),make sure that ssr can bear the surge current.
2.If surge current exceed range,must connect a fast fuse to output terminal.
3.If instantaneous voltage exceed range,must connect a varistor to output terminal in parallel,recommend 750V varistor.
Model | LCSSR-3X25DA |
Control | DC to AC |
Load Current | 25A |
Control Voltage | 4-32VDC |
Max Input Current | 40mA |
Must Operation Voltage | 3VDC |
Must Release Voltage | 2.7VDC |
Output Voltage | 24-480VAC |
Peak Voltage | 800V |
Operation Temperature | -30℃ to 80℃ |
Max off-state leakage current | ≤8mA |
Max on-state voltage drop | 1.5V |
Dielectric strength | 2500V |
Certificates | CE |
