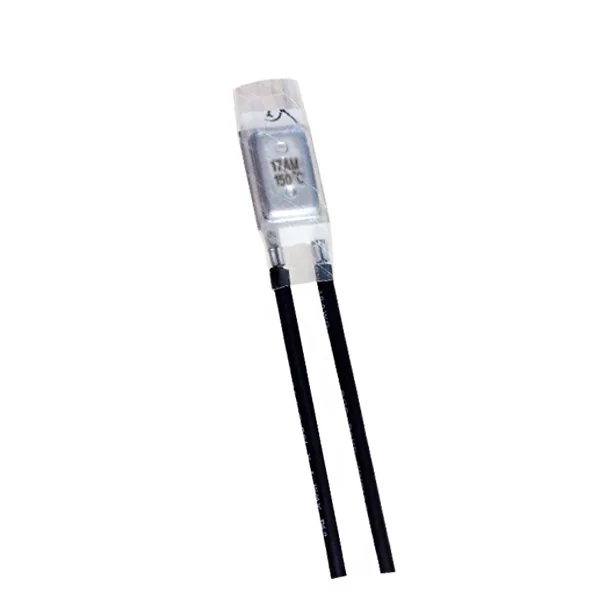

Water Pump motor insulation thermal switch Self sustaining temperature control NC thermal protector 17AM for Heating appliance
- Category: Electronic Accessories & Supplies >>>
- Supplier: Yangzhou Baozhu Electric Appliance Co. Ltd.
Share on (1600520342194):
Product Overview
Description
Product Description
1. Feature:17AM series snap action thermostat.Self-sustaining function can be realized by parallel PTC or heating wire.With the advantages of quick tripping,anti-arc,high temperature control accuracy,temperature sensitive,long life,at the same time,have the same direction/ opposite direction two different terminals.
2. Usage: Widely used in water pump,vacuum cleaner,high power motor,electric heating seat,electric blanket,automobile heating pad,medical heating pad and other electric heating fields.
3. Operating temperature tolerance:±5℃ , ±8℃
4. Reset temperature tolerance:±10℃ , ±15℃
5. Certification: UL,VDE,CQC,CB ,ISO9001
Product Name | 17AM series thermal protector |
Lead wire | 3321 AWG20#;3321 AWG18#;3135 AWG18#;Normally length is 70mm |
Remarks | Can customized according to customer requirements |
Insulation sleeve Materials | HEL |

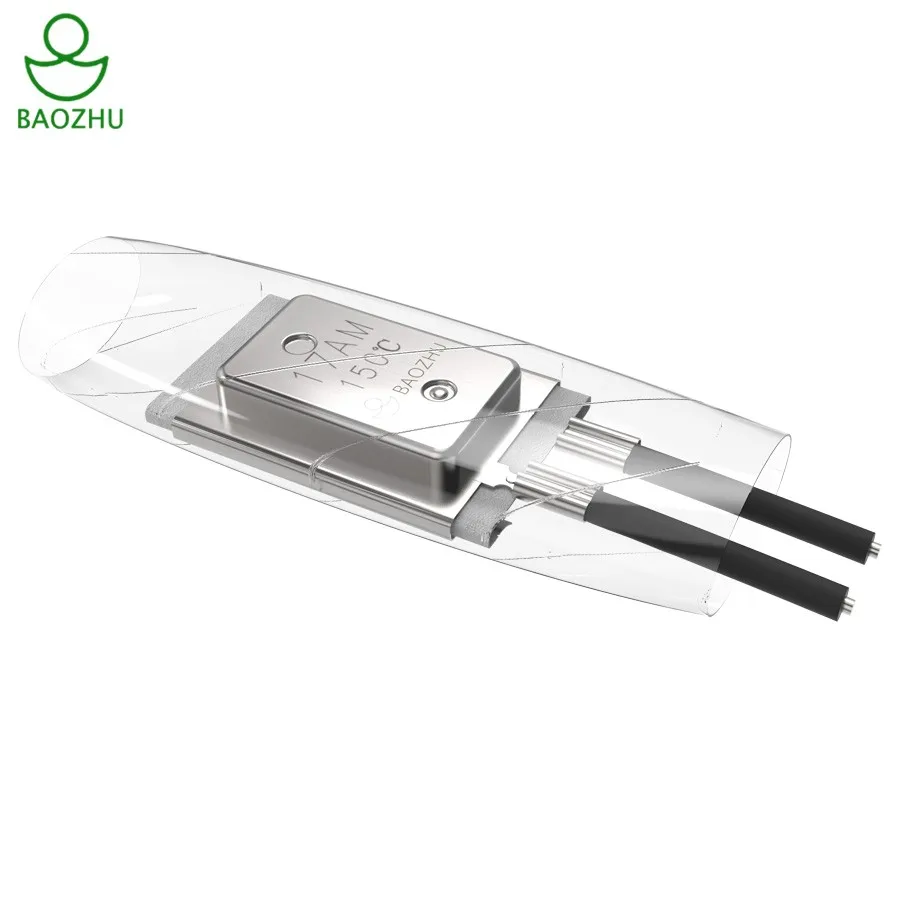

Products Show

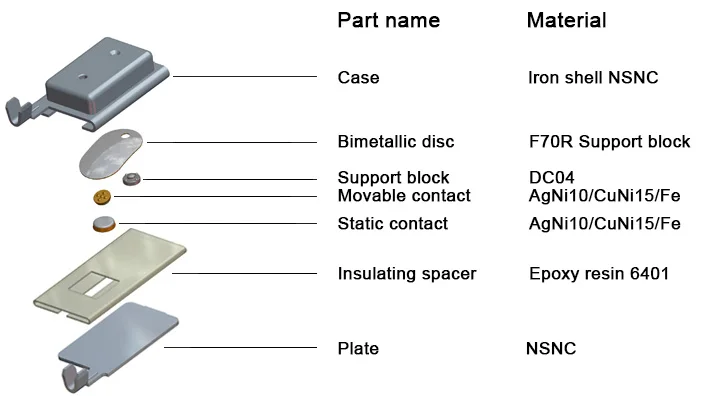

Appearance and structure

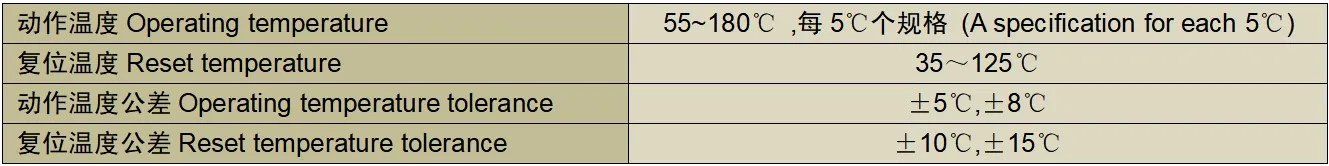

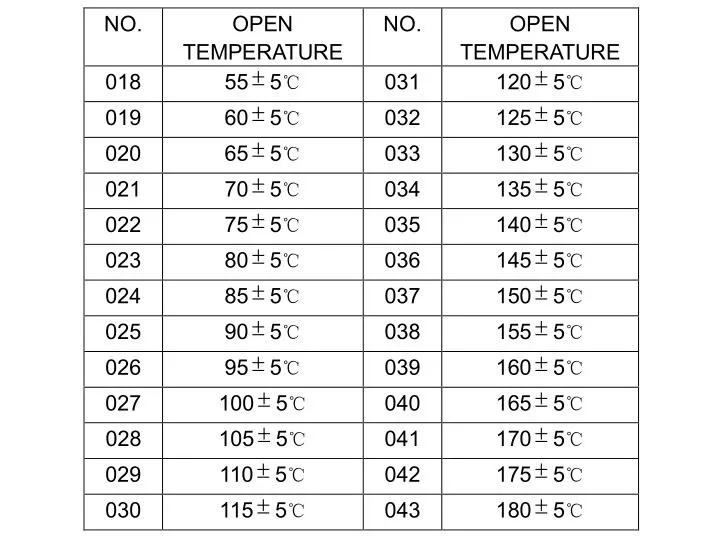

Temperature Range and Tolerance

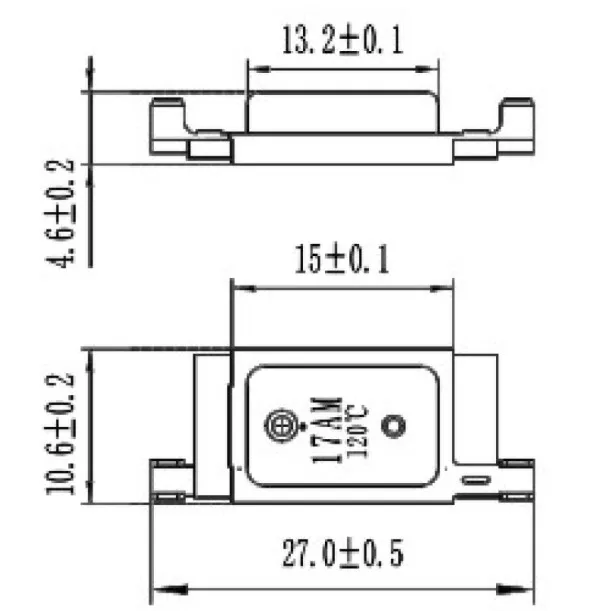

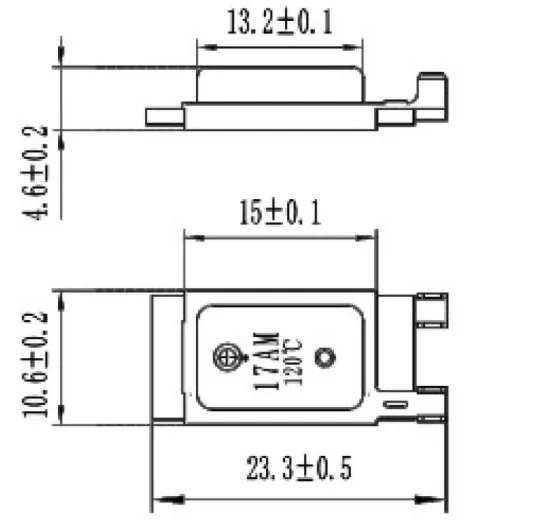

Size
A type B type

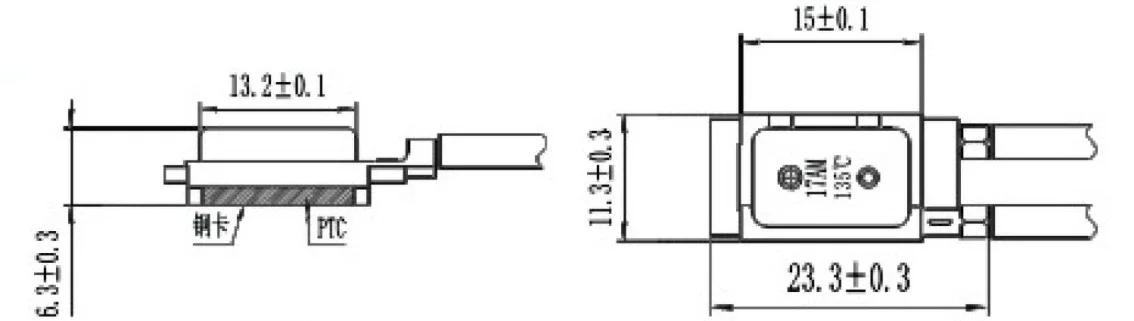

With PTC type
Electrical Specifications
250VAC/9A
115VAC/22A
24VDC/9A
12VDC/22A
Certifications
CB: CN31780CQC: CQC13002100482
VDE: 40040932
UL: E258703
IS09001：00114Q25892R3M/3200\t\t0105Q1274ROS/3200
Our Service
Free sample
Our company can provide 10 free samles for your testing.
Our Company
Factory
Headquarters
Workshop
Our Workshop
Chengnan Branch
Jinghe branch
Warehouse
Our Warehouse
Equipmen
Our Part equipment
Packing & Delivery
Samples Packing Details : File pocket
Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)
Delivery Details : 7-15 days
Decide delivery time according to order quantity and requirement.
Our Certifications
Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.
Please contact me if you need relevant certificates.
Contact information:
Skype:bzdq5_168
QQ:1524961729
