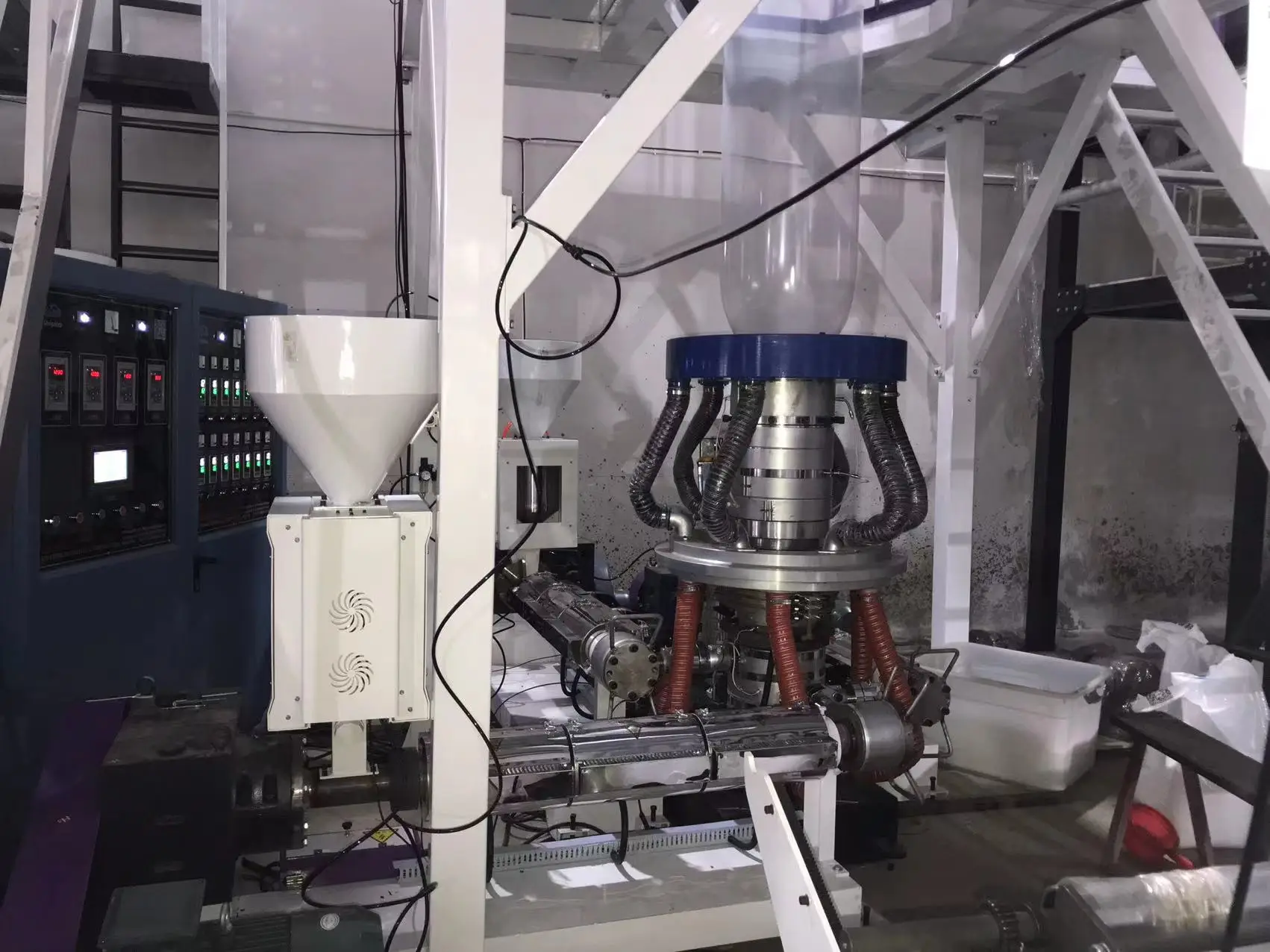

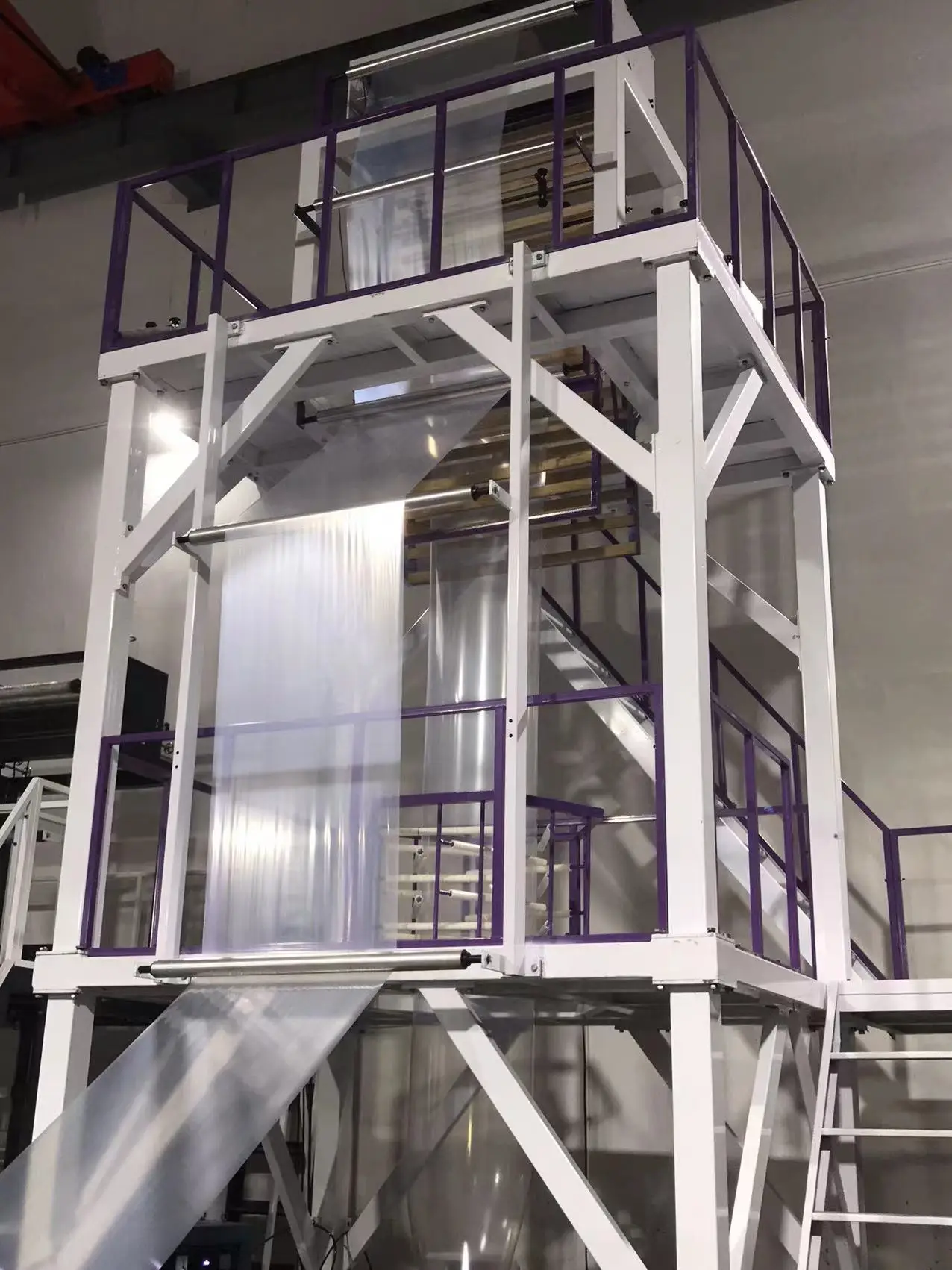

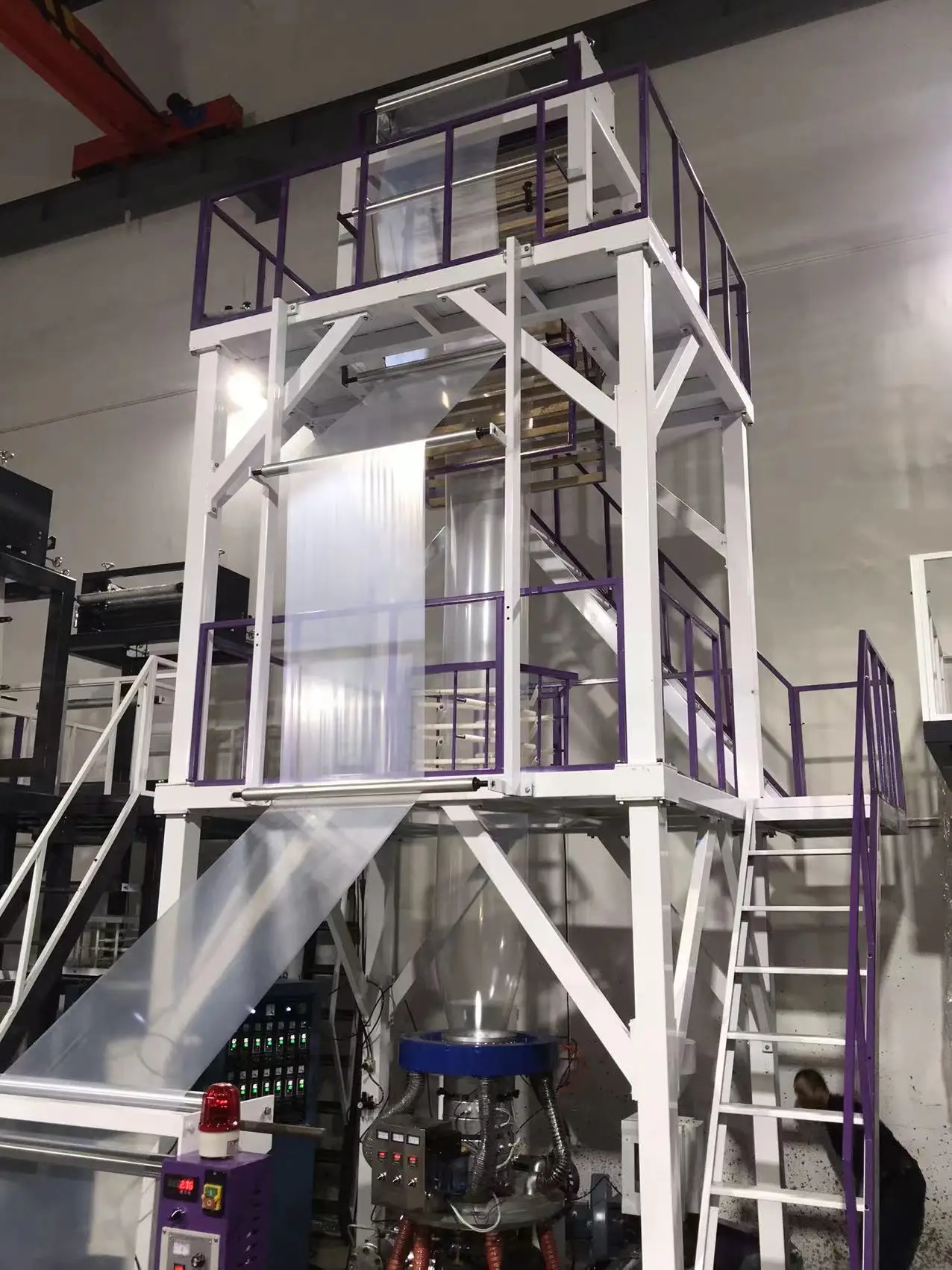

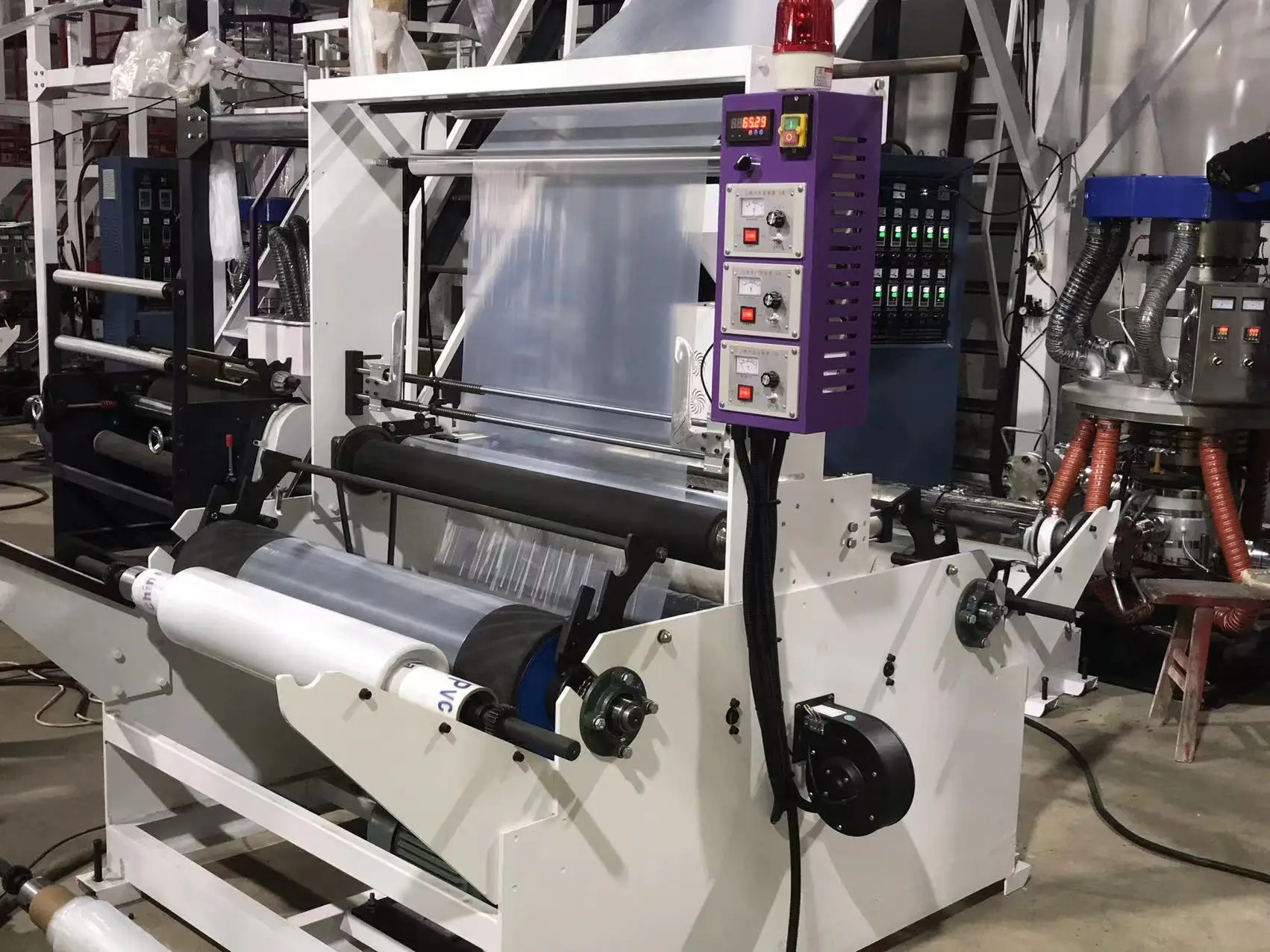

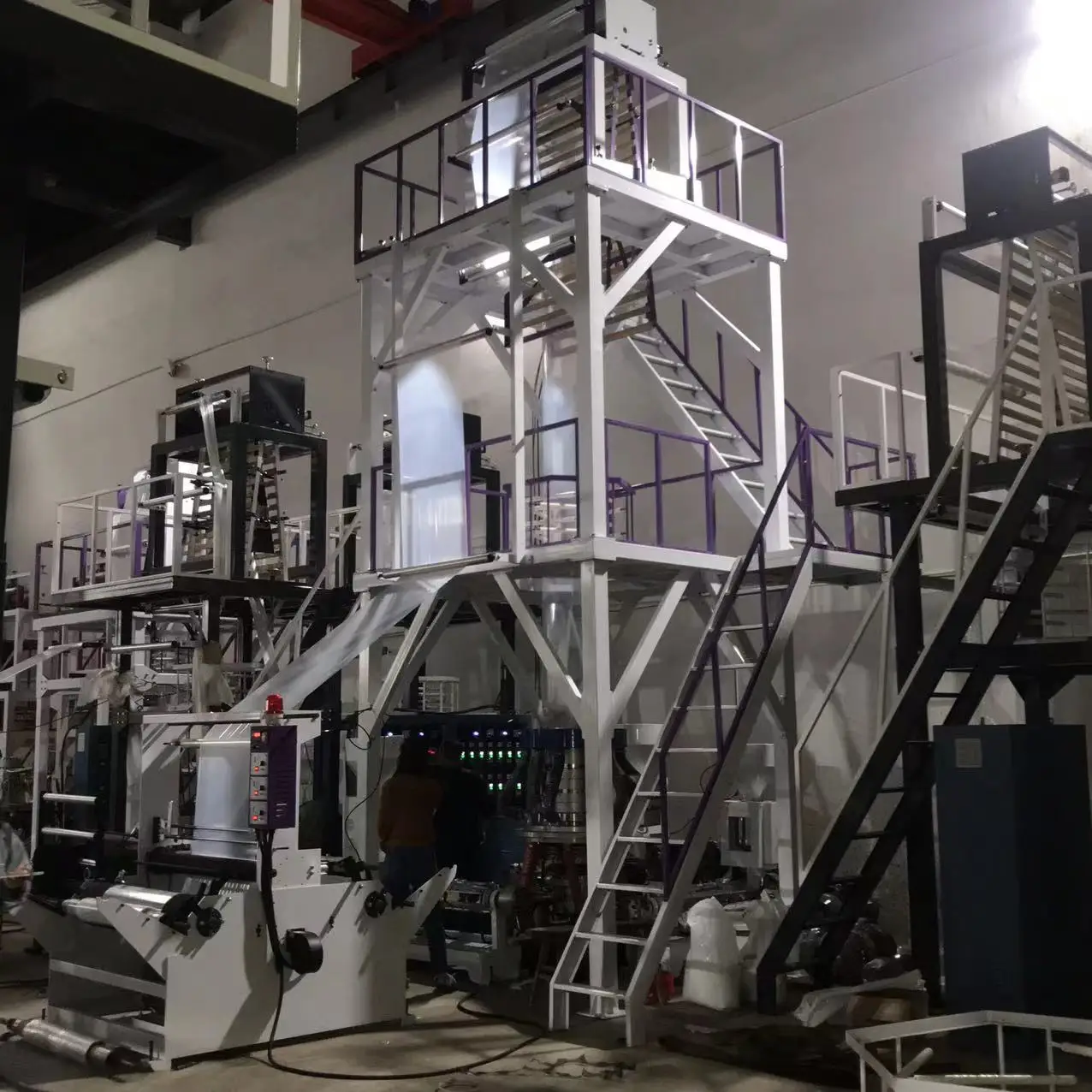

3 Layer ABC Co extruder Blown Film extruder Machine
- Category: >>>
- Supplier: Ruian Ruipai Machinery Co. Ltd.
Share on (1600520376045):
Product Overview
Description
Product Description
Main Usage
Applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufacture composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhesive film, multi-functional industrial film products, can better meet operational requirements of high accuracy and high speed color printing, composite and painting products.
Model | RP-3L60 |
Suitable Material | HDPE LDPE LLDPE |
Film Width | 1000-1500mm |
Film Thickness | 0.028-0.10mm |
Max. Extrusion Output | 150kg/hr |
Screw Diameter | A55+ B60+ C55mm |
Screw L/D Length | 28:1 |
Screw And Cylinder Material | SACM-645/38 CRMOALA |
Cylinder Cooling | 370w*2/3 |
Driving Motor | A18.5+B22+C18.5kw |
Temperature Control | 3x3kw |
Average Power-consume | 95kw |
Cover Dimension | 10.5*5.0*9m |
Features of the machine set
The tractor adopts horizontal swing rotation which replaces the die rotation and simplifies die structure. It solves problems of leakage, poor, sealing, and maintenance and improves the quality of film.
The IBC internal bubble cooling system improves film quality and transparency, finally increases the output.
High precision fold diameter control system reduces deviation by controlling air blower speed and adjusting air flow.
EPS photoelectron correct errors system can correct automatically, which ensures the roll film evenly.
High accurate mould and effective air cooling system ensure high quality film and output.
The IBC internal bubble cooling system improves film quality and transparency, finally increases the output.
High precision fold diameter control system reduces deviation by controlling air blower speed and adjusting air flow.
EPS photoelectron correct errors system can correct automatically, which ensures the roll film evenly.
High accurate mould and effective air cooling system ensure high quality film and output.
Characteristics:
1. High output, production capacity greatly increased.
2. The plastic products good plasticization, tensile strength is improved obviously.
3. Plastic products high gloss, excellent brightness feel is great in hand.
4. Blowing material widely, strong applicability. Suitable for blowing the various shopping bag film, vegetable bag film, industrial ling film.
5. Three screw, three extruder, ABC three layer co-extrusion die, high cost performance, for customers to reduce production costs, improve market competitiveness.
6. Gearbox: high strength hard tooth, water cooling oil pump.
7. Main motor, take up motor controlled by inverter, to save 30% electricity power.
8. Second traction roller
9. Automatic digital temperature control
10. Die head with high chromed.
2. The plastic products good plasticization, tensile strength is improved obviously.
3. Plastic products high gloss, excellent brightness feel is great in hand.
4. Blowing material widely, strong applicability. Suitable for blowing the various shopping bag film, vegetable bag film, industrial ling film.
5. Three screw, three extruder, ABC three layer co-extrusion die, high cost performance, for customers to reduce production costs, improve market competitiveness.
6. Gearbox: high strength hard tooth, water cooling oil pump.
7. Main motor, take up motor controlled by inverter, to save 30% electricity power.
8. Second traction roller
9. Automatic digital temperature control
10. Die head with high chromed.
Related Products
After Sales Service
1. All documents needed for customer clearance.
2. Engeneers available to service machinery overseas.
3. Training the operation and maintenance of the machines.
4. Online service all 24/7.
2. Engeneers available to service machinery overseas.
3. Training the operation and maintenance of the machines.
4. Online service all 24/7.
Company Introduction
Ruian Ruipai Machinery Co.,Ltd.(former named Ruian Zhongqi Equipment Co.,Ltd) is your competent cooperative partner in wide range for complete plastic machinery over 10 years experience. We are professional manufacturer of plastic machinery as like film blown extruder, bag making machine, printing presss, pelletizing machine, slitting machine etc. And We are also exported engaged in varies of paper machinery as well as packaging machine etc.. We exported the machines to worldwide as Southeast Asia, Middle East, South Asia, Russian, North Asia, North America, Eastern Europe, Africa etc. We have won the honor and reputation in plastic machinery and relative industry with excellent quality and good service.
