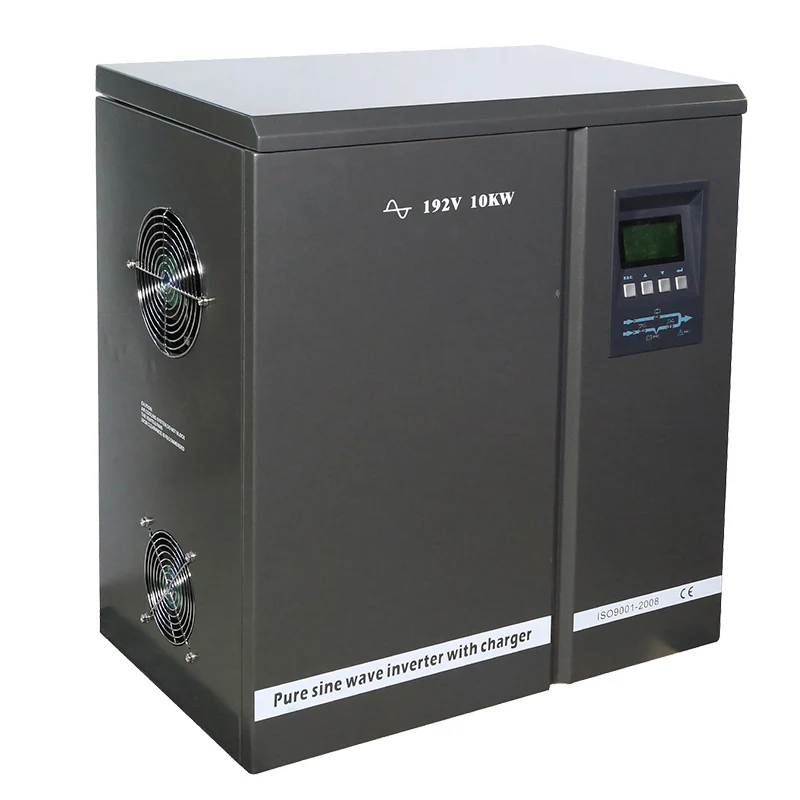

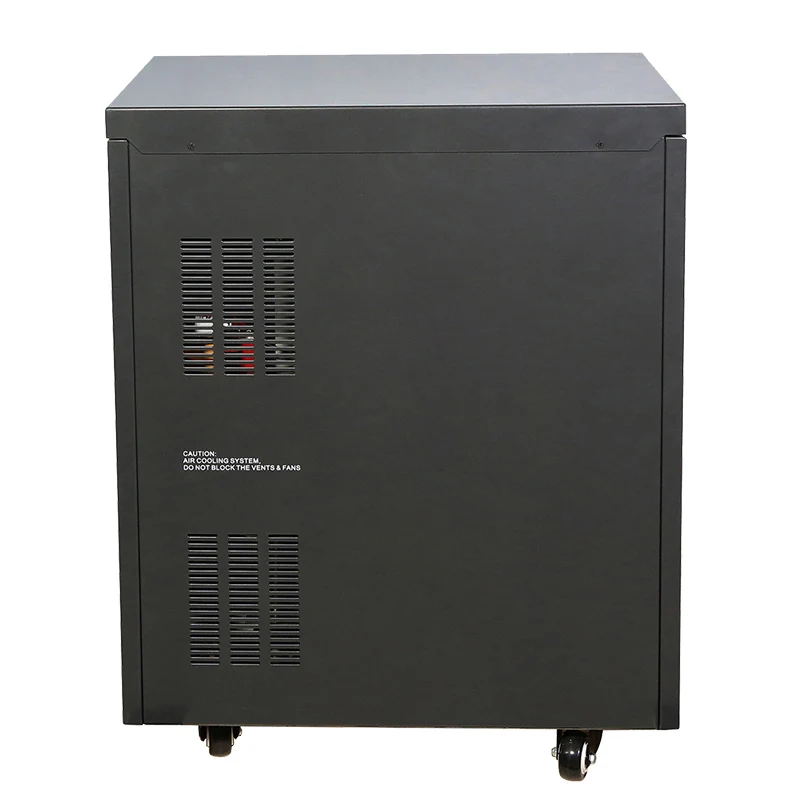

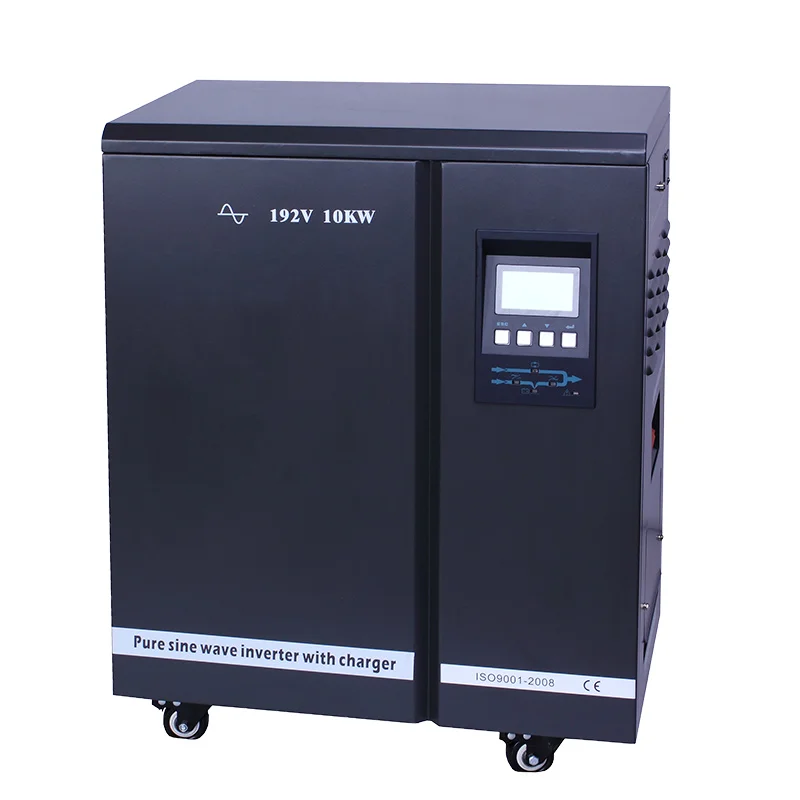

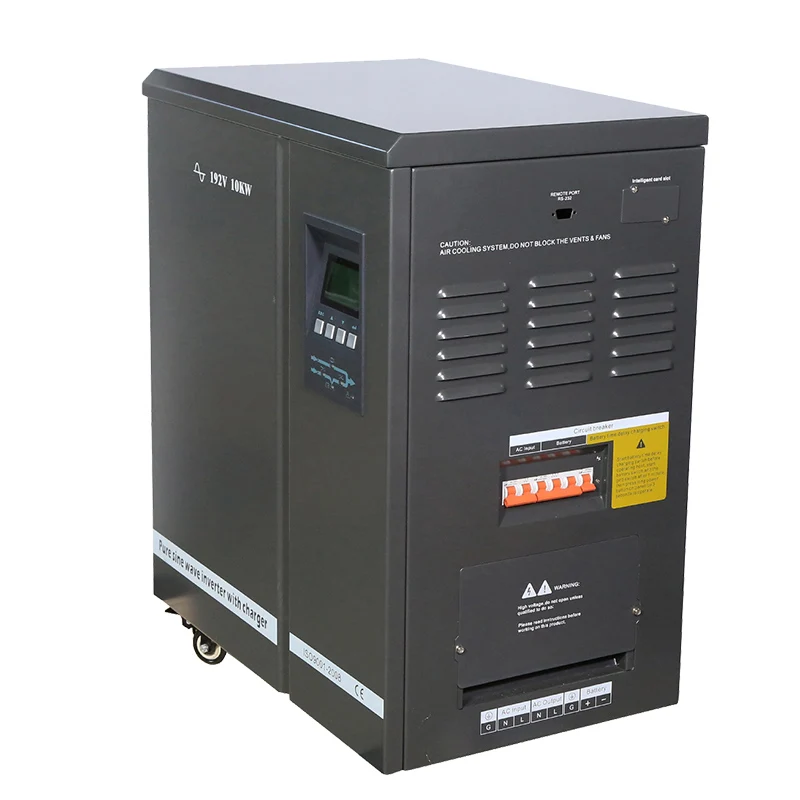

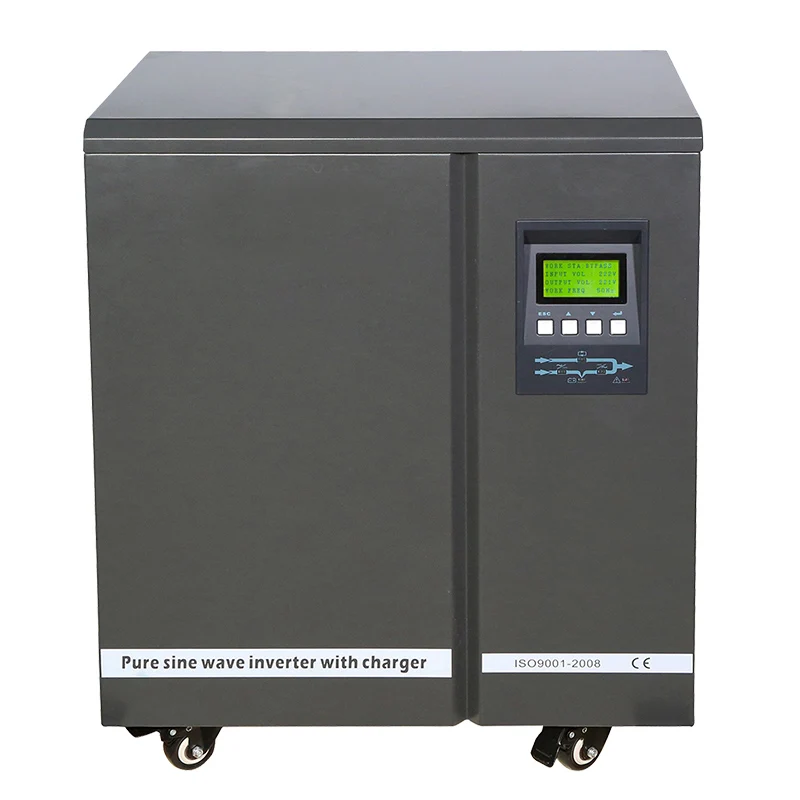

solar inverter off grid 10kw 96vdc 192vdc off grid inverter low frequency
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (1600520405681):
Product Overview
Description

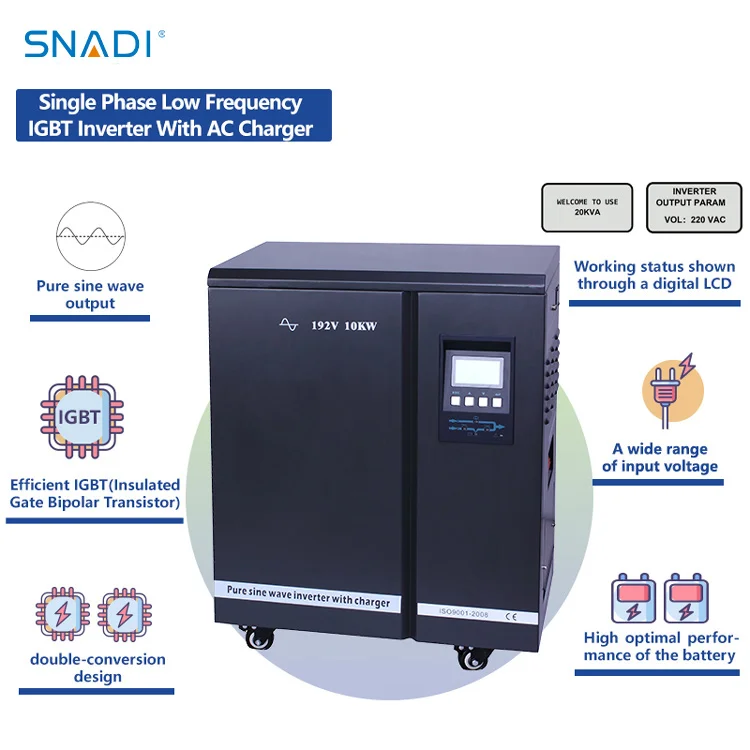

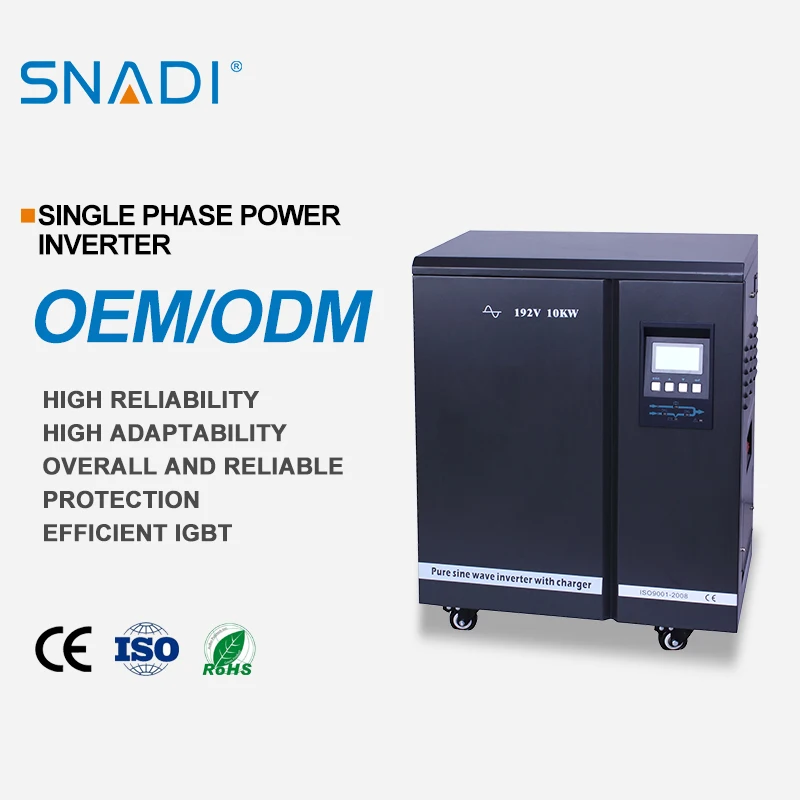

The main feature of the product
1.High reliability
2.High adaptability
( a wide range of input frequency, which realizes stable operation of fuel generators)
3.High optimal performance of the battery
4.Overall and reliable protection
5.Overall automatic protection and alarms such as output overload protection

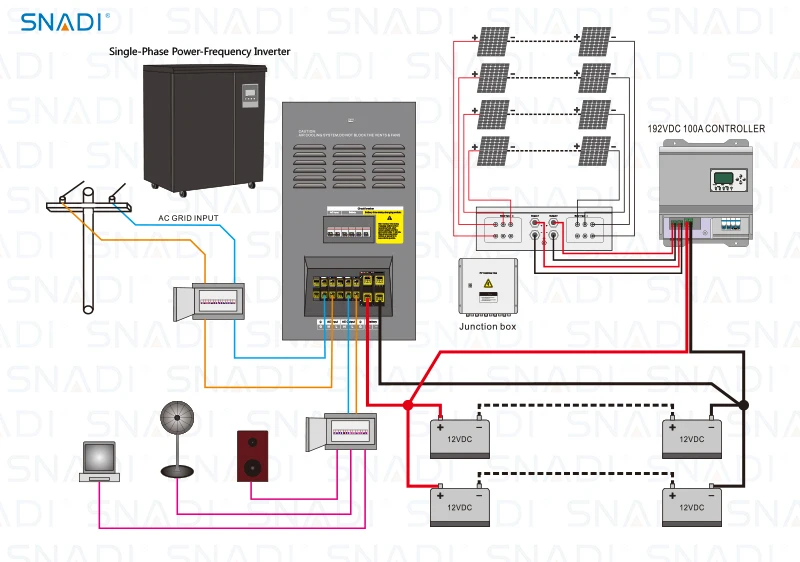

Application Diagram
Specification
Model: SN | 6KW | 8KW | 10KW | 12KW | 15KW | 20KW | |||||||
Rated power | 6KW | 8KW | 10KW | 12KW | 15KW | 20KW | |||||||
Battery | Battery Voltage | 96VDC/192VDC | 192VDC | ||||||||||
Charge current | 10A-20A | ||||||||||||
Low voltage protection | 84VDC/168VDC | 168VDC | |||||||||||
Input | Voltage range | 88-132VAC/176-264VAC | |||||||||||
Frequency | 45-65Hz | ||||||||||||
Output | Voltage range | 110VAC/220VAC | |||||||||||
Frequency | 50/60Hz | ||||||||||||
Output waveform | Pure sine wave | ||||||||||||
Conversion time | <4ms (typical load) | ||||||||||||
Efficiency | >85%(100% resistive load) | >90%(100% resistive load) | |||||||||||
Overload | 110-120%/30s; >160%/300S | ||||||||||||
Protection function | Battery overvoltage/battery undervoltage/overload/short circuit/overtemperature protection | ||||||||||||
Operation of ambient temperature | 0-65 ºC | ||||||||||||
Ambient temperature for storage | -15~+75ºC | ||||||||||||
Operation/storage combient | 0-90% No condensation | ||||||||||||
Product dimensions: D*W*H (mm) | 638*260*620 | 690*370*810 | |||||||||||
Gross weight (kg) | 77 | 90 | 127 | 130 | 150 | 160 | |||||||
Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010, specialized in off grid solar inverter, solar controller, solar hybrid
inverter, solar combiner box and portable solar system. There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,UPS
4. why should you buy from us not from other suppliers?
We're leading supplier for solutions for electric energy and new energy and an electric energy company specialized in new energy,
SNAT has powerful strength and is engaged in both electric energy and new energy.SNAT has been being a pioneer in the world
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
We are based in Guangdong, China, start from 2010, specialized in off grid solar inverter, solar controller, solar hybrid
inverter, solar combiner box and portable solar system. There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,UPS
4. why should you buy from us not from other suppliers?
We're leading supplier for solutions for electric energy and new energy and an electric energy company specialized in new energy,
SNAT has powerful strength and is engaged in both electric energy and new energy.SNAT has been being a pioneer in the world
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
