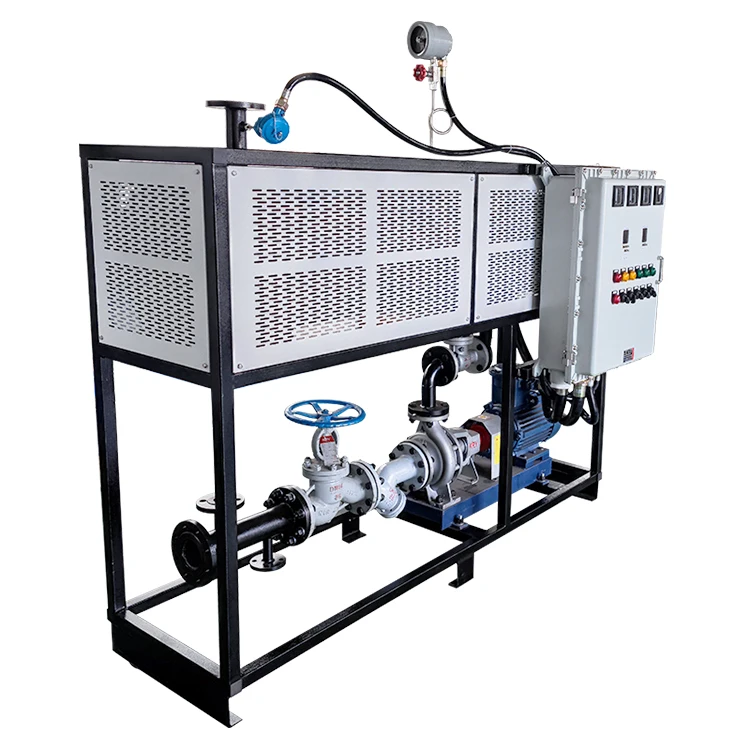

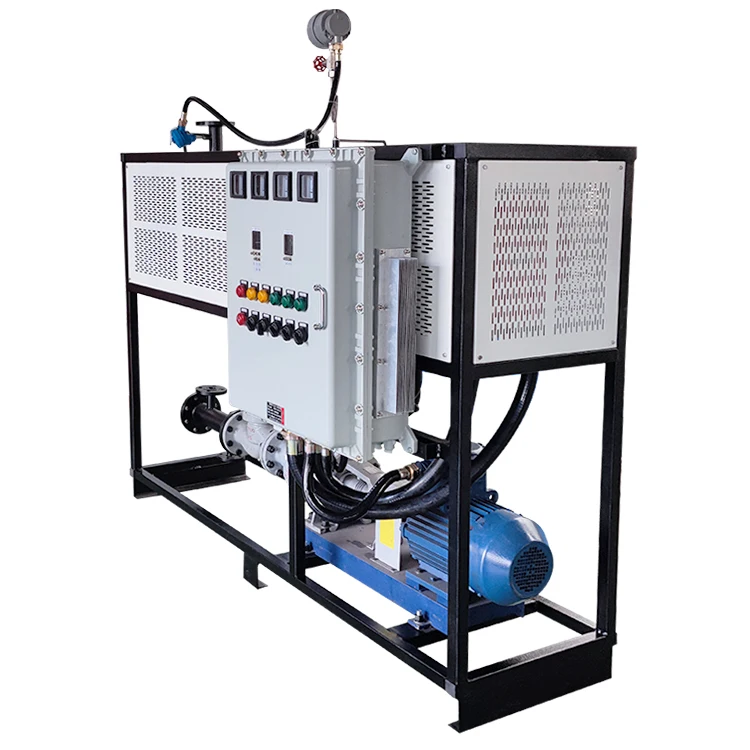

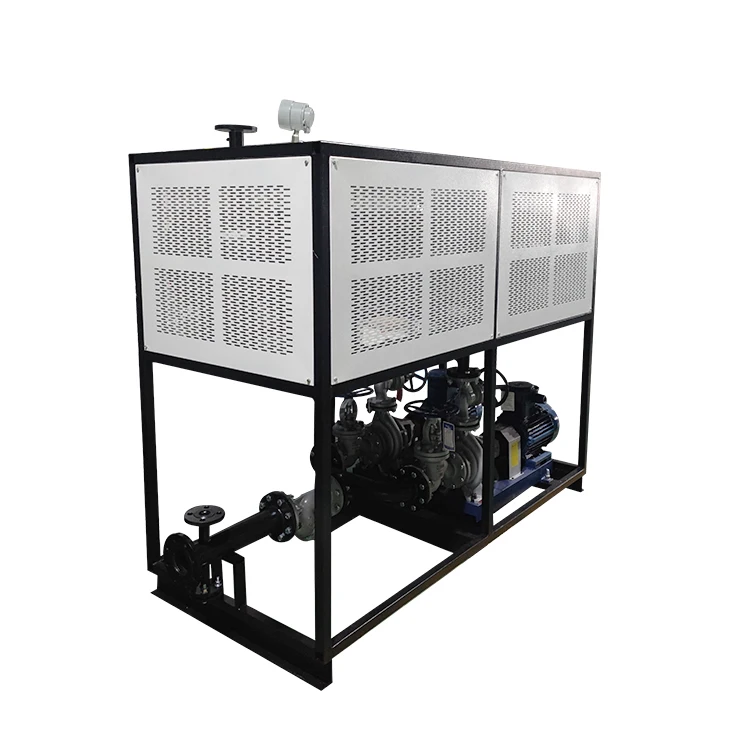

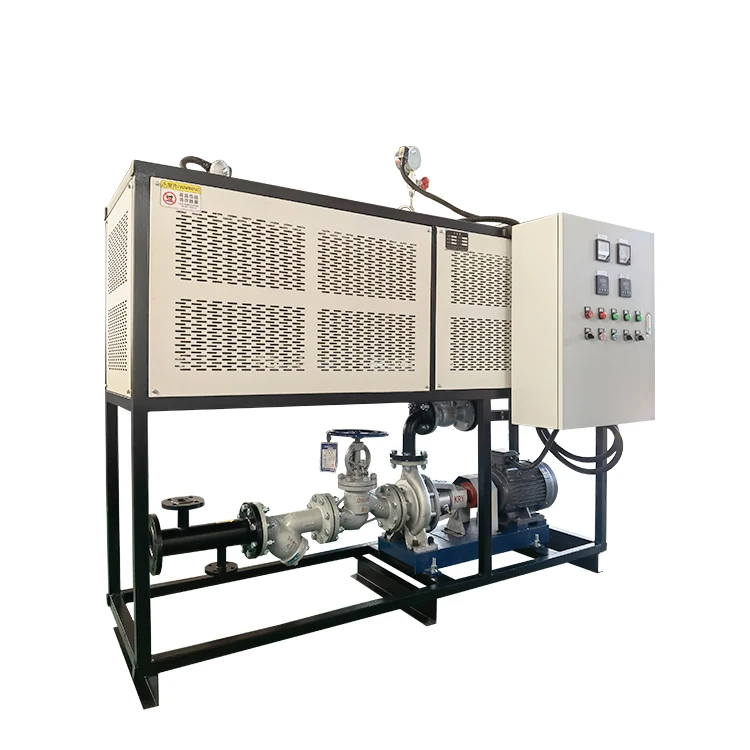

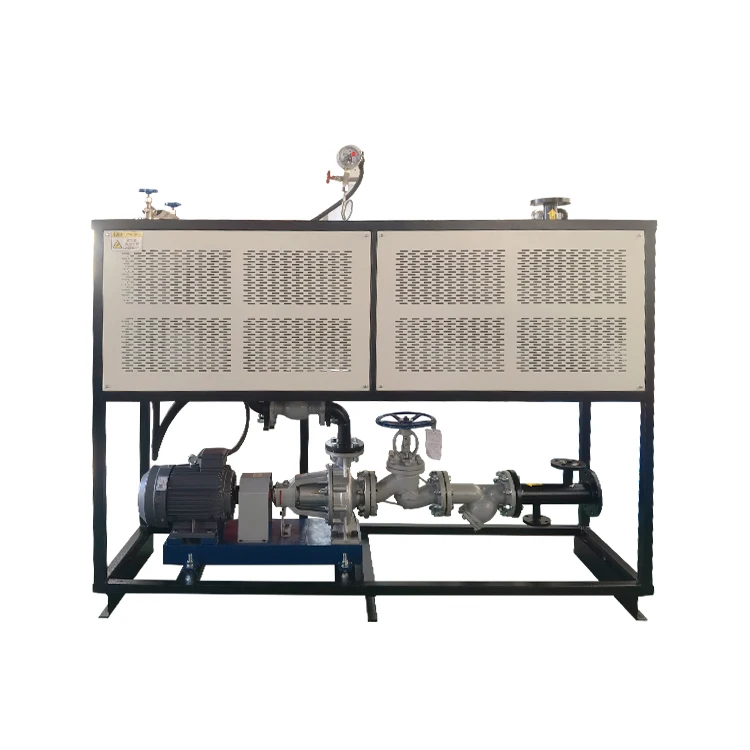

Electric 36KW Thermal Oil furnace thermal oil heating system induction heating furnace
- Category: >>>
- Supplier: Jiangsu Solid Electric Heating Equipment Co. Ltd.
Share on (1600520469730):
Product Overview
Description
Thermal oil electric heater is a new type, safe, high efficiency and energy saving, low pressure (under normal pressure or lower pressure) and can provide high temperature heat energy special industrial furnace, It is a direct-flow special industrial furnace that uses electricity as the heat source and heat transfer oil as the heat carrier, and uses a circulating oil pump to force the liquid phase to circulate. The heat energy is transferred to the heating equipment and then returned to the reheated DC special industrial furnace, Repeatedly in this way, the continuous transfer of heat is realized, and the temperature of the heated object is increased to meet the heating process requirements.

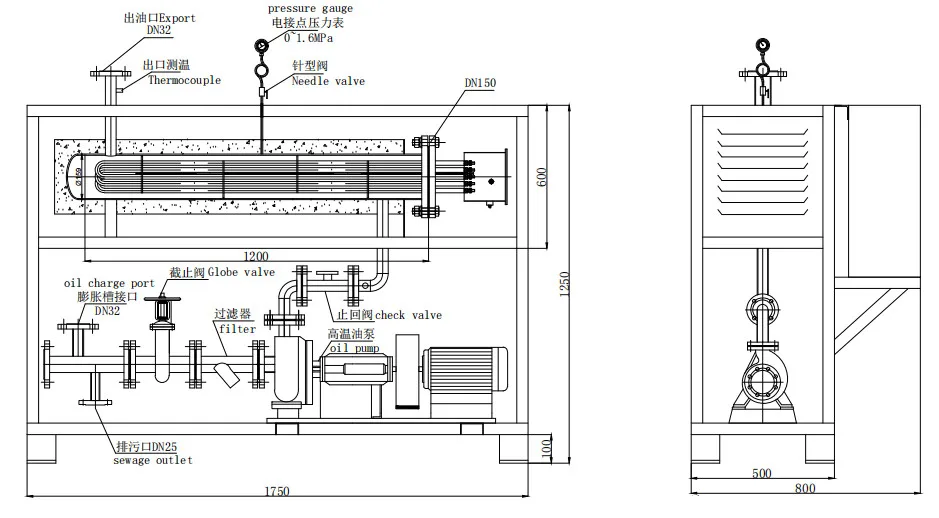

Model | Heater Power (KW) | Oil Capacity (L) | Overall Dimension(L*W*H) | Heating-oil Pump | Expansion Tank(mm) | ||||
Power(kw) | Flow(m3/h) | Head(m) | |||||||
SD-YL-10 | 10 | 15 | 1400*500*1150 | 1.5 | 8 | 22 | φ400*500 | ||
SD-YL-18 | 18 | 23 | 1750*500*1250 | 1.5 | 8 | 22 | φ400*500 | ||
SD-YL-24 | 24 | 28 | 1750*500*1250 | 2.2 | 12 | 25 | φ400*500 | ||
SD-YL-36 | 36 | 48 | 1750*500*1250 | 3 | 14 | 30 | φ500*600 | ||
SD-YL-48 | 48 | 48 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
SD-YL-60 | 60 | 52 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
SD-YL-72 | 72 | 60 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
SD-YL-90 | 90 | 68 | 2100*600*1550 | 7.5 | 25 | 50 | φ500*600 | ||
SD-YL-120 | 120 | 105 | 2100*600*1550 | 7.5 | 25 | 50 | φ600*700 | ||
SD-YL-150 | 150 | 195 | 2200*700*2000 | 7.5 | 25 | 50 | φ600*700 | ||
SD-YL-180 | 180 | 230 | 2200*700*2000 | 11 | 60 | 40 | φ700*800 | ||
SD-YL-240 | 240 | 260 | 2200*700*2000 | 15 | 80 | 40 | φ700*800 | ||
SD-YL-300 | 300 | 293 | 2600*950*2200 | 15 | 80 | 40 | φ700*800 | ||
SD-YL-400 | 400 | 358 | 2600*950*2000 | 15 | 80 | 40 | φ800*1000 | ||
SD-YL-500 | 500 | 510 | 2200*1000*2000 | 15 | 80 | 40 | φ800*1000 | ||
SD-YL-600 | 600 | 562 | 2600*1200*2000 | 22 | 100 | 55 | φ800*1000 | ||
SD-YL-800 | 800 | 638 | 2600*1200*2000 | 22 | 100 | 55 | φ1000*1200 | ||
SD-YL-1000 | 1000 | 750 | 2600*1200*2000 | 30 | 100 | 70 | φ1000*1200 | ||

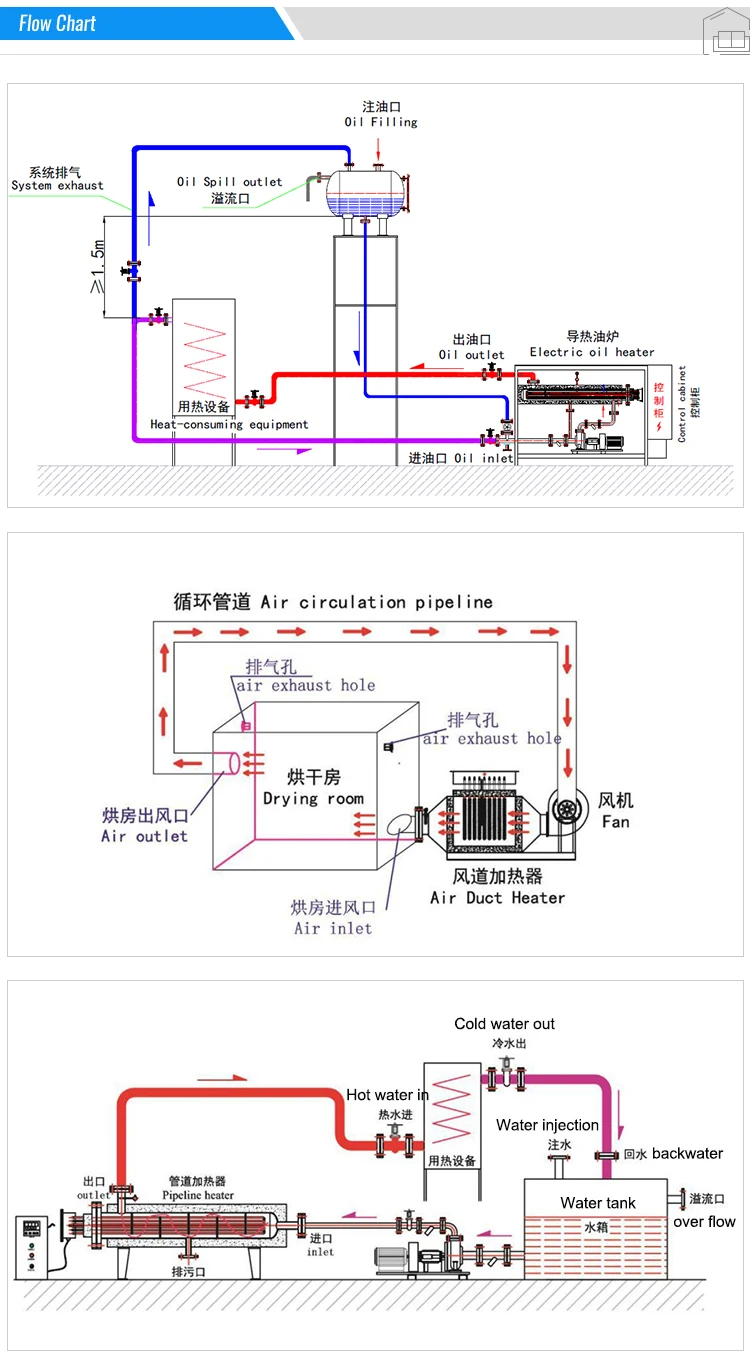

Thermal oil electric heater is widely used on hot roller/hot rolling machine, calender/kneader, radiator/heat exchanger, reaction kettle/distillating machine, drying oven/drying room/drying tunnel, Laminator/ Vulcani zing machine
