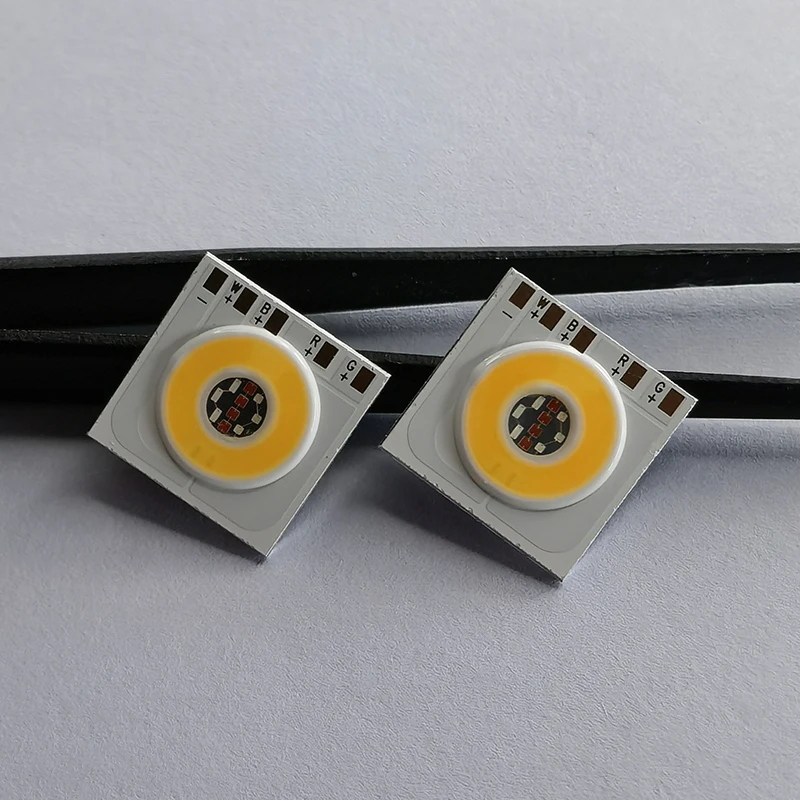

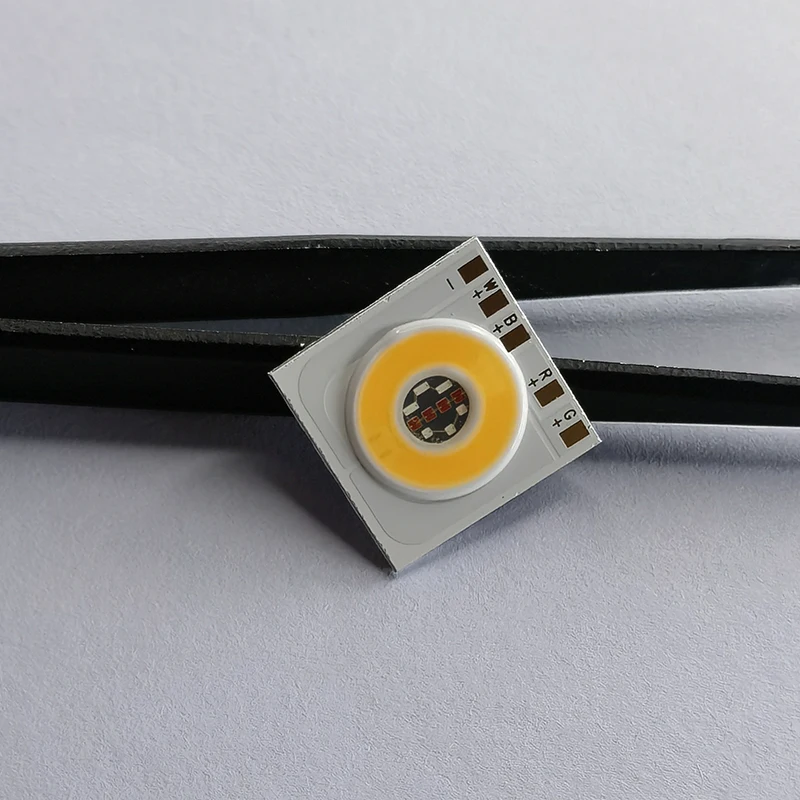

8W 10W 1310mm COLOR RGBW 1313 high power led rgbw led chip with 13mm aluminum PCB
- Category: >>>
- Supplier: Shenzhen Huanyu Dream Technology Co. Ltd.
Share on (1600520474087):
Product Overview
Description
Product Description

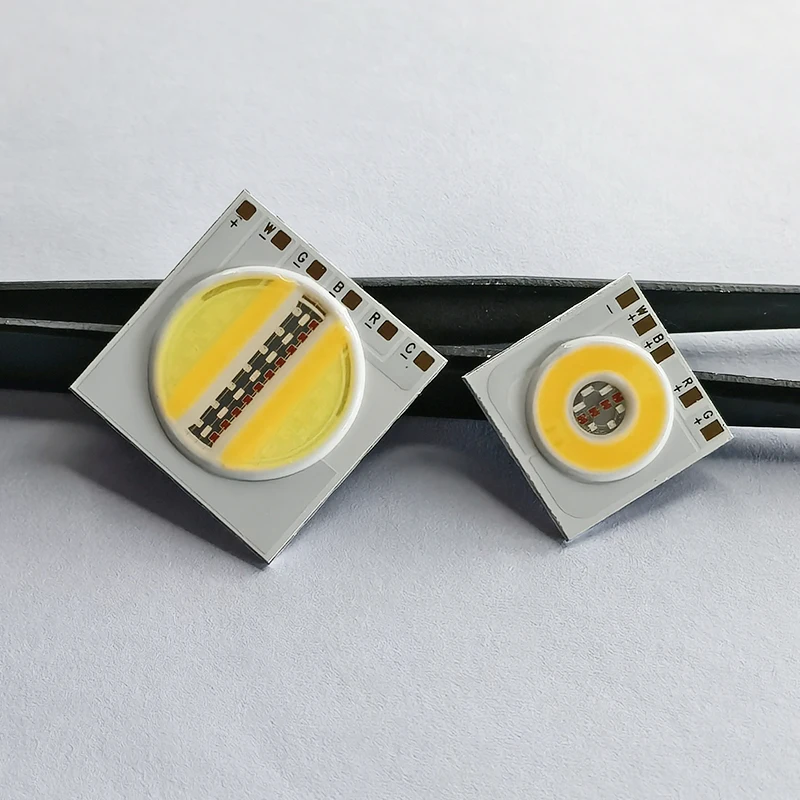

8Watt 10 watt 12watt 1313 Epistar Epileds Bridgelux Red Green Blue full Color High Power COB RGB White RGBCW 10W LED Chip COB

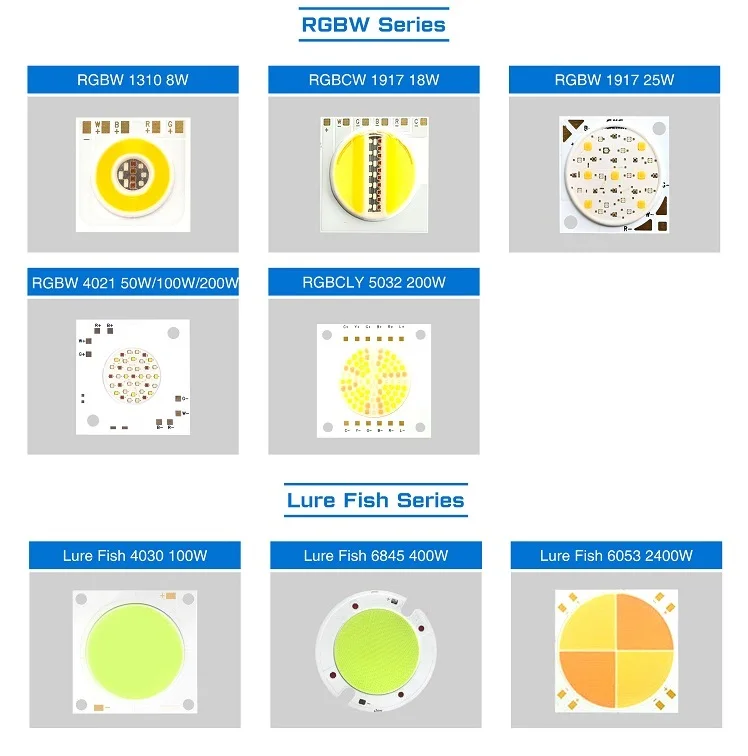

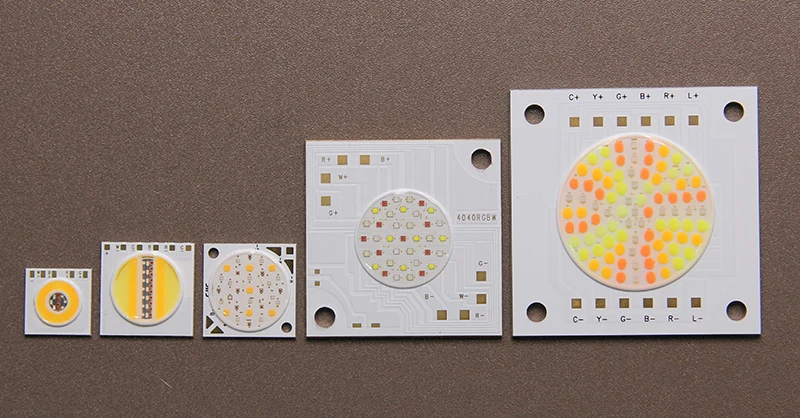

》》1313 1919 4040 5050 RGB+CCT RGBW RGBWW COB LED different size
》》8W 18W 25W 30W 50W 80W 100W 200W available
》》Cri 70 Cri 80 Cri 90 Cri 95 as choose
》》Supply customize size / Voltage / Watt / Current /Shape

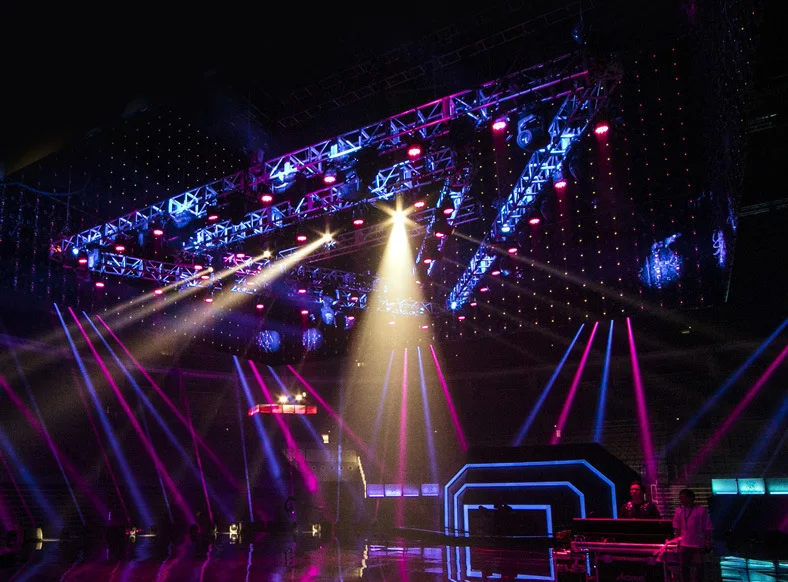

》》Widly use for RGBWW stage lights,pool light rgbw,LED Par light,LED studio light etc
》》8W 18W 25W 30W 50W 80W 100W 200W available
》》Cri 70 Cri 80 Cri 90 Cri 95 as choose
》》Supply customize size / Voltage / Watt / Current /Shape
》》Widly use for RGBWW stage lights,pool light rgbw,LED Par light,LED studio light etc

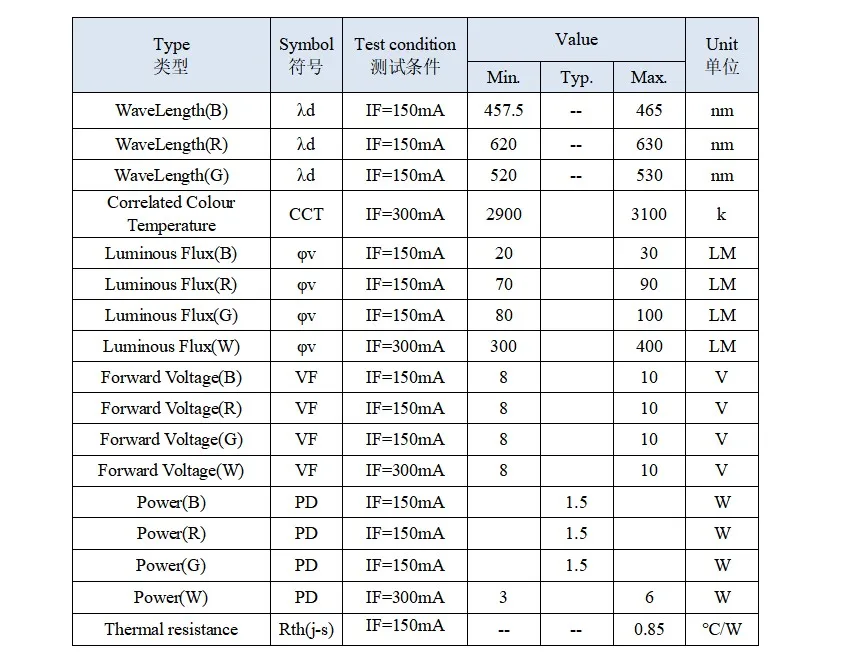

RGBWW RGBCW COB LED 1313 8W-12W | ||||||||||||||||
Item | Power | Color | Voltage | Current | Wd/CCT | Series | Lumious | CRI | ||||||||
1310 RGB+W COB LED | 8W | Red | 8-10V | 150mA | 620-625nm | 4S1P | 70-90LM | / | ||||||||
Green | 150mA | 520-525nm | 3S1P | 80-100LM | / | |||||||||||
Blue | 150mA | 460-465nm | 3S1P | 20-30LM | / | |||||||||||
White | 300mA | 3000K | 3S4P | 800-1100LM | 80Ra | |||||||||||
Part No. | Power (W) | Voltage (V) | Current (mA) | Luminous (LM) | CRI (Ra) | CCT (K) |
13*13mm | 8W | 8-10V | RGB:150MA W:300MA | 130-140LM/W【Ra>80】 | 70/80/90/95/98 | 1800k-6500k |
19*19mm | 18W | 20-24V | RGB:150MA W:300MA | 80-100LM/W【Ra>90】 | 70/80/90/95/98 | 1800k-6500k |
19*19mm | 25W | 20-24V | RGB:150MA W:300MA | WW 700-900LM CW 800-1000LM | 70/80/90/95/98 | 1800k-6500k |
40*40mm | 100W | 26-30V | 800mA | 70-100LM/W【Ra>70】 | 70/80/90/95/98 | 1800k-6500k |
40*40mm | 200W | 28-34V | 1600mA | W 3200-3800LM |

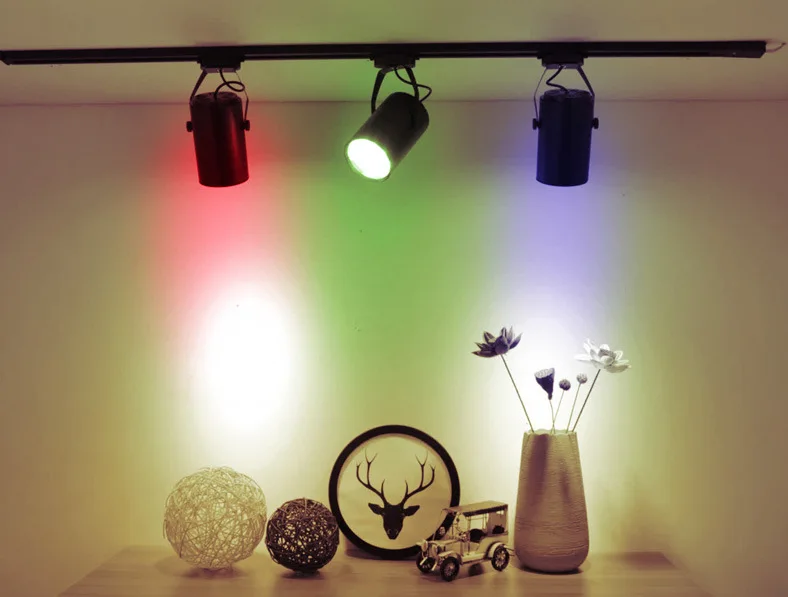

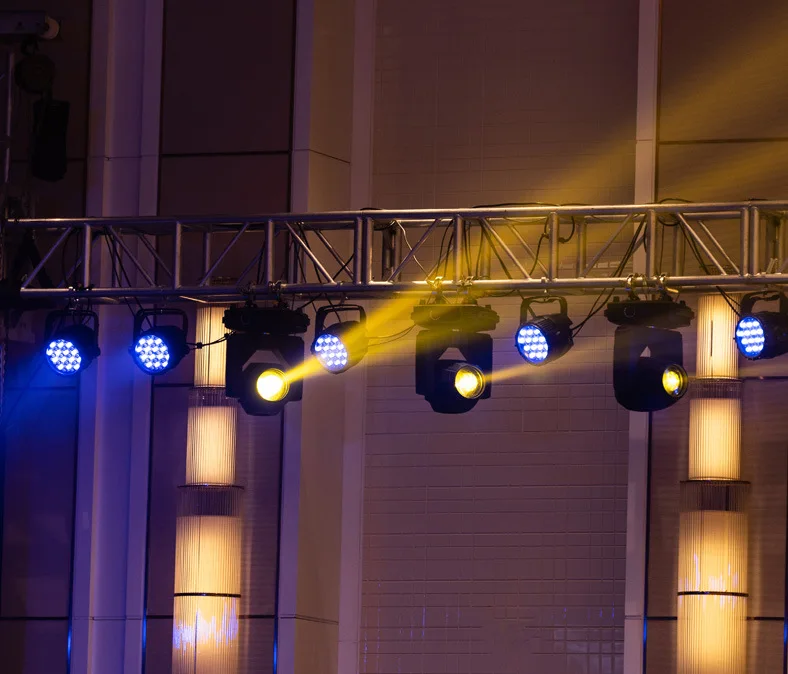

Application
Related Products
Company Information

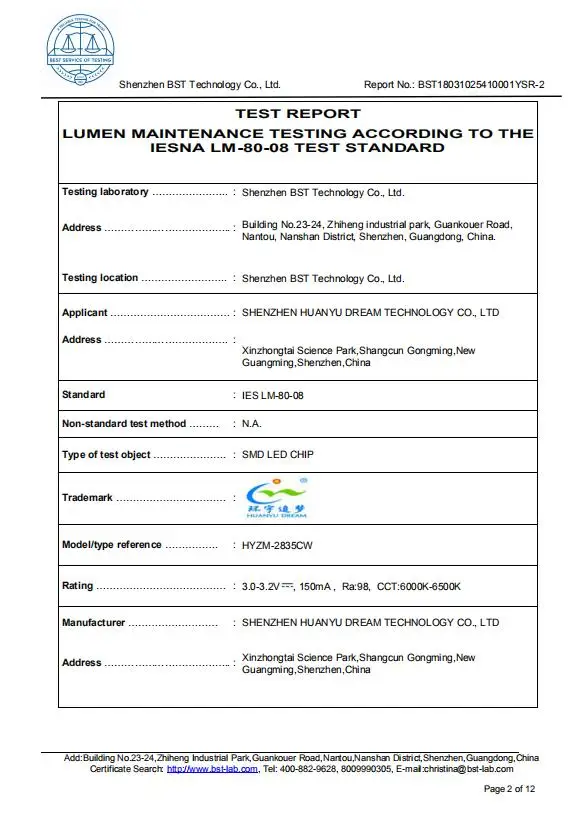

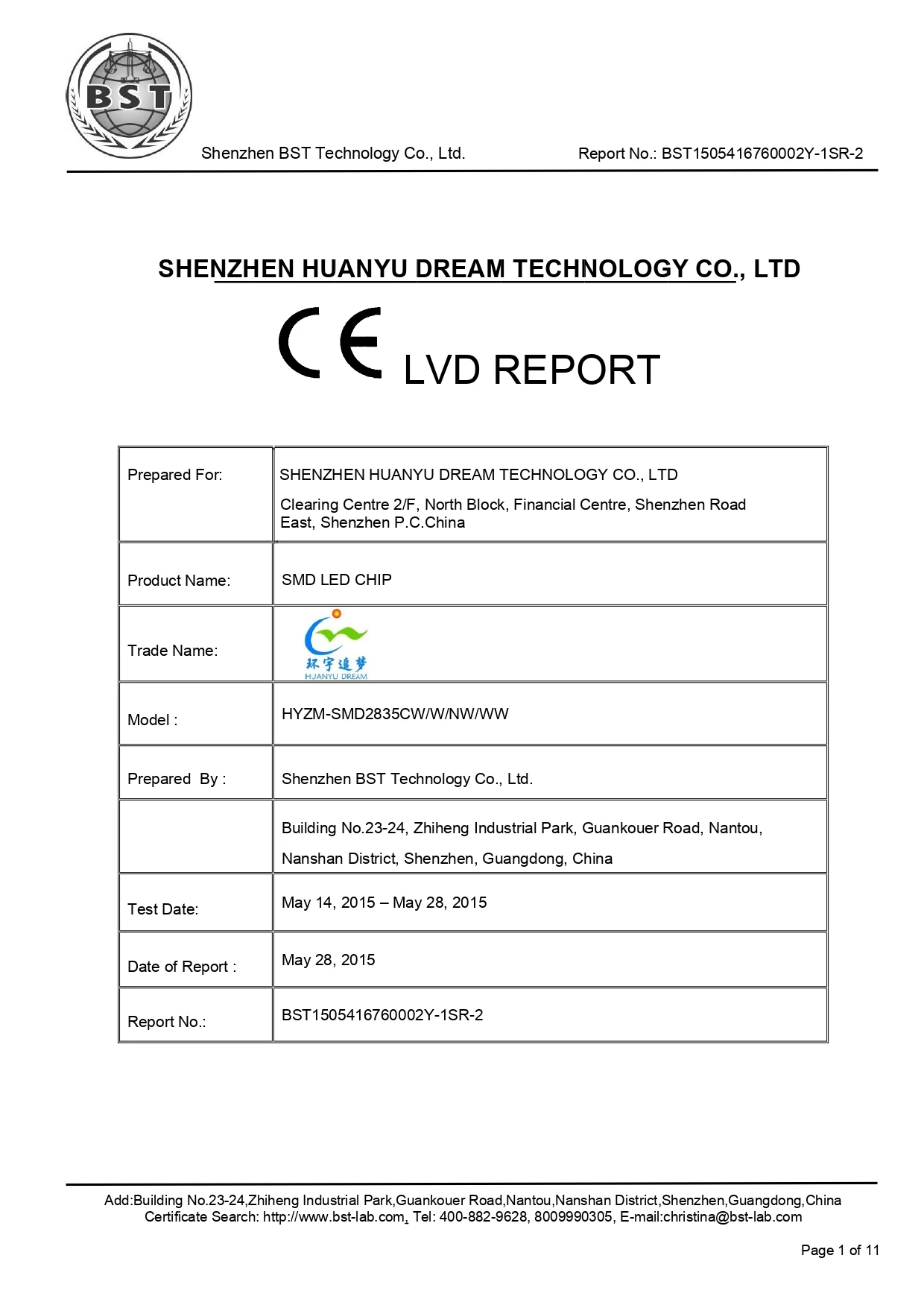

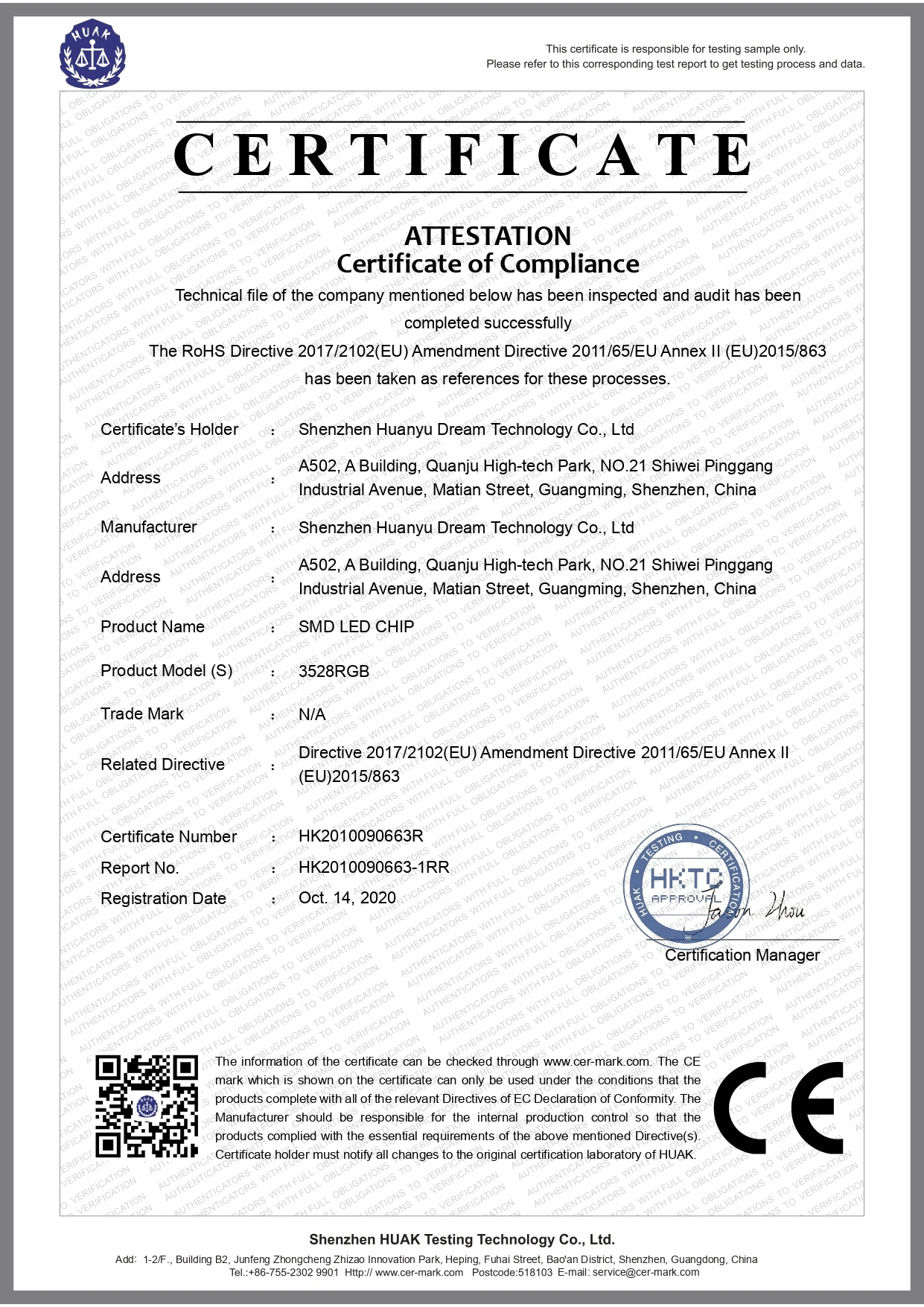

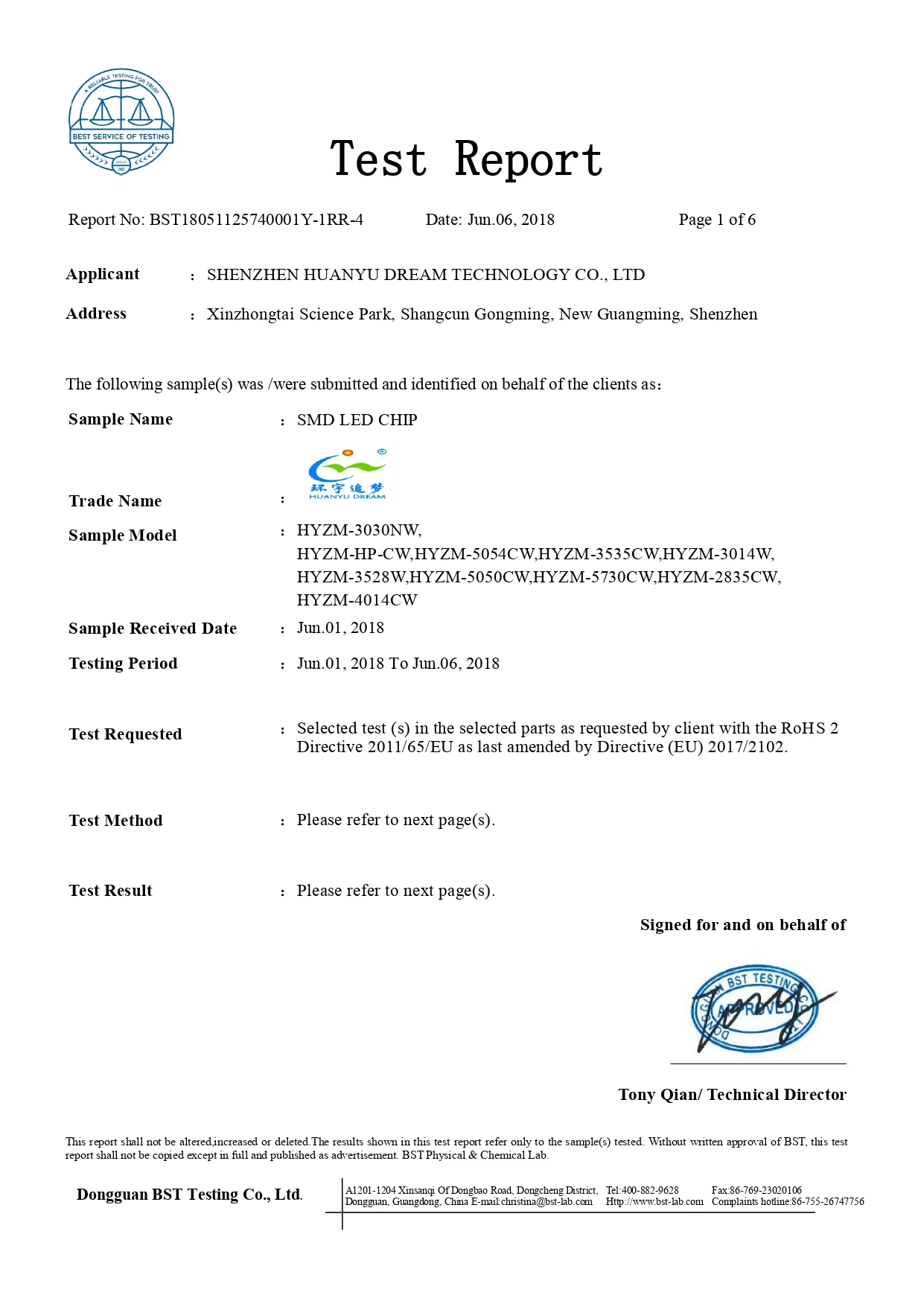

Certification

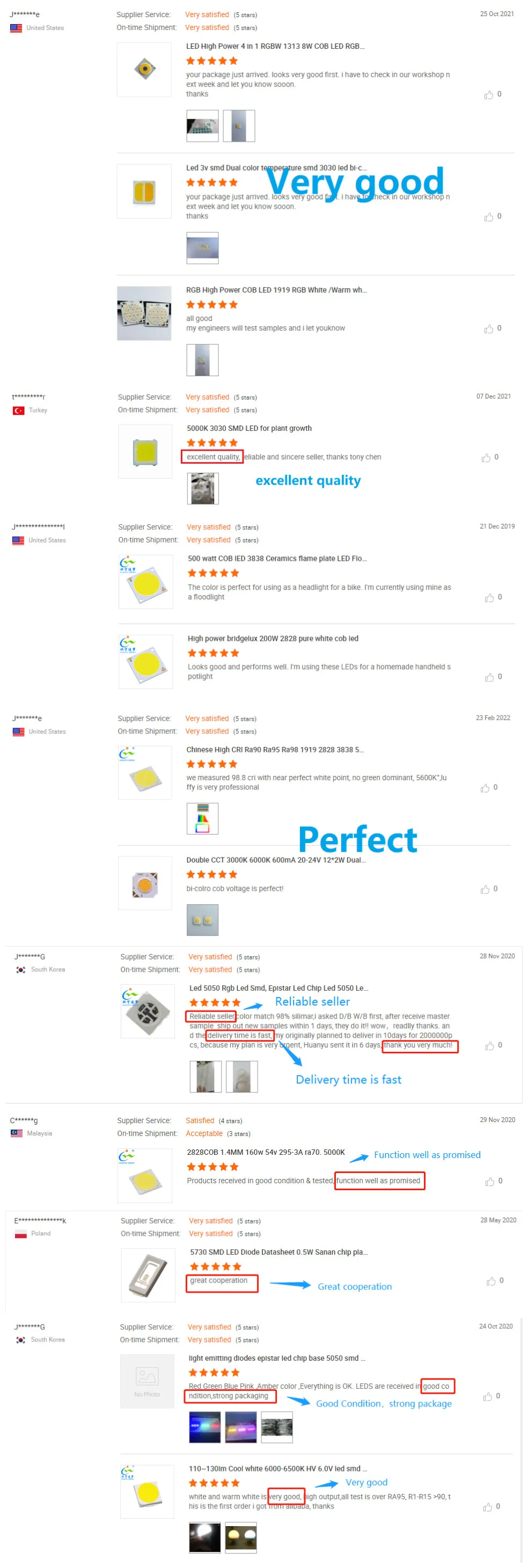

Customer Reviews
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
