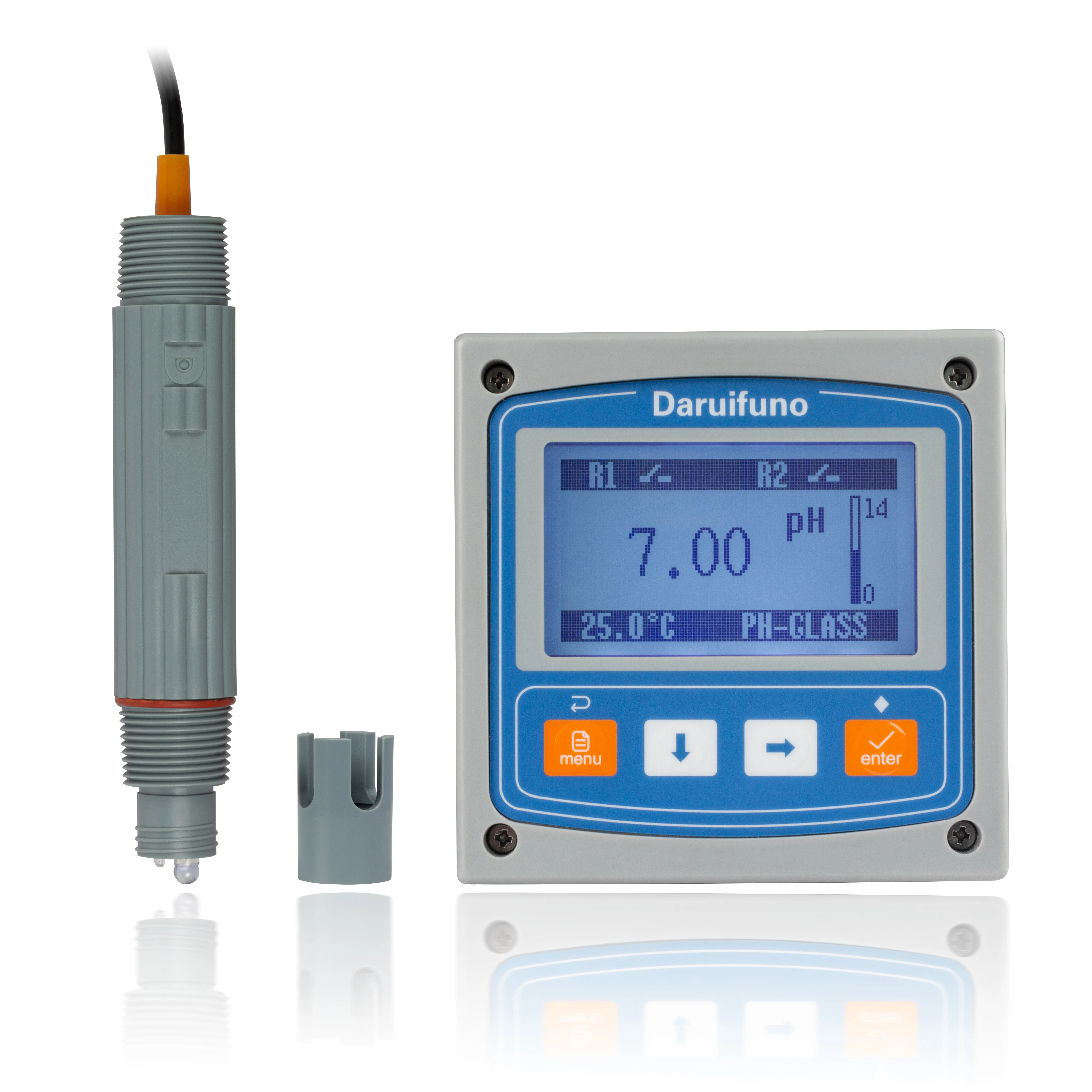

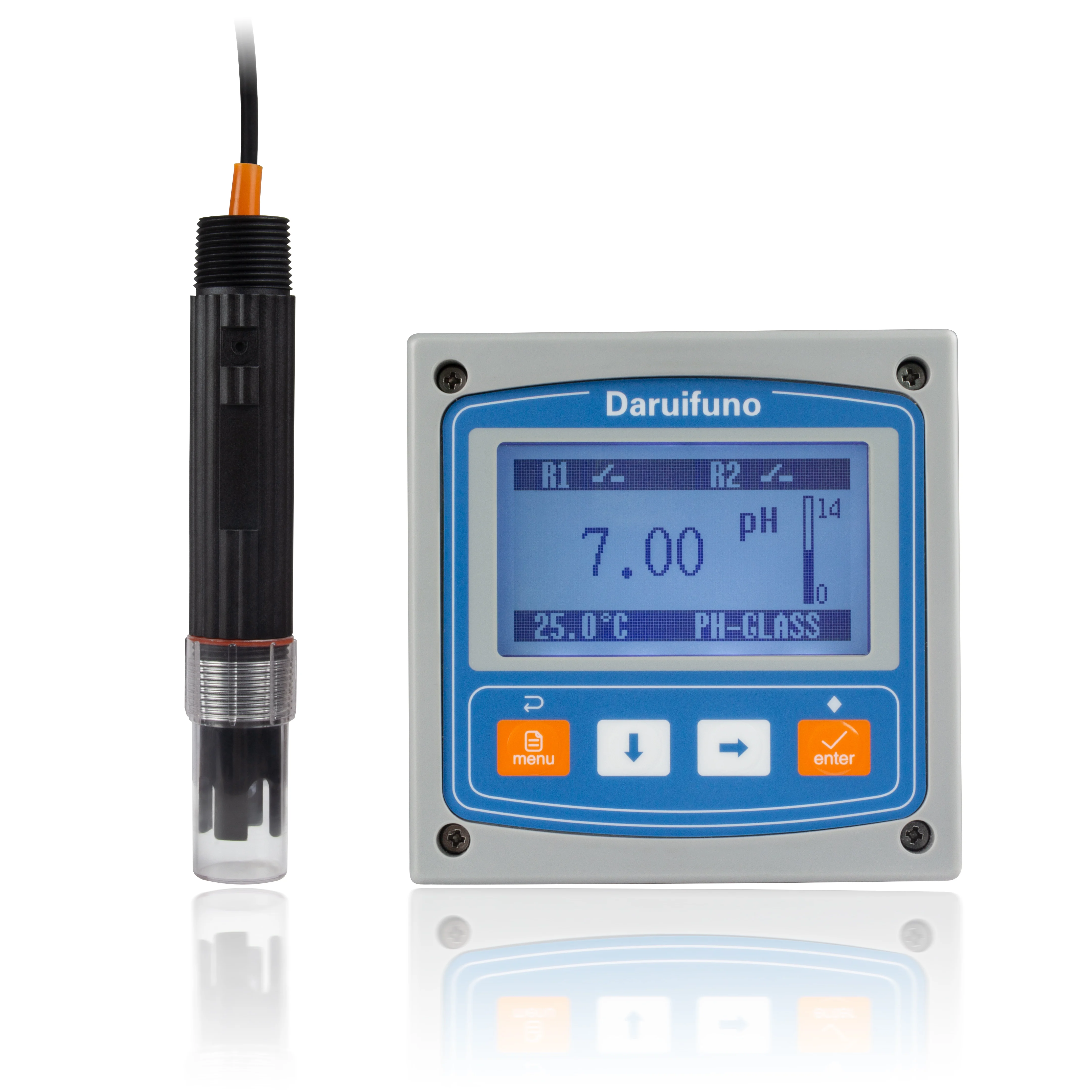

IP66 Relay Automatic Dosing Control Online pH Meter
- Category: >>>
- Supplier: Suzhou Delfino Environmental Technology Co. Ltd.
Share on (1600520474995):
Product Overview
Description

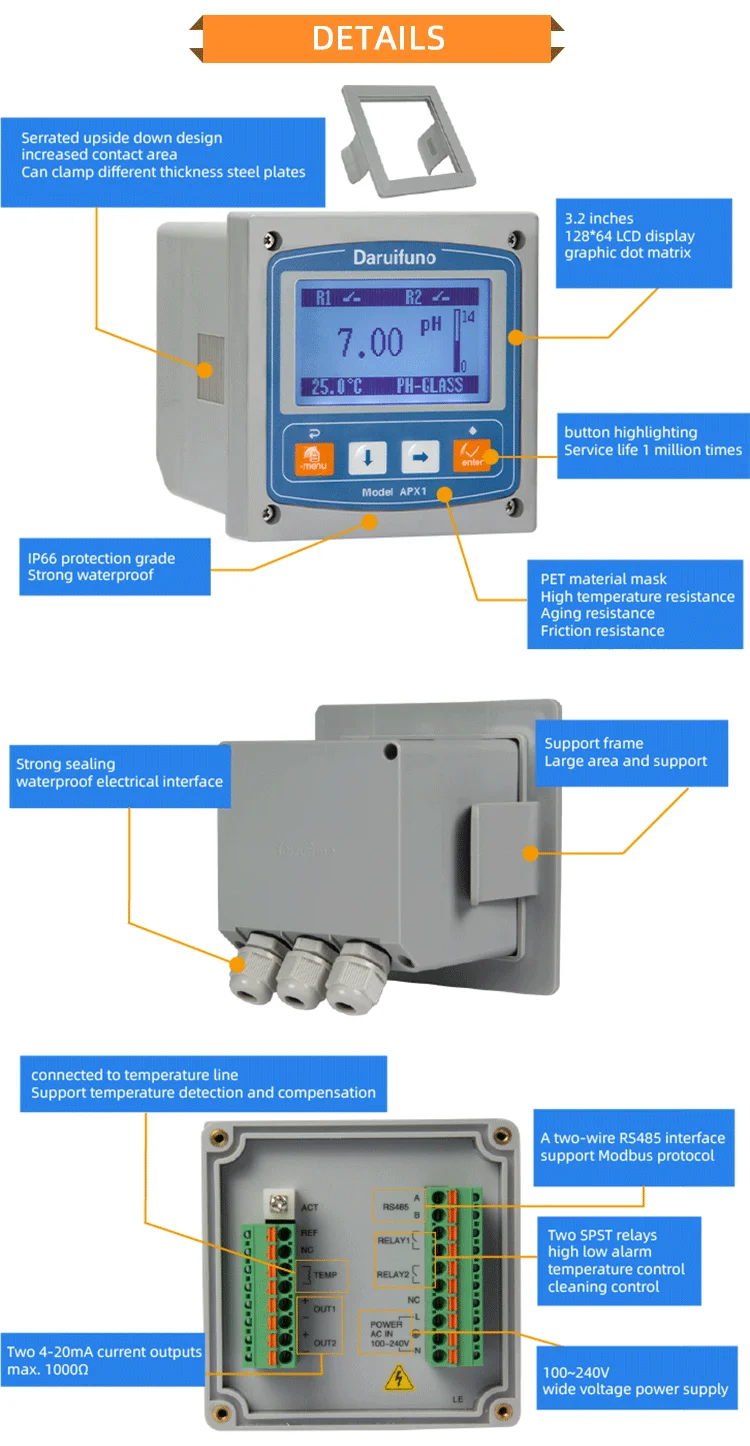

Features of pH Controller
● pH glass electrode measurement method, the ORP pH meter can be applied to various PH/ORP monitoring and dosing control occasions;
● The protection grade of the enclosure is IP66;
● Two settable SPST multifunctional relays;
● Two high-precision 0/4~20mA current outputs;
● A two-wire RS485 interface, the communication protocol is MODBUS RTU;
● 128*64 large LCD screen;
● The menu password can be set to facilitate hierarchical management;
● Shortcut button helps you perform daily essential maintenance without entering the menu;
● Temperature detection and compensation.
Specification of pH Controller
Product Name | online pH meter |
Product Model | APX1-C2A |
Brand Name | Daruifuno |
pH Sensor Input | Glass pH sensor |
ORP Sensor Input | ORP sensor (Platinum/Gold sensor) |
TEMP Sensor Input | PT1000 or NTC10K |
PH Range | -2~16pH |
ORP Range | -2000~+2000mV |
Temperature Compensation | Automatic or manual |
Operating Temperature | 0~60℃ RH<95% |
Storage Temperature | -20~70℃ RH<55% |
Accuracy | PH: ±0.02pH /ORP: ±2mV |
Sensor Diagnosis | Display images |
Relay Output | Two SPST relays max. load 3A/250VAC |
Analog Output | Two 0/4~20mA current outputs |
Communication Method | RS485 interface |
Communication Protocol | Modbus RTU |
Display | 3.2 inch 128*64 LCD screen |
Protection Grade | IP66 |
Material | Enhanced ABS |

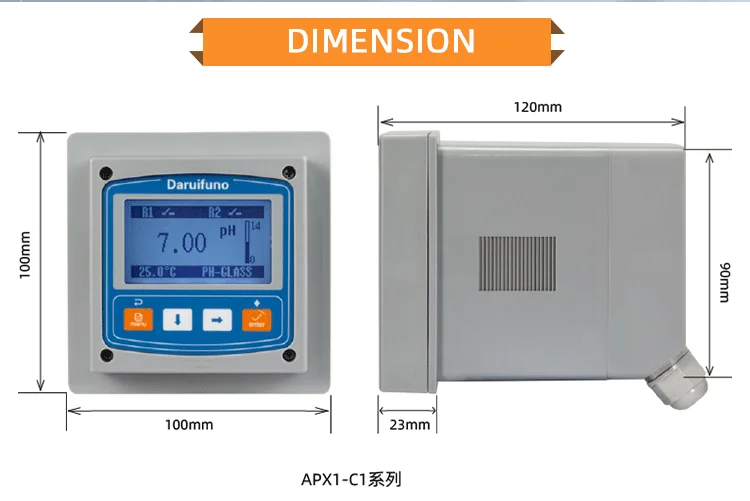

Dimensions | 100*100*120mm |

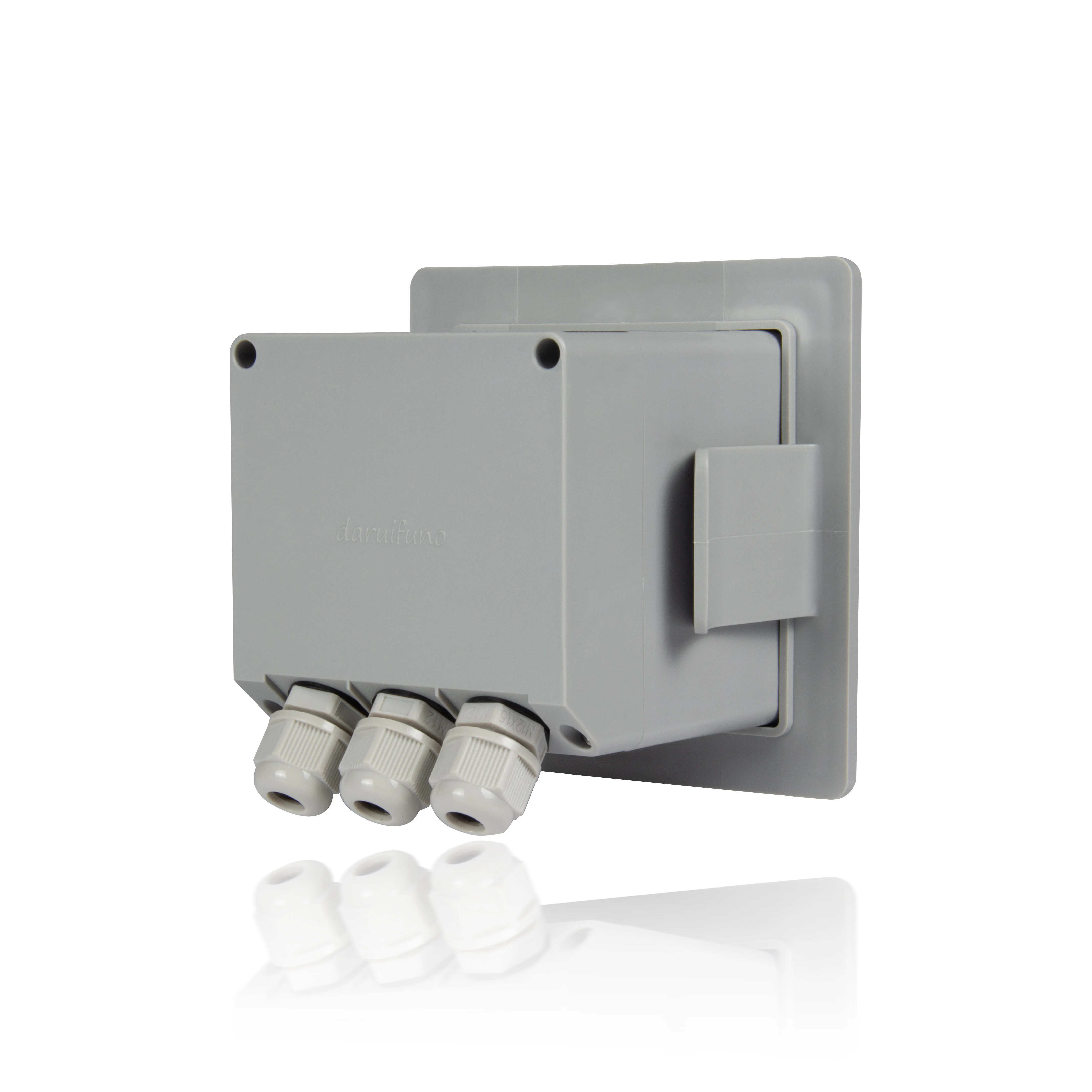

Mounting | Panel mounting (open hole size 92*92mm) |
Power Supply | AC: 100~240V both 50Hz or 60Hz |
Power Consumption | 3W |
Weight | 500g |
FAQ

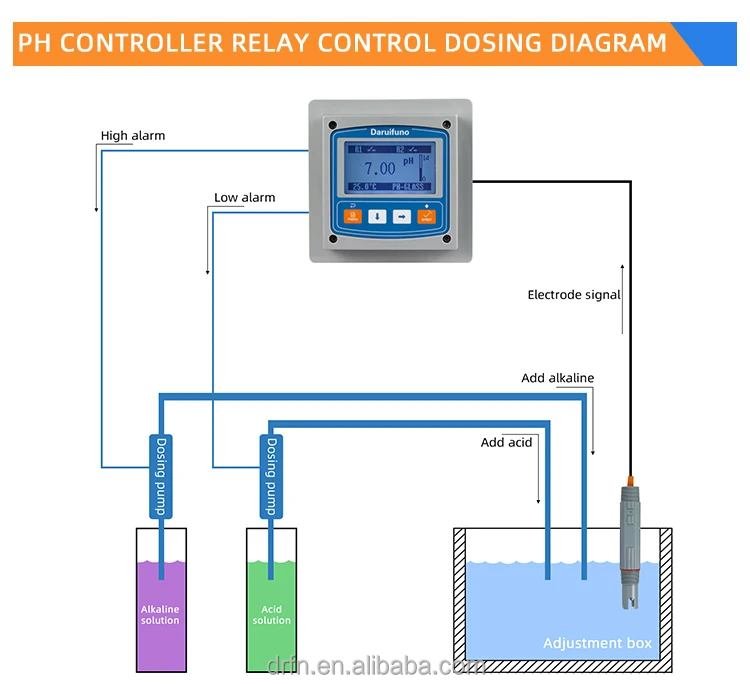

1. Can your ORP pH meter realize dosing control?

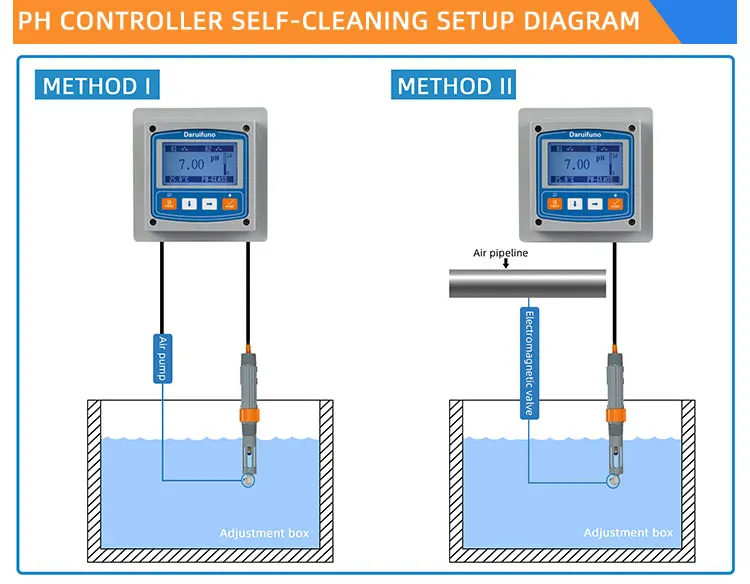

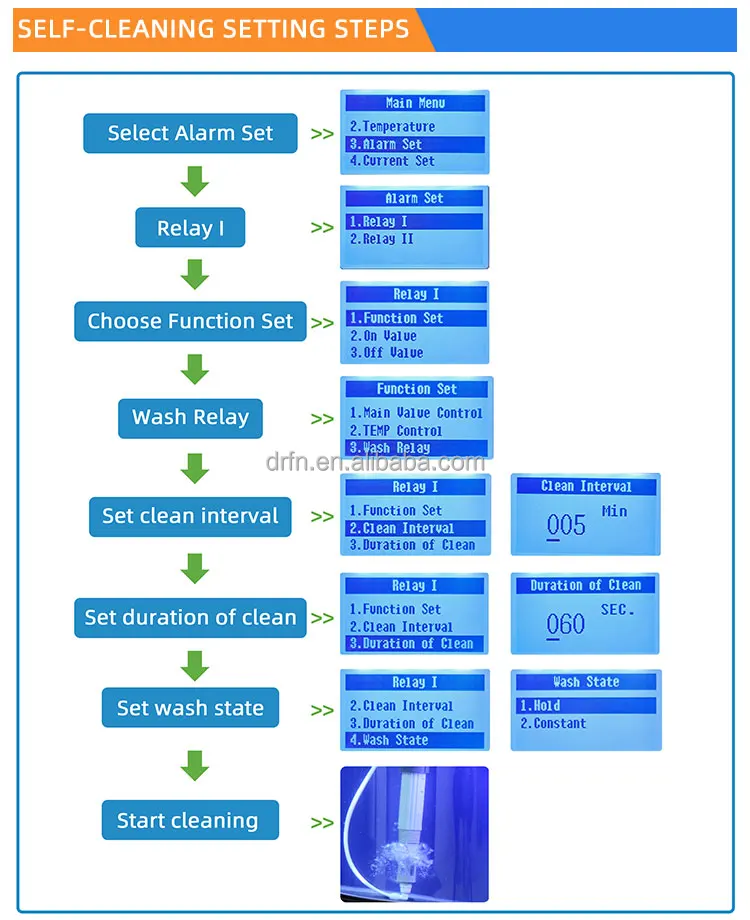

A: Of course. The APX1-C2 controllers have two SPST relays. The setting objects include: alarms for high and low values of PH/OPR, alarms for high and low values of water sample temperature, and can also be set as a cleaning cycle for the sensor.
2. Does your controller have temperature compensation function?
A: The digital pH meter made by Daruifuno can not only compensate the temperature of the test sample by connecting the temperature sensor, but also self-check the working temperature of the instrument in real time. When the working temperature of the instrument changes, the instrument will compensate the hardware changes caused by temperature drift accordingly, making the detection result more accurate. This is a patented technology.
3. Can your instrument achieve signal output?
A: The APX1-C2 PH meter has a two-wire RS485 interface, the communication protocol is standard MODBUS RTU, and it can support JavaScript Object Notation text data format. If you don’t need this feature, we also have a responsive model at a very nice price.
