ATEX Approved 50mm Coriolis Mass Flow Meter

Product Overview

Description

ATEX Approved 50mm Coriolis Mass Flow Meter

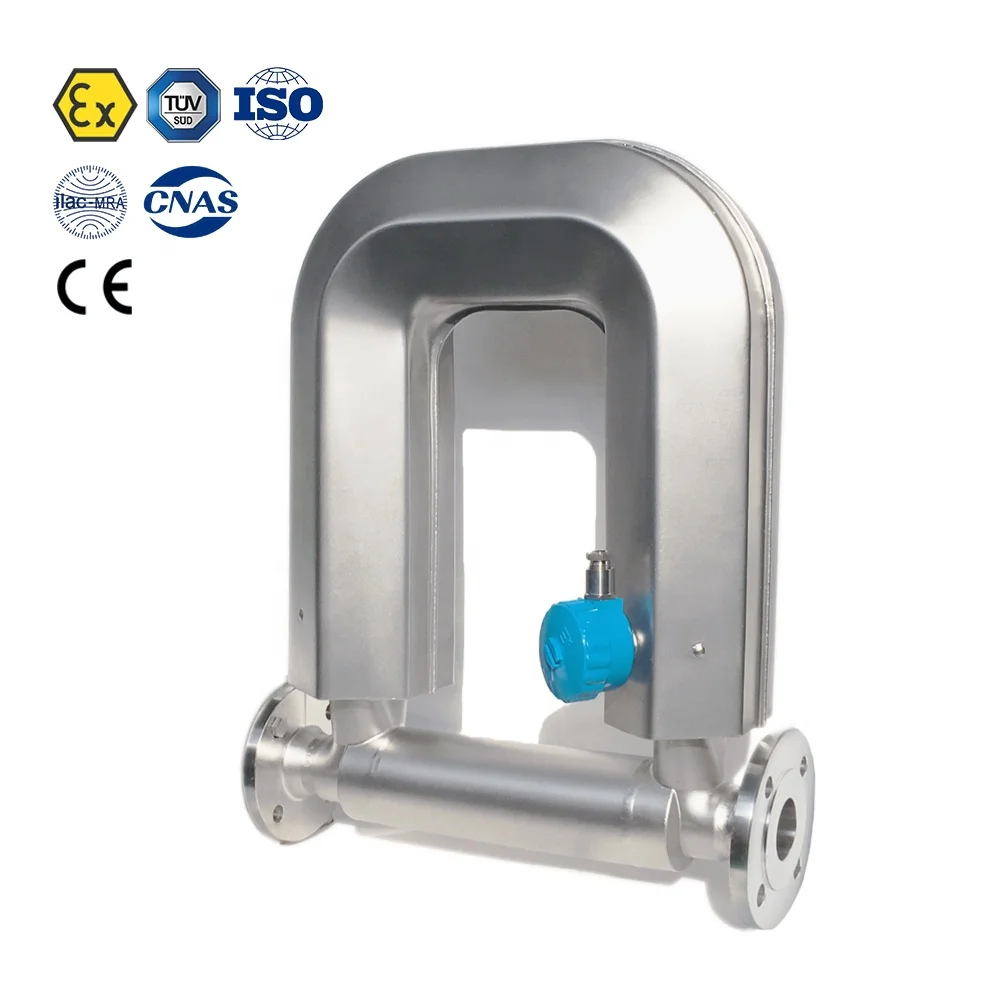

Specifications of Coriolis mass flow sensor
Wetted parts	Stainless steel 316L
Sensor housing	Stainless steel 304
Fluid temp.	-70°C~+160°C/ -200~+60ºC/ -40~+300ºC
End connection	Customizable
Ex-mark	Ex II 2G Ex ib IIC T6...T1 Gb

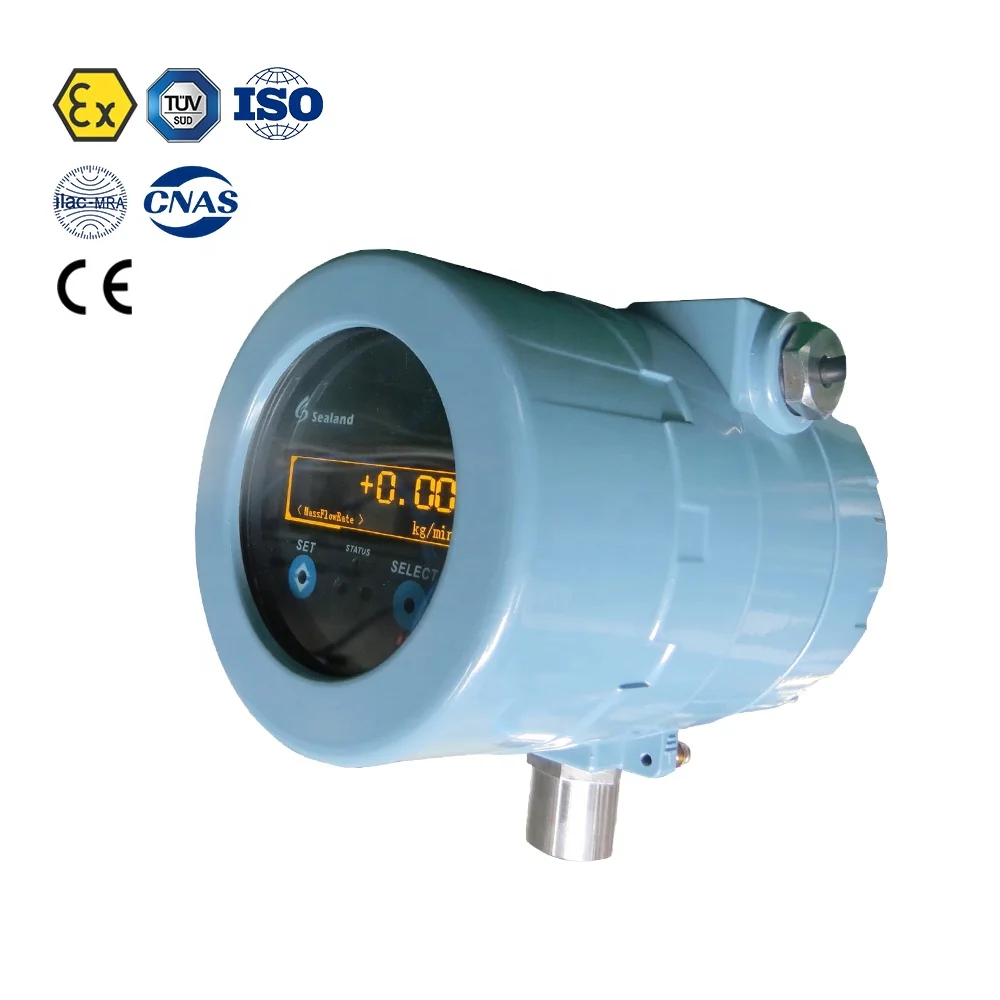

Specifications of Coriolis mass flow transmitter
Temp. rating	-30°C~+60°C
RH	≤95%, non condensing
Atmospheric pressure	86~106 kPa
Operating voltage	AC85~265V, DC12~24V
Communication & output	RS485 Modbus RTU, HART, 4-20mA, pulse
Ex-mark	Ex II 2G Ex db [ib] IIC T6...T1 Gb

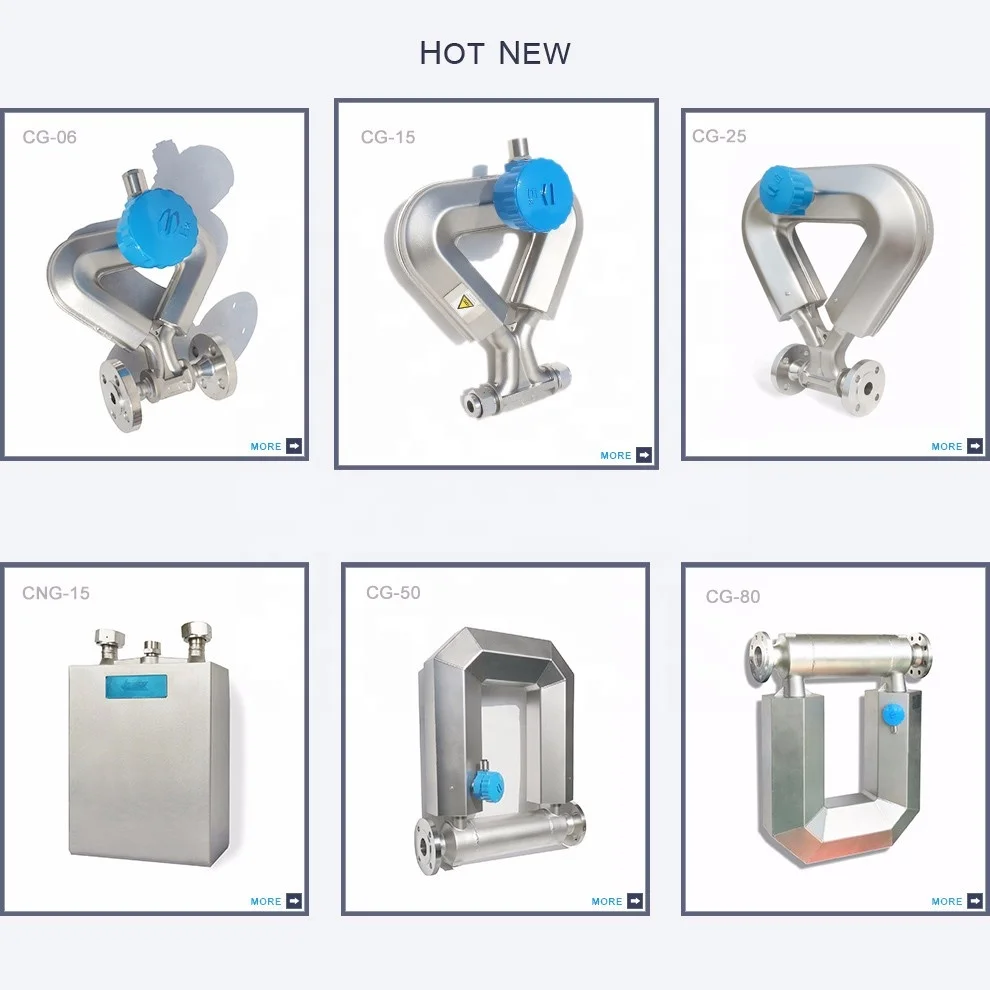

Model No.	Diameter (mm)	Max. flow rate (kg/min)	MWP. (MPa)	Accuracy grade (%)	Zero stability (kg/h)
CG-03	03	6	4	0.1/ 0.2/ 0.5	0.012
CG-06	06	18	4	0.1/ 0.2/ 0.5	0.04
CG-15	15	50	25	0.1/ 0.2/ 0.5	0.12
CNG-20	20	120	25	0.1/ 0.2/ 0.5	0.36
CG-25	25	200	4	0.1/ 0.2/ 0.5	0.62
CG-40	40	500	4	0.1/ 0.2/ 0.5	1.60

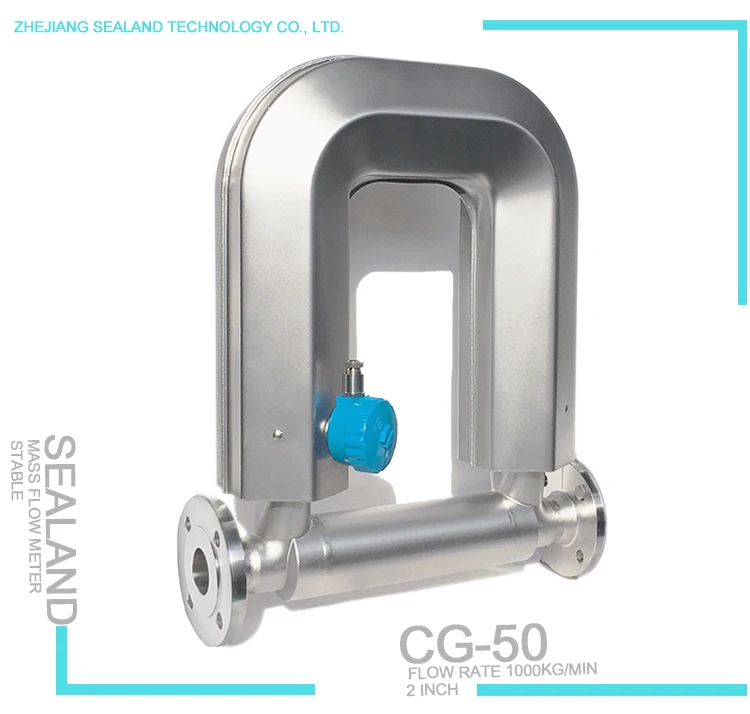

CG-50	50	1000	4	0.1/ 0.2/ 0.5	2.38
CG-80	80	3000	4	0.1/ 0.2/ 0.5	7.05
CG-100	100	3600	4	0.1/ 0.2/ 0.5	12.00
CG-150	150	8000	4	0.1/ 0.2/ 0.5	50.00





Applications of Coriolis mass flow meter



Sealand Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.

• Alternative Energy


• Oil & Gas


• Chemical


• Food & Beverage


• Industrial Energy


• Life Sciences


• Marine


• Metals and Mining


• Power


• Pulp & Paper


• Refining


• Water & Wastewater


• Others



Advantages of Coriolis mass flow meter



1. Maintenance-free

2. HIgh accuracy & reliability

3. Shows many parameters simultaneously, such as mass flow, temperature & desity

4. Compact design with no moving parts, no special mounting and no flow conditioning required.

















Standardization line

The standardization line is equipped with world famous brand METTLER TOLEDO instrument with accuracy 0.02%, and other devices imported from South Korea, national institute approved.



Mass production of Coriolis mass flow meter



Why Sealand?



1. Sealand is professional, with senior engineers from the first research team in this field in China, and junior one from college, to keep improving.



2. Sealand is experienced. It started to research and develop in 1990. All employees are stable here; even the production-line workers have worked here for more than 5 years.



3. Sealand strictly controls the quality from raw material to finished products, and all products will be inspected and tested for 3 times before shipment.



4. The warranty is 2 years, but technical support is always available. Read more!
