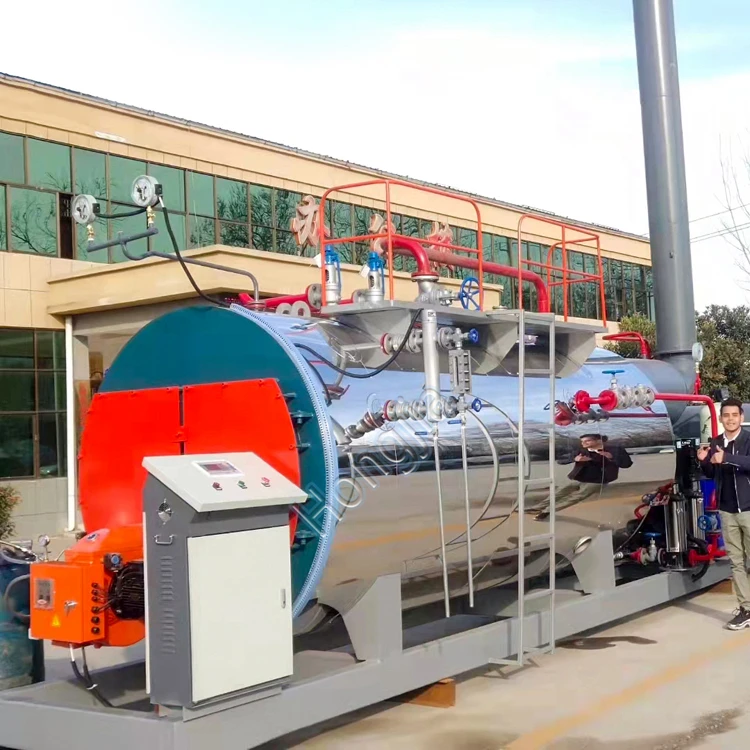

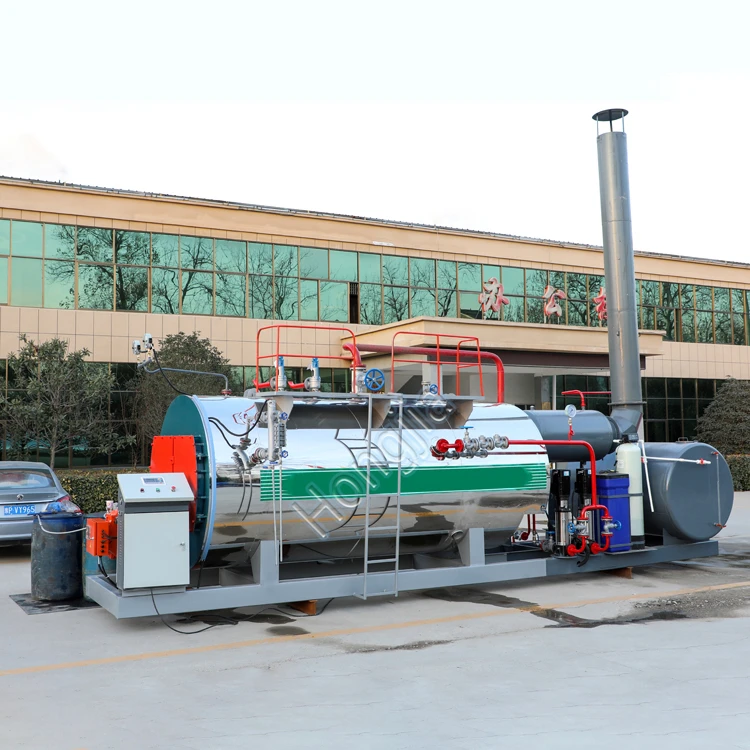

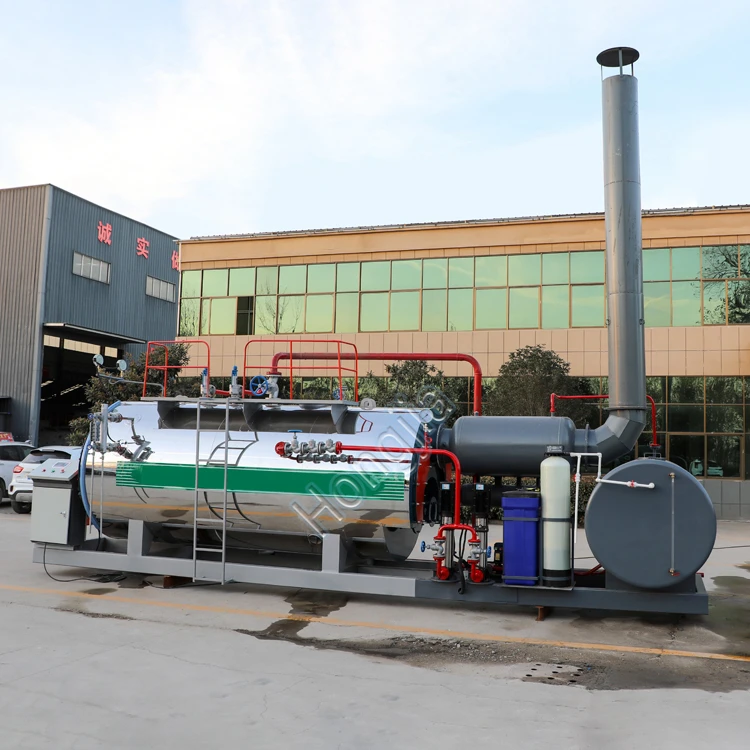

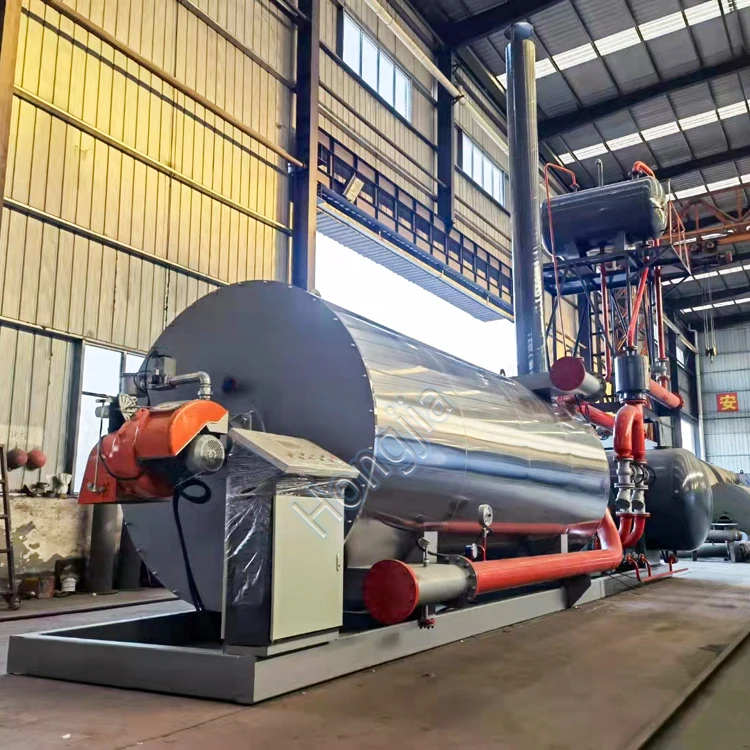

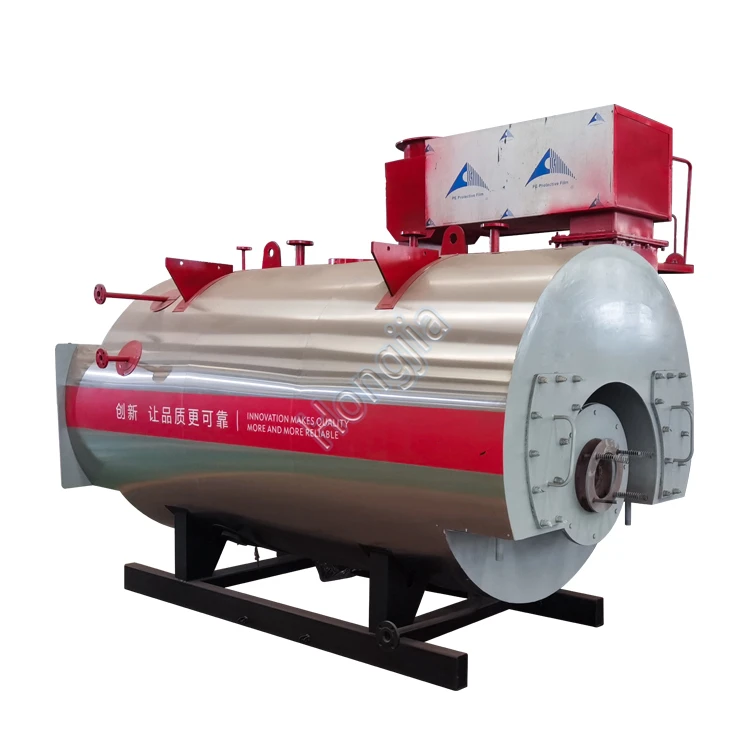

Industrial 0.5 20 ton Fuel Natural Gas Diesel Oil Fired Steam Boiler
- Category: >>>
- Supplier: Zhengzhou Hongjia Grain Machinery Co. Ltd.
Share on (1600520495677):
Product Overview
Description
Professional steam generator steam boiler diesel gasoline fuel heating boiler machine
Product Description
This model WINSThree return series steam boiler has unique design of structure of big combustion chamber, 3-stroke all wet-back structure, super radiation heat-exchange and low-temperature burning to improve thermal efficiency, reduce NOX emission and protect environment; and adoption of thread smoke tube improves heat transmission and thermal efficiency; high working efficiency safety and good use for parboiled rice mill plant or the animal feed plant.
Characteristics of our steam boiler:
1.Multiple-sealing of front and back smoke boxes prevent smoke leakage;
2.Large steam space leads to better steam quality;
3.Multiple measures like protection of water level, steam pressure and smoke-discharging temperature make boilers same and reliable;
4.efficient thermal protection materials ensure low boiler surface temperature;
Multiple-point pollutant discharging makes the heating surface of the boilers cleaner.
Specification
Model | WNS0.3 | WNS0.5 | WNS0.7 | WNS1 | WNS2 | WNS3 | WNS4 | WNS5 | |||||||
Rated capacity(t/h) | 0.3 | 0.5 | 0.7 | 1 | 2 | 3 | 4 | 5 | |||||||
Rated steam pressure(MPA) | 0.7 | 1.25 | 1.0 | 1.25 1.6 2.5 | |||||||||||
Rated steam temperature(℃) | 170 | 193 | 184 | 193 204 225 | |||||||||||
Feed-water temperature(℃) | 20 | ||||||||||||||
Heat transmission area(m2) | 10.3 | 15 | 18 | 25 | 57 | 82 | 103 | 128 | |||||||
Applicable fuel | Gas Fuel Oil | ||||||||||||||
Boiler capacity(m3) | 0.8 | 1.8 | 2.0 | 3.1 | 5.1 | 5.6 | 6.3 | 10.4 | |||||||
Weight(kg) | 1.9 | 2.5 | 3.5 | 5.5 | 7.6 | 9.9 | 11.7 | 13.7 | |||||||
Packing & Delivery

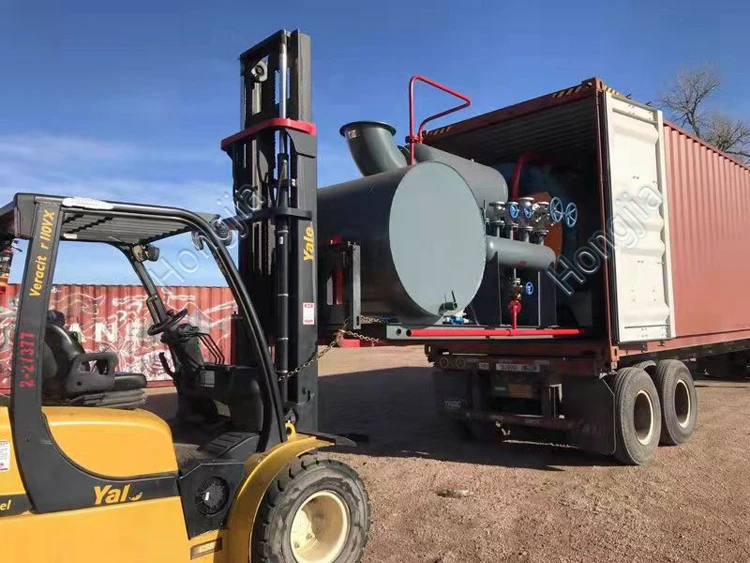

For the boiler machine will be set in the container for directly delivery.
Company Profile
Zhengzhou Hongjia Grain Machinery Co.,LTD. is a professional manufacturer for our grain processing machine like the rice mill plant, parboiled rice milling production line, steam boiler, rice polisher, color sorter machine other different machines, we have professional engineers and response workers to promise all machines send to clients with high quality.
