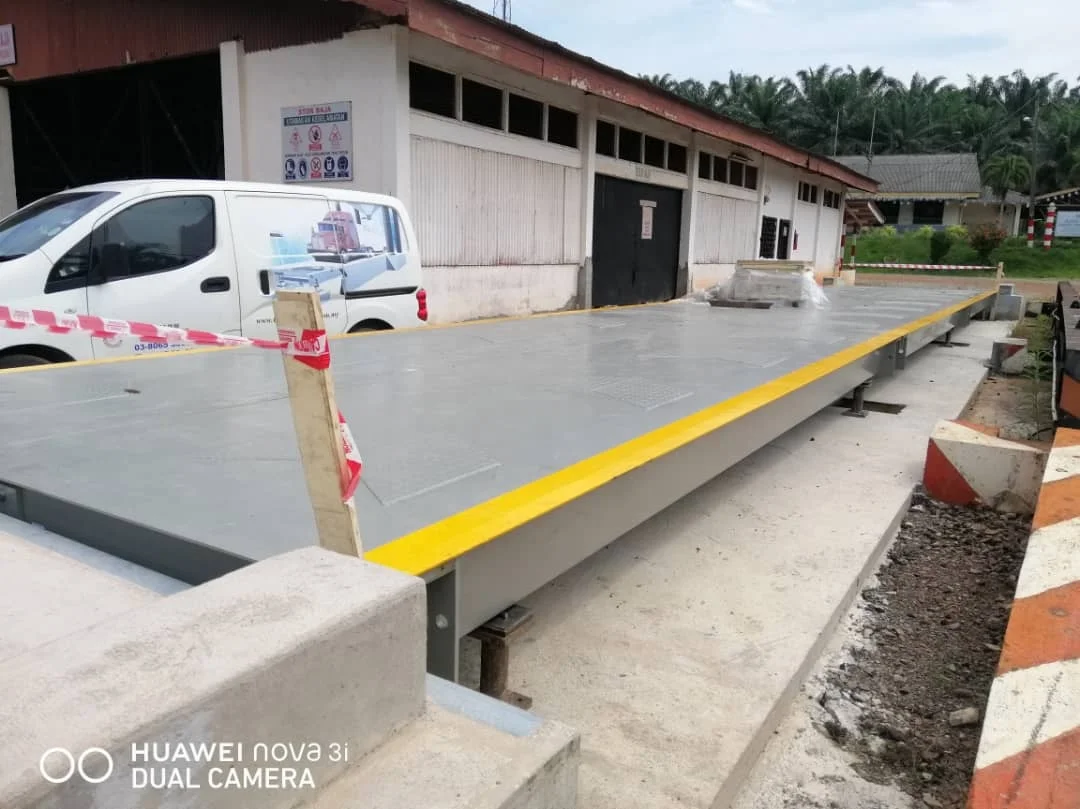

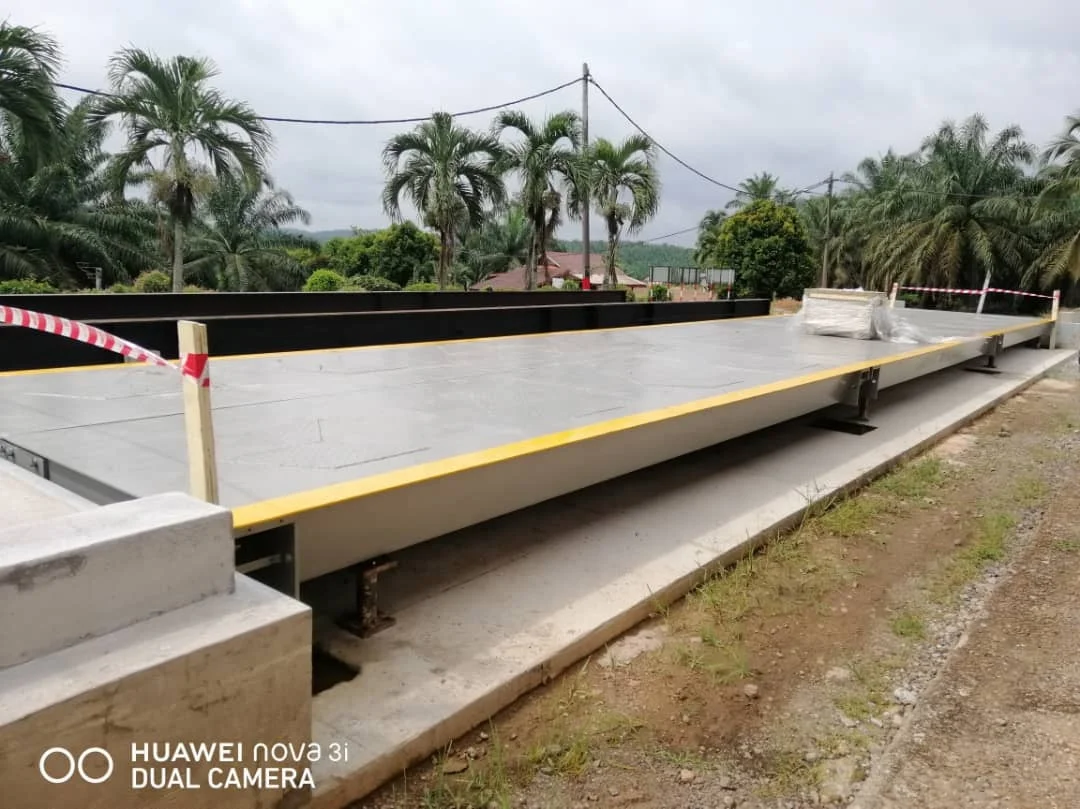

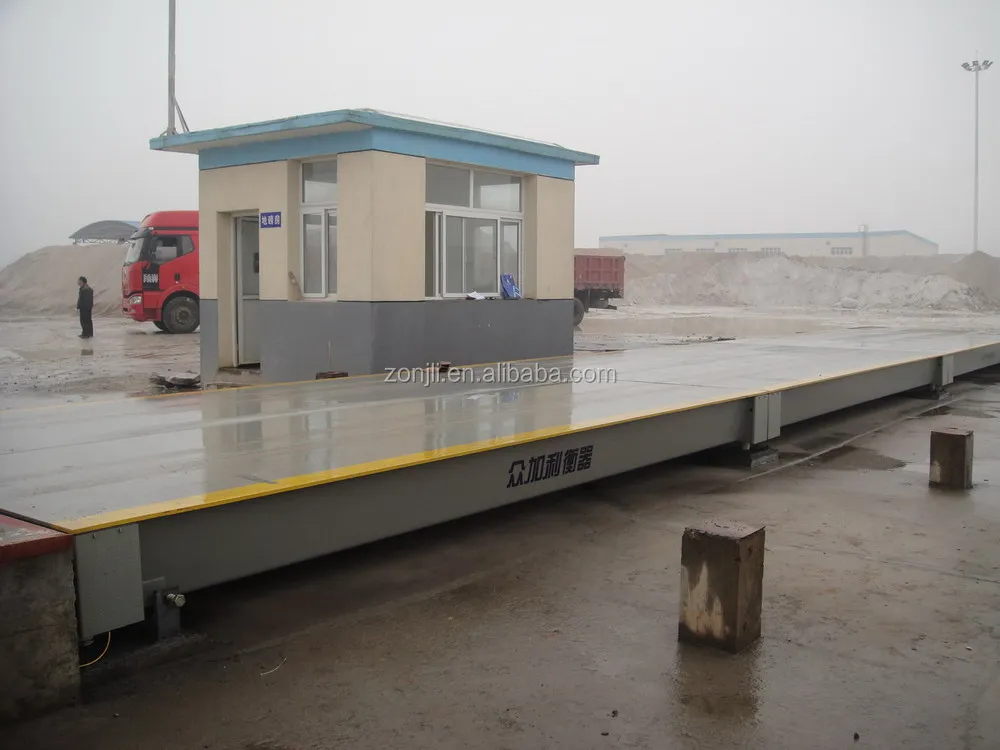

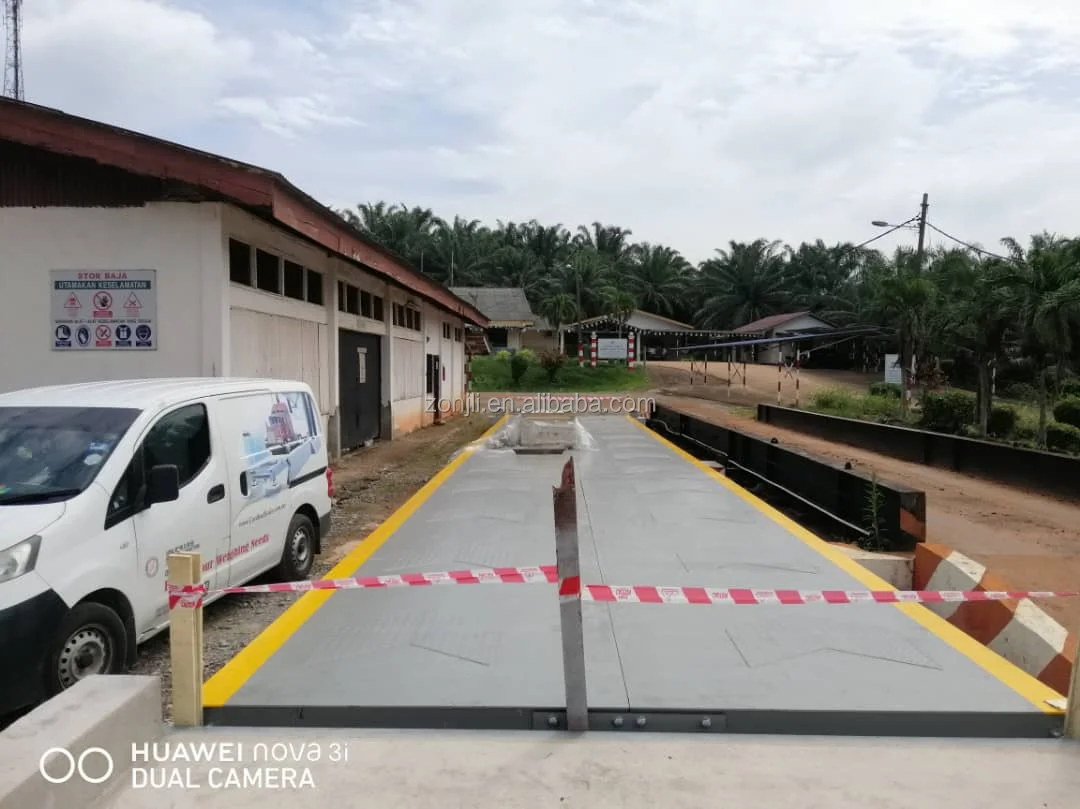

weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless
weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless
weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless
weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless
weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless
weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless

weighing truck scale 120 ton 3.2x18m electronic vehicle scale weighing scale weighbridge with pit / pitless

Share on (1600520499442):


Price:$9,000.00 - $10,000.00

Quantity:


Product Overview

Description



Product Overview


Max. Weighing Capacity 150 ton 3x20m weighing platform standard truck scale
It could connect to printer, computer, scoreboard, stabilized voltage supply, power surge protector and other external equipment.
Truck scales are widely used in metallurgy, mining, machinery, chemical, port and all kinds of truck weighing measurement.


FEATURES AT A GLANCE


◆ Material: Q235B, high quality carbon steel
◆ U beam structure, height: 300mm
◆ Automatic co2-protected welding
◆ Conduct shot blasting by horizontal overall shot blasting cleaning machine, to make the adhesion of surface paint is stronger
◆ Through professional software proceeds force analysis of weighing platform, optimization design, to guarantee bearing strength of platform




PRODUCT SPECIFICATIONS


No
Item
Data
1
Accuracy grade
OIML III
2
Max.Weighing Capacity
150 ton
3
weighing platform size
3m x 20m
4
Division value
50kg
5
Axle-loading
55 ton
6
Thickness of top plate
8 mm
7
weighing platform module
5+5+5+5
8
load cell qty
10

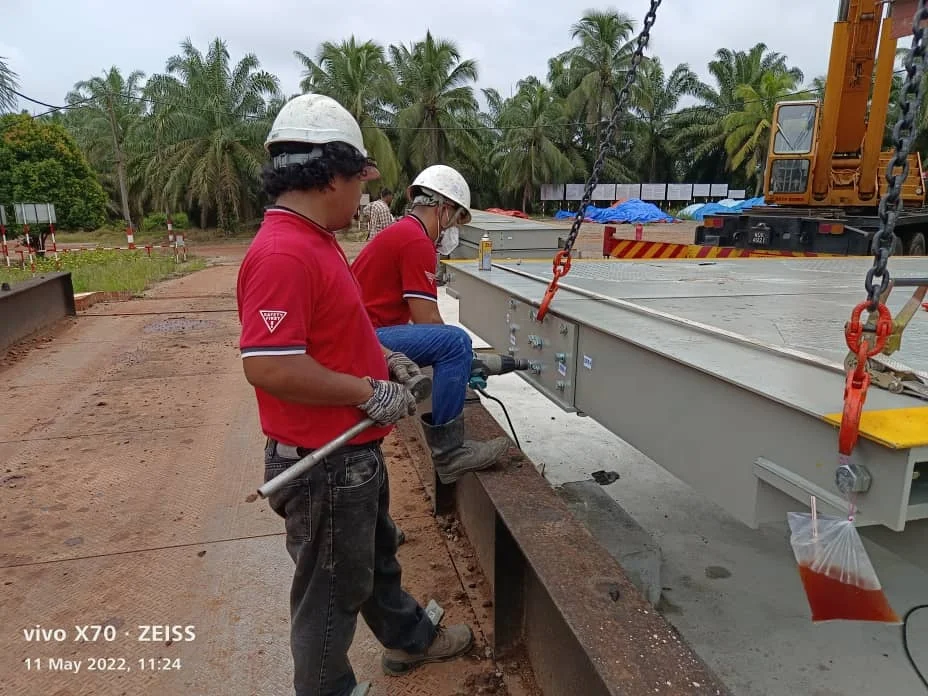

Successful Project


Project in Australia
Project in Oman
Project in Philippines
