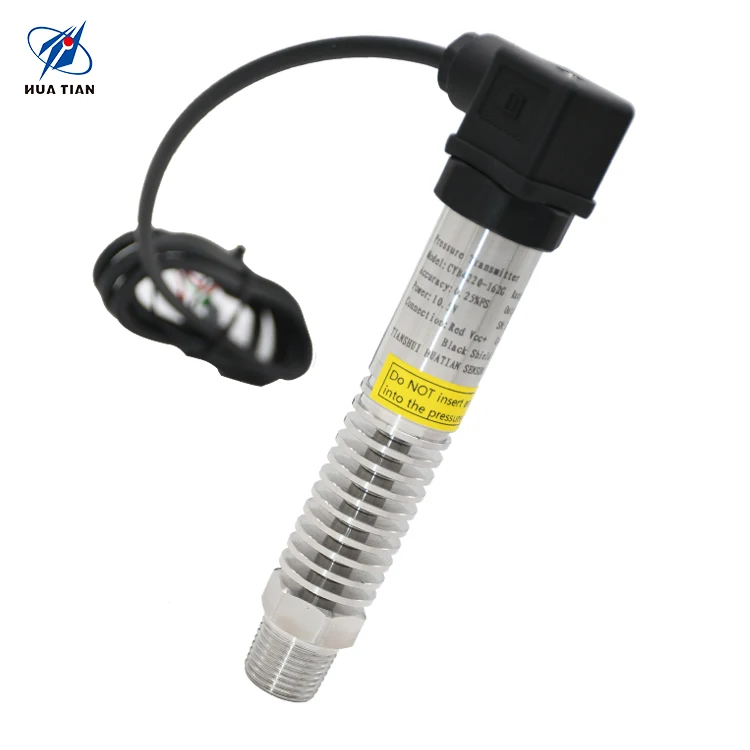

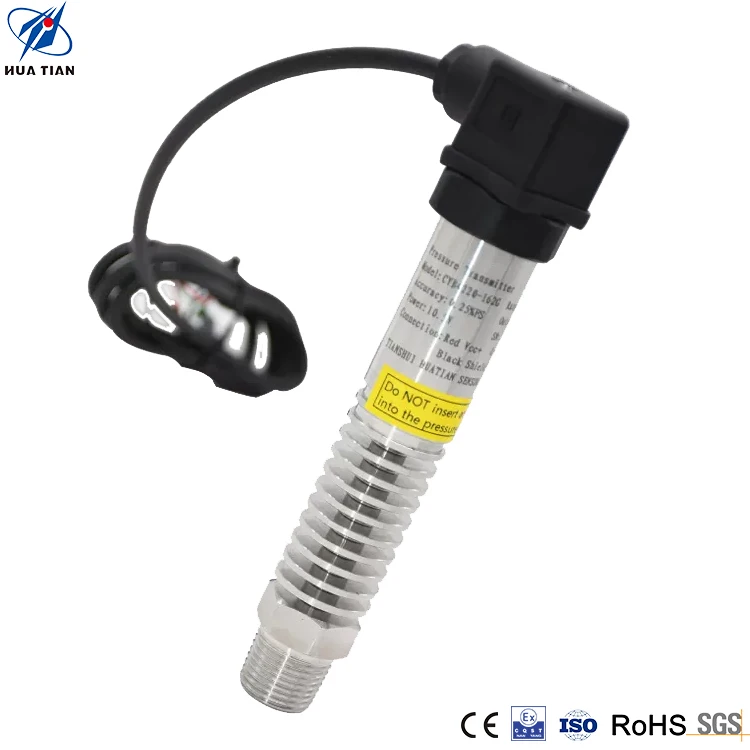

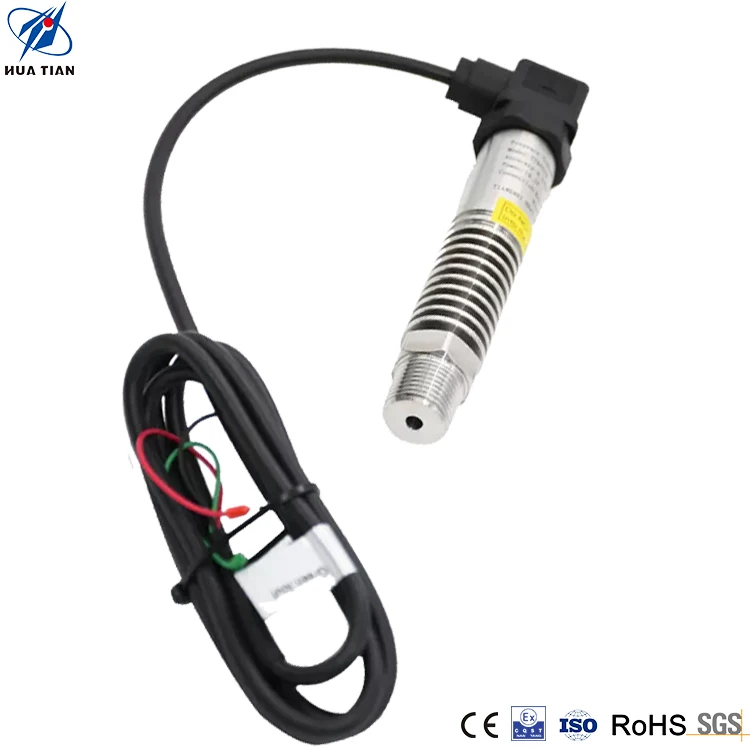

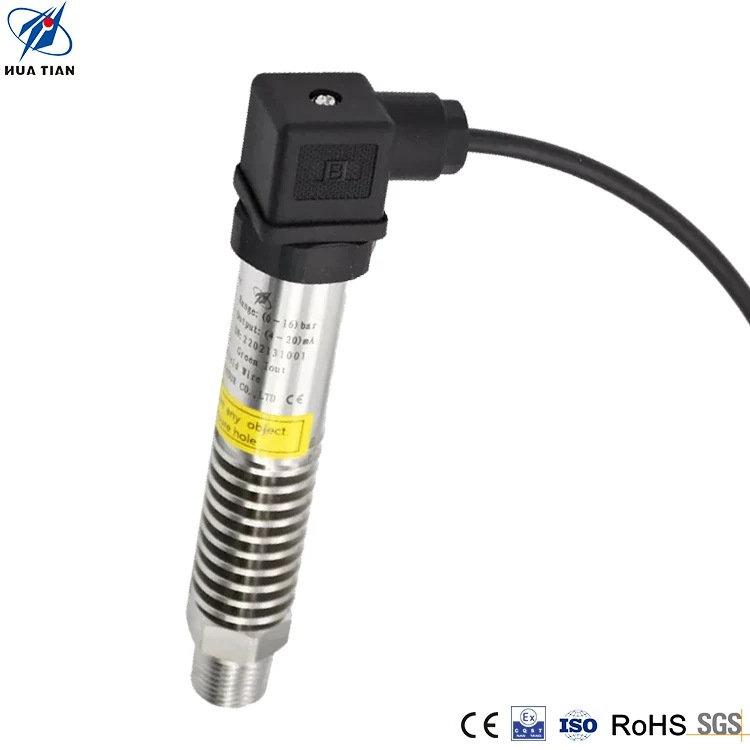

China Huatian CYB4220 waterproof threaded connection smart 0 5 V pressure transmitter 4 20ma
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600520518695):
Product Overview
Description
China Huatian CYB4220 waterproof threaded connection smart 0-5 V pressure transmitter 4-20ma
Product Parameters
Range MPa | -0.1MPa...0kPa~10kPa...100MPa | ||||
Type of pressure | G,A,S | ||||
Output signal (mA) | 4~20 | ||||
0 ——5V(0 ——10) three-wire system | |||||
Accuracy level | 0.1 (customized) | 0.25 | 0.5 | ||
Nonlinearity (FS%) | <0.1 | <0.2 | <0.4 | ||
Hysteresis,Repeatability (FS%) | <0.05 | <0.05 | <0.1 | ||
Zero point and sensitivity temperature drift (%FS/°C) | <0.015 | <0.03 | <0.05 | ||
Long-term stability(%FS/year) | <0.1 | <0.2 | <0.5 | ||
Working voltage (VDC) | +15——+30 (the calibration value is + 24) | ||||
Compensation temperature (°C) | 0-+50 (<200kPa) , -10°C~70°C (>200kPa) | ||||
Working temperature (°C) | -40 ——+85 | ||||
Overload capacity (%) | <200 (<10MPa ) ; <150 (>100MPa) | ||||
Load resistance (Q) | R= (U-12.5) /0.02-RD Among them: U is the power supply voltage, RD is the internal resistance of the cable | ||||
Response time (10%——90%) | <1ms | ||||
Measuring medium | Fluids compatible with 304, 316L or ceramics | ||||
Diaphragm material | 316L,Titanium alloy or ceramic optional | ||||
Shell material | 304, 316L | ||||
Interface | 304> 316L is optional | ||||
Protection level | IP65 (IP68 customizable) | ||||
Products Description

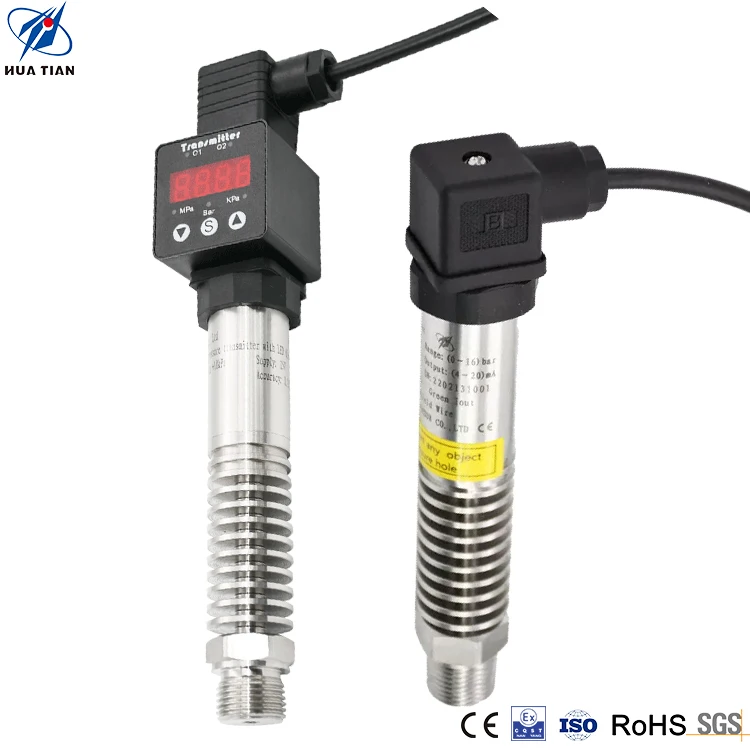

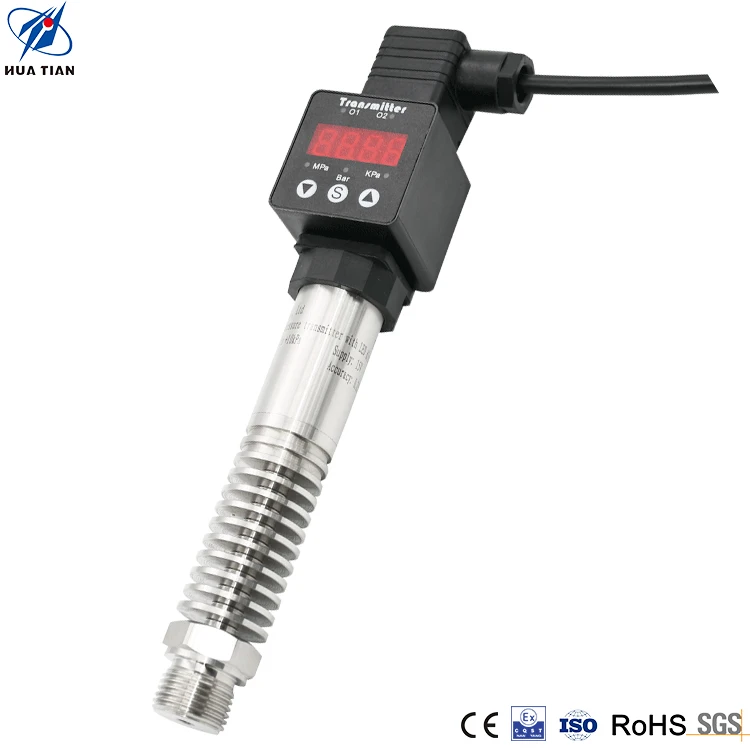

CYB4200 series pressure transmitter
Rod-shaped small-profile pressure transmitter
High-reliability silicon piezoresistive pressure sensor

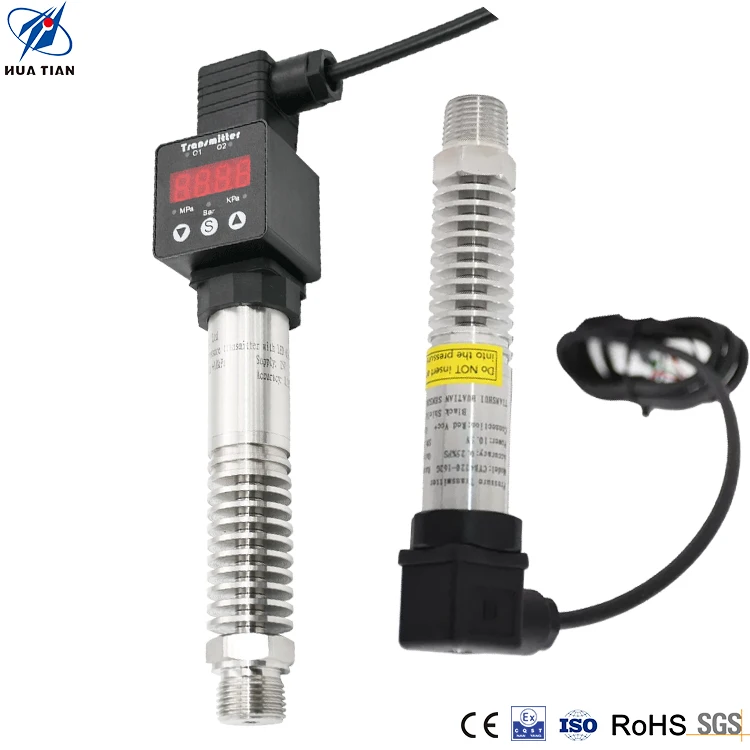

With or without digital display designs
♦compact size, easy to install
♦full range coverage
♦high stability, low drift
♦a variety of structures to choose from
♦can be applied to various industrial occasions, strong versatility
Applications: coal mine, oil field, chemical industry, civil explosion, environmental protection, medicine, water affairs, shipping and other industries

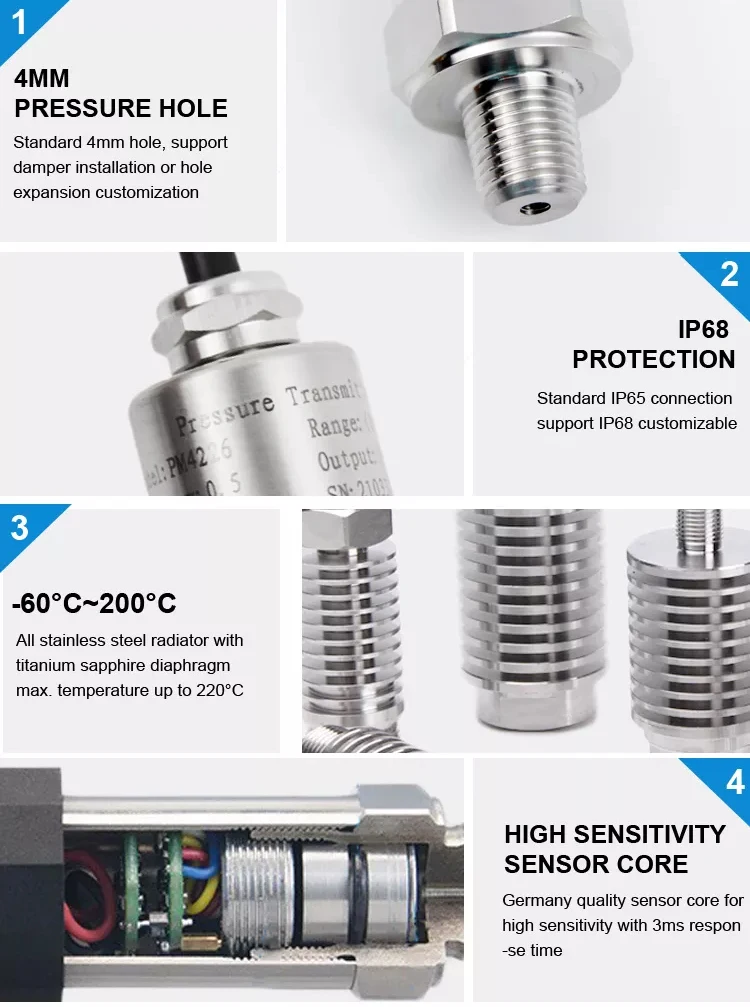

Details Images
Recommend Products
Application
Company Profile
Tianshui Huatian Sensor Co., Ltd.,
High-tech R&D, production, sales and construction of industrial intelligent centralized control
It is one of the earliest enterprises engaged in the R&D and production of pressure sensors and transmitters in China
Over 20 national patents, including 5 invention patents
Over 20 new products have passed the provincial evaluation records

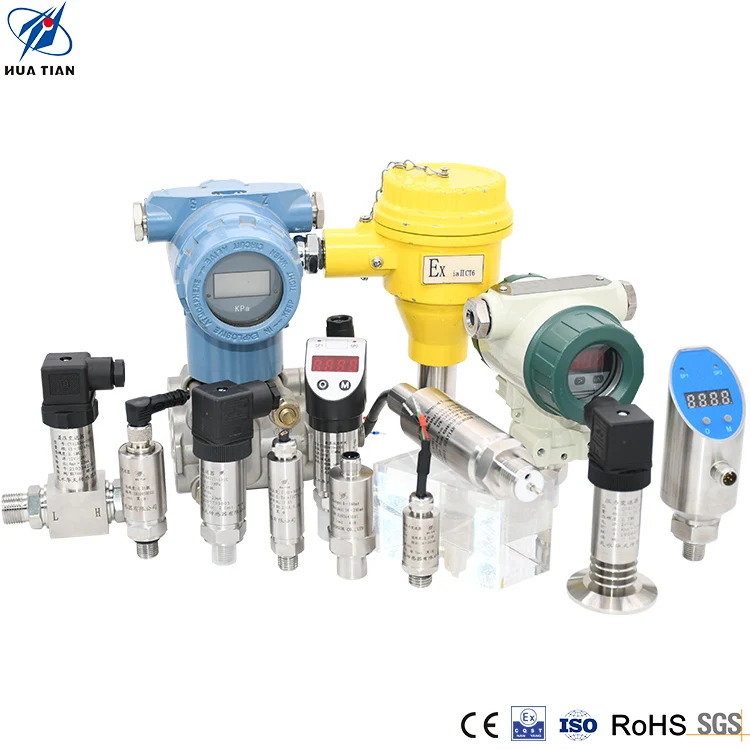

Product categories:
