Product Overview
Description
Two software version for you (7.6.2) or (V8.7 extra payware)
Top 5 Reasons
1. The IN6 can communicate with your PC through a 9-pin serial connector. The IN6 also can communicate with your PC over
a Universal Serial Bus (USB) through a 4-pin standard connector. The IN6 adapter connects to vehicle power, the SAE
J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the IN6 will work with the latest
Cummins INSITE, PowerSpec and Calterm III software applications.
3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some
non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the IN6
adapter to make that determination).
4. The eye-catching IN6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high
quality at an attractive price.
5. Each Cummins kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software
driver, connect all the hardware, and you are ready to start a new era in data link adapters.
IN6 Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Is fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8 V to 50 V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. INLINE 6 is certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. IN6 meets rigorous Cummins in-cab environmental test requirements

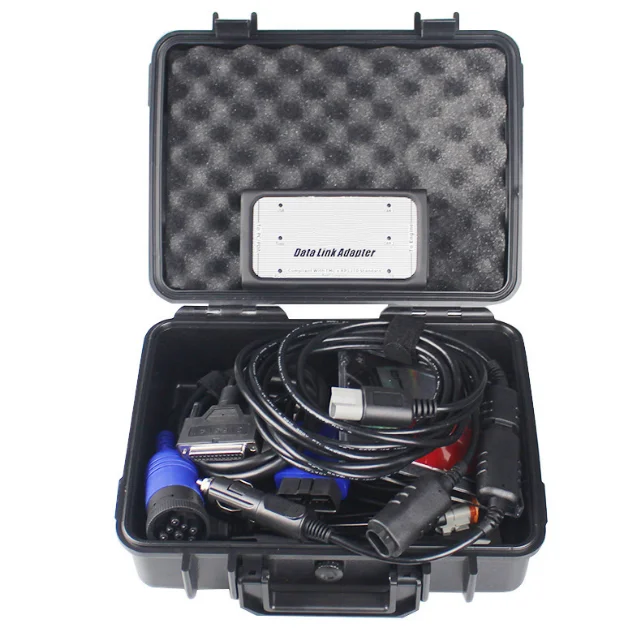

Package Including:
1pc x IN6 data link adapter (P/N 2892093)
1pc x USB 14-foot cable (P/N 2892176)
1pc x DB25F/9-pin data link cable (P/N 4919780)

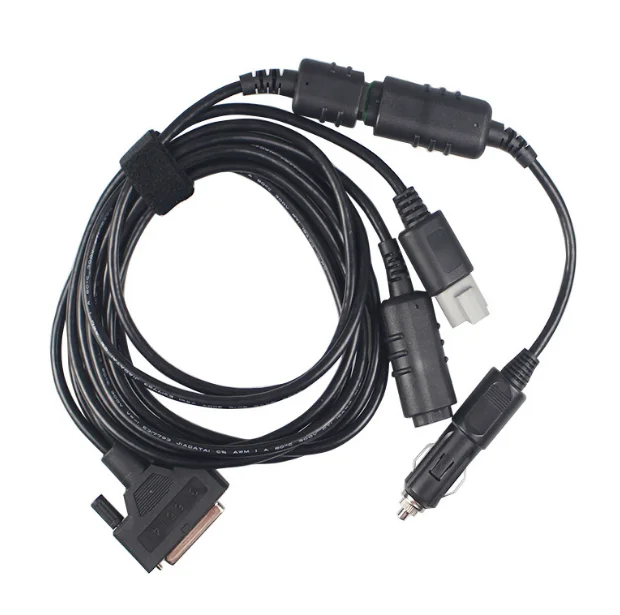

1pc x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1pc x INLINE 6 software CD (P/N 2892095)
1pc x J1939 Gender Changer adapter (P/N 3163597)
1pc x J1939 Backbone adapter (P/N 3163096)
1pc x Storage case (P/N 4918713)
1pc x obdII cable (P/N 4919781)
1. The IN6 can communicate with your PC through a 9-pin serial connector. The IN6 also can communicate with your PC over
a Universal Serial Bus (USB) through a 4-pin standard connector. The IN6 adapter connects to vehicle power, the SAE
J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the IN6 will work with the latest
Cummins INSITE, PowerSpec and Calterm III software applications.
3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some
non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the IN6
adapter to make that determination).
4. The eye-catching IN6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high
quality at an attractive price.
5. Each Cummins kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software
driver, connect all the hardware, and you are ready to start a new era in data link adapters.
IN6 Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Is fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8 V to 50 V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. INLINE 6 is certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. IN6 meets rigorous Cummins in-cab environmental test requirements
Package Including:
1pc x IN6 data link adapter (P/N 2892093)
1pc x USB 14-foot cable (P/N 2892176)
1pc x DB25F/9-pin data link cable (P/N 4919780)
1pc x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1pc x INLINE 6 software CD (P/N 2892095)
1pc x J1939 Gender Changer adapter (P/N 3163597)
1pc x J1939 Backbone adapter (P/N 3163096)
1pc x Storage case (P/N 4918713)
1pc x obdII cable (P/N 4919781)
Products Description
Product name | Data Link Adapter Insite Latest V7.62 Heavy Duty Diagnostic Tool |
OE NO. | V7.62 |
Place of Origin | Ruian,China |
Type | ECU Programmer |
Warranty | 12 months |
Condition | New |
After-sales Service | Online support |
Material | Iron，Copper，Plastic |
Capacity | 3k per month |
package Type | Neutral Package or Custom package |
Single package size | Standard |
Single gross weight | 2.5 kg |
Factory | Factory directly supply |
MOQ | 1 Piece |
