Orbital Grinding Machine for straight and bent Pipes
- Category: >>>
- Supplier: Hefei Zhongtong Polishing Machine Co. Ltd.
Share on (1600520596462):
Product Overview
Description
We provide local services in below countries. And we are opening to have more agents.If you want to know whether your location has local service or not, please click here.
Machine Description

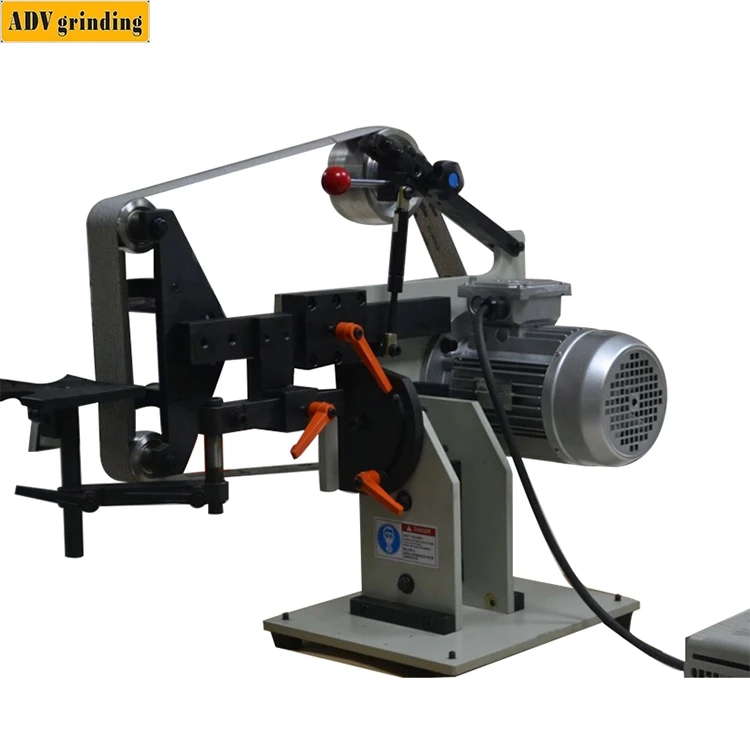

Multifunction Vertical/horizontal belt grinder sander 2“*72”, 2"*82" 1.5 kw 3 mode for knife making
1.This brand high-precision belt grinder machine is an ideal machine for stock removal, profiling, handles and finish work, satin or mirror finish.
2.Machine frame is processed with No.45 steel, stable structure, slight noise, extreme slight vibration and long life using. It represents the top level of ZT Grinding Tools company's production of belt grinder machines.
2.Machine frame is processed with No.45 steel, stable structure, slight noise, extreme slight vibration and long life using. It represents the top level of ZT Grinding Tools company's production of belt grinder machines.
3.The ADV 116-1 belt grinder has multiple usages, highly creative. First choice for DIY changing.
4.Machine can change speed by tuning converter, more flexible and wide use
5.Machine with high stability. It has slight vibration even when putting a coin on the machine, rotation up to 2900rpm.
4.Machine can change speed by tuning converter, more flexible and wide use
5.Machine with high stability. It has slight vibration even when putting a coin on the machine, rotation up to 2900rpm.
Machine Parameters
No | Item | Specification |
1 | Model | ADV 116-1 |
2 | Abrasive belt dimensions | (1600-2100)*50 mm |
3 | Abrasive belt motor power | 1.5/2.2 kw(variable frequency drive) |
4 | Three different grinding frame | Flat grinding frame, Arc grinding frame, Rubber wheel frame |
5 | Rubber wheel size | 200*50mm(Diameter*Thickness) |
6 | Flat grinding frame aluminum wheel size | 60*60mm(Diameter*Thickness) |
7 | Speed | 0-35 m/s |
8 | Spindle rotational speed | The highest 2900 rpm |
9 | Packing size | 640*640*450 mm |
10 | Packing weight | 98KG |
For more specification, please contact us.
Machine Parts

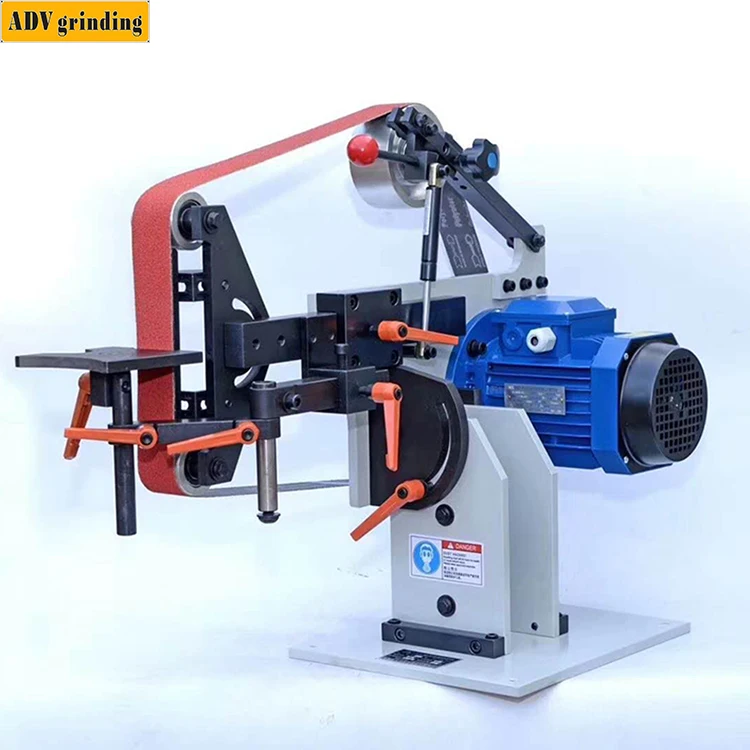

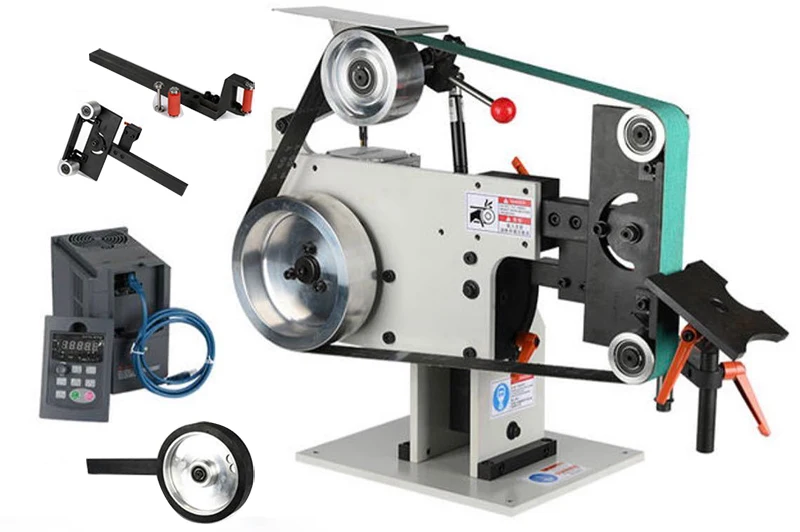

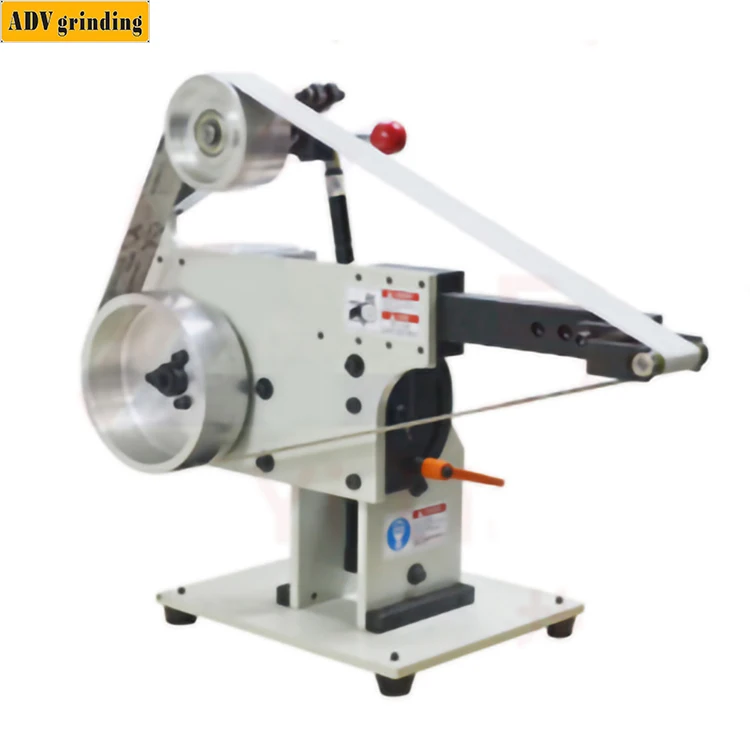

ADV 116-1 Vertical/horizontal multi-use sand belt machine
>About ADV 116-1 Vertical/horizontal multi-use sand belt machine, easy operating, can adjust and change accordingly

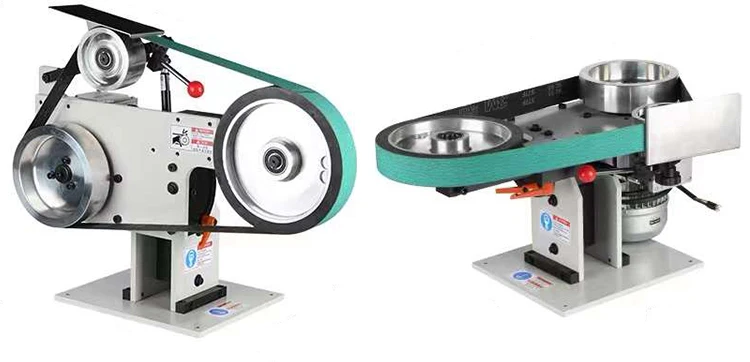

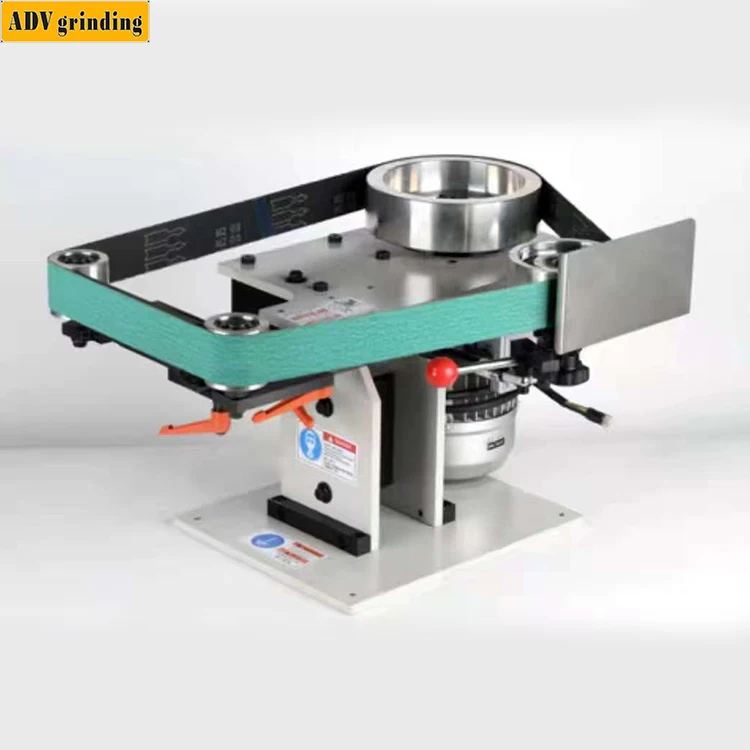

Vertical and horizontal
Switch the convenient flipping mechanism, so that it can be used for both vertical and horizontal use

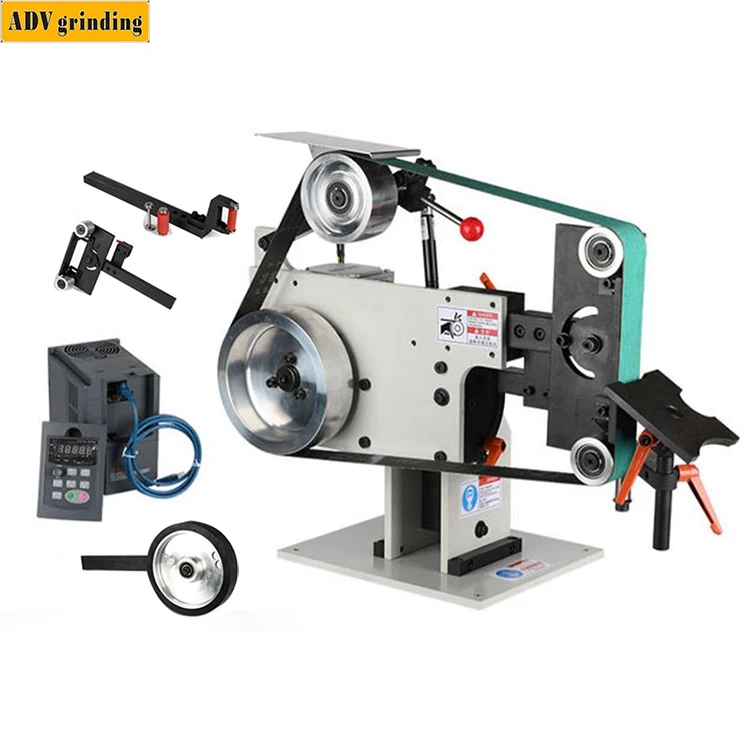

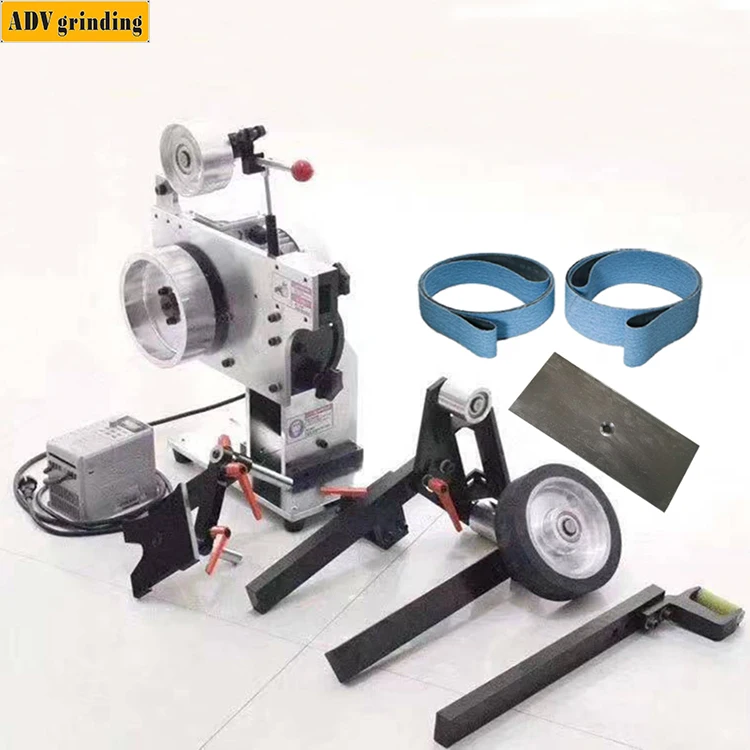

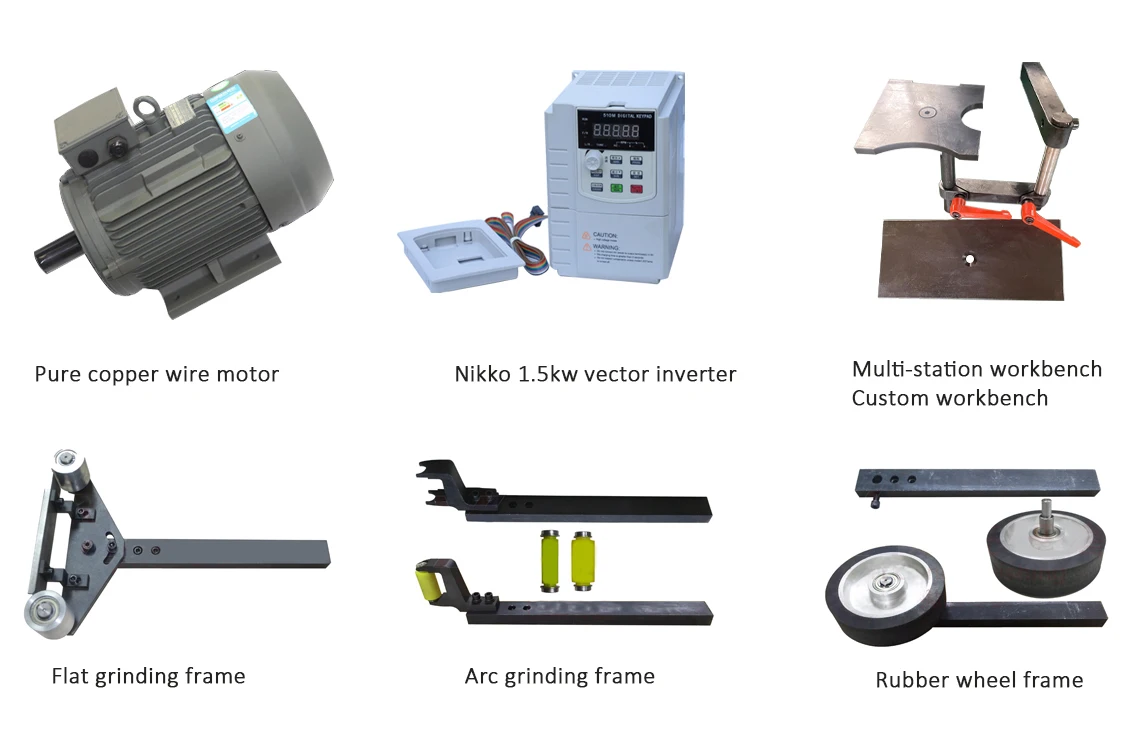

Accessories:
1.Pure copper wire motor
2.Nikko 1.5kw vector inverter
3.Multi-station workbench and custom workbench
4.Flat grinding frame
5.Arc grinding frame
6.Rubber wheel frame
3.Multi-station workbench and custom workbench
4.Flat grinding frame
5.Arc grinding frame
6.Rubber wheel frame
Available grinding wheel:
Flat grinding wheel
Arc grinding wheel
Rubber grinding wheel
Machine Application
Application materials
ADV 116-1 belt sander is suitable for stainless steel, steel, aluminium, copper, wood, etc.
ADV 116-1 belt sander is suitable for stainless steel, steel, aluminium, copper, wood, etc.
Application products:
Perfect for grinding different kinds of small items, such as knife, spoons, forks, mobile phone shell, watch, small
decoration,ect.
Perfect for grinding different kinds of small items, such as knife, spoons, forks, mobile phone shell, watch, small
decoration,ect.
Application scenarios:
We Support FREE Testing Samples for Customers
If you have any questions about the ADV 116-1 belt grinder machine or other related questions, please contact us without hesitation.
If you have any questions about the ADV 116-1 belt grinder machine or other related questions, please contact us without hesitation.
Company Profile
Hefei Zhongtong Polishing machine Co.,Ltd
Located in Hefei, we enjoy convenient access to major transportation networks. Our company covers an area of 2400 square meters. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Established in 1970s, Hefei Zhongtong Polishing Machine Co,Ltd specializes in the business of polishing machines, polishing processing and metal processing machine. Our main product is tank polishing machine,seal head polishing machine,dished head polishing machine,aluminum polishing machine,tank and seal head polishng machine,stainless steel polishing machine,kitchen ware polishing machine,automatic polishing machine,self-automatic polishing machine,plane polishing machine,round pipe polishing machine,square pipe polishing machine,elbow pipe polishing machine,sand belts polishing machine,mini polishing machine,polishing wheel polishing machine,metal polishing machine,low invest business polishing machine,hand-push polishing machine,mirror polishing machine and so on!
* About ADV 116-1 Belt Sander Quality Control
1, All-round quality control in the procurement process, all components used famous brands
2, All machines can be traced back to the production batch, which is convenient for quality control and after-sales.
3, Round after round of testing before delivery to ensure that the machines arrived without any possibility of problems.
2, All machines can be traced back to the production batch, which is convenient for quality control and after-sales.
3, Round after round of testing before delivery to ensure that the machines arrived without any possibility of problems.
Packing&Delivery
Ports
Shanghai Port / Ningbo Port / Customer Demand
Our Services
1, Overseas after-sales service is available.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
Our overseas service photo show:
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
Our overseas service photo show:
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
please tell me your requirements, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
please tell me your requirements, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
