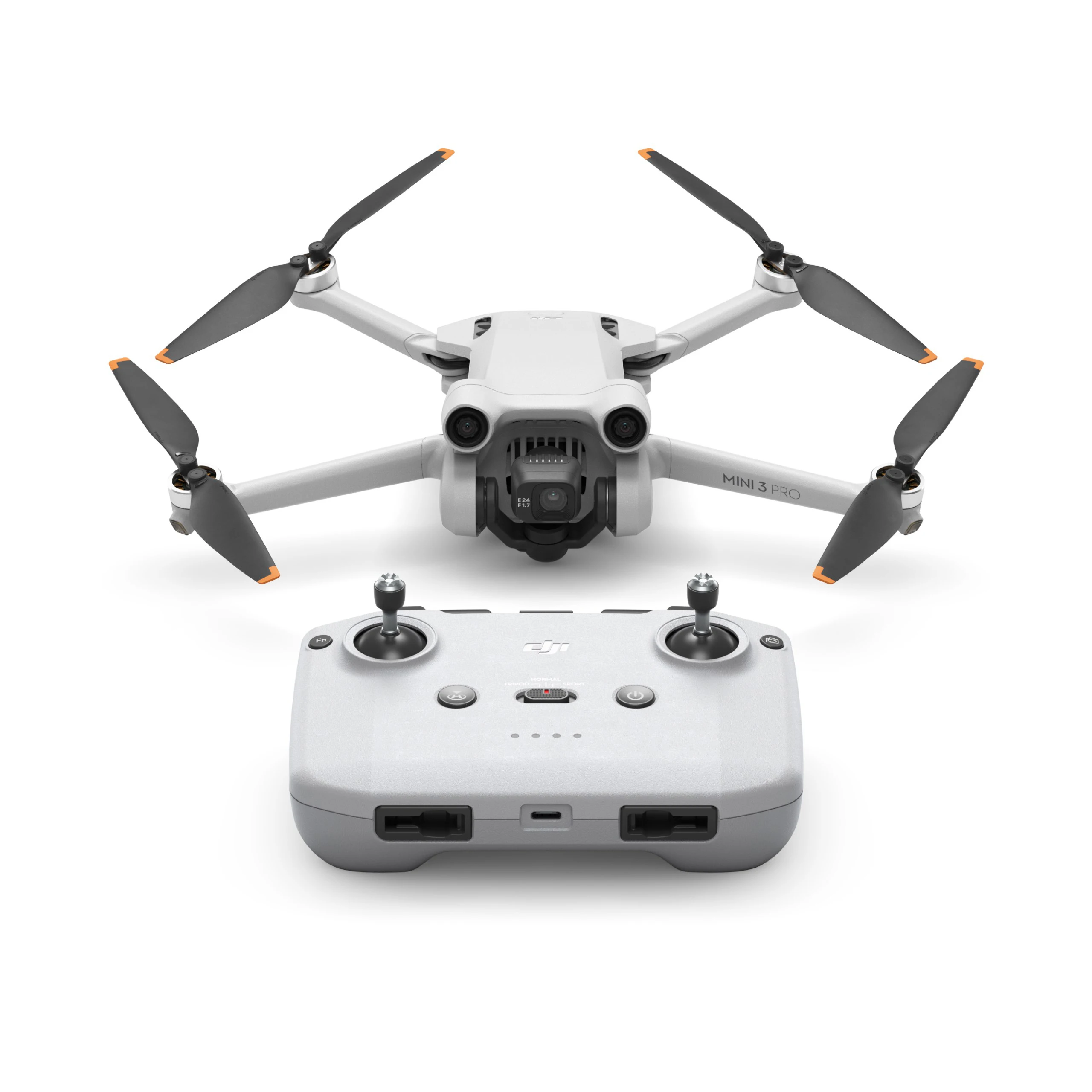

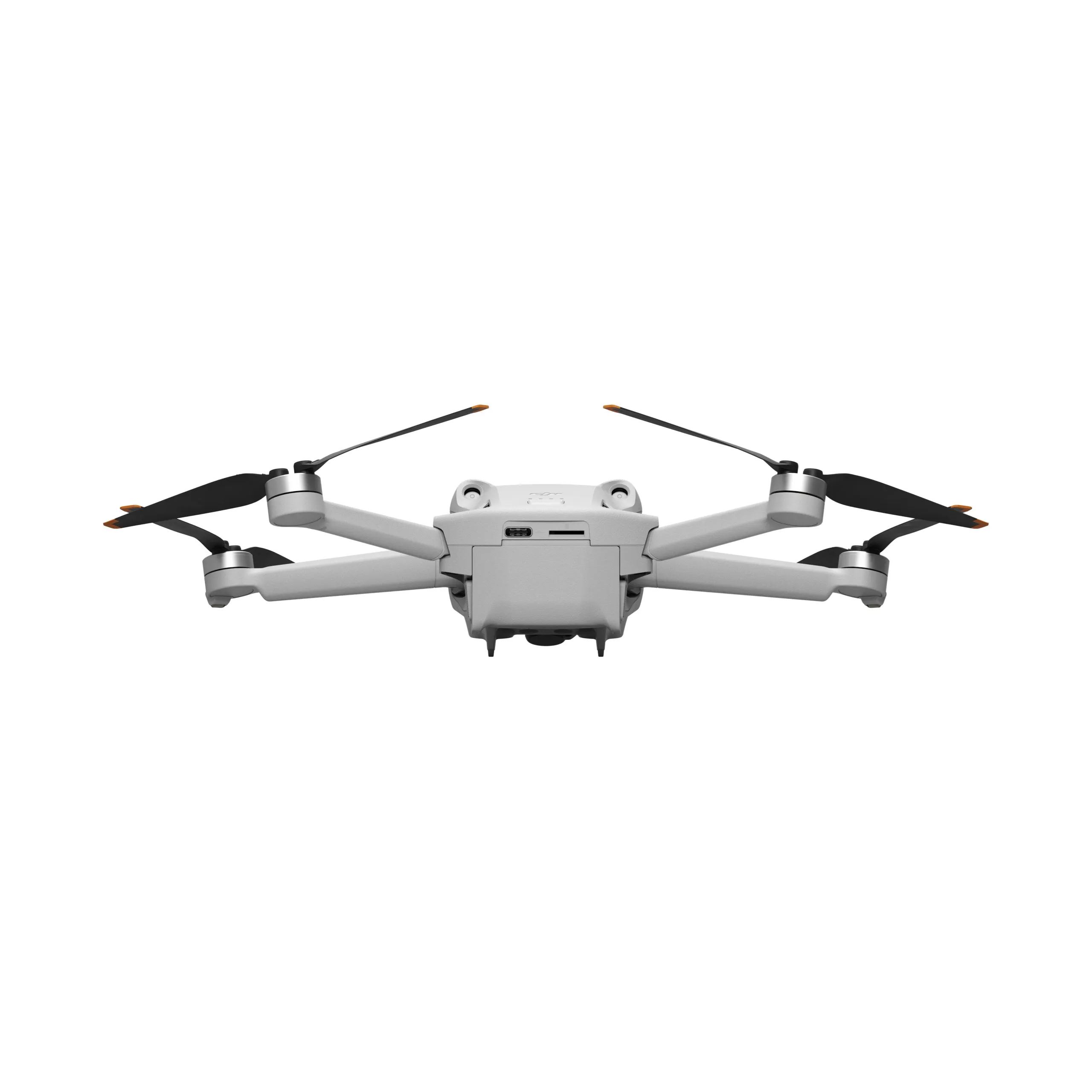

Original Mini 3 Pro Drone with 4K Camera Tri Directional Obstacle Sensing for DJI MINI 3 PRO drone

Share on (1600520717737):


Price:

Quantity:


Product Overview

Description


Original Mini 3 Pro Drone with 4K Camera Tri-Directional Obstacle Sensing for DJI MINI 3 PRO drone







Specs:








Aircraft




  • Takeoff Weight




  • <249 g [1]





  • Dimensions (L×W×H)




  • Folded: 145×90×62 mm
    Unfolded: 171×245×62 mm
    Unfolded (with propellers): 251×362×70 mm





  • Diagonal Length




  • 247 mm





  • Max Ascent Speed




  • 5 m/s (S Mode)
    3 m/s (N Mode)
    2 m/s (C Mode)





  • Max Descent Speed




  • 5 m/s (S Mode)
    3 m/s (N Mode)
    1.5 m/s (C Mode)





  • Max Speed
    (at sea level, no wind) [2]




  • 16 m/s (S Mode)
    10 m/s (N Mode)
    6 m/s (C Mode)





  • Max Service Ceiling Above Sea Level




  • With Intelligent Flight Battery: 4000 m
    With Intelligent Flight Battery Plus [7]: 3000 m [3]

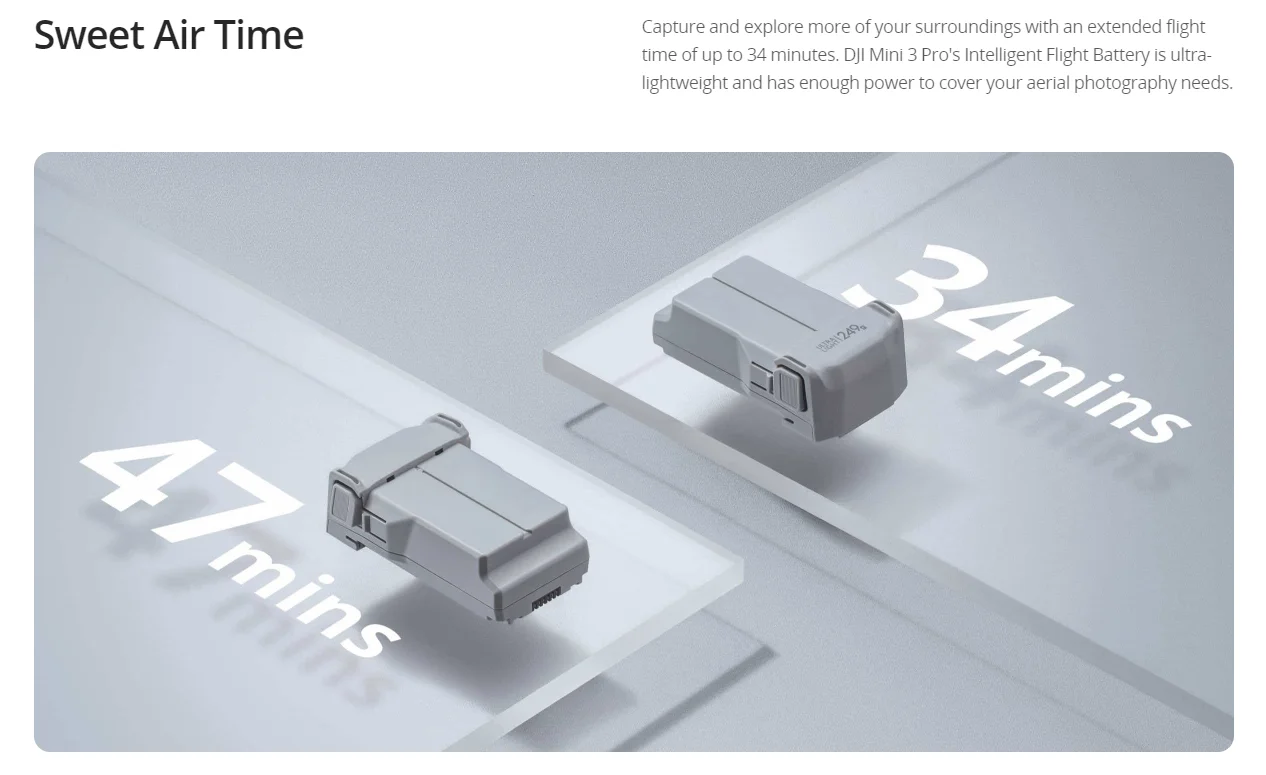

  • Max Flight Time




  • 34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions)
    47 mins (with Intelligent Flight Battery Plus [7] and measured while flying at 21.6 kph in windless conditions). Only available in select countries.





  • Max Hovering Time




  • 30 mins (with Intelligent Flight Battery, no wind)
    40 mins (with Intelligent Flight Battery Plus [7], no wind)





  • Max Flight Distance




  • 18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions)
    25 km (with Intelligent Flight Battery Plus [7] and measured while flying at 43.2 kph in windless conditions)





  • Max Wind Speed Resistance




  • 10.7 m/s (Level 5)





  • Max Tilt Angle




  • Forward: 40°, Backward: 35° (S Mode)
    25° (N Mode)
    25° (C Mode)





  • Max Angular Velocity (by default)*




  • 130°/s (S Mode)
    * Can be adjusted between 20°/s and 250°/s in the app

    75°/s (N Mode)
    * Can be adjusted between 20°/s and 120°/s in the app

    30°/s (C Mode)
    * Can be adjusted between 20°/s and 60°/s in the app





  • Operating Temperature




  • -10° to 40° C





  • Global Navigation Satellite System (GNSS)




  • GPS + Galileo + BeiDou





  • Operation Frequency




  • 2.400-2.4835 GHz
    5.725-5.850 GHz [4]





  • Transmitter Power (EIRP)




  • 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)





  • Hovering Accuracy Range




  • Vertical:
    ±0.1 m (with vision positioning)
    ±0.5 m (with GNSS positioning)

    Horizontal:
    ±0.3 m (with vision positioning)
    ±0.5 m (with high-precision positioning system)





Sensing System




  • Forward




  • Precision Measurement Range: 0.39-25 m
    Effective Sensing Speed: Flight speed <10 m/s
    FOV: Horizontal 106°, Vertical 90°





  • Backward




  • Precision Measurement Range: 0.36-23.4 m
    Effective Sensing Speed: Flight speed <10 m/s
    FOV: Horizontal 58°, Vertical 73°





  • Downward




  • Precision Measurement Range: 0.15-9 m
    Precise Hovering Range: 0.5-12 m
    Vision Sensor Hovering Range: 0.5-30 m
    Effective Sensing Speed: Flight speed <3 m/s
    FOV: Forward/Backward 104.8°, Left/Right 87.6°





  • Auxiliary Bottom Light




  • N/A





  • Operating Environment




  • Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement)
    Adequate lighting (lux >15, e.g. , normal exposure environment with indoor fluorescent lamp)





Gimbal




  • Mechanical Range




  • Tilt: -135° to 80°
    Roll: -135° to 45°
    Pan: -30° to 30°





  • Controllable Range




  • Tilt: -90° to 60°
    Roll: -90° or 0°





  • Stabilization




  • 3-axis mechanical gimbal (tilt, roll, and pan)





  • Max Control Speed (tilt)




  • 100°/s





  • Angular Vibration Range




  • ±0.01°





Camera




  • Sensor




  • 1/1.3-inch CMOS
    Effective Pixels: 48 MP





  • Lens




  • FOV: 82.1°
    Format Equivalent: 24 mm
    Aperture: f/1.7
    Focus Range: 1 m to ∞





  • ISO Range




  • Video: 100-6400 (Auto), 100-6400 (Manual)
    Photo: 100-6400 (Auto), 100-6400 (Manual)





  • Shutter Speed




  • Electronic Shutter: 2-1/8000 s





  • Max Image Size




  • 4:3: 8064×6048 (48 MP), 4032×3024 (12 MP)
    16:9: 4032×2268 (12 MP)





  • Still Photography Modes




  • Single Shot

    Interval:
    JPEG: 2/3/5/7/10/15/20/30/60 s
    JPEG + RAW: 2/3/5/7/10/15/20/30/60 s

    Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 2/3 EV Bias

    Panorama: Sphere, 180°, Wide-angle, and Vertical





  • Photo Format




  • JPEG/DNG (RAW)





  • Video Resolution




  • 4K: 3840×2160@24/25/30/48/50/60fps
    2.7K: 2720×1530@24/25/30/48/50/60fps
    FHD: 1920×1080@24/25/30/48/50/60fps
    Slow Motion: 1920×1080@120fps





  • HDR Mode




  • Photo: HDR supported in Single Shot mode
    Video: HDR supported when shooting at 24/25/30fps





  • Video Format




  • MP4/MOV (H.264/H.265)





  • Max Video Bitrate




  • 150 Mbps





  • Zoom Range




  • 4K: 2x
    2.7K: 3x
    FHD: 4x





  • QuickShot Modes




  • Dronie, Helix, Rocket, Circle, Boomerang, and Asteroid





  • Color Profiles




  • Normal
    D-Cinelike





  • Supported File System




  • FAT32 (≤32 GB)
    exFAT (>32 GB)






Features:





  • Weighs Less than 249 g

  • Tri-Directional Obstacle Sensing (Forward/Backward/Downward)

  • Record Up to 4K/60fps Video and 4K/30fps HDR Video

  • 34-min Max Flight Time

  • True Vertical Shooting

  • FocusTrack (ActiveTrack, Spotlight, and Point of Interest)

  • MasterShots

  • Timelapse











Shipping:


We can send it by Express(DHL/FedEx/UPS/TNT),  air transportation,  sea and land transportation.
