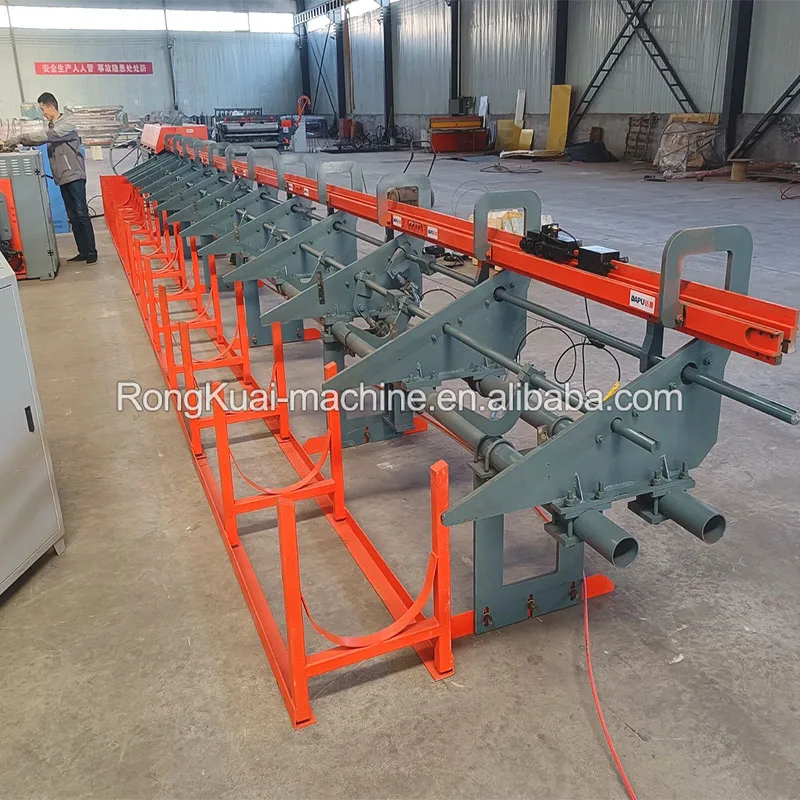

Ribbed wire cold rolling wire drawing machine
- Category: >>>
- Supplier: Hebei Rongkuai Machinery Manufacturing Co. Ltd.
Share on (1600520885993):
Product Overview
Description
Cold rolled steel bar three ribbed making machine
This production line is used to make a ribbed bar from a diameter of 5-13mm. The finished product has 3 ribs, which were widely used on building construction, bridge support, road base, and other engineering projects.
Technical Parameters
Technical Parameters
| Model | LZ-20000T |
Speed | Max.120m/min |
Max. inlet Diameter | 6-13.5mm |
Rolling specifications | 5-12mm |
Speed | Max.120m/min |
Motor capacity | 55KW*2 |
Mode of adjustment | Speed Inverter |
Wire spool | 1000KGS/bundle |
Total weight | 4.5T |
Installation length | 16m |
Product Advantage
Product Advantage

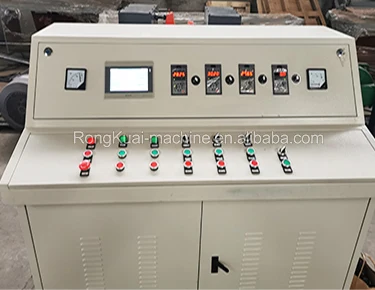

 | Adopt PLC+ touch screen numerical control system to make the operation easier and a higher degree of CNC. |

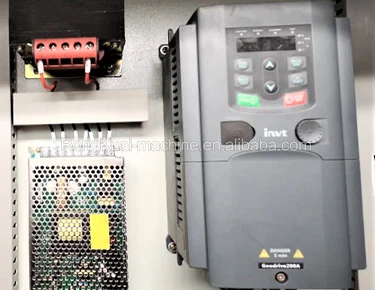

Advanced frequency inverter technology. Can reduce power consumption 8-10 degrees per ton, the line speed of up to 120 meters. Better protect electrical equipment and extend the service life |  |

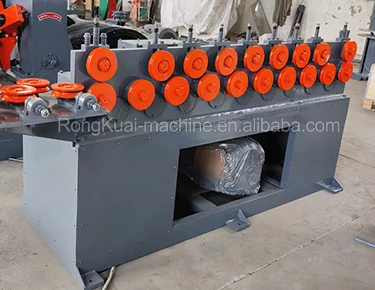

 | The straightening machine adopts multiple rounds of synchronous control technology. The Straightening effect is good. Less damage to steel bars. |
Adopts independent research and development of variable frequency or servo flying shear control system. Easy to operate. The high degree of CNC, low failure rate, cut-off error low. |  |

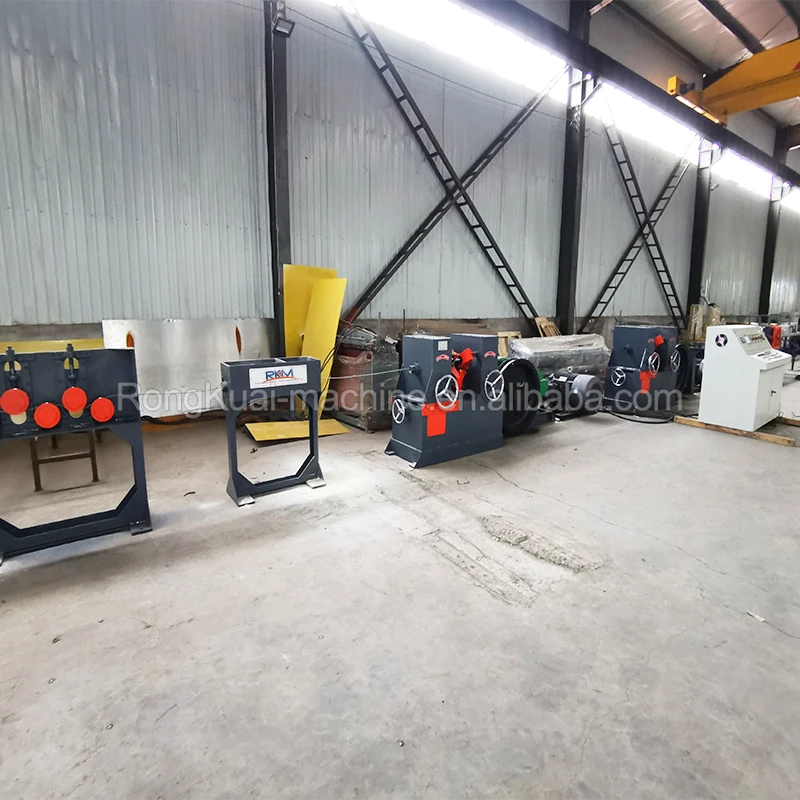

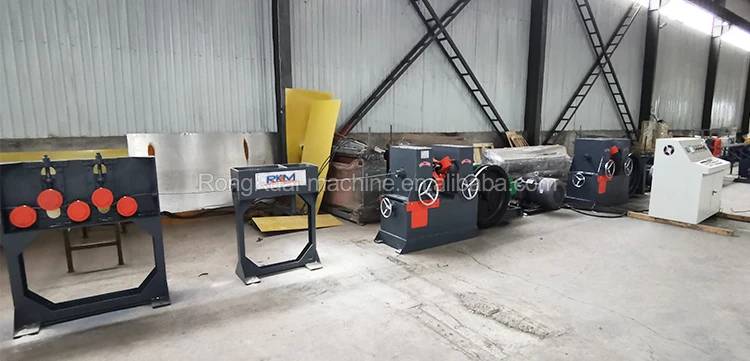

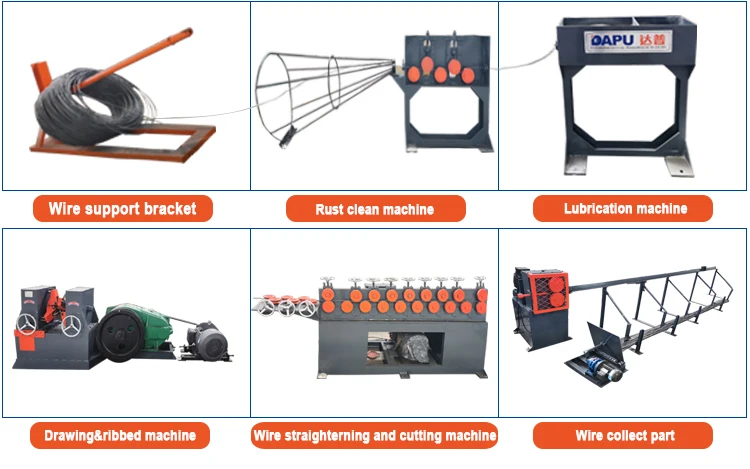

Auxiliary Equipment
Auxiliary Equipment
1. Wire support bracket: Maximum load 2T.

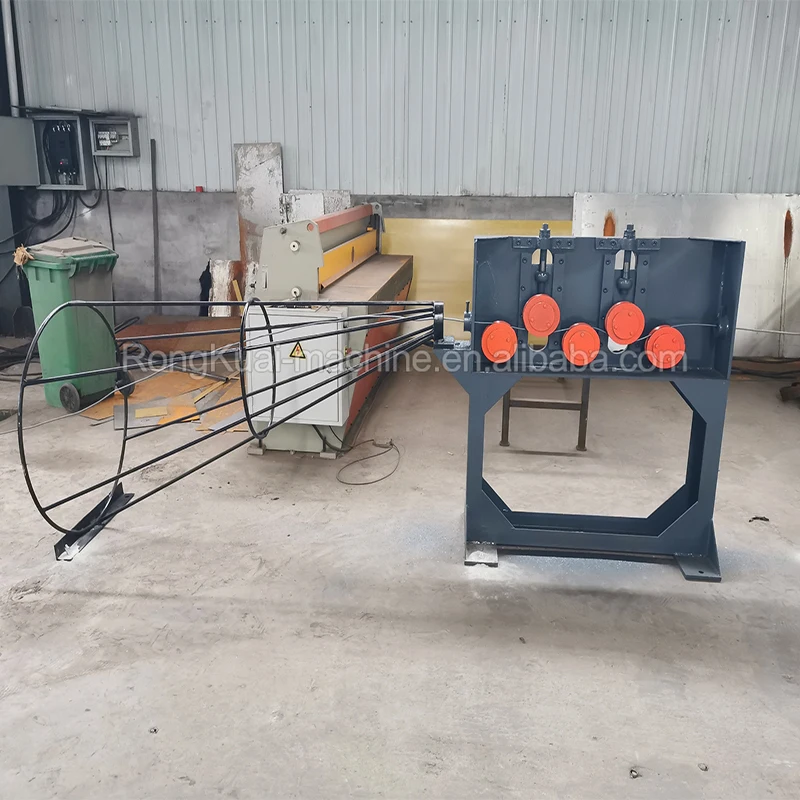

2. Rust clean machine: Remove rust on the surface of steel bars.
3. Lubrication machine: Wire drawing powder inside, recyclable under the barrel. It is to lubricate die to decrease damage on wire and dies.

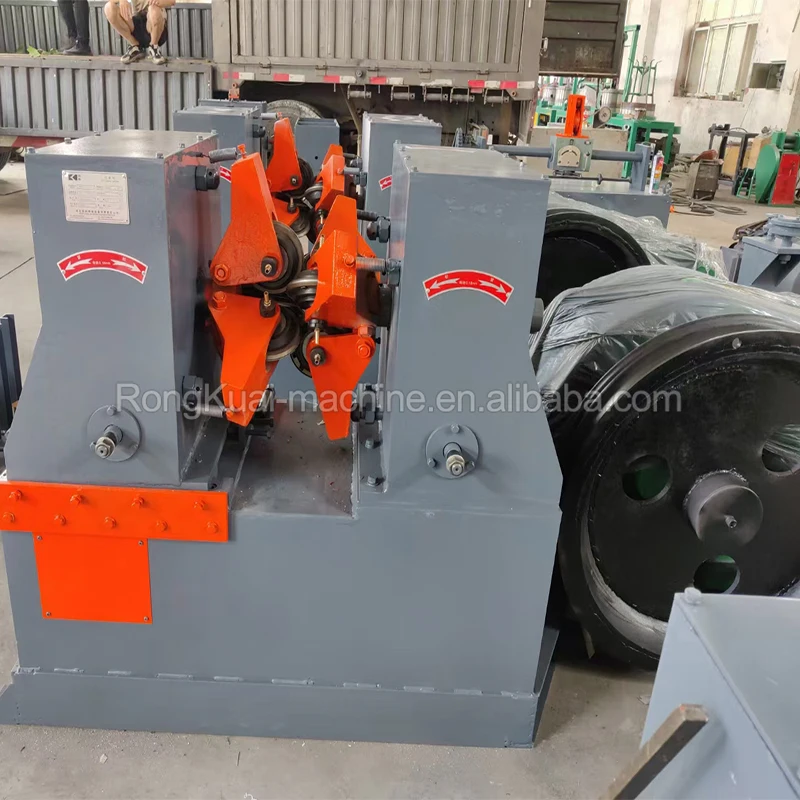

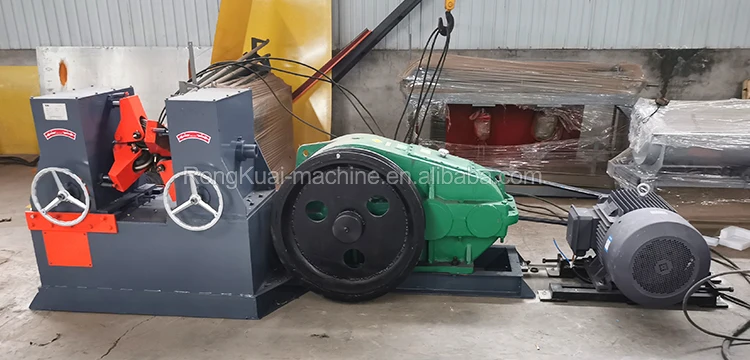

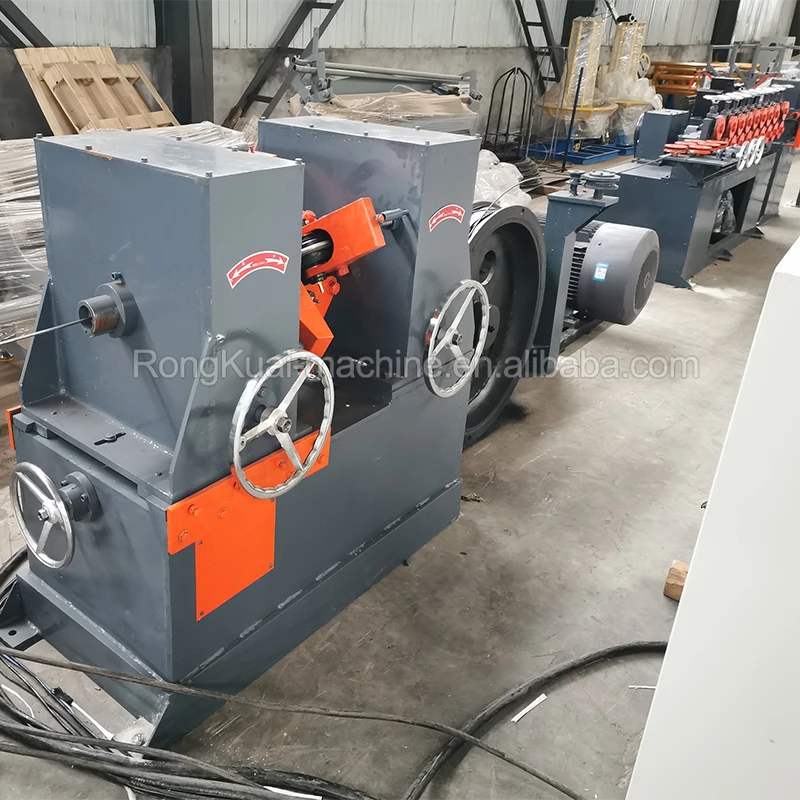

4. Drawing&ribbed machine: Divided into two parts. The first rolling mill is mainly for reducing the diameter, The second set of rolling mill is for making the rebar.

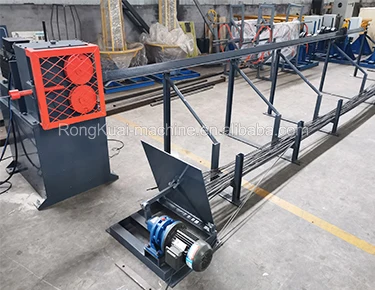

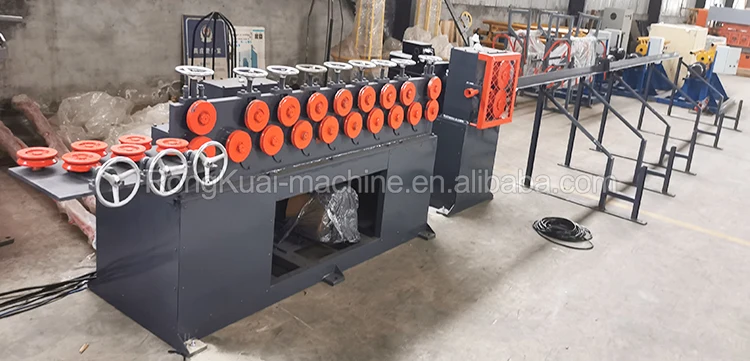

5. Wire straightening and cutting machine: speed max.120m/min.
6. Wire collect part: 1-6M/ 1-12M.

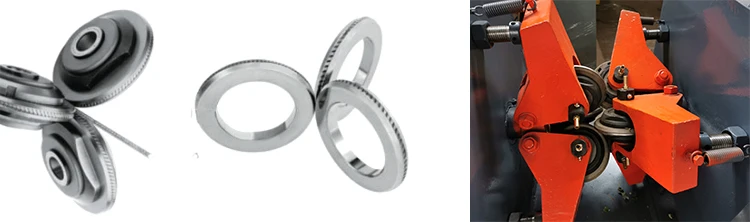

Ribbed Wheels
Ribbed Wheels

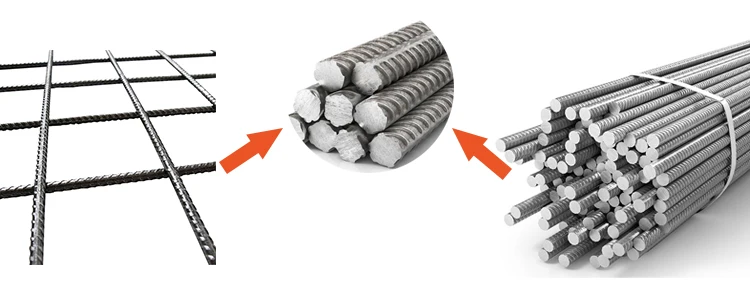

Finished Product
Finished Product
Our Clients
Our Clients
After-sales Service
After-sales Service
1. We can provide detailed installation videos, Manuals, electrical schemes, layouts to help your machine installation.
2. Our best engineer to buyer’s factory for installation, debugging, and training.
3. We can provide online after-sales service is available.
4. We can provide free accessories for one year.
Packing & Shipping
Packing & Shipping
Certification
Certification
| CE Certification | ISO Certification | Report for a qualified evaluation | Patent |
 | |||
| Appearance design patent certificate | Single circuit mechanism of welding electrode patent certificate | Horizontal wire trimming device patent certificate | Pneumatic diameter wire tightening device patent certificate |
RongKuai Factory
RongKuai Factory
Hebei Rongkuai Machinery Manufacturing Co., Ltd is a factory of more than two thousand square meters located in Anping County, Hengshui City, Hebei Province, we are famous for welding speed. We focus on high-
quality production of machinery, the best welding technology, and the fastest welding speed importing foreign brand accessories, which has created our leader in the wire mesh machinery industry!
Main production machinery: Rebar mesh welding production line, chicken cage welding machine, welded mesh fence/flat machine, construction welded mesh machine, etc.
We hope to have the opportunity to establish good business relations with all friends who are interested in our products, and we look forward to your visit.
FAQ
FAQ
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in wire mesh machines?
A: More than 25 years. We have our technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have a lot of experience in exporting. And we can supply the CE certificate, Form-E, passport, SGS report, etc, your customs clearance will be no problem.
