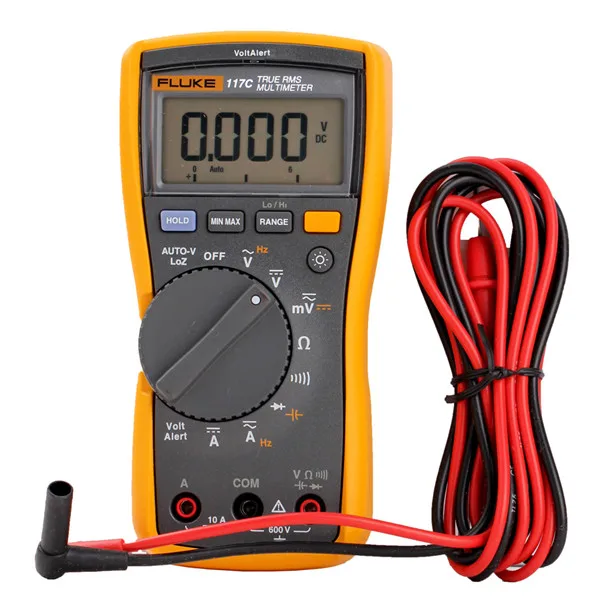

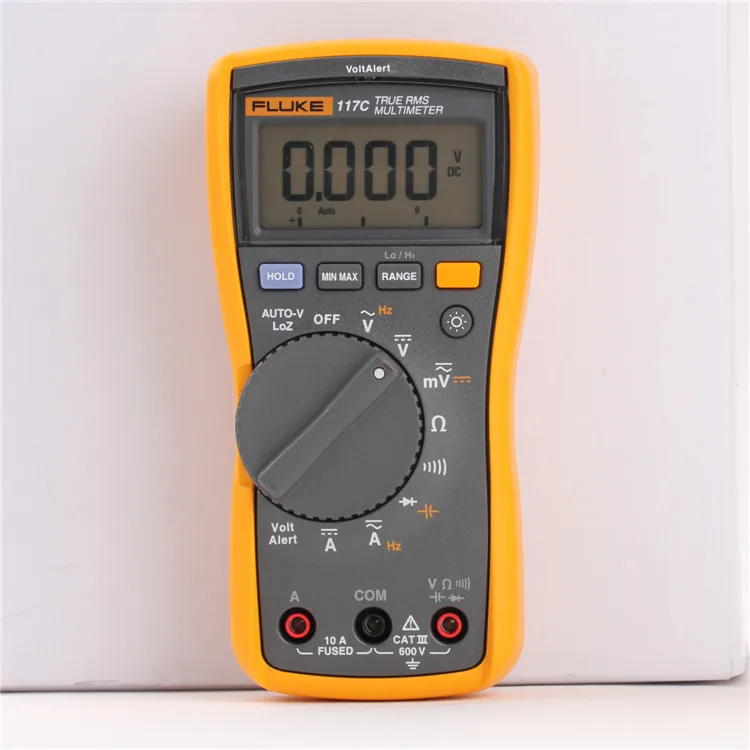

550g Weight Three years Warranty Fluke 117C AutoVolt automatic ac/dc voltage selection HVAC Multimeter

Product Overview

Description

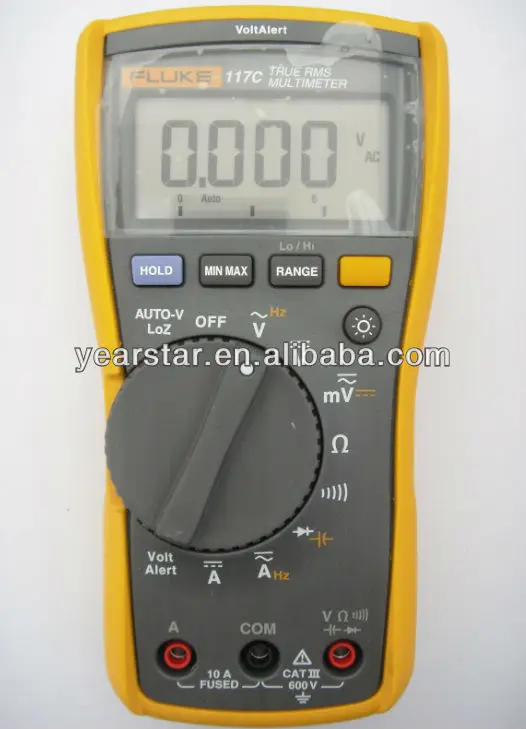

Fluke 117C HVAC Multimeter  :



*Maximum voltage:600 V
*Display 6,000 counts
*Bar graph 33 segments, updates 32 per second
*Ohms:600-40M Ohms
VoltAlert™ technology for non-contact voltage detection
AutoVolt automatic ac/dc voltage selection
Low input impedance: helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
True-rms for accurate measurements on non-linear loads
Measures 10 A (20 A overload for 30-seconds)
Resistance, continuity, frequency and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak™) for hands free operation
CAT III 600 V safety rated
• Power : 9V NEDA1604A/IEC6LR61
• Operation temperature:-10°C~ 50°C
• Storage temperature:-40°C ~60°C
• Dimension: 167*84*46mm
• Weight: 550g
• Warranty:  three years

------------------------------------------------------------------------

Feature:

Maximum voltage (between any terminal and earth ground)	600V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating Temperature	-10 °C to + 50 °C
Storage Temperature	-40 °C to + 60 °C
Battery type	9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life	400 hours typical, without backlight





Accuracy Specifications:



DC millivolts	range: 600.0mV Resolution: 0.1mV Accuracy: ±2.0%+3Lsd
DC Volts	range/Resolution: 6.000V/0.001V range/Resolution: 60.00V/0.01V range/Resolution: 600.00V/0.1V Accuracy: ±0.5%+2Lsd
Auto Volts	range: 600.0V Resolution: 0.1V Accuracy: ±2.0%+3Lsd (dc, 45Hz ~ 500Hz)            ±4.0%+3Lsd (500Hz ~ 1kHz)
AC millivolts true RMS	range: 600.0mV Resolution: 0.1mV Accuracy: ±1.0%+3Lsd (45Hz ~ 500Hz)            ±2.0%+3Lsd (500Hz ~ 1kHz)
AC volts true RMS	range/Resolution: 6.000V/0.001V range/Resolution: 60.00V/0.01V range/Resolution: 600.00V/0.1V Accuracy: ±1.0%+3Lsd (45Hz ~ 500Hz)            ±2.0%+3Lsd (500Hz ~ 1kHz)
Contiuity	range: 600 ohm Resolution: 1 ohm Accuracy: Beeper on <20 ohm, off >250 ohm; detects opens or shorts of 500 us or longer
Ohms	range/Resolution: 600.0 ohm/0.1 ohm range/Resolution: 6.00 kohm/0.001 kohm range/Resolution: 60.00 kohm/0.01 kohm range/Resolution: 600.0 kohm/0.1 kohm range/Resolution: 6.00 Mohm/0.001Mohm Accuracy: ±0.9%+1Lsd range/Resolution: 40.00Mkohm/0.01Mohm Accuracy: ±1.5%+2Lsd
Diode Test	Range/resolution: 2.000V/0.001V Accuracy: ±0.9%+2Lsd
Capacitance	range/Resolution: 1000 nF/1nF range/Resolution: 10.00 uF/0.01uF range/Resolution: 100.00 uF/0.1uF range/Resolution: 9999 uF/1uF range/Resolution: 100uF to 1000uF Accuracy: ±1.9%+2Lsd range/Resolution: >1000uF Accuracy: ±5.0%+20Lsd
Low input impedance	Range: 1nF to 500uF Accuracy: ±10%+2
AC current true RMS (45Hz ~ 500Hz)	Range/resoution: 6.000A/0.001A;10.00A/0.01A; Accuracy: ±1.5% + 3Lsd
DC Current	Range/resoution: 6.000A/0.001A;10.00A/0.01A; Accuracy: ±1.0% + 3Lsd
Frequency	range/Resolution: 99.99Hz/0.01 Hz range/Resolution: 999.99Hz/0.1 Hz range/Resolution: 9.99Hz/0.001 Hz range/Resolution: 50.00Hz/0.01 Hz Accuracy: ±0.1% + 2Lsd







------------------------------------------------------------------------































----------------------------------------------------------
